Triac 0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
100-277VAC
180W, 192W, 288W, 384W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2
·Built-in active PFC function
·Protections: short circuit, over load, over temperature
·Cooling by free air convection
·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function:
PWM & Voltage reduce (VR) mode can be switched (American Invention Patent)
Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers.
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
60W | KVE-12060-TMWJ | 12V | 1 x 5A | PF 0.98 | 188*95.4*42.7mm | 1.03kg |
KVE-24060-TMWJ | 24V | 1 x 2.5A | ||||
KVE-36060-TMWJ | 36V | 1 x 1.67 | ||||
KVE-48060-TMWJ | 48V | 1 x 1.25A | ||||
180W | KVE-C12180-TMWJ | 12V | 3 x 5A | PF 0.98 | 229*125*45mm | 2.15kg |
300W | KVE-C12300-TMWJ | 12V | 5 x 5A | PF 0.99 | 293*125*45mm | 2.37kg |
96W | KVE-24096-TMWJ | 24V | 1 x 4A | PF 0.98 | 188*95.4*42.7mm | 1.26kg |
KVE-36096-TMWJ | 36V | 1 x 2.67A | ||||
KVE-48096-TMWJ | 48V | 1 x 2A | ||||
192W | KVE-C24192-TMWJ | 24V | 2 x 4A | PF 0.99 | 229*125*45mm | 2.15kg |
KVE-C36192-TMWJ | 36V | 2 x 2.67A | ||||
KVE-C48192-TMWJ | 48V | 2 x 2A | ||||
288W | KVE-C24288-TMWJ | 24V | 3 x 4A | PF 0.99 | 293*125*45mm | 2.37kg |
KVE-C36288-TMWJ | 36V | 3 x 2.67A | ||||
KVE-C48288-TMWJ | 48V | 3 x 2A | ||||
384W | KVE-C24384-TMWJ | 24V | 4 x 4A | PF 0.99 | 325*140*48mm | 2.85kg |
KVE-C36384-TMWJ | 36V | 4 x 2.67A | ||||
KVE-C48384-TMWJ | 48V | 4 x 2A | ||||

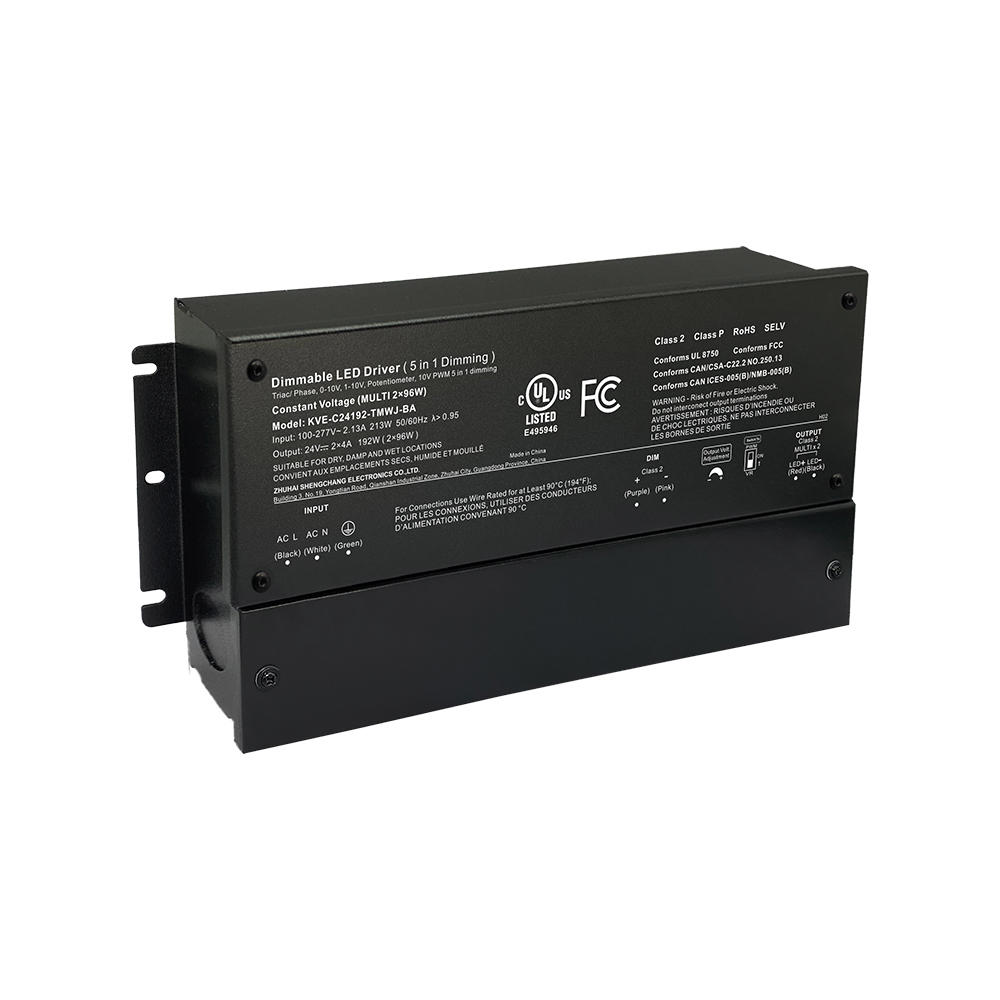

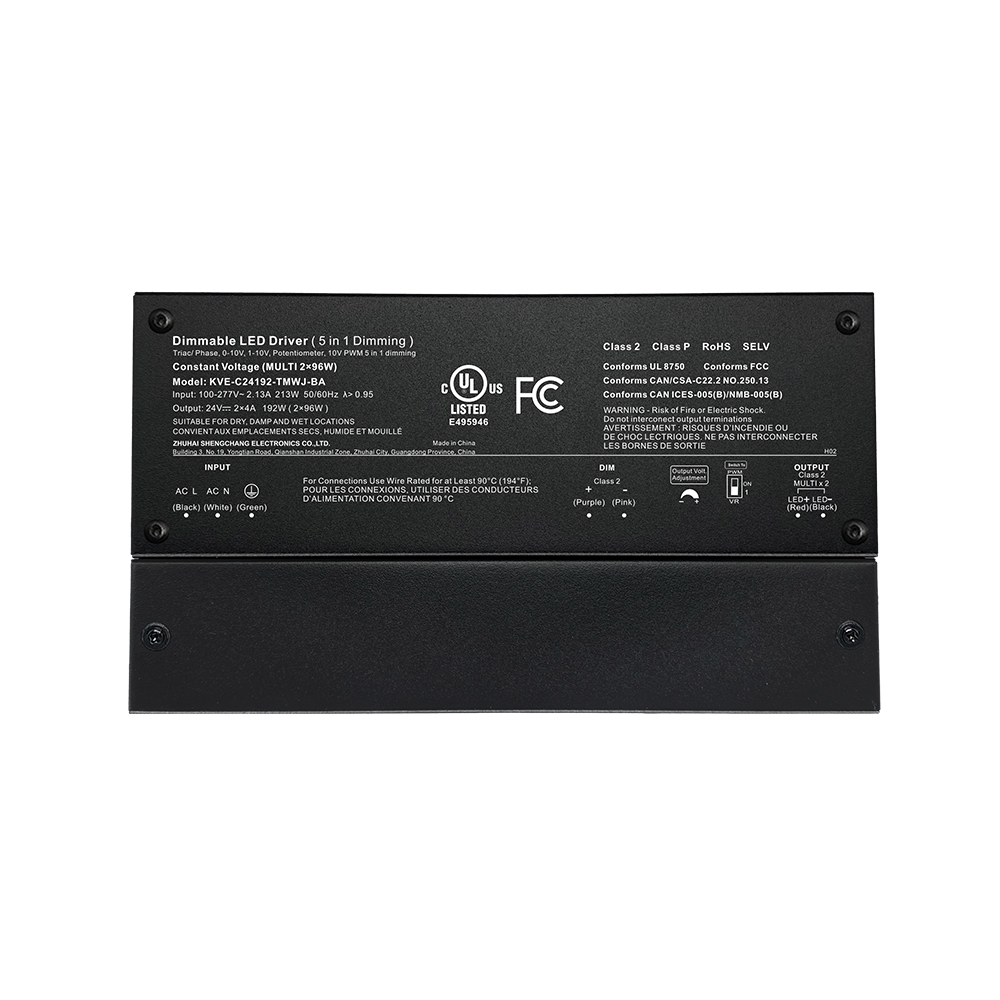

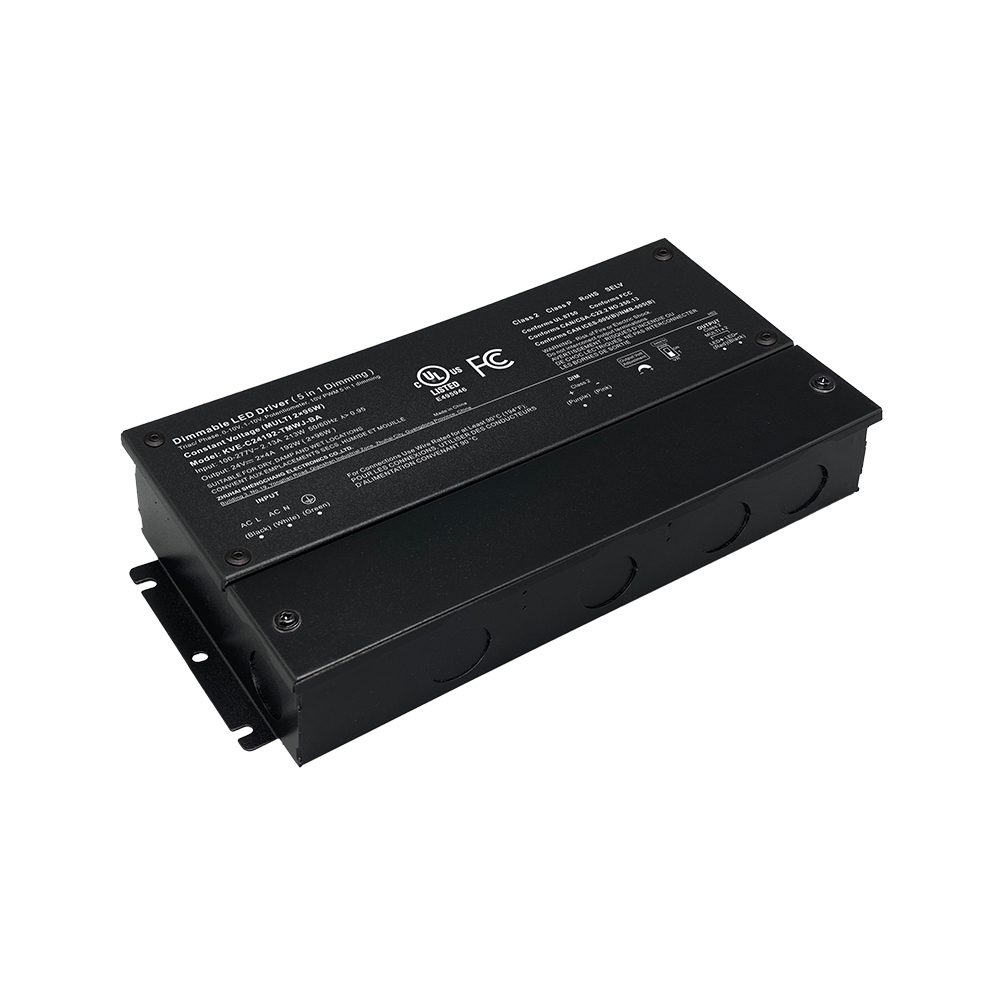

Introducing our Class 2 180W, 192W, 288W, and 300W Triac 0-10V Tunable Waterproof LED Drivers CV with Junction Box. These LED drivers are designed to provide reliable and efficient power to LED lights, ensuring optimal performance and longevity.
With a voltage range of 100-277V, these LED drivers are suitable for use in North America, making them a versatile and practical choice for a wide range of applications. The Triac 0-10V tunable feature allows for precise control over the brightness of the LED lights, providing flexibility and customization options to suit your specific lighting needs.
The waterproof design of these LED drivers ensures durability and protection against the elements, making them ideal for outdoor and industrial environments. The junction box provides a secure and convenient connection point for easy installation and maintenance.
Overall, our Class 2 180W, 192W, 288W, and 300W Triac 0-10V Tunable Waterproof LED Drivers CV with Junction Box offer a high-quality and reliable solution for powering LED lights in a variety of settings. Trust in our products to deliver superior performance and efficiency for your lighting needs.
