Triac 0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
100-277VAC
60W, 80W, 96W, 100W, 120W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2

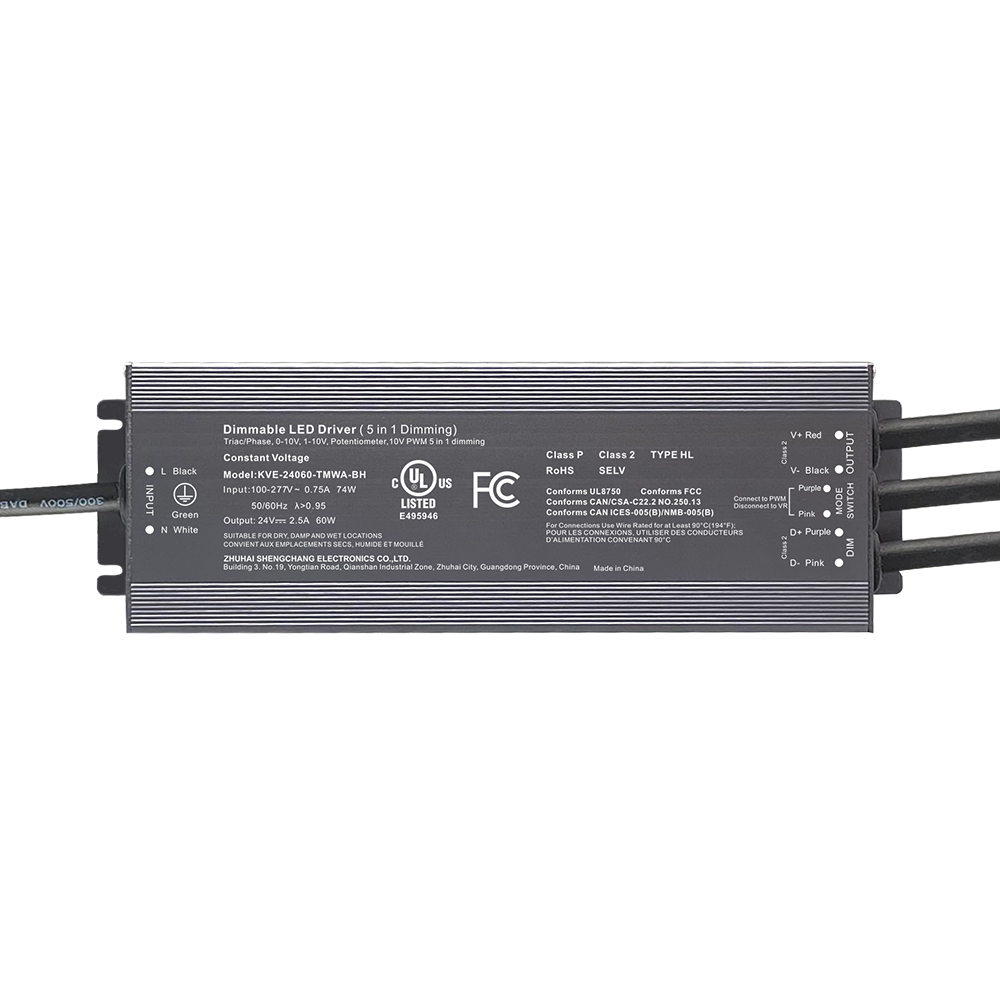

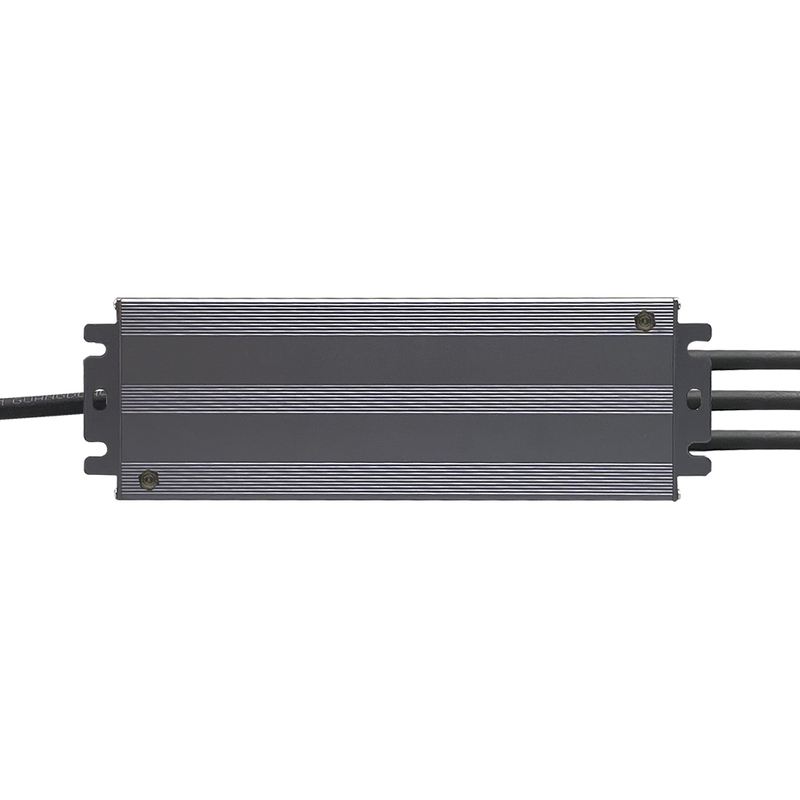

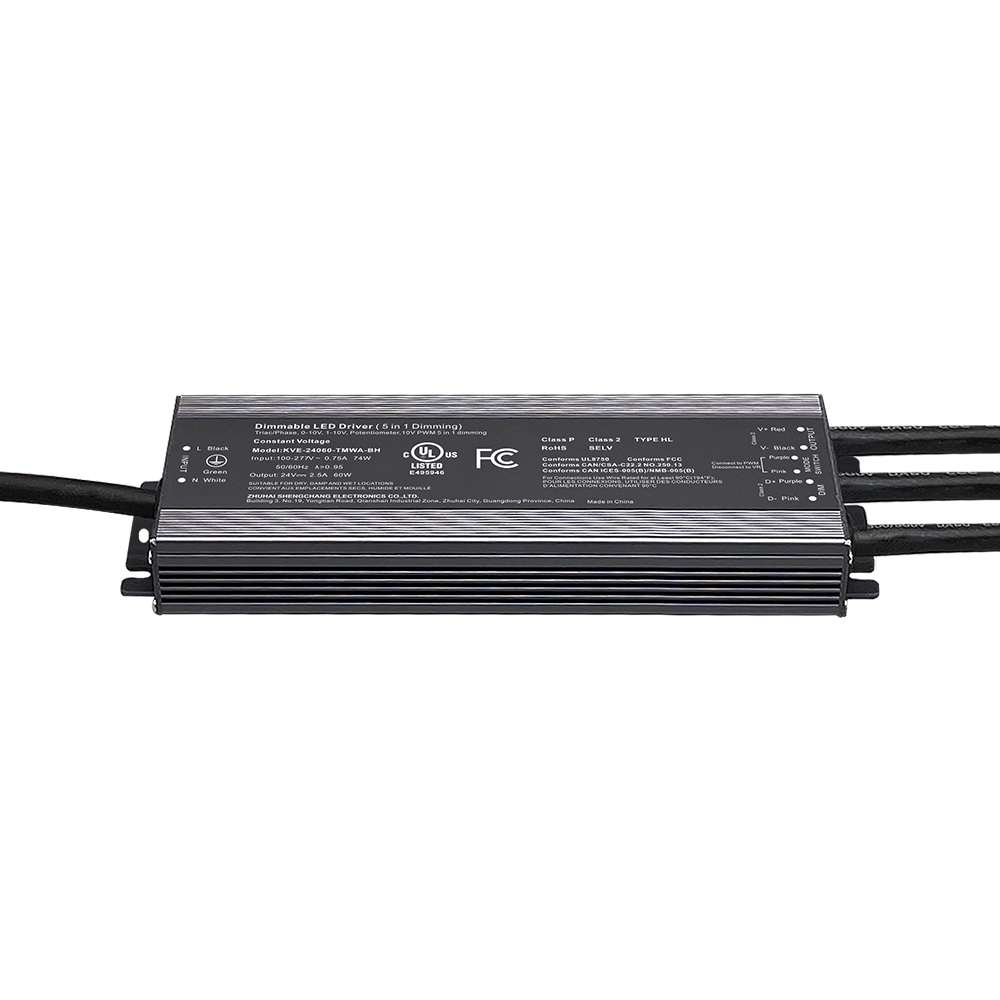

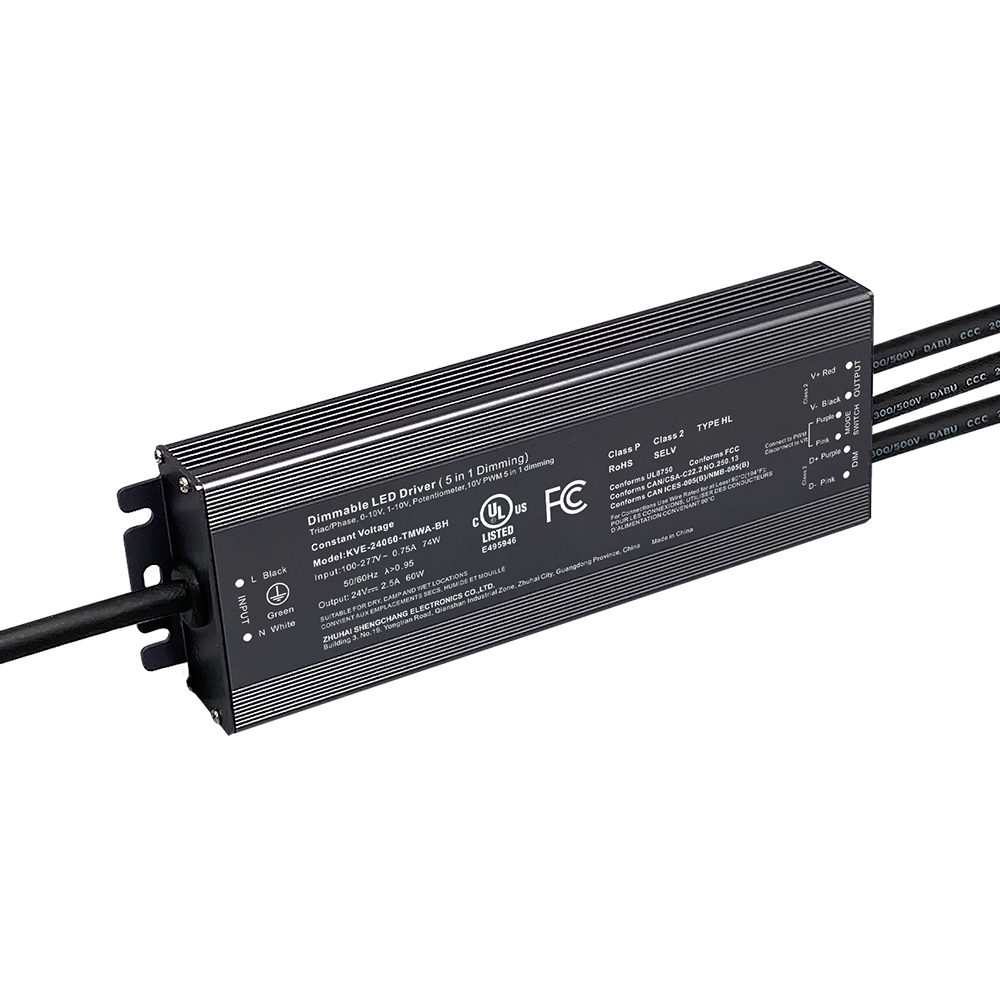

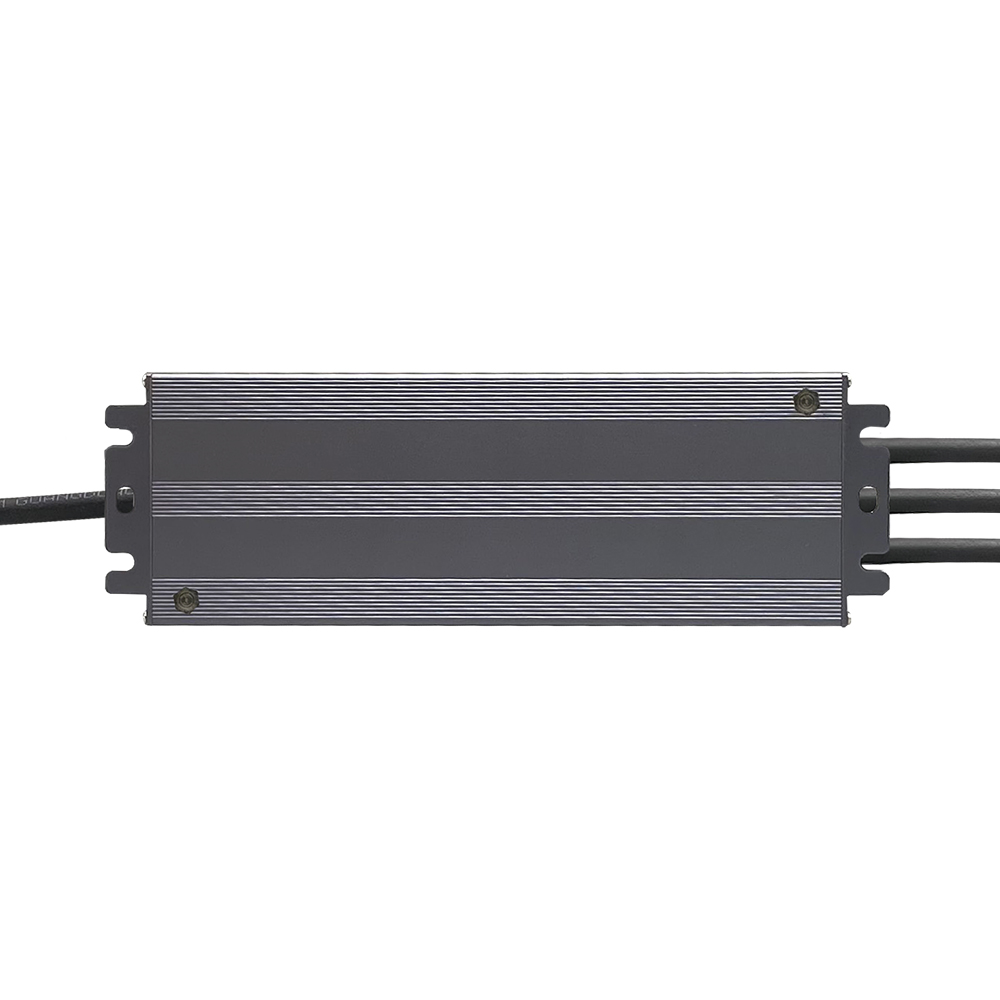

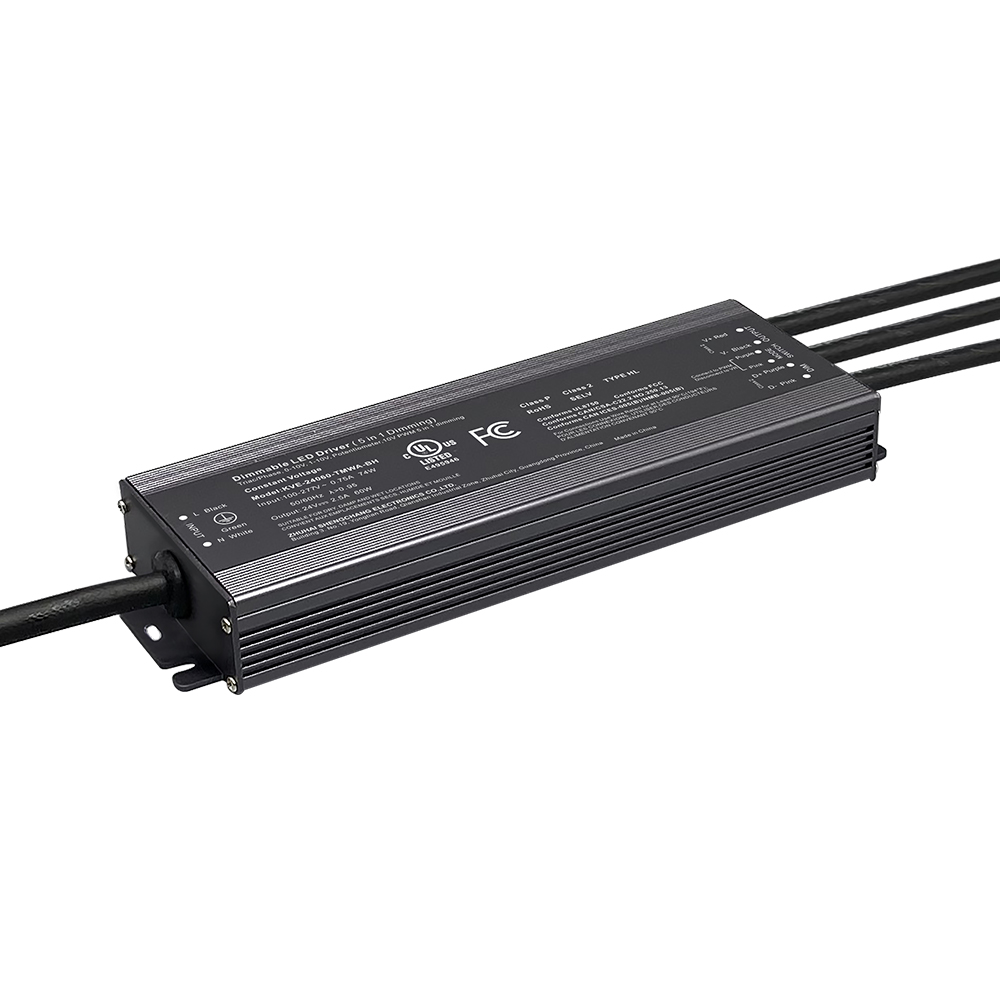

60W 80W 96W 100W 120W Triac 0-10V Tunable Waterproof LED Drivers CV 12v 24v 36v 48v dc output
·Built-in active PFC function
·Efficiency up to %
·Protections: short circuit, over load, over temperature
·Cooling by free air convection
·Full aluminum protection housing, for dry, damp & wet locations（US）
·Dimming function:
·Phase dimming: work with forward phase or leading edge, MLV and Reverse, phase trailing edge, ELV, TRIAC dimmers
·0-10V dimming: 0-10V, 1-10V, Potentiometer, and 10V PWM 4 in 1
·Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications

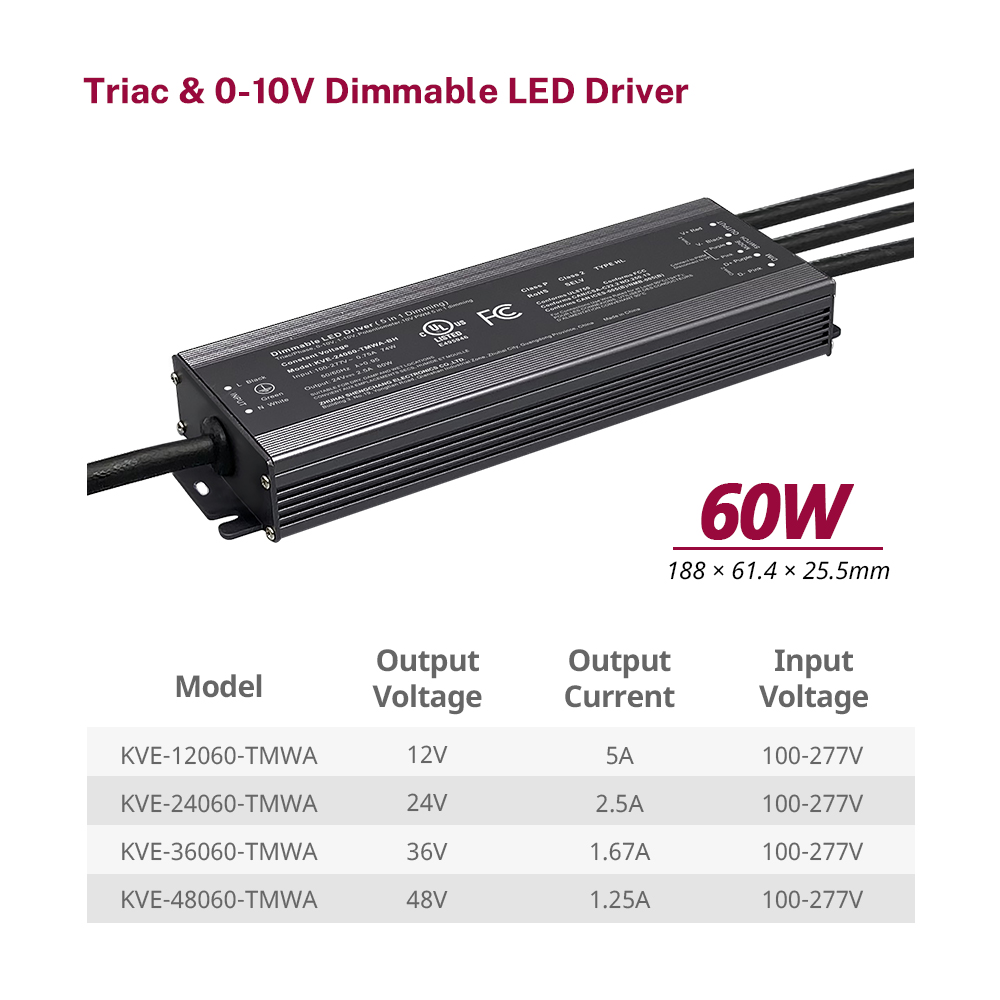

Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
60W | KVE-12060-TMWA | 12V | 5A | PF 0.98 | 188*61.4*25.5mm | kg |
KVE-24060-TMWA | 24V | 2.5A | ||||
KVE-36060-TMWA | 36V | 1.67 | ||||
KVE-48060-TMWA | 48V | 1.25A | ||||
80W | KVE-12080-TMWA | 12V | 6.66A | PF 0.98 | ||
KVE-24080-TMWA | 24V | 3.34A | ||||
KVE-36080-TMWA | 36V | 2.22A | ||||
KVE-48080-TMWA | 48V | 1.67A | ||||
96W | KVE-24096-TMWA | 24V | 4A | PF 0.98 | ||
KVE-36096-TMWA | 36V | 2.67A | ||||
KVE-48096-TMWA | 48V | 2A | ||||
100W | KVE-12100-TMWA | 12V | 8.34A | PF 0.99 | ||
KVE-24100-TMWA | 24V | 4.17A | ||||
KVE-36100-TMWA | 36V | 2.78A | ||||
KVE-48100-TMWA | 48V | 2.09A | ||||
120W | KVE-12120-TMWA | 12V | 10A | PF 0.99 | ||
KVE-24120-TMWA | 24V | 5A | ||||
KVE-36120-TMWA | 36V | 3.33A | ||||
KVE-48120-TMWA | 48V | 2.5A |
Our 60W, 80W, 96W, 100W, and 120W Triac 0-10V Tunable Waterproof LED Drivers are the perfect solution for powering LED lighting systems. With constant voltage (CV) outputs of 12v, 24v, 36v, and 48v DC, these drivers are versatile and can be used in a variety of applications.
Designed for LED lighting, these drivers provide reliable and efficient power to ensure optimal performance of your lighting system. The Triac 0-10V dimming feature allows for precise control over the brightness of your LEDs, giving you the flexibility to create the perfect lighting environment.
The waterproof design of these drivers makes them suitable for both indoor and outdoor use, providing protection against moisture and ensuring long-lasting durability. With a wide range of wattages available, you can choose the driver that best suits your specific lighting needs.
Trust in our Triac 0-10V Tunable Waterproof LED Drivers to provide the power and performance you need for your LED lighting projects. Upgrade to a more efficient and reliable lighting solution with our high-quality LED drivers.
