30W 60W 100W Constant Current Class2 Dimming Driver + Dimmer 2 in 1 of 300mA to 2630mA

Specification

Model Number	Output Power	Output Voltage	Output Current	Channels
SDD-CL030CC-DIM (Class2）	30W	6-50V	300-1050mA	1CH (Dimming)
SDD-CL060CC-DIM (Class2）	60W	6-50V	600-2100mA
SDD-CL100CC-DIM (Class2）	100W	6-50V	800-2630mA

Advantage

Features
Output:	Constant Current
Input Range:	100-120VAC
PFC design:	Built-in active PFC function
Protections:	Open circuit / Short circuit / Over temperature / Over load
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry and damp locations  (US)
Design features:	1. Precise current. Small and exquisite. High PF.  2. Preset dimmer with on/off switch 3. 3-Way switches 4. Dimming and color temperature adjustment function. 5. Eliminated compatibility issues between drivers and switches
Dimming range:	0.35%-100%
Application:	Suitable for the application of LED lighting
Warranty:	5 years warranty

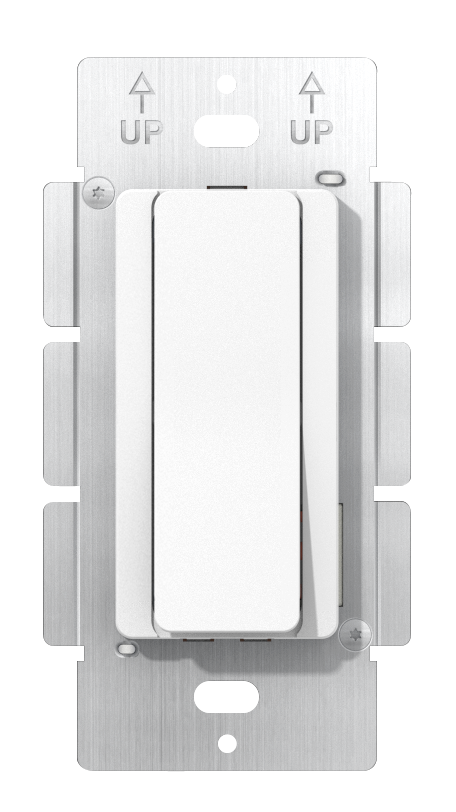

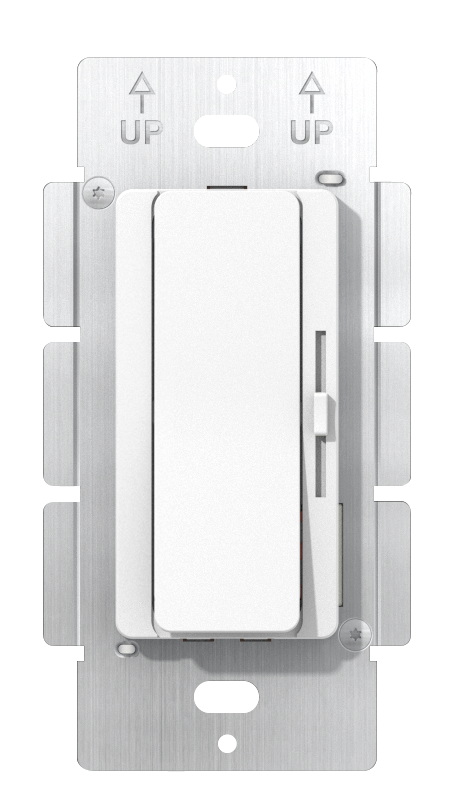

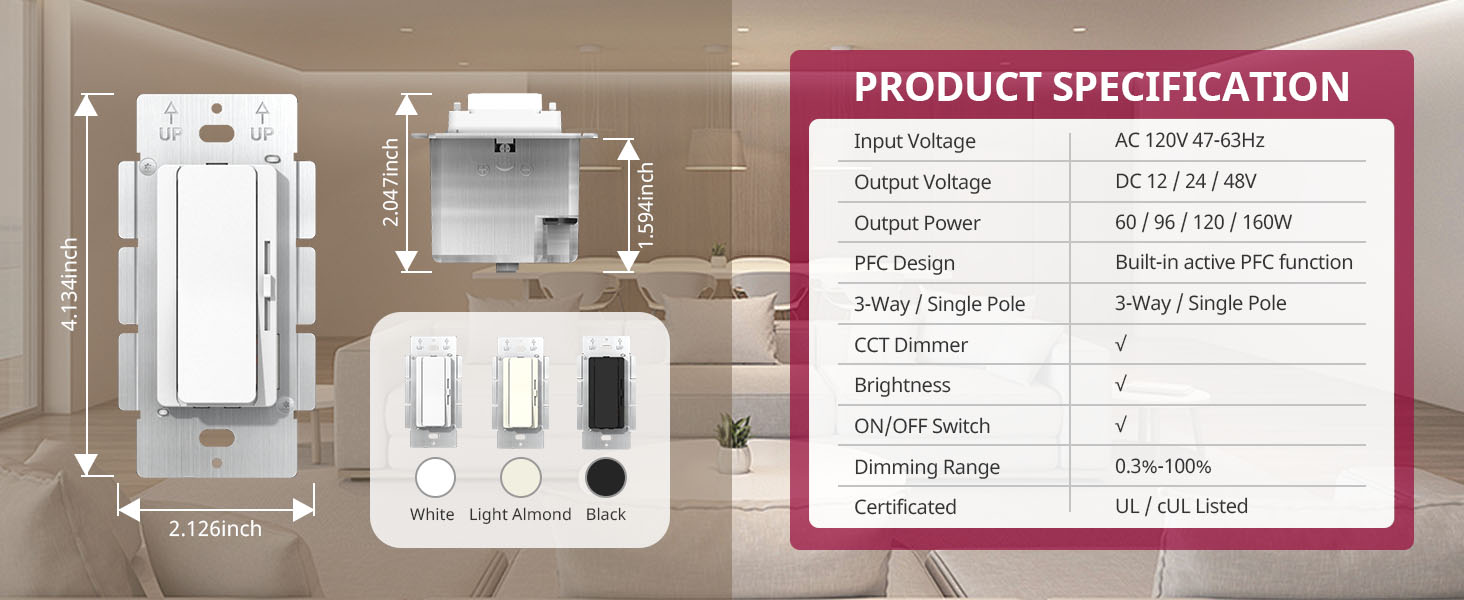

duct Mode		SDD-CCT		SDD-DIM		SDD-ND
Built in LED Driver		CCT LED Driver+Dimmer 2 in 1		Dimming LED Driver+Dimmer 2 in 1		On/Off LED Driver
CCT Dimmer		√		×		×
Brightness		√		√		×
ON/OFF Switch		√		√		√
Input Voltage		120V 60Hz		120V 60Hz		120V 60Hz
Output Voltage		12/24/48V		12/24/48V		12/24/48V
Output Power		60/96/120/160W		60/96/120/160W		60/96/120/160W
3-Way/single Pole		3-Way / Single Pole		3-Way / Single Pole		3-Way / Single Pole
Certificated		UL/cUL Listed		UL/cUL Listed		UL/cUL Listed

30W 60W 100W Constant Current Class2 Dimming Driver + Dimmer 2 in 1 of 300mA to 2630mA

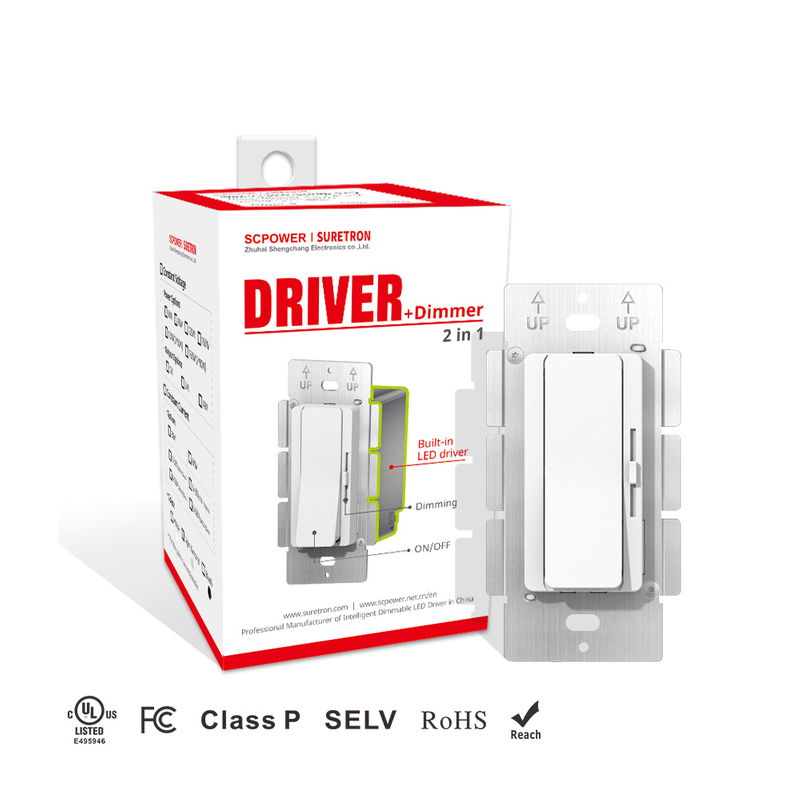

Driver + Dimmer 2-in-1: Comes complete with all parts for lightweight and simple installation – ready to use right out of the box.

Universal LED Fixture Compatibility: Our Driver + Dimmer 2-in-1 works with most LED lighting setups for easy, worry-free installation.

Available in 3 Colors: Choose from White, Almond, and Black to match your decor with our versatile Driver + Dimmer 2-in-1.

Suretron's 2-in-1 dimmable LED drivers are now produced in both China & Vietnam, ensuring stable supply and consistent quality worldwide.
