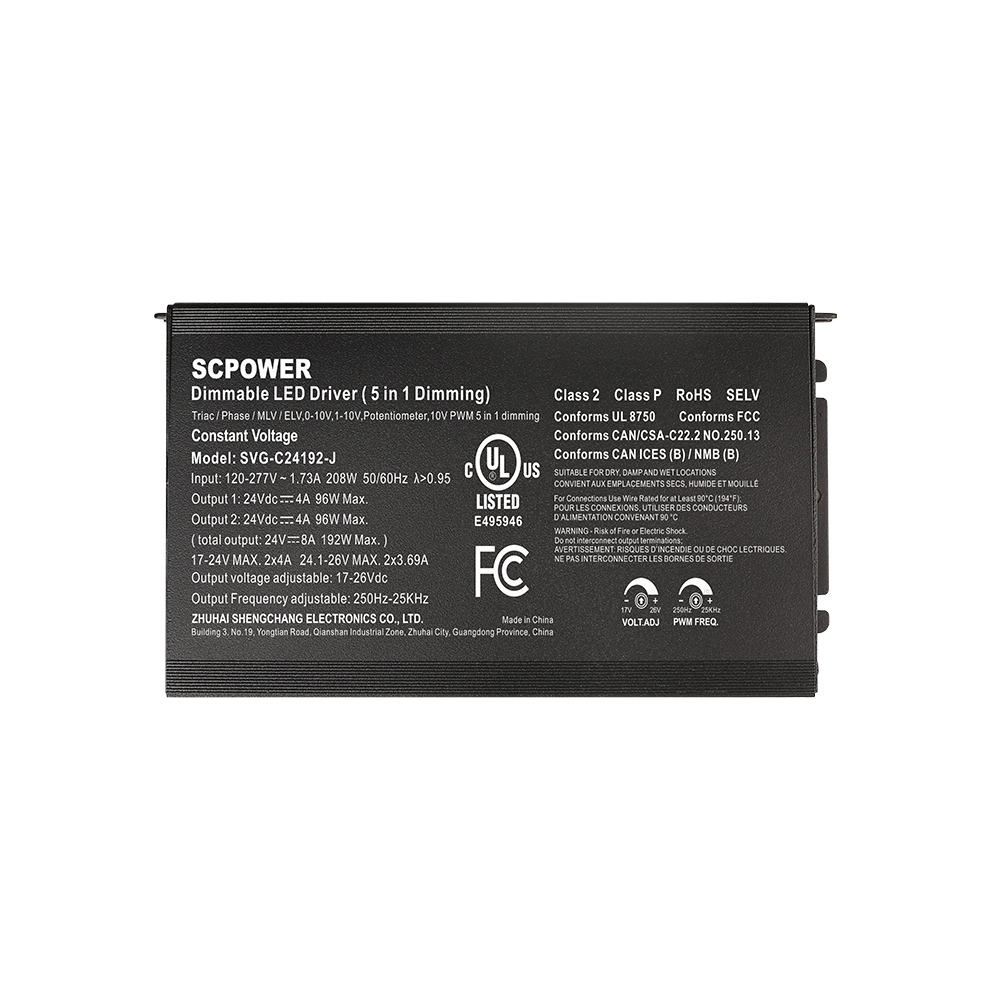

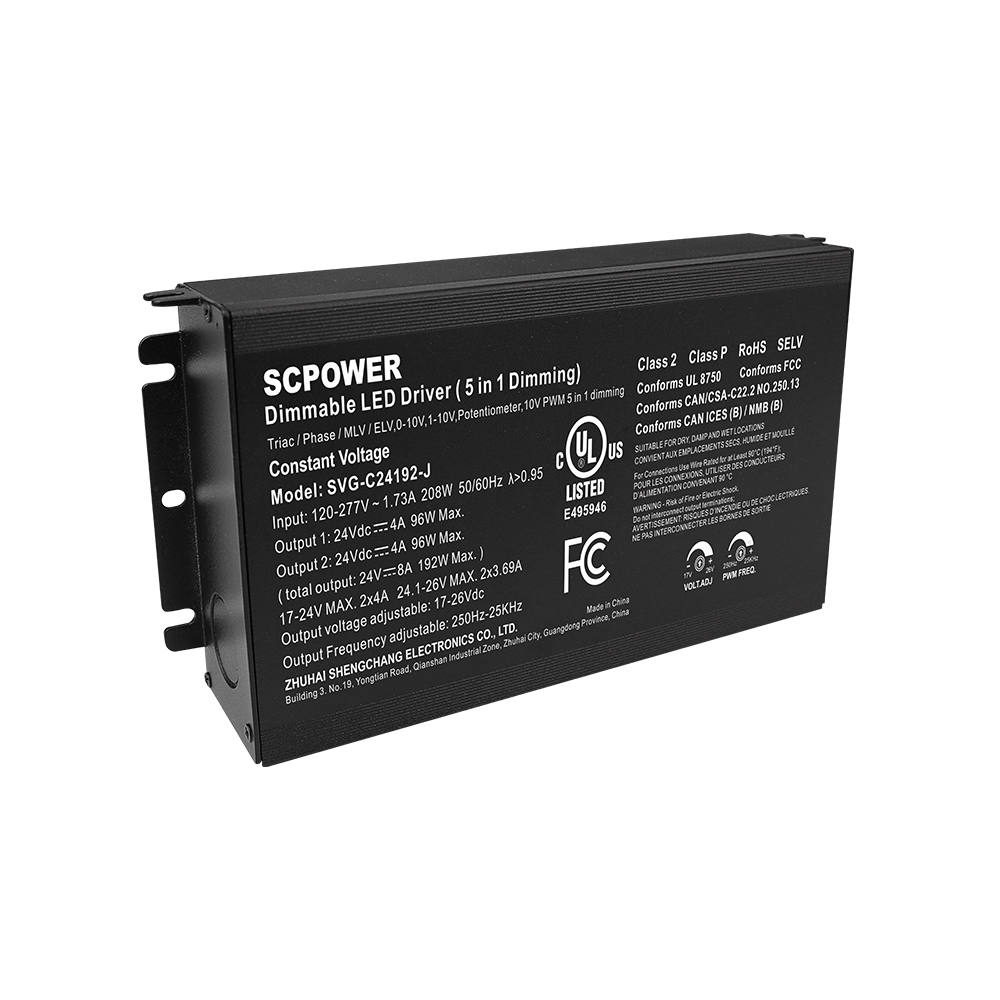

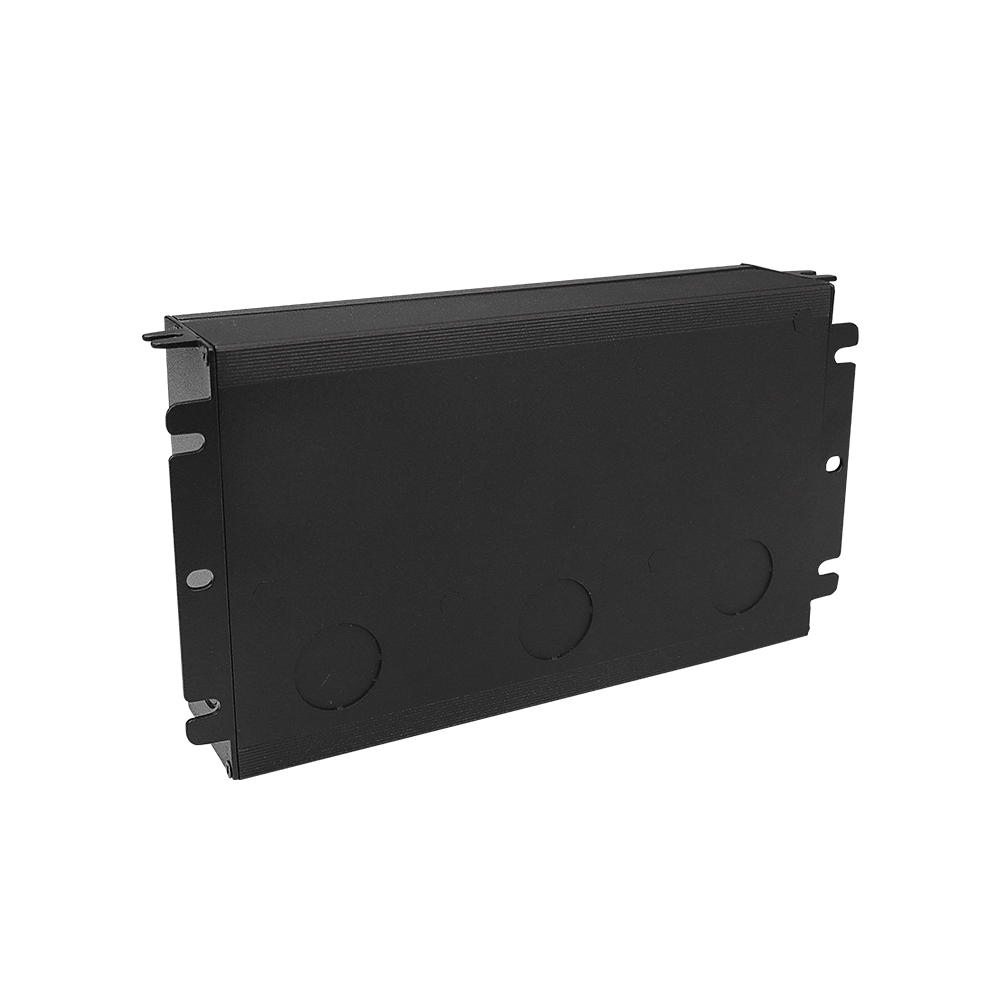

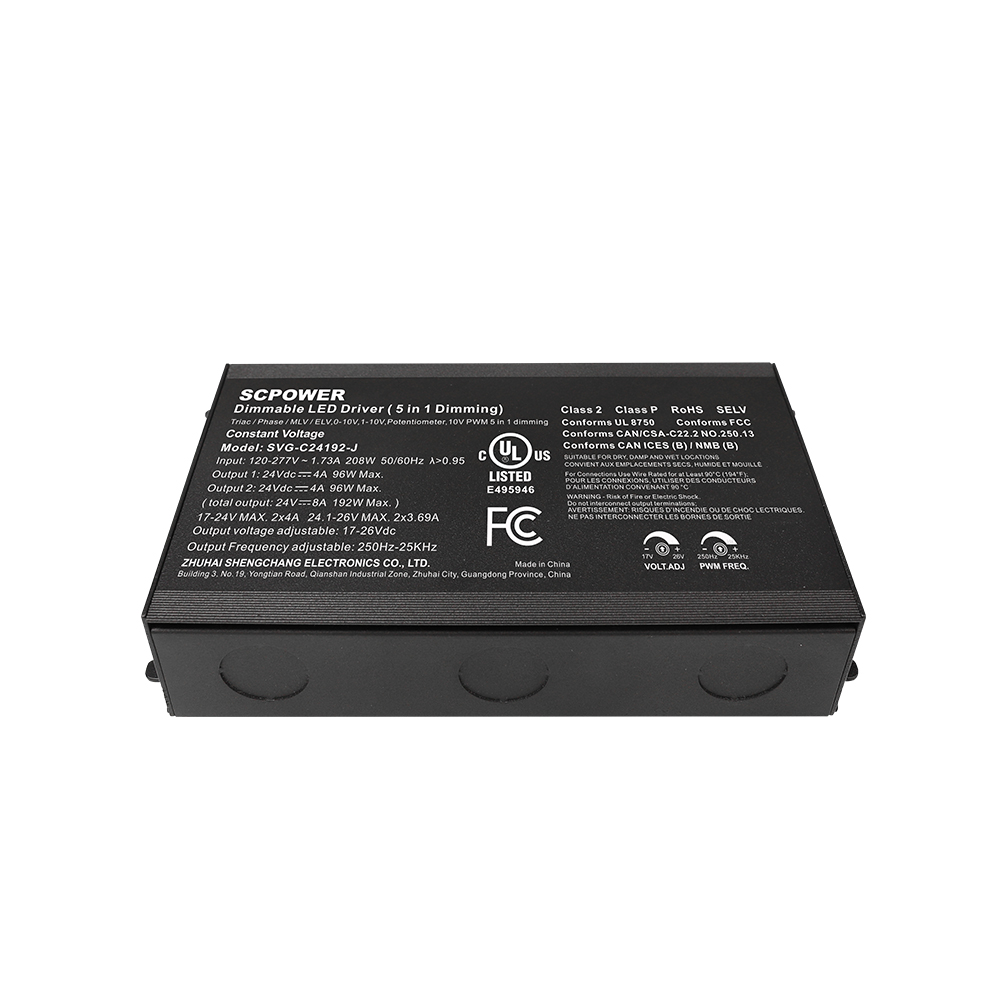

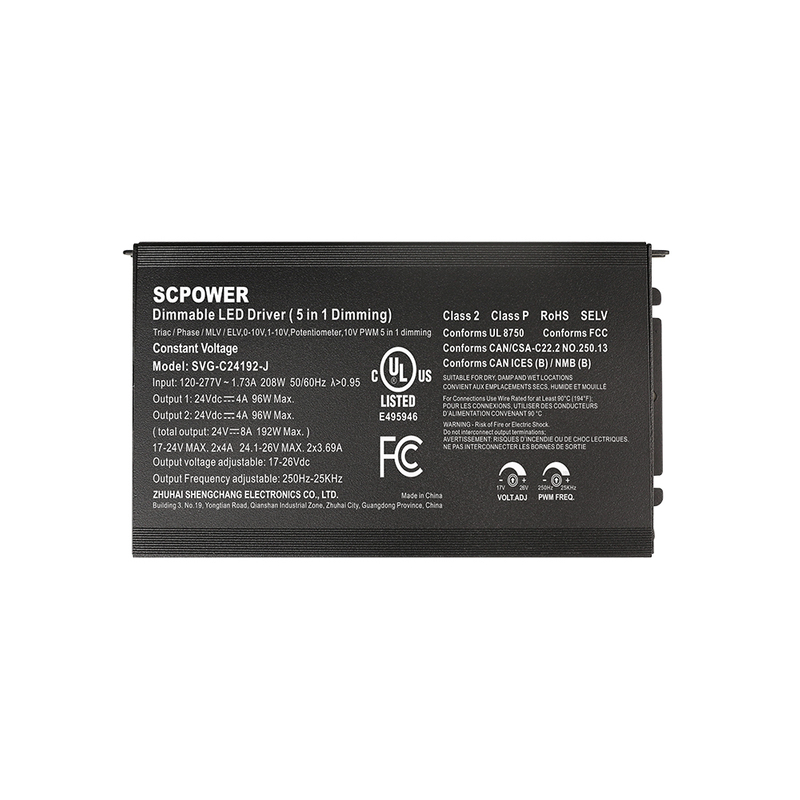

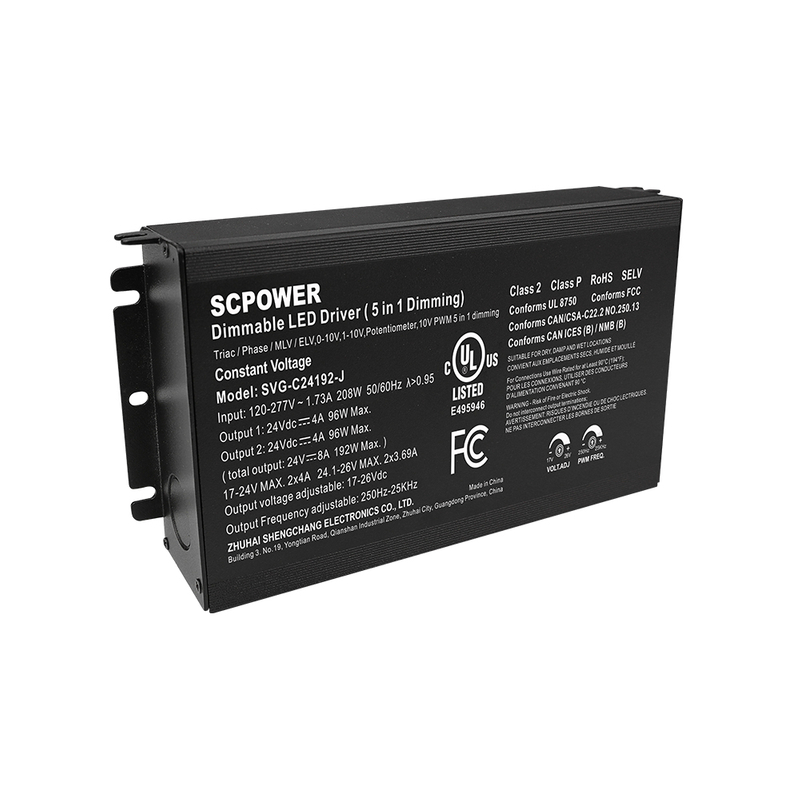

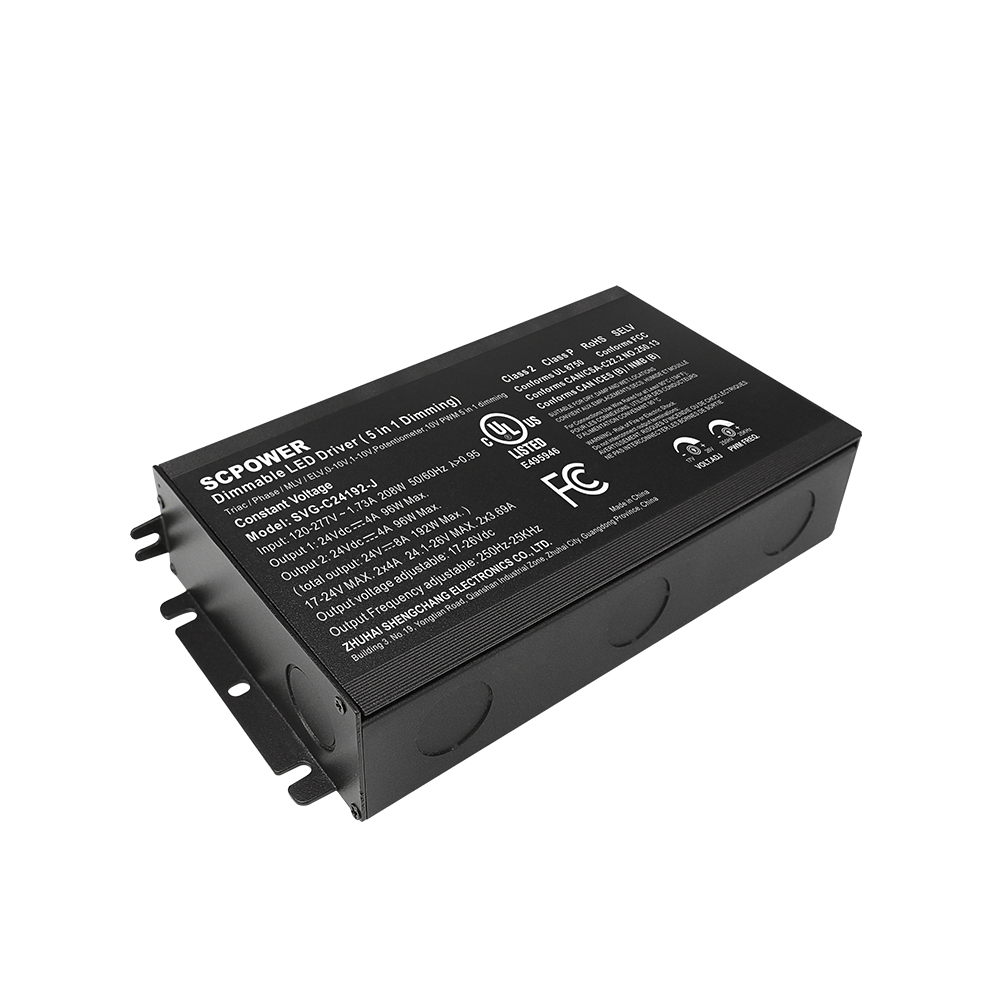

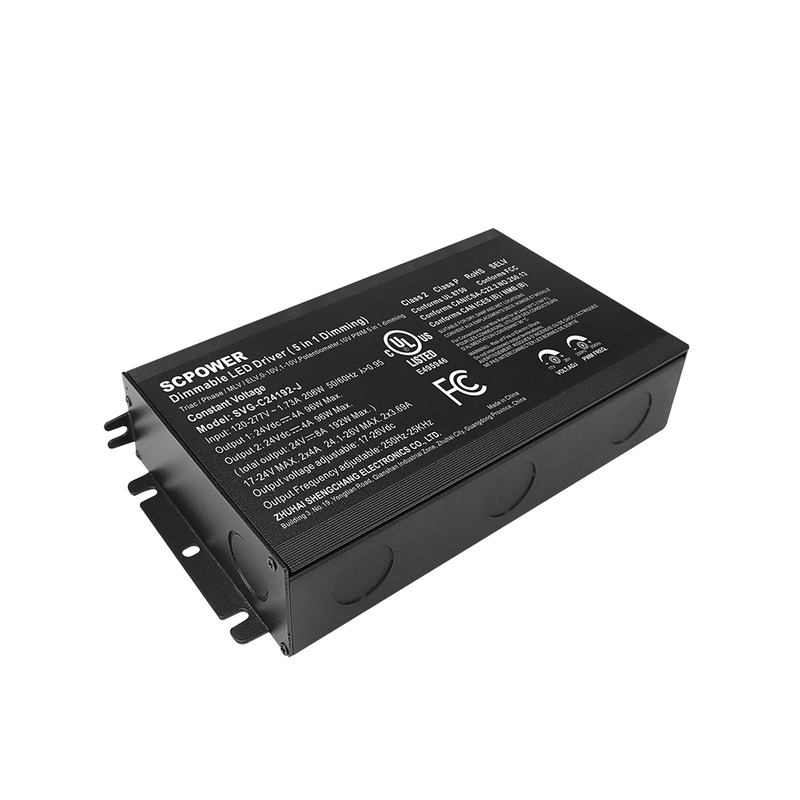

30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Screw-Free Built in Junction Box Triac Dimming Driver 0-10V 12V 24V 48V Output

Ouput Power:
30W
60W
80W
96W
120W
150W
192W
200W
288W
300W
500W
600W
Availability:
Inquire Add to Basket

  • SVG-J

  • SURETRON

  • Triac 0-10V

  • Isolated

  • Constant Voltage

  • CCT

  • IP66

  • 120-277VAC

  • 30W, 60W, 80W, 96W, 120W, 150W, 200W, 300W, 500W, 600W, 192W, 288W

  • 12/ 24V/ 48V

  • UL & cUL, FCC, ICES, RoHS, REACH, SELV, Class P

Advantage

30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Screw-Free Built in Junction Box Triac Dimming Driver 0-10V 12V 24V 48V Output


U.S. Patents No. 9,942,959; No. 10,039,167; No. 9,661,710; No. 9,961,724

U.S. Patents No. 11,723,164


Features

Output:

Constant Voltage

Range:

120-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 94%

Protections:

Short circuit / Over load / Over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full aluminum protection housing, for dry, damp & wet locations.

Design features:

1. Output voltage adjustment

2. Optional frequency

Dimming function:

TRIAC & 0-10V dimming

Min. load:

10%

Dimming range:

0-100%    dimming depth 0.8%@16KHz

Application:

Suitable for the application of LED lighting

Warranty:

5 years warranty

Others:

PWM output frequency  250Hz-25KHz  Default:16KHz
Specification

Output Power

Model Number

Output Voltage

Output Current

Size

Weight

30W
(Class2）

SVG-12030-J

12V

2.5A

165.4*80*40.4mm

0.46kg

SVG-24030-J

24V

1.25A

SVG-48030-J

48V

0.63A

60W
(Class2）

SVG-12060-J

12V

5A

185.4*80*40.4mm

0.6kg

SVG-24060-J

24V

2.5A

SVG-48060-J

48V

1.25A

80W
(24V / 48V Class2）

SVG-12080-J

12V

6.67A

189.4*103.5*40.4mm

1kg

SVG-24080-J

24V

3.33A

SVG-48080-J

48V

1.67A

96W
(Class2）

SVG-24096-J

24V

4A

189.4*103.5*40.4mm

1kg

SVG-48096-J

48V

2A

120W

SVG-12120-J

12V

10A

189.4*103.5*40.4mm

1kg

SVG-24120-J

24V

5A

SVG-48120-J

48V

2.5A

150W

SVG-12150-J

12V

12.5A

189.4*103.5*40.4mm

1.1kg

SVG-24150-J

24V

6.25A

SVG-48150-J

48V

3.13A

192W
(96W*2 Class2）

SVG-C24192-J

24V

4Ax2

189.4*103.5*40.4mm

1.1kg

SVG-C48192-J

48V

2Ax2

200W

SVG-12200-J

12V

16.67A

189.4*103.5*40.4mm

1.1kg

SVG-24200-J

24V

8.33A

SVG-48200-J

48V

4.17A

288W
(96W*3 Class2）

SVG-C24288-J

24V

4Ax3

272.4*115.5*40.7mm

1.7kg

SVG-C48288-J

48V

2Ax3

300W

SVG-12300-J

12V

25A

272.4*115.5*40.7mm

1.7kg

SVG-24300-J

24V

12.5A

SVG-48300-J

48V

6.25A

500W

SVG-12500-J

12V

41.67A

/

/

SVG-24500-J

24V

20.83A

SVG-48500-J

48V

10.42A

600W

SVG-24600-J

24V

25A

272.4*141.5*52.8mm

2.58kg

SVG-48600-J

48V

12.5A

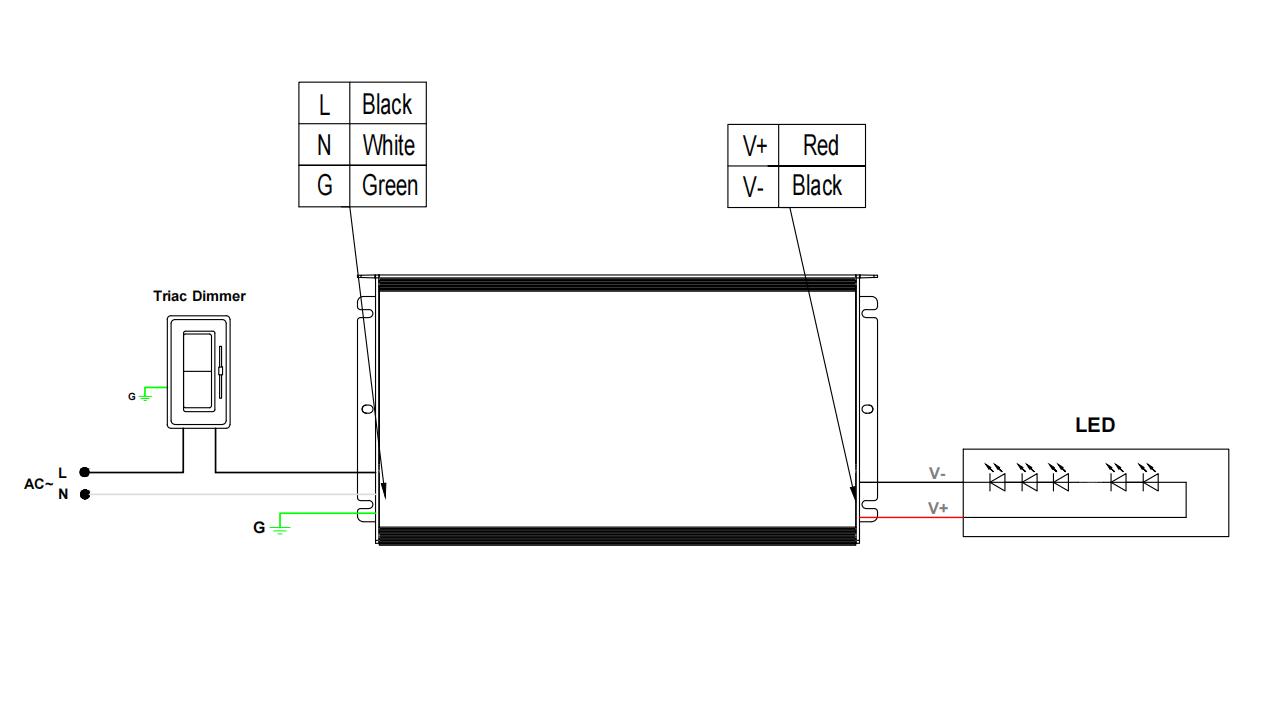

Triac & 0-10V Dimmable LED Driver Wiring Diagram

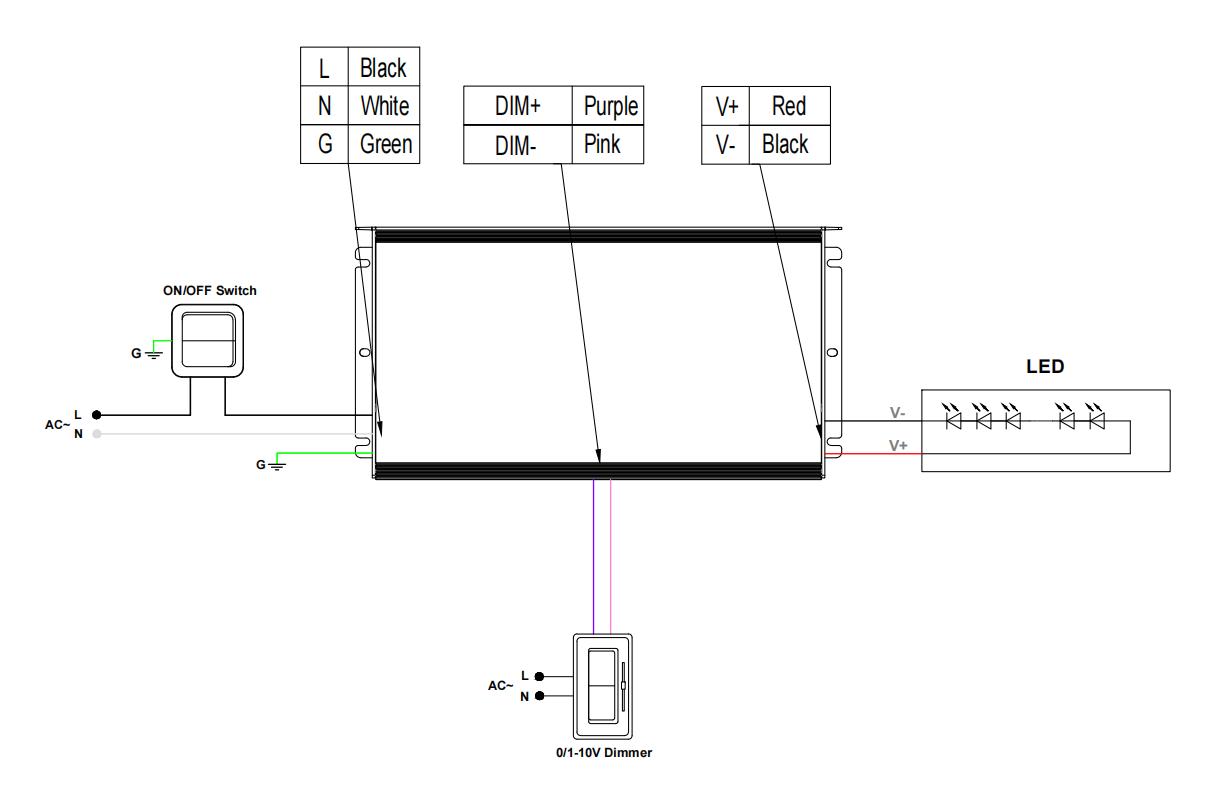

Triac & 0-10v Dimmable LED Driver Wiring Diagram


SURTRON TRIAC & 0-10V Dimmable LED Driver - Constant Voltage Output - SVG-J Series

SURTRON TRIAC & 0-10V Dimmable LED Driver - Constant Voltage Output - SVG-J Series

download SVG-J 30W.pdf

download SVG-J 60W.pdf

download SVG-J 80W.pdf

download SVG-J 96W.pdf

download SVG-J 100W.pdf

download SVG-J 120W.pdf

download SVG-J 150W.pdf

download SVG-C-J 192W.pdf

download SVG-J 200W.pdf

download SVG-C-J 288W.pdf

download SVG-J 300W.pdf

download SVG-J 600W.pdf
