DMX512
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
100-277VAC
60W, 100W, 150W, 200W, 240W, 320W, 400W, 500W, 680W, 800W, 1000W, 1200W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH
60W 100W 150W 200W 240W 320W 400W 500W 680W 800W 1000W 1200W 0-10V Outdoor LED Driver 120-277VAC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |
NDU-060W033-DIMA | 60W | 160-260V | 33-330mA | 170*61.3*31.3mm |
NDU-100W056-DIMA | 100W | 160-260V | 56-560mA | |
NDU-150W083-DIMA | 150W | 160-260V | 83-830mA | 193*67.3*31.3mm |
NDU-200W110-DIMA | 200W | 160-260V | 110-1100mA | |
NDU-240W133-DIMA | 240W | 160-260V | 133-1330mA | 217.6*67.3*31.3mm |
NDU-320W178-DIMA | 320W | 160-260V | 178-1780mA | |
NDU-400W220-DIMA | 400W | 160-260V | 220-2200mA | 253.6*78*42.5mm |
NDU-500W278-DIMA | 500W | 160-260V | 278-2780mA | 279.4*89.5*44.5mm |
NDU-680W380-DIMA | 680W | 160-260V | 380-3800mA | |
NDU-800W440-DIMA | 800W | 160-260V | 440-4400mA | 193*67.3*31.3mm |
NDU-1k0W400-DIMA | 1000W | 210-357V | 400-4000mA | 390.2*89.5*44.5mm |
NDU-1k2W480-DIMA | 1200W | 210-357V | 480-4800mA | |

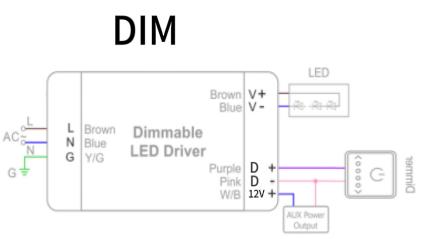

0-10V Outdoor LED Driver Wiring Diagram
Description
This series of LED driver power supply is specially designed for outdoor high power LED lighting, providing a variety of power options from 60W to 1200W, with a wide range of input voltage (120-277VAC), compatible with the global mainstream power grid standards. Adopting 0-10V analog dimming technology, it can realize smooth stepless dimming to meet the brightness requirements of different scenes. The product has high efficiency conversion, high waterproof grade (IP67), high temperature resistance, suitable for road lighting, industrial lighting, stadiums and other outdoor environments.
Features
0-10V Smooth Dimming: support 0-10V analog dimming signal, compatible with most dimming control systems, to meet the needs of energy saving and scenario-based lighting.
Outdoor-grade Protection Design: Aluminum housing, protection level up to IP67, waterproof and dustproof.
Multi-Security Protection: Short-circuit, over-temperature, over-voltage protection and under-voltage protection.
NFC Programmable: Setting address, dimming curve, Light decay compensation, Temperature control, timing and life warming.
Applications
Road and Tunnel Lighting: Adaptable to high power LED street lights and tunnel lights, with 0-10V dimming to save energy and extend the life of the lamps.
Stadium Lighting: support more than 1000W high-power floodlights, dimming function to meet the lighting needs of events, activities and other different scenes.
Structural Highlighting: Building facade profiling, illuminated signboard backlighting, landscape feature lighting.
Order Now and Transform Your Lighting Experience
