0-10V
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
100-277VAC
60W, 100W, 150W, 200W, 240W, 320W, 400W, 500W, 680W, 800W, 1000W, 1200W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

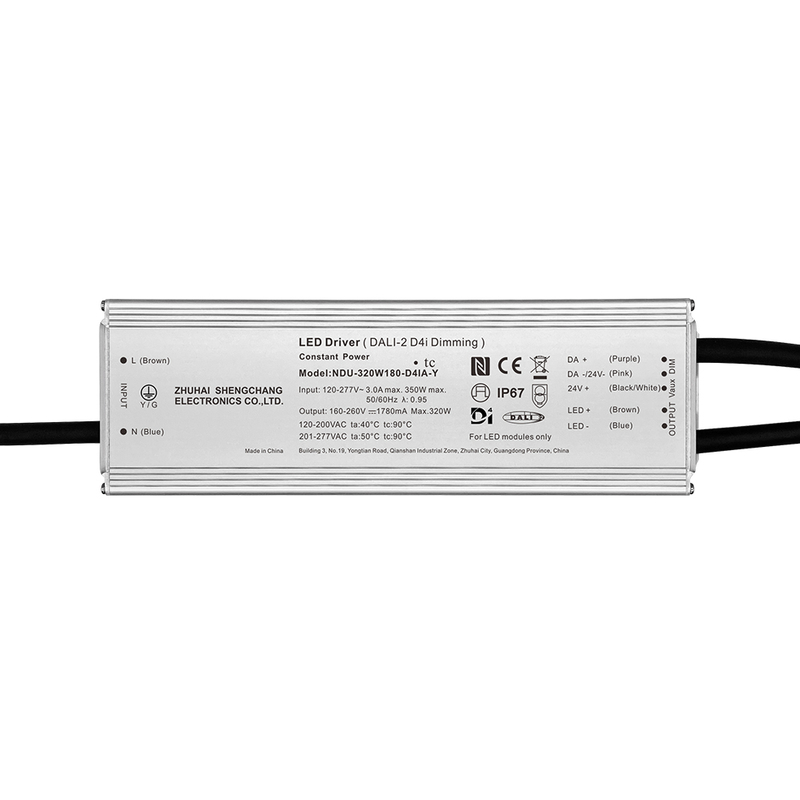

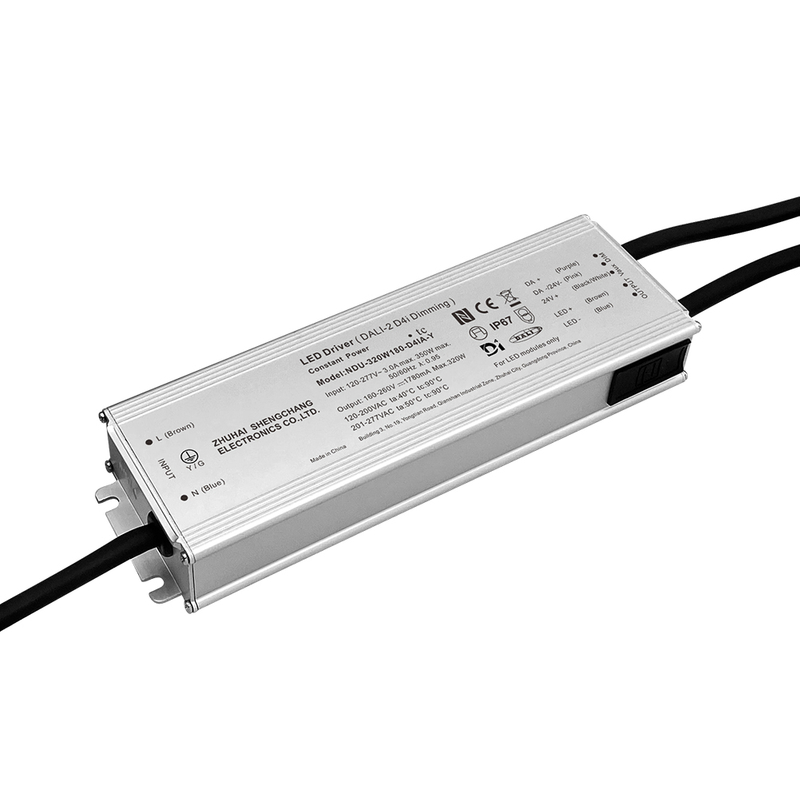

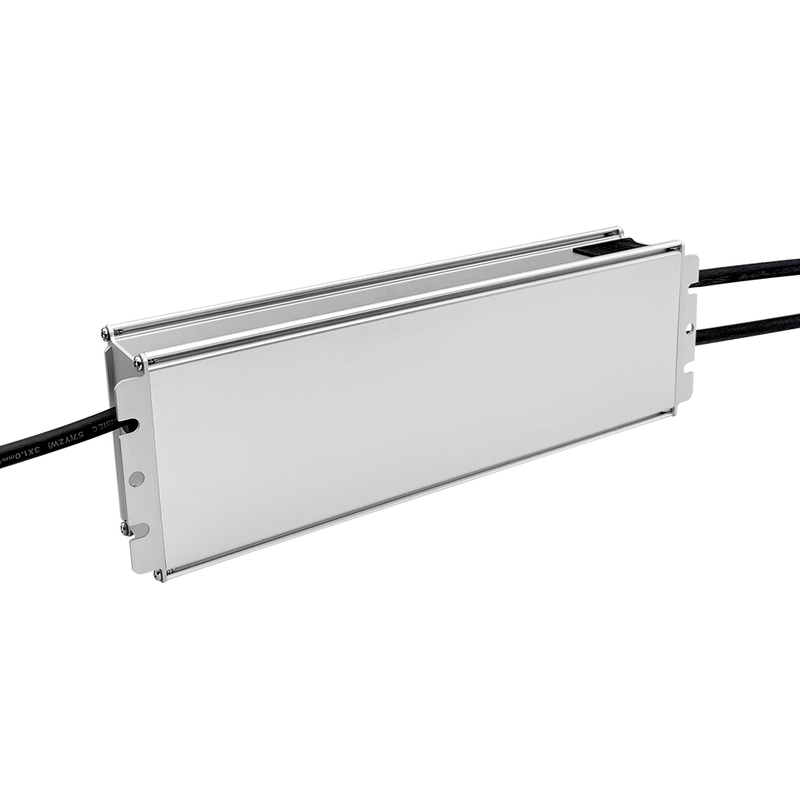

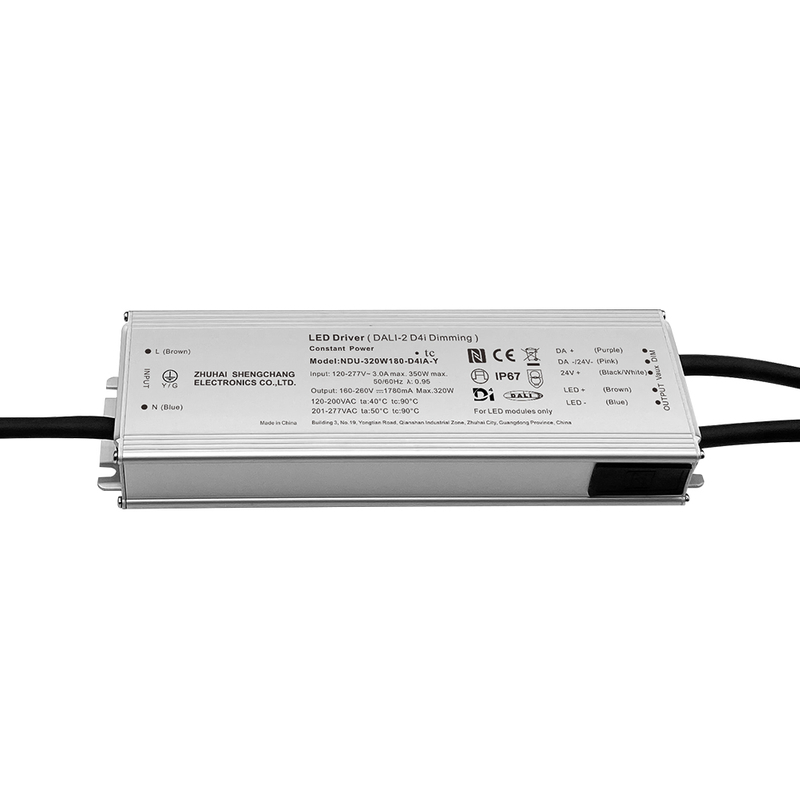

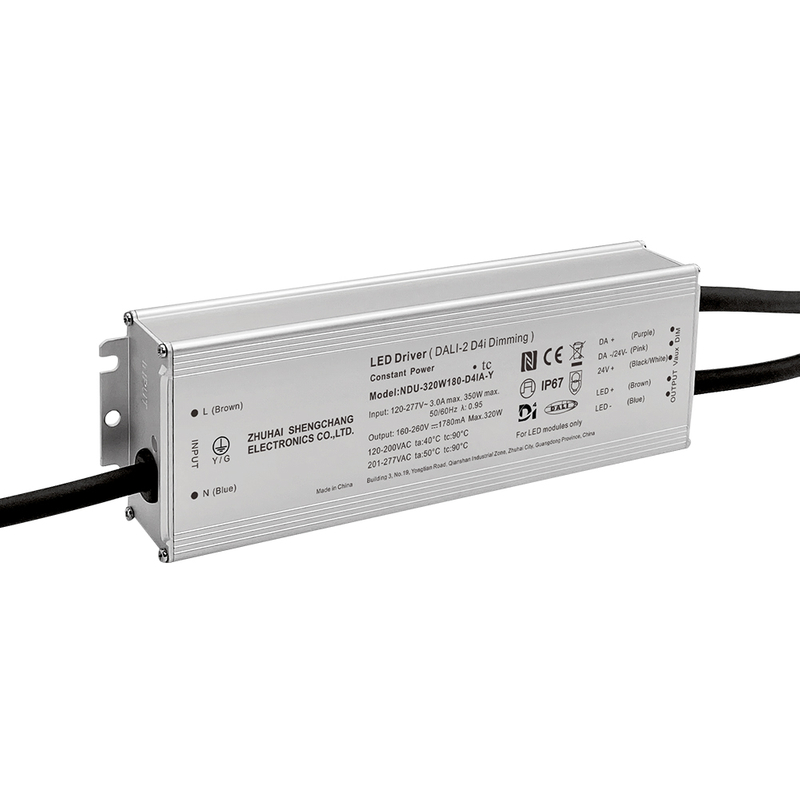

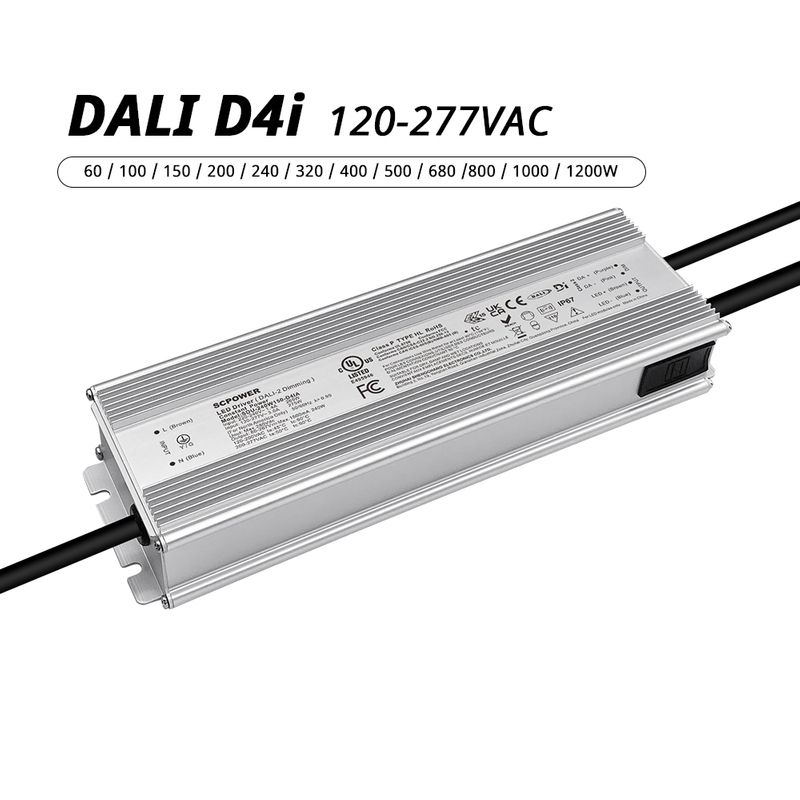

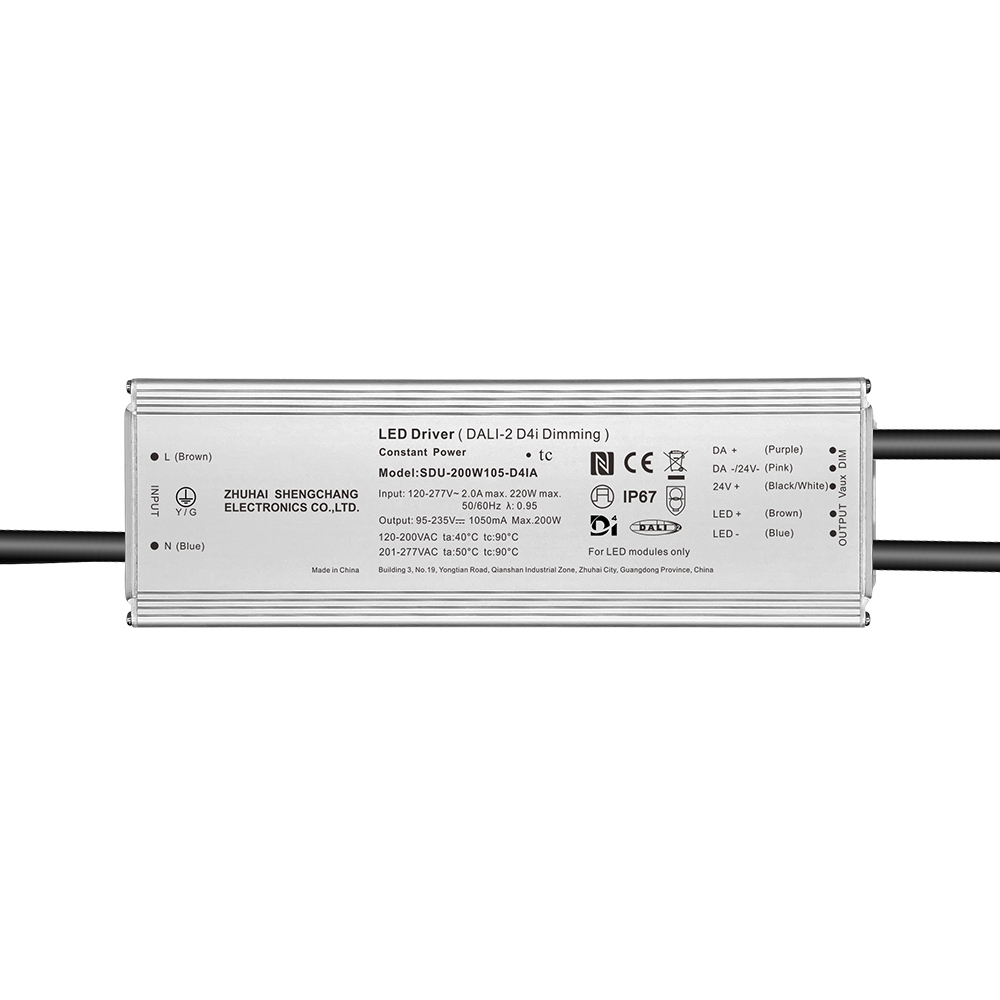

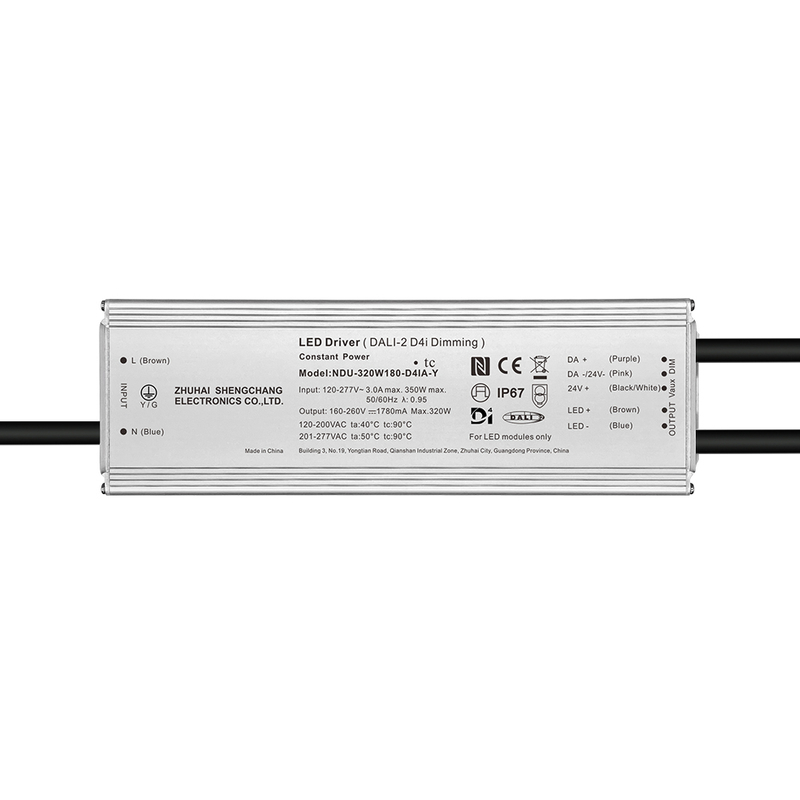

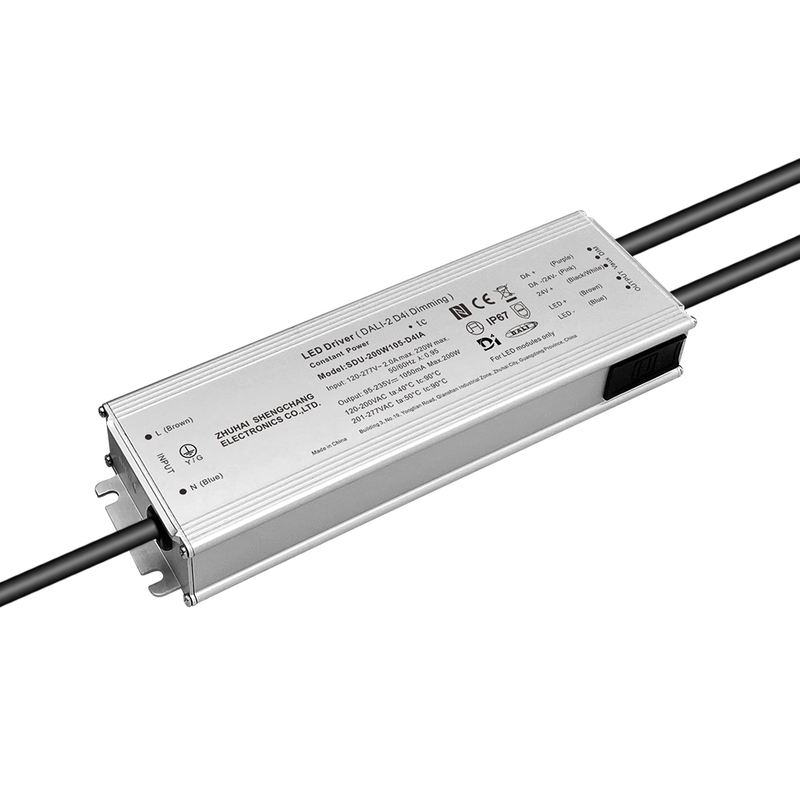

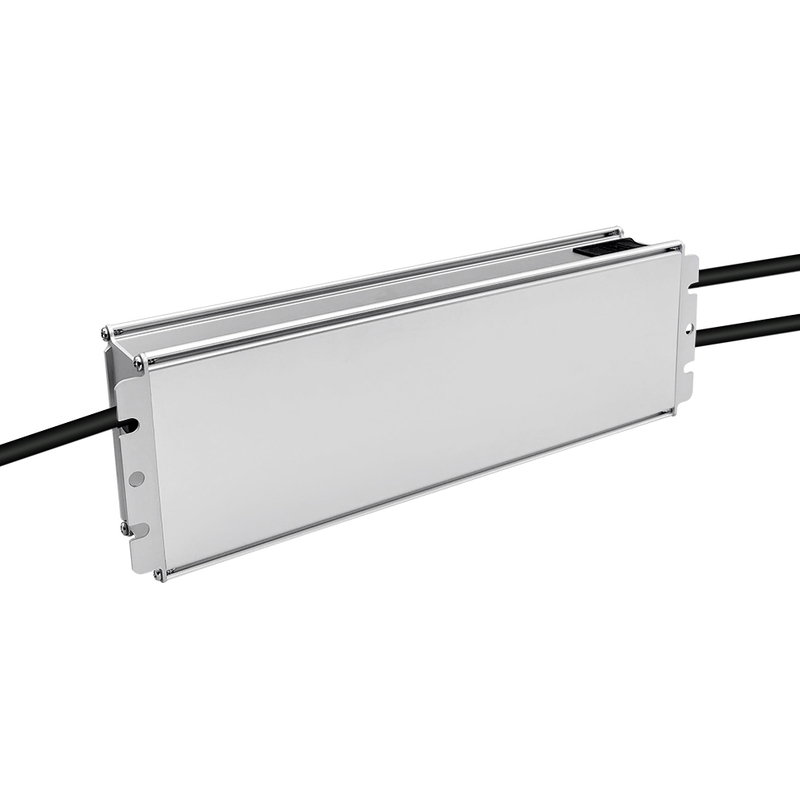

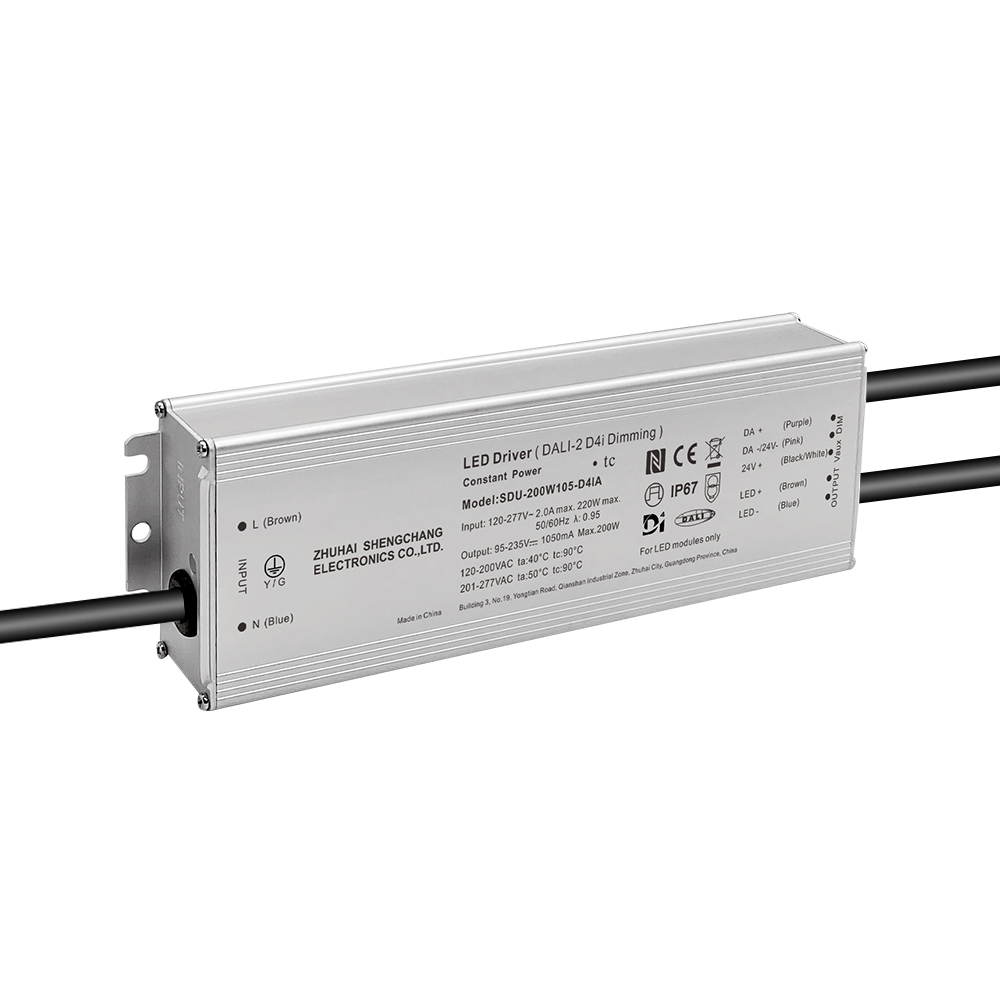

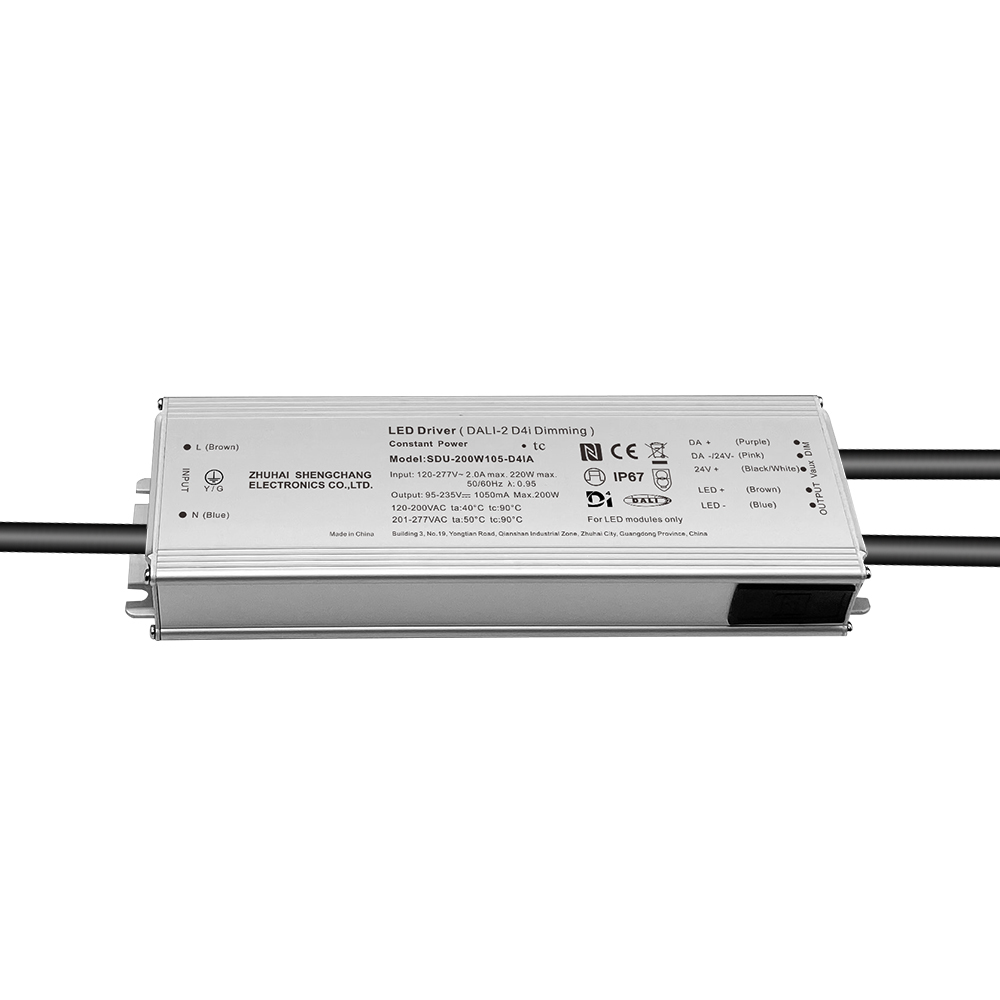

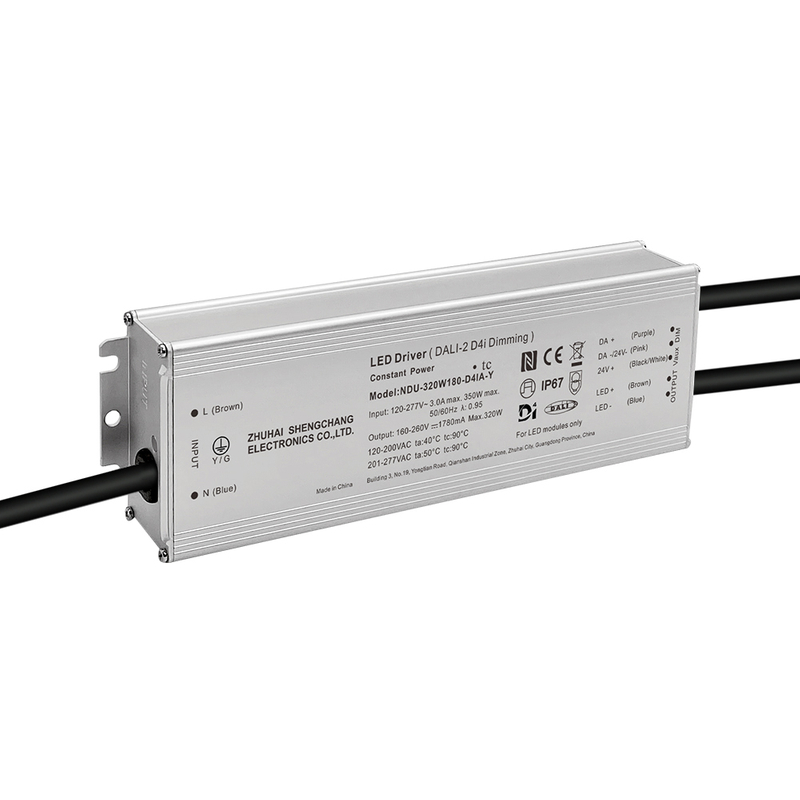

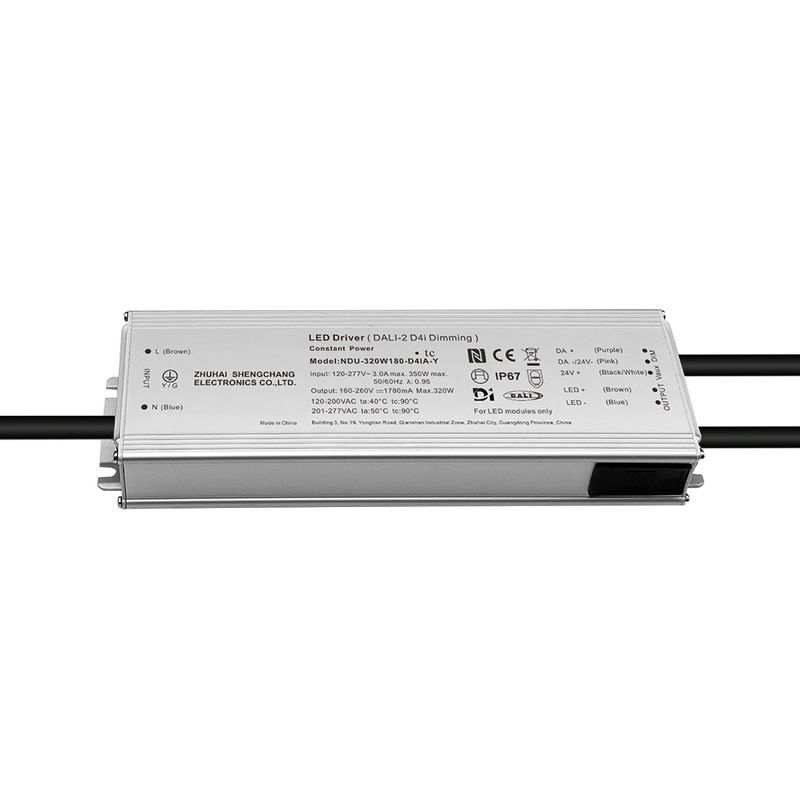

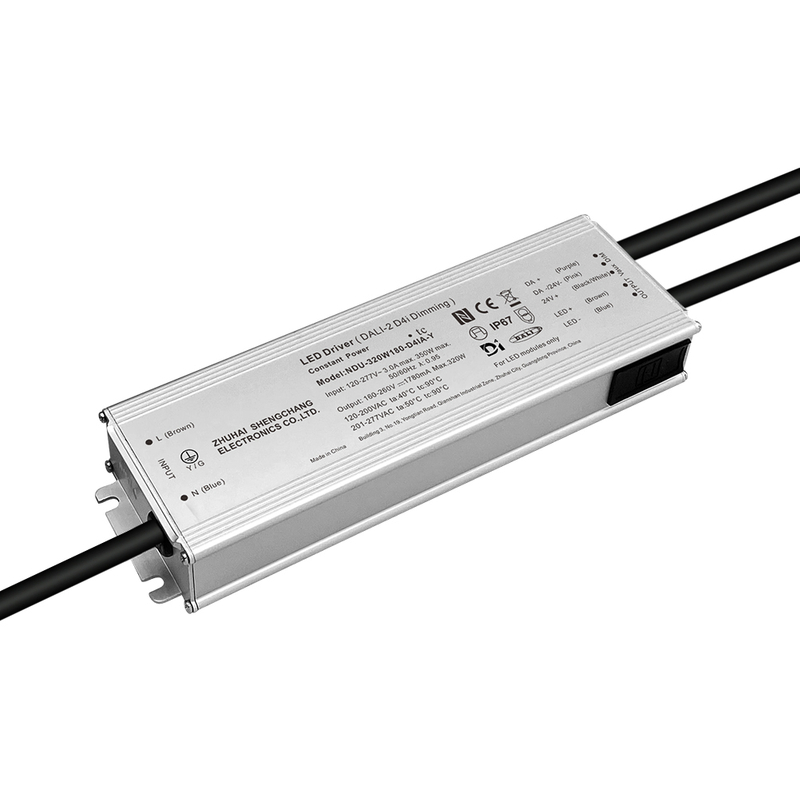

60W 100W 150W 200W 240W 320W 400W 500W 680W 800W 1000W 1200W DALI-2 D4i Outdoor LED Driver 120-277VAC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |
NDU-060W033-D4IA | 60W | 160-260V | 33-330mA | 170*61.3*31.3mm |

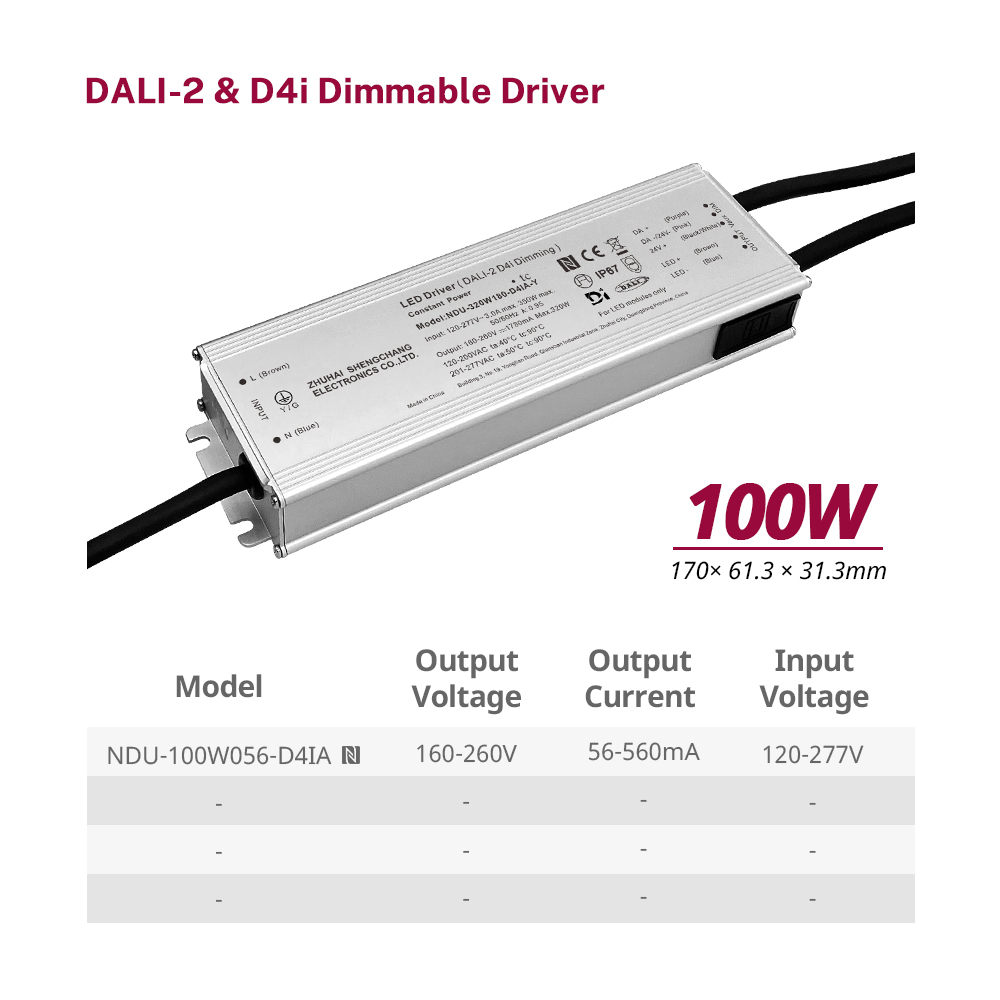

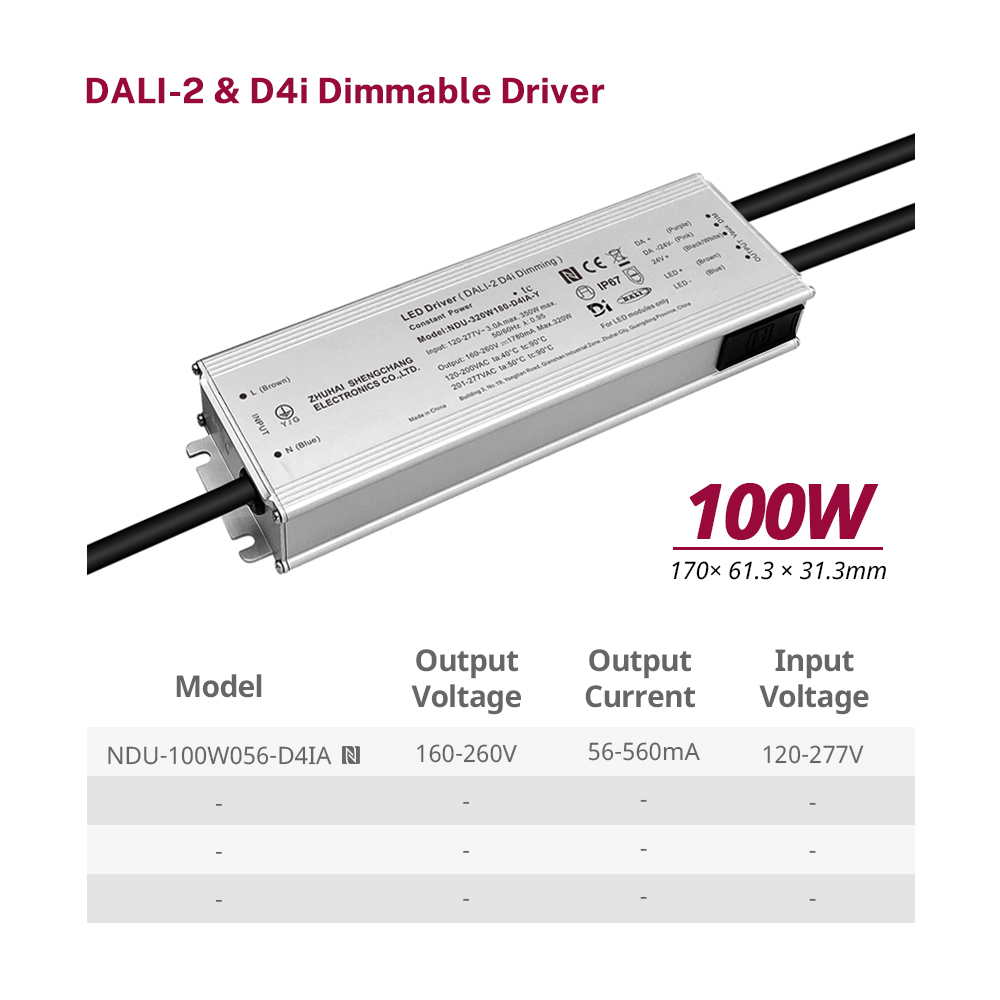

NDU-100W056-D4IA | 100W | 160-260V | 56-560mA | |
NDU-150W083-D4IA | 150W | 160-260V | 83-830mA | 193*67.3*31.3mm |
NDU-200W110-D4IA | 200W | 160-260V | 110-1100mA | |
NDU-240W133-D4IA | 240W | 160-260V | 133-1330mA | 217.6*67.3*31.3mm |
NDU-320W178-D4IA | 320W | 160-260V | 178-1780mA | |
NDU-400W220-D4IA | 400W | 160-260V | 220-2200mA | 253.6*78*42.5mm |
NDU-500W278-D4IA | 500W | 160-260V | 278-2780mA | 279.4*89.5*44.5mm |
NDU-680W380-D4IA | 680W | 160-260V | 380-3800mA | |
NDU-800W440-D4IA | 800W | 160-260V | 440-4400mA | 193*67.3*31.3mm |
NDU-1k0W400-D4IA | 1000W | 210-357V | 400-4000mA | 390.2*89.5*44.5mm |
NDU-1k2W480-D4IA | 1200W | 210-357V | 480-4800mA | |
Description
NDU This series of DALI-2 D4i certified outdoor LED driver power supplies are designed for intelligent lighting systems, with a power range of 60W-1200W, an input voltage of 120-277VAC, and compatibility with global power grid standards.
Features
Non-isolated: constant power design to avoid overload damage, output current can be set by NFC
Lifetime Alert: On startup, driver reduces output to 1% for 1min to indicate end-of-life, prompting replacement per manufacturer's design.
Valid Warranty: full voltage input, 5 years warranty, low cost.
All-round Protection: Short circuit protection, overload protection, over temperature protection.
Applications
Agricultural Greenhouse: with plant growth lights, DALI-2 timed dimming to simulate natural photoperiod, D4i data monitoring to optimize planting energy consumption.
Smart City Street Lighting: Adapted to smart street light systems, with DALI-2 dimming to reduce municipal electricity costs.
Order Now and Transform Your Lighting Experience
