Building 3, No.19 Yongtian Rd., Xiangzhou, Zhuhai city, Guangdong province, China
 |
DMX512
Non isolated
Constant Current
Dimming
IP67, Dry & Damp, Wet
100-277VAC
60W, 100W, 150W, 200W, 240W, 320W, 400W, 500W, 680W, 800W, 1000W, 1200W
12-54V 24-93V
UL & cUL, FCC, CE, RoHS, REACH

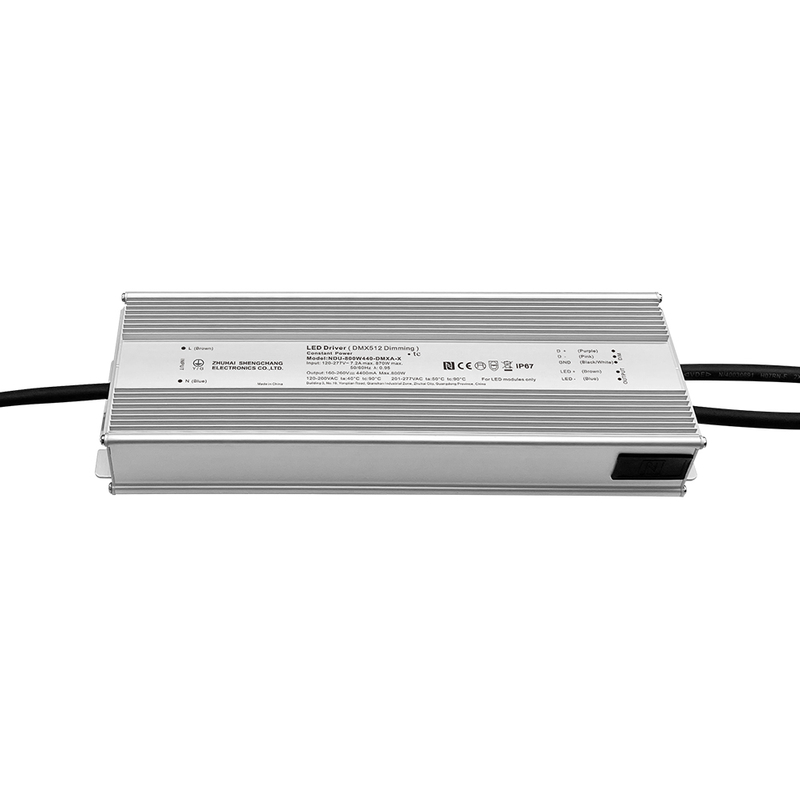

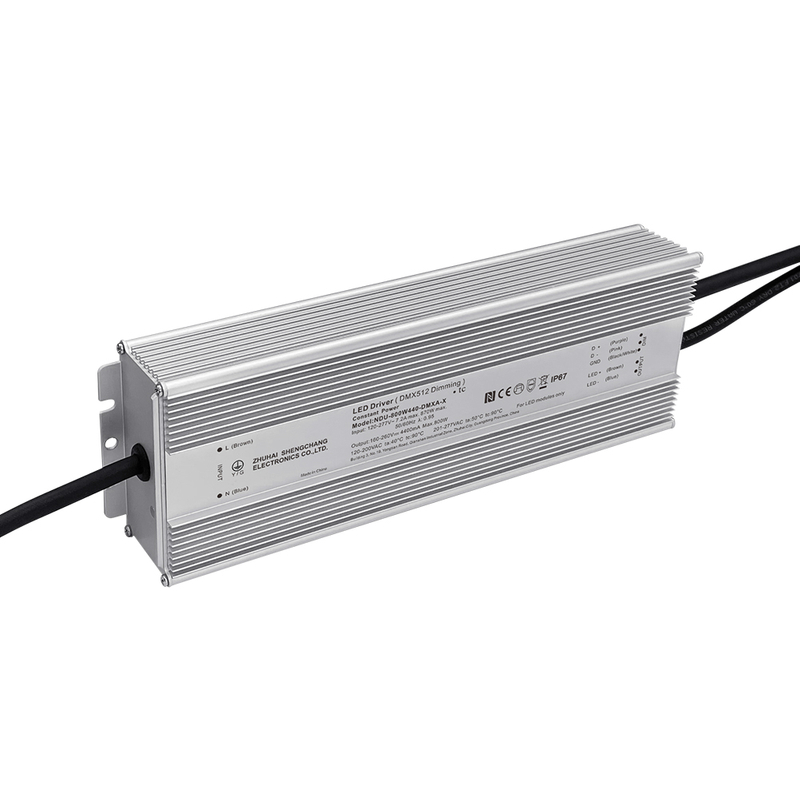

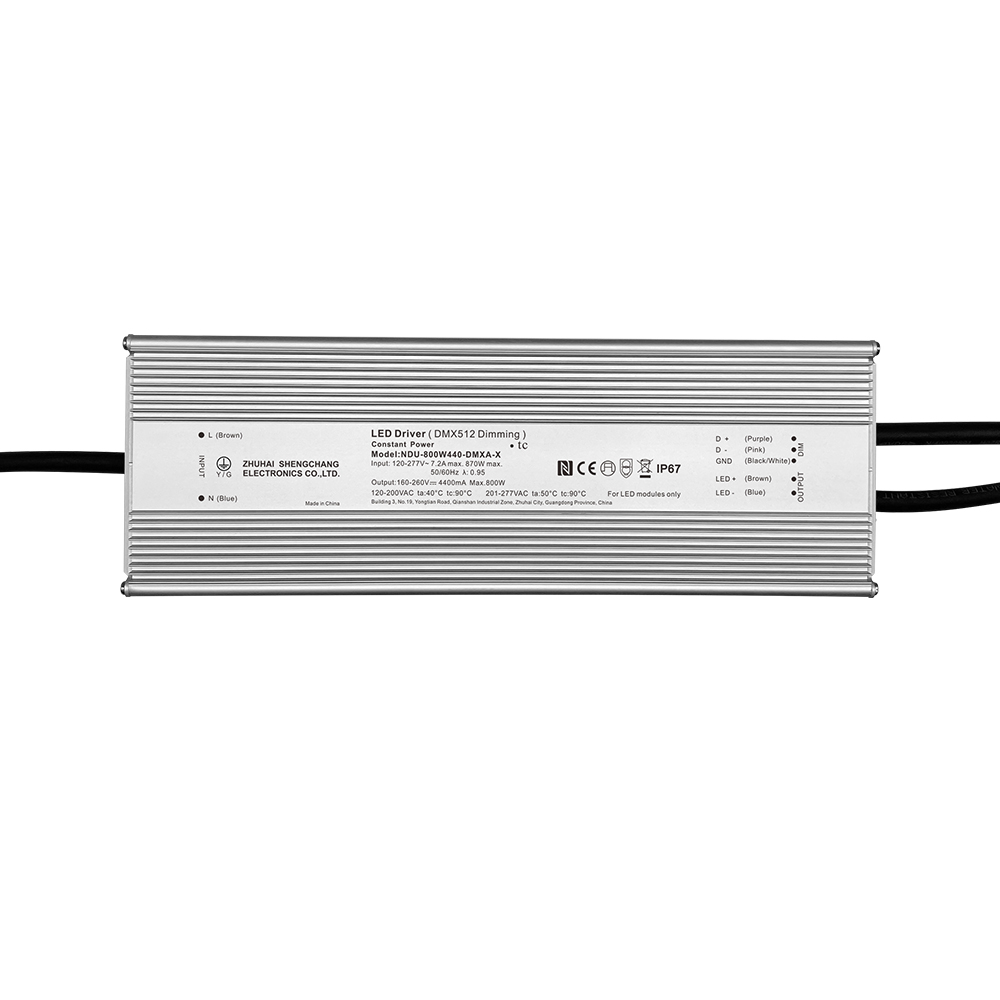

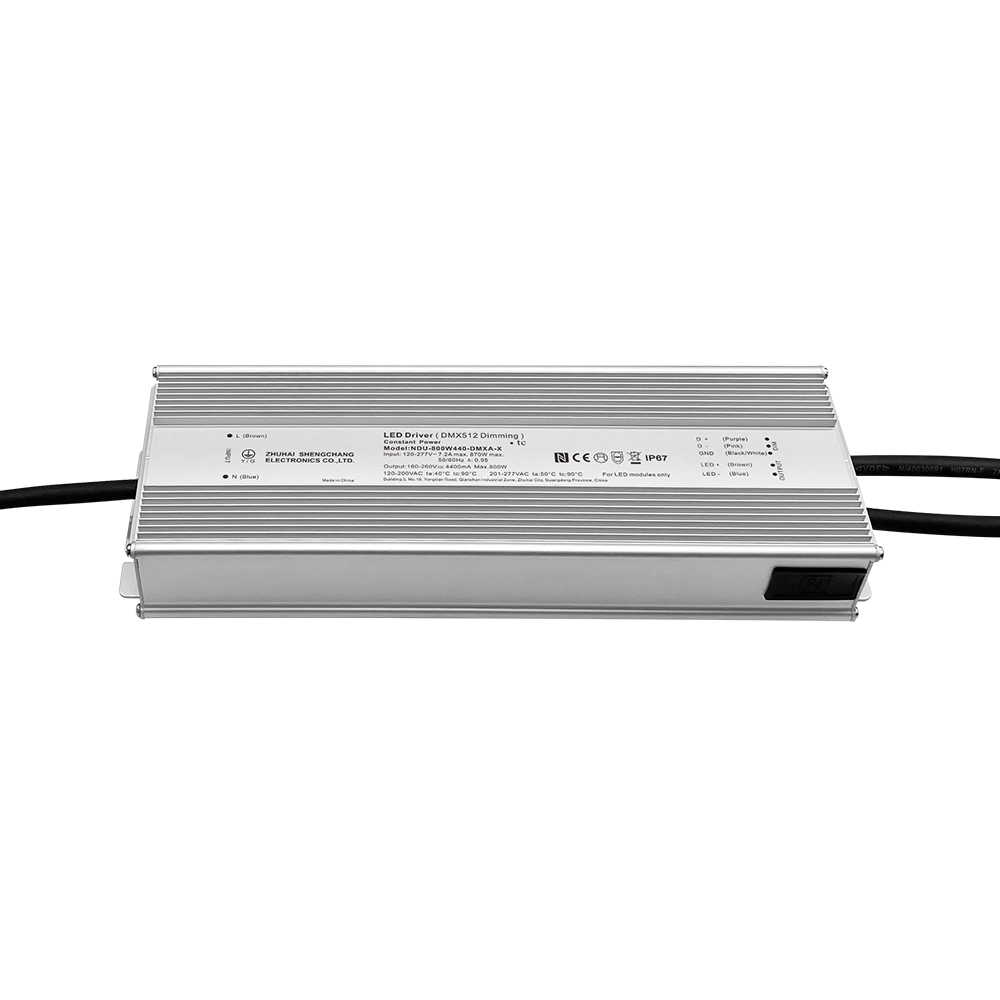

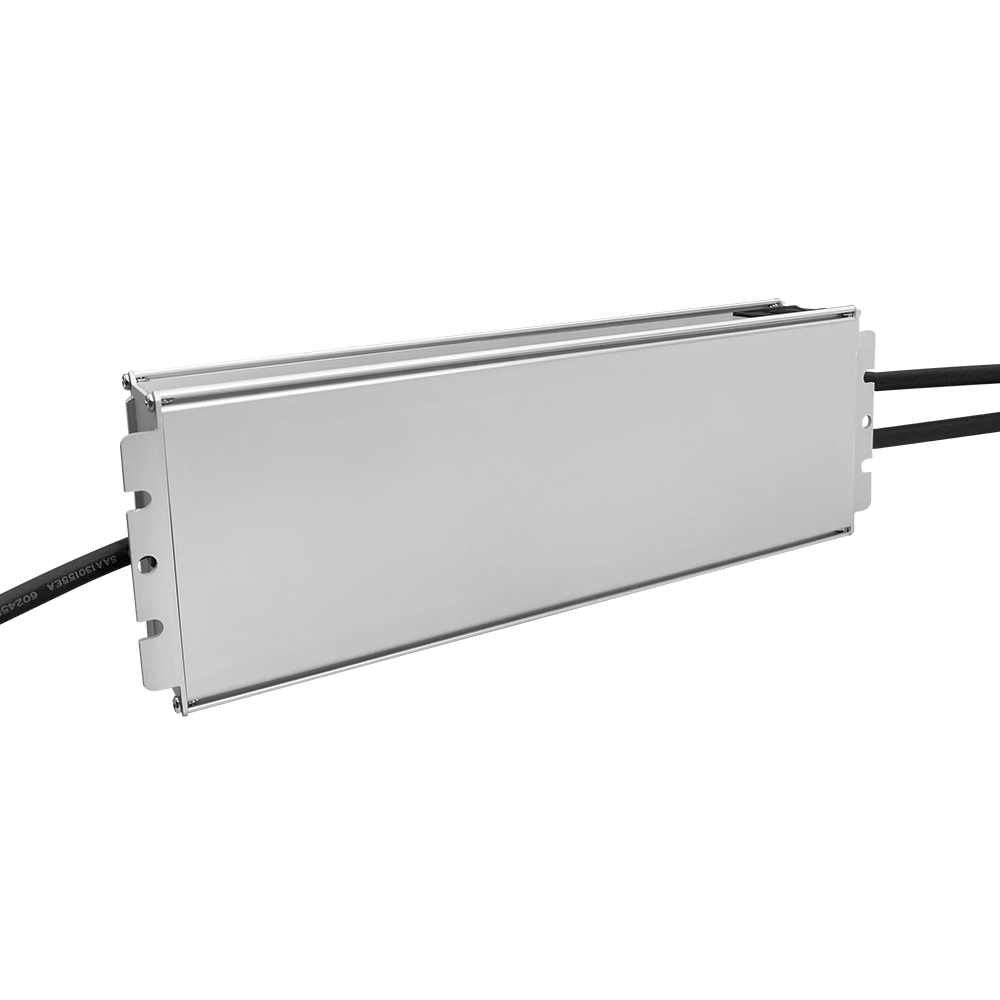

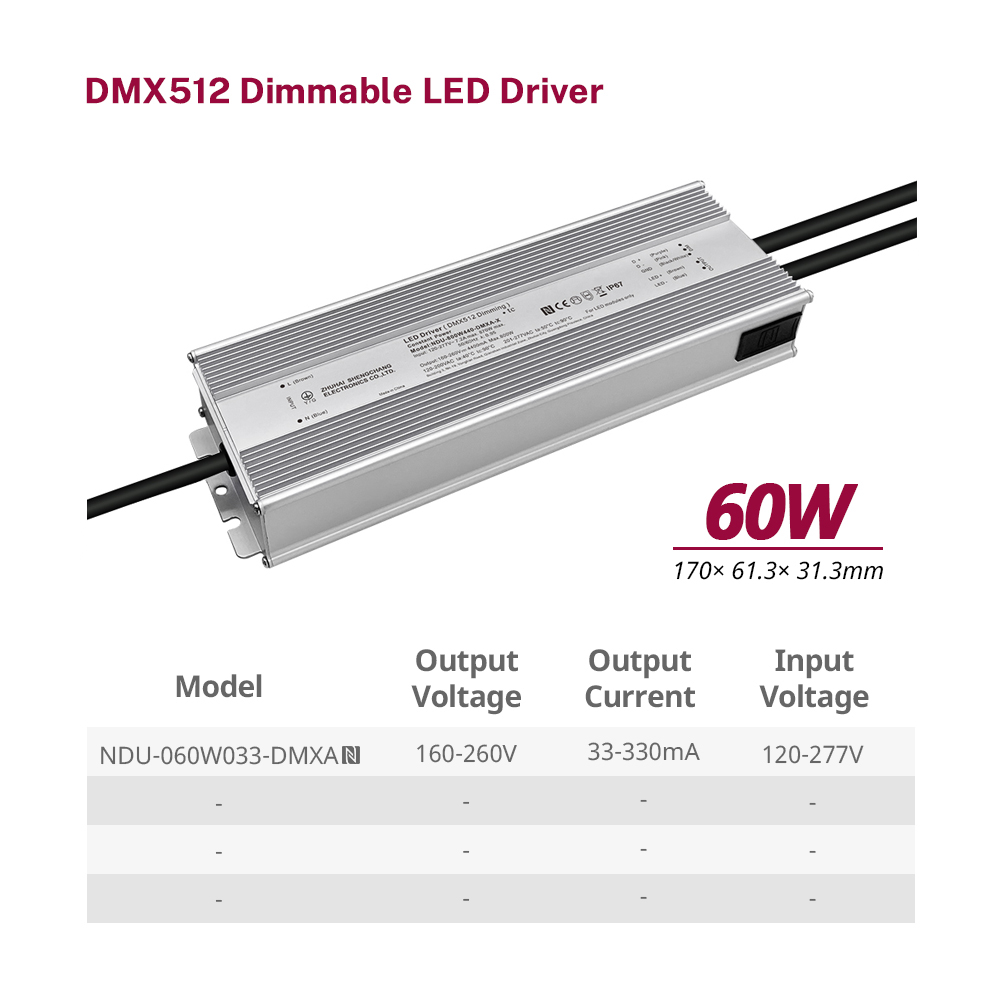

60W 100W 150W 200W 240W 320W 400W 500W 680W 800W 1000W 1200W DMX Outdoor LED Driver 120-277VAC
Output Type: | Constant Current |
Input Range: | 120-277VAC |
Protections: | short circuit/over temperature/over voltage protection/undervoltage protection |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For Wet, dry and damp locations |
| Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free dimming |
Model Number | Output Power | Output Voltage | Output Current | Size |

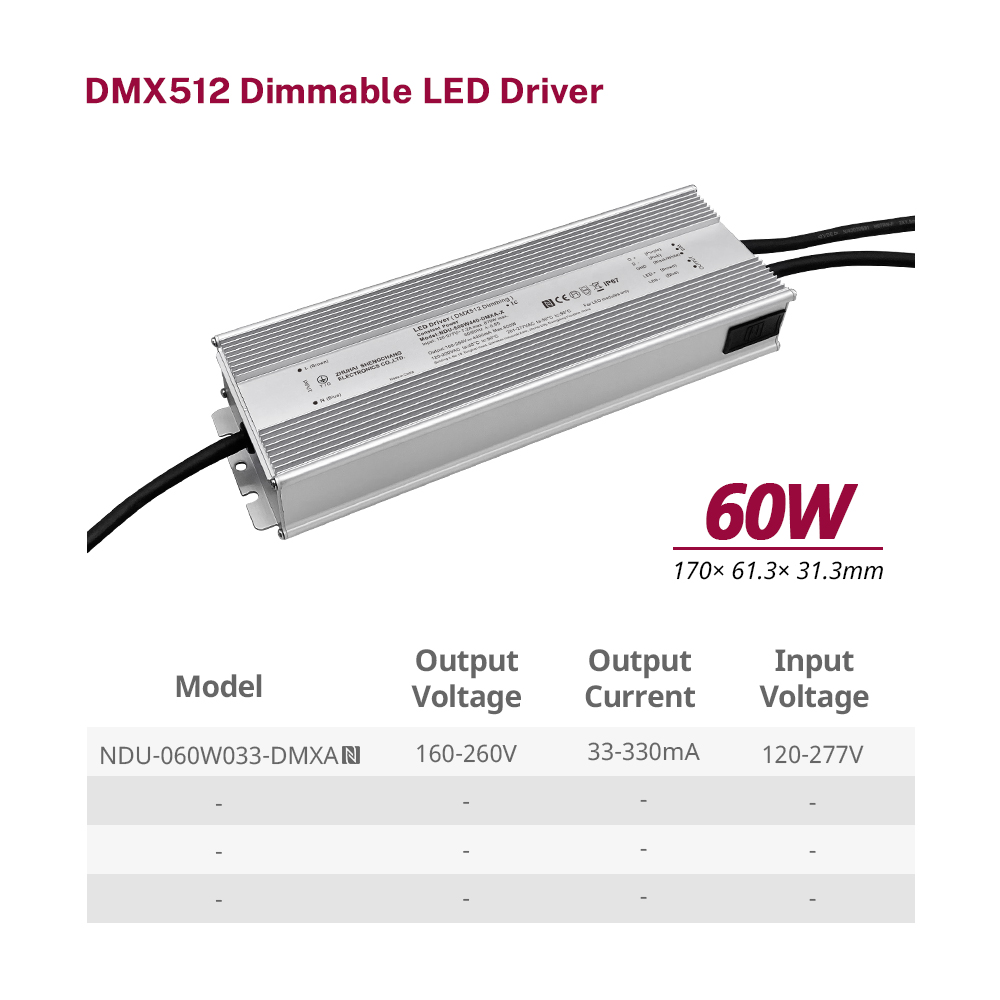

NDU-060W033-DMXA | 60W | 160-260V | 33-330mA | 170*61.3*31.3mm |
NDU-100W056-DMXA | 100W | 160-260V | 56-560mA | |
NDU-150W083-DMXA | 150W | 160-260V | 83-830mA | 193*67.3*31.3mm |
NDU-200W110-DMXA | 200W | 160-260V | 110-1100mA | |
NDU-240W133-DMXA | 240W | 160-260V | 133-1330mA | 217.6*67.3*31.3mm |
NDU-320W178-DMXA | 320W | 160-260V | 178-1780mA | |
NDU-400W220-DMXA | 400W | 160-260V | 220-2200mA | 253.6*78*42.5mm |
NDU-500W278-DMXA | 500W | 160-260V | 278-2780mA | 279.4*89.5*44.5mm |
NDU-680W380-DMXA | 680W | 160-260V | 380-3800mA | |
NDU-800W440-DMXA | 800W | 160-260V | 440-4400mA | 193*67.3*31.3mm |
NDU-1k0W400-DMXA | 1000W | 210-357V | 400-4000mA | 390.2*89.5*44.5mm |
NDU-1k2W480-DMXA | 1200W | 210-357V | 480-4800mA | |

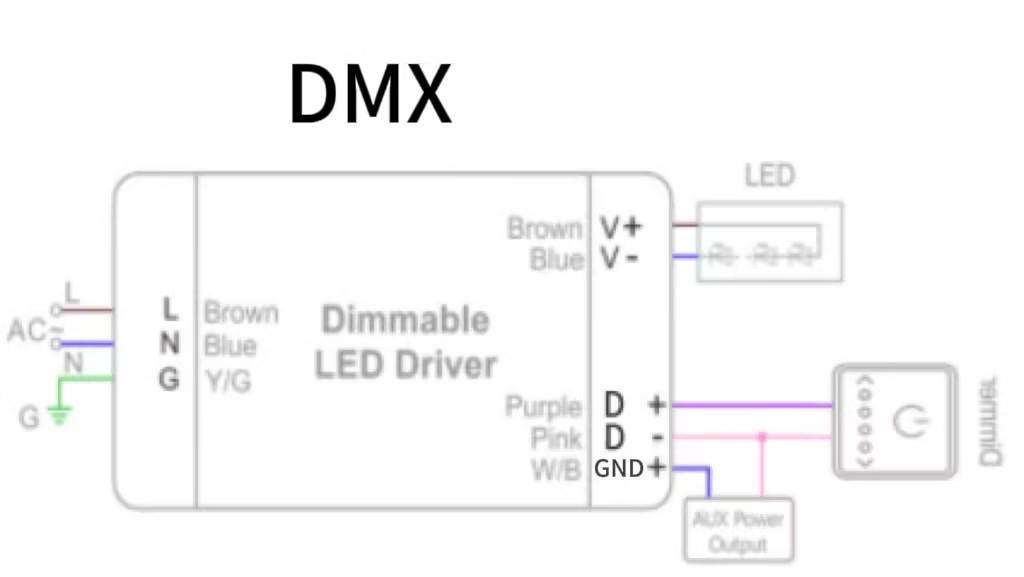

DMX Outdoor LED Driver Wiring Diagram
Description
The 60W-1200W DMX Outdoor LED Driver (120-277VAC) is a high performance, programmable outdoor LED power driver for a wide range of high power LED lighting systems. The wide voltage input (120-277VAC) design ensures stable operation in outdoor environments such as architectural floodlighting, landscape lighting, stage lighting, billboard lighting and other scenarios.
Features
Multiple Power Options: (60W/100W/150W/200W/240W/320W/400W/500W/680W/800W/1000W/1200W) to accommodate various LED lighting setups, from small installations to large-scale projects.
DMX512 Intelligent Control: Programmable dimming, color mixing & sync for stages, facades & dynamic lighting effects.
Outdoor Durability: IP67-rated enclosure for waterproof and dustproof. Operates reliably(-40°C to +50°C), ideal for rain, snow, or high-humidity conditions.
International Certification: UL / FCC /RoHS / REACH
5-Year Warranty: End-of-life warning function and five-year warranty for peace of mind.
LED Fixtures
Grow lights, Street lights, Downlights, Panel lights and so on.
Order Now and Transform Your Lighting Experience
