LED lighting has become a popular choice for both residential and commercial applications due to its energy efficiency, long lifespan, and bright illumination. To ensure optimal performance and longevity, it is crucial to install an appropriate LED driver power supply. This guide provides a comprehensive step-by-step process to help you safely and effectively install an LED driver power supply. By understanding the importance of LED drivers and following the outlined steps, you can prevent common issues such as flickering, overheating, and inconsistent brightness. Whether you are a DIY enthusiast or a professional installer, this guide will equip you with the necessary knowledge to ensure your LED lighting system operates efficiently and reliably.
What are the consequences of incorrect installation
Proper installation of an LED driver power supply is crucial for several reasons:
Prevent Flickering and Inconsistent Brightness: Incorrect installation can lead to voltage fluctuations, causing LEDs to flicker or produce inconsistent brightness.
Ensure LED Longevity: Overheating and excessive current can significantly reduce the lifespan of LEDs. Proper installation helps maintain optimal operating conditions.
Safety: Incorrect wiring can lead to electrical hazards, including short circuits and potential fire risks.
Safety Precautions Before Installation
| Category | Details |
| Power Safety | Turn off power at the circuit breaker; verify with a voltage tester. |
| Insulation Protection | Use insulated screwdrivers, pliers, gloves, and safety glasses. |
| Work Environment | Ensure area is well-ventilated, dry, and free from damp conditions. |
| Static Protection | Use anti-static wrist straps or mats. |
| Manufacturer Guidance | Read and follow the provided installation instructions. |
| Tools | Flathead & Phillips screwdrivers, wire strippers, voltage tester, multimeter (optional). |
| Materials | Appropriate gauge wires, connectors, mounting screws. |
| Safety Gear | Insulated gloves, safety glasses, anti-static protection. |
Choosing the Right LED Driver Power Supply
Selecting the appropriate LED driver power supply is critical for ensuring optimal performance and longevity of your LED lighting system. Consider the following factors when choosing an LED driver:
Matching LED Specifications
Voltage and Current Requirements: Determine the voltage and current requirements of your LEDs. This information is typically provided in the LED specifications. For example, if your LEDs require a forward voltage of 3.5V and a forward current of 0.35A, ensure the driver can supply these exact specifications. If you are planning a dimmable LED driver installation, verify that both the driver and LEDs support the same dimming protocol.
Total Wattage Calculation: Calculate the total power consumption of your LED system. For multiple LEDs, multiply the forward voltage by the forward current and then by the number of LEDs. For example, if you have 10 LEDs with a forward voltage of 3.5V and a forward current of 0.35A, the total power consumption would be:
Choosing the Right Driver Capacity: Choose a driver with at least 20–30% higher wattage capacity to ensure stable operation. For example, if your total power consumption is 12.25W, consider a driver with a capacity of at least 15W.

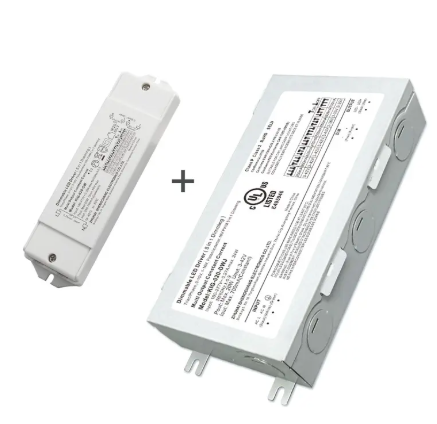

Shengchang Dimming Drivers: When selecting a dimmable LED driver, consider Shengchang dimming drivers, which offer a variety of voltages, including 12V, 24V, 36V, and 48V, with power ranges from 10W to 800W for constant voltage and 10W to 1800W for constant current. These drivers are designed to meet diverse dimming needs and can be used with various LED systems, ensuring compatibility and optimal performance. Shengchang drivers are also known for their reliability and efficiency, making them an excellent choice for both indoor and outdoor lighting projects.
Environmental Considerations
Indoor vs Outdoor Usage: Consider the environment in which the LED driver will be installed. For outdoor applications such as garden lighting, signage, or architectural illumination, a waterproof LED driver for outdoor use is essential. Look for models with an appropriate IP rating to protect against dust, moisture, and rain.
IP Rating: IP ratings indicate the level of protection provided by the driver’s enclosure. For instance, an IP65-rated waterproof LED driver for outdoor use offers protection from dust and water jets, making it ideal for exposed installations.
Shengchang dimming drivers support different protection levels from IP20 to IP67, meeting the requirements of indoor, outdoor and harsh outdoor environments.
Step-by-Step Installation Guide
Preparing the Installation Site
Select a Ventilated Location: Choose a location with adequate ventilation to prevent overheating. Avoid installing the driver near heat sources or in enclosed spaces that trap heat.
Ensure Space for Wiring and Maintenance: Ensure there is enough room around the driver for wiring and future servicing. This is especially important for a dimmable LED driver installation, where you may need to access dimming control wires later.
Mounting the LED Driver
Secure with Screws or Provided Hardware: Use the provided mounting hardware to firmly attach the LED driver. For outdoor applications, ensure the waterproof LED driver for outdoor use is mounted in a way that avoids direct water pooling.
Correct Orientation for Heat Dissipation: Position the driver so that cooling vents have proper airflow.
Connecting Input Wires (AC Power)
Identify Positive (L) and Neutral (N) Wires: Use a multimeter to confirm polarity before connection.
Connect Input Wires Safely: Attach positive and neutral wires from the AC source to the LED driver’s terminals. Tight, secure connections are vital for both waterproof and dimmable LED driver installations.
Connecting Output Wires (LED Lights)
Match Positive (+) and Negative (-) Terminals: Ensure correct polarity to avoid damaging the LEDs.
Ensure Tight, Secure Connections: Use proper stripping and tightening techniques to prevent voltage drops.
Testing the LED System
Turn On Power and Verify LED Operation: Check for correct brightness, flicker-free performance, and, in the case of a dimmable LED driver installation, smooth dimming operation.
Check for Flickering, Overheating, or Unusual Sounds: If issues occur, switch off power and recheck connections.
Final Checks and Safety Measures
Confirm Proper Ventilation: Especially important for high-power and outdoor drivers.
Verify All Connections: Solid and insulated wiring is key to preventing electrical hazards.
Review Manufacturer’s Safety Guidelines: Follow all official recommendations to ensure safe and long-lasting performance.
Maintenance and Best Practices
Keep the Installation Area Dry and Ventilated: Ensure the installation site remains dry and well-ventilated to prevent moisture-related issues and overheating.
Regularly Inspect Wiring and Driver: Periodically inspect the wiring and driver for signs of wear or damage. Replace any damaged components promptly to prevent potential issues.
Avoid Overloading the Driver: Do not exceed the driver’s rated capacity by adding additional LEDs. Overloading can lead to reduced performance and premature failure.
Replace Drivers at the End of Their Rated Lifespan: Most LED drivers have a rated lifespan of 2 to 5 years. Replace drivers at the end of their rated lifespan to ensure continued reliable performance.
FAQs About Installing an LED Driver Power Supply
Do I need a specific LED driver for my LEDs?
Yes, you need an LED driver that matches the voltage, current, and power requirements of your LEDs. Mismatched drivers can lead to reduced performance, flickering, or premature failure.
How do I know if my driver is compatible with a dimmer?
Check the manufacturer’s specifications to ensure the driver is compatible with the dimmer you plan to use. Incompatible dimmers can cause flickering or inconsistent brightness.
What gauge wire should I use?
The gauge of the wire depends on the current requirements of your LED system. Consult the manufacturer’s recommendations for the appropriate wire gauge to ensure safe and efficient operation.
Can I install multiple drivers for one LED setup?
Yes, you can install multiple drivers for a single LED setup, especially if the total power requirements exceed the capacity of a single driver. Ensure each driver is properly matched to the LEDs it will power.
Typical lifespan of an LED driver?
Most LED drivers have a rated lifespan of 2 to 5 years. However, this can vary based on the quality of the driver, operating conditions, and proper installation. Regular maintenance can help extend the lifespan of the driver.
Conclusion
Proper installation of an LED driver power supply is essential for ensuring the optimal performance and longevity of your LED lighting system. By understanding the importance of LED drivers, following the outlined steps, and taking necessary safety precautions, you can prevent common issues such as flickering, dimming, and overheating. Always verify specifications, consider environmental factors, and test your setup to ensure optimal performance. With the right approach and high-quality drivers from reputable manufacturers like Zhuhai Shengchang Electronics Co., Ltd, you can maximize the benefits of your LED lighting system and enjoy long-lasting, energy-efficient illumination.
