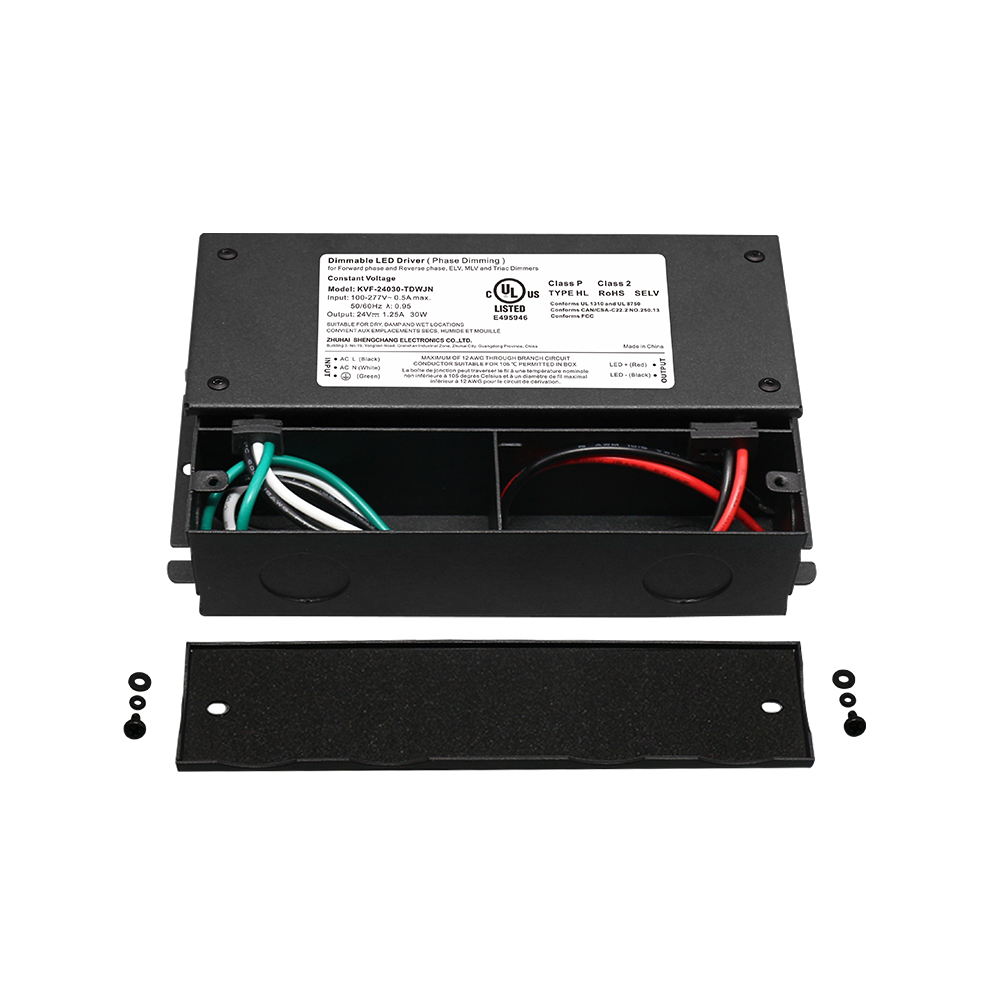

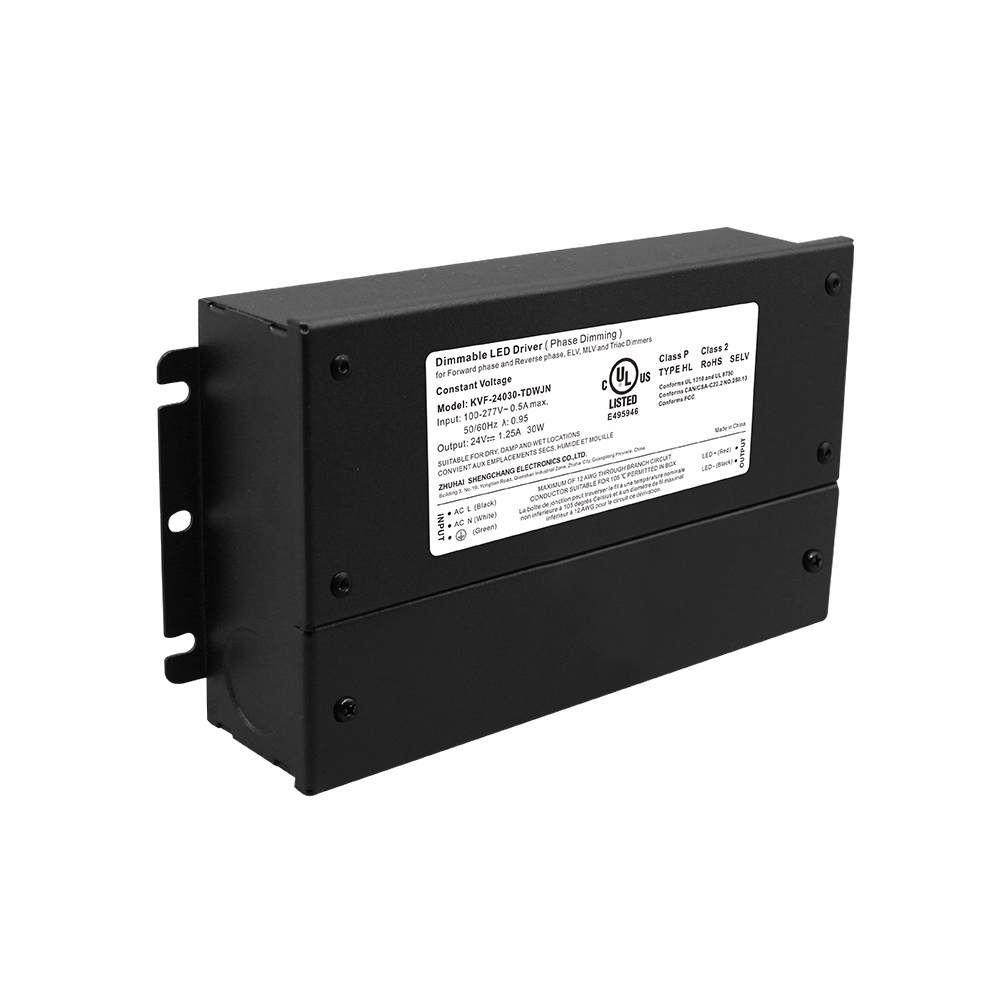

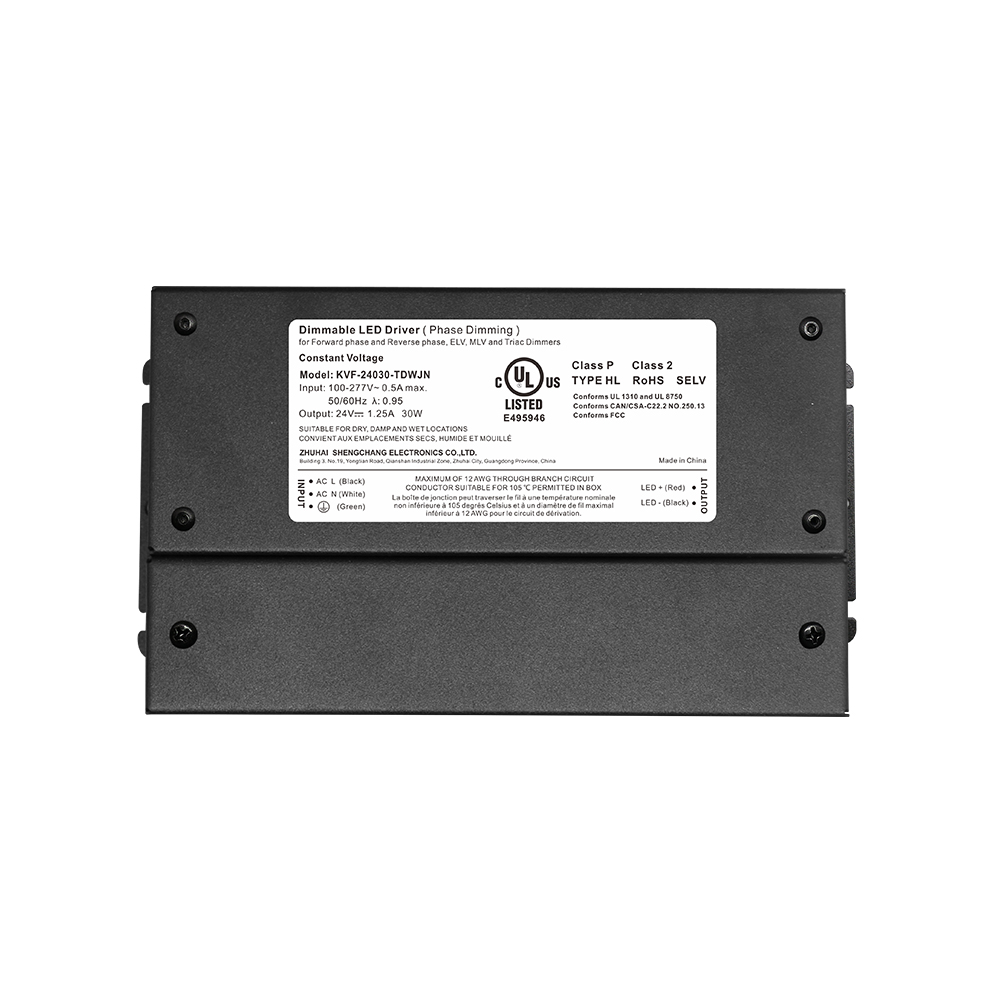

30 W až 600 W TRIAC Dommable LED DUCTION DUCTION CV s križovatkou
Výstup: | Konštantné napätie |
Rozsah: | 100-277VAC |
Dizajn PFC: | Vstavaná aktívna funkcia PFC |
Ochrana: | Skrat/ nadobudnutie/ nadmerná teplota |
Rozptyl tepla: | Chladenie bezplatnou vzduchovou konvekciou |
Nepremokavý výkon: | Plná ochrana železného krytu pre suché, vlhké a mokré miesto |
Funkcia stmievania: | Fázové stmievanie: Pracujte s fázou vpred, MLV a reverznou fázou, ELV, triac stmievače. |
Rozsah stmievania: | 0-100% |
Aplikácia: | Vhodný na použitie osvetlenia LED |
Záruka: | Záruka 5 rokov |
Ostatné: | Výstup PWM, vysoký výkon PF≥0,95, stmievanie bez blikania |
Výstupný výkon | Číslo modelu | Výstupné napätie | Výstupný prúd | Veľkosť | Váha |

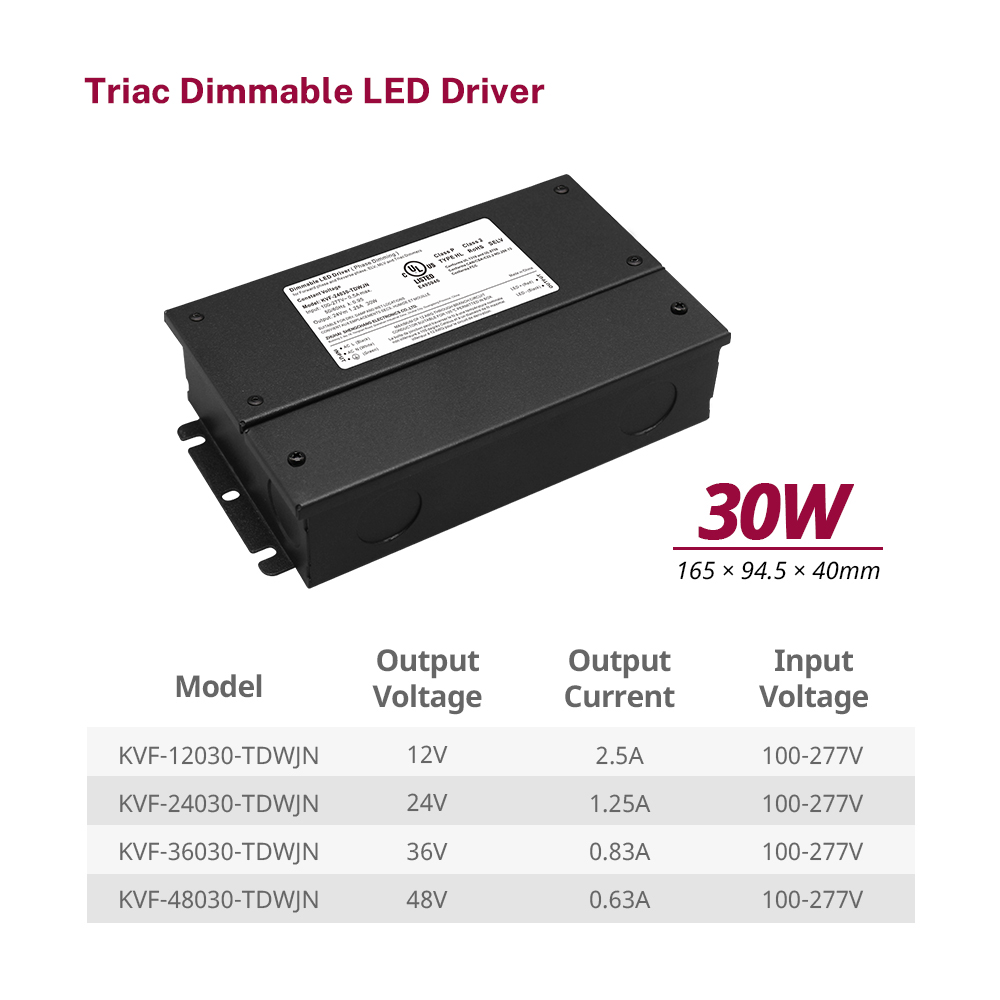

30W | KVF-12030-TDWJN | 12V | 2,5A | 165*94,5*40 mm | 0,93 kg |
KVF-24030-TDWJN | 24 V | 1,25A |
KVF-36030-TDWJN | 36V | 0,83a |
KVF-48030-TDWJN | 48v | 0,63a |
60 W | KVF-12060-TDWJN | 12V | 5a | 188*94,5*40 mm | 1,03 kg |
KVF-24060-TDWJN | 24 V | 2,5A |
KVF-36060-TDWJN | 36V | 1.67 |
KVF-48060-TDWJN | 48v | 1,25A |
|
80 W | KVF-12080-TDWJN | 12V | 6.66a | 220*94,5*42,7 mm | 1,26 kg |
KVF-24080-TDWJN | 24 V | 3,34a |
KVF-36080-TDWJN | 36V | 2.22a |
KVF-48080-TDWJN | 48v | 1,67a |
96 W | KVF-24096-TDWJN | 24 V | 4a |
KVF-36096-TDWJN | 36V | 2,67a |
KVF-48096-TDWJN | 48v | 2a |
100 W | KVF-12100-TDWJN | 12V | 8.34a |
KVF-24100-TDWJN | 24 V | 4.17a |
KVF-36100-TDWJN | 36V | 2,78a |
KVF-48100-TDWJN | 48v | 2,09a |
120 W | KVF-12120-TDWJN | 12V | 10a |
KVF-24120-TDWJN | 24 V | 5a |
KVF-36120-TDWJN | 36V | 3,33a |
KVF-48120-TDWJN | 48v | 2,5A |
|
150 W | KVF-12150-TDWJN | 12V | 12.5A | 260*105*45 mm | 1,81 kg |
KVF-24150-TDWJN | 24 V | 6.25a |
KVF-36150-TDWJN | 36V | 4.17a |
KVF-48150-TDWJN | 48v | 3.13a |
200W | KVF-12200-TDWJN | 12V | 16.67a |
KVF-24200-TDWJN | 24 V | 8.34a |
KVF-36200-TDWJN | 36V | 5.56a |
KVF-48200-TDWJN | 48v | 4.17a |
|
300 W | KVF-12300-TDWJN | 12V | 25a | 278*110*45 mm | 2,15 kg |
KVF-24300-TDWJN | 24 V | 12.5A |
KVF-36300-TDWJN | 36V | 8.33a |
KVF-48300-TDWJN | 48v | 6.25a |
500 W | KVF-12150-TDWJ | 12V | 12.5A | 280*140*50,2 mm | 2,70 kg |
KVF-24150-TDWJ | 24 V | 6.25a |
KVF-36150-TDWJ | 36V | 4.17a |
KVF-48150-TDWJ | 48v | 3.13a |
600 W | KVF-12200-TDWJ | 12V | 16.67a |
KVF-24200-TDWJ | 24 V | 8.34a |
KVF-36200-TDWJ | 36V | 5.56a |
KVF-48200-TDWJ | 48v | 4.17a |
Diagram zapojenia vodiča LED TRIAC
30 W diagram zapojenia ovládača TRIAC LED
