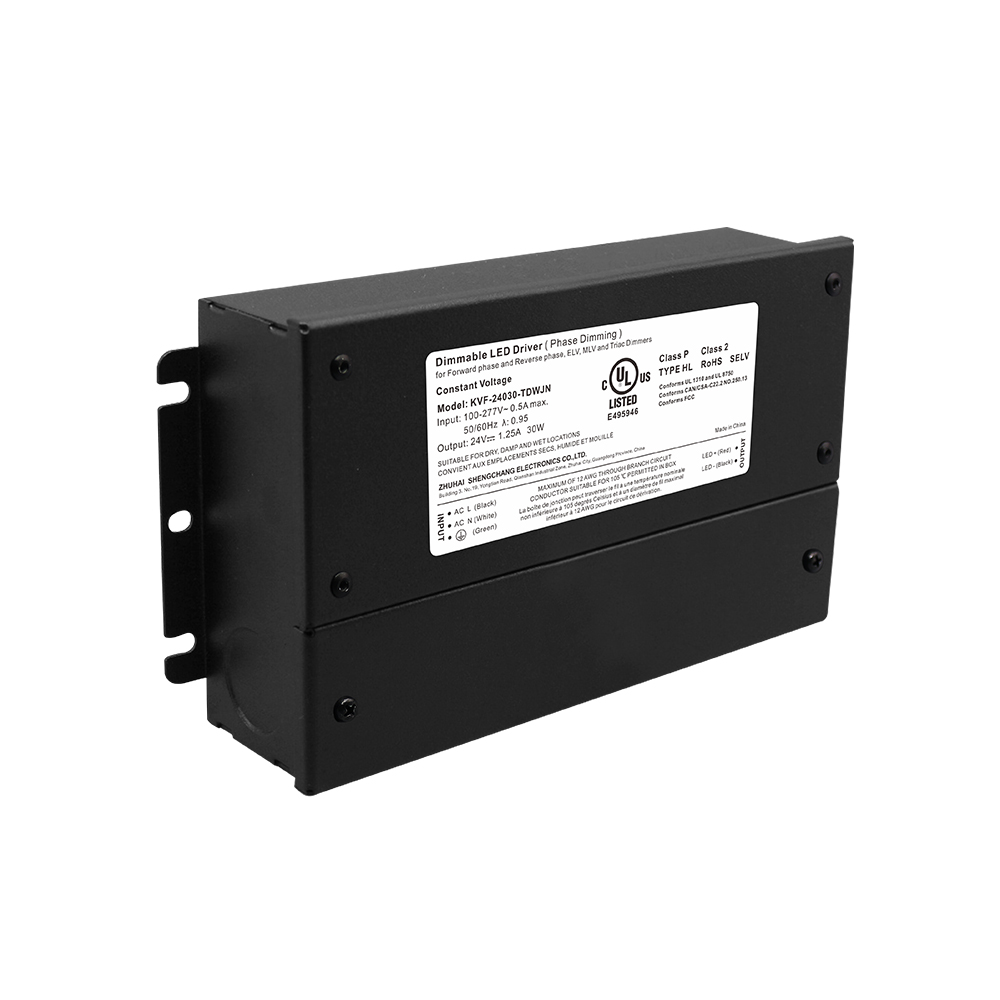

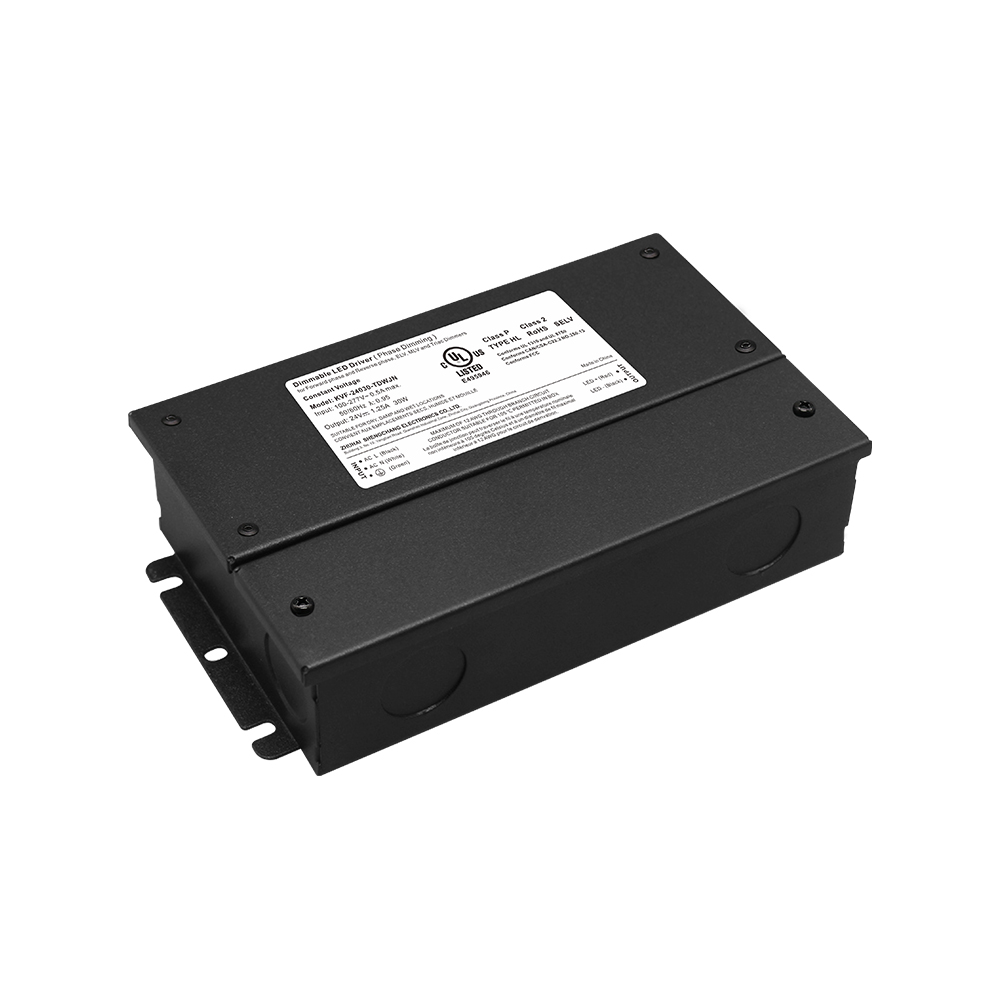

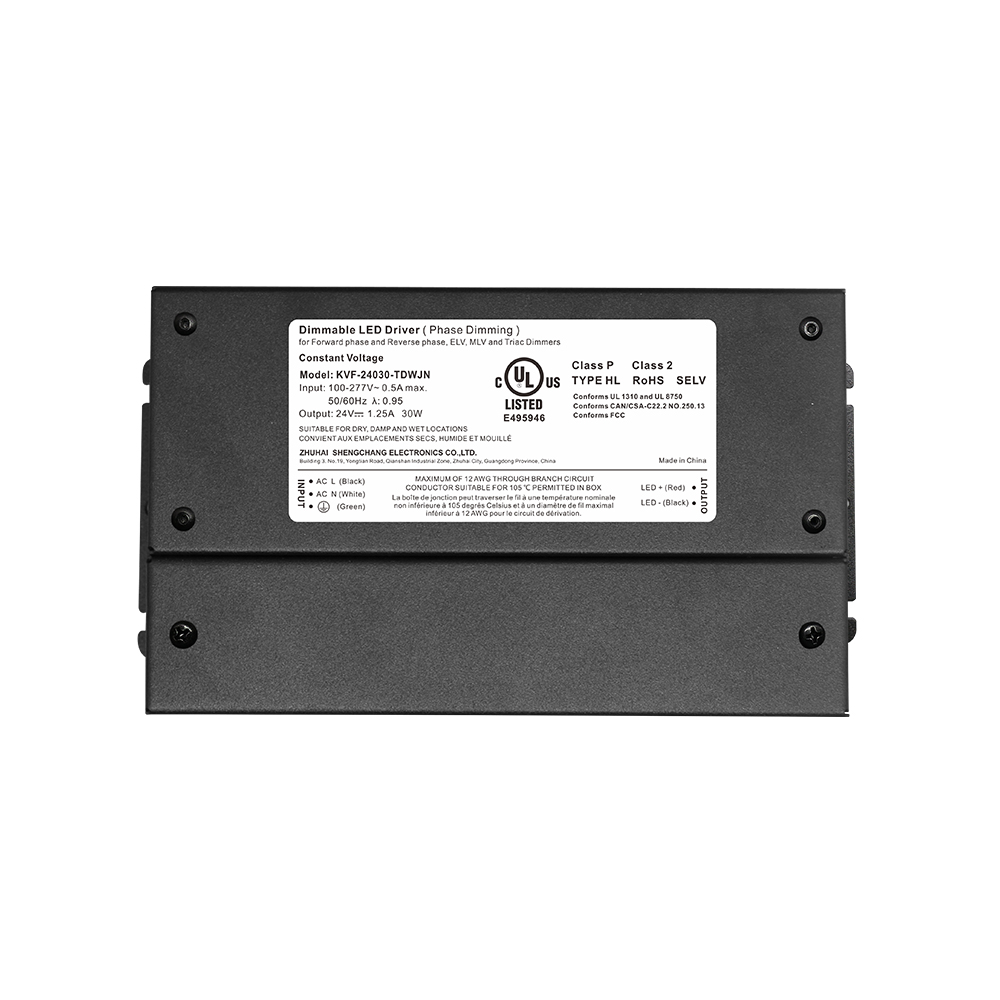

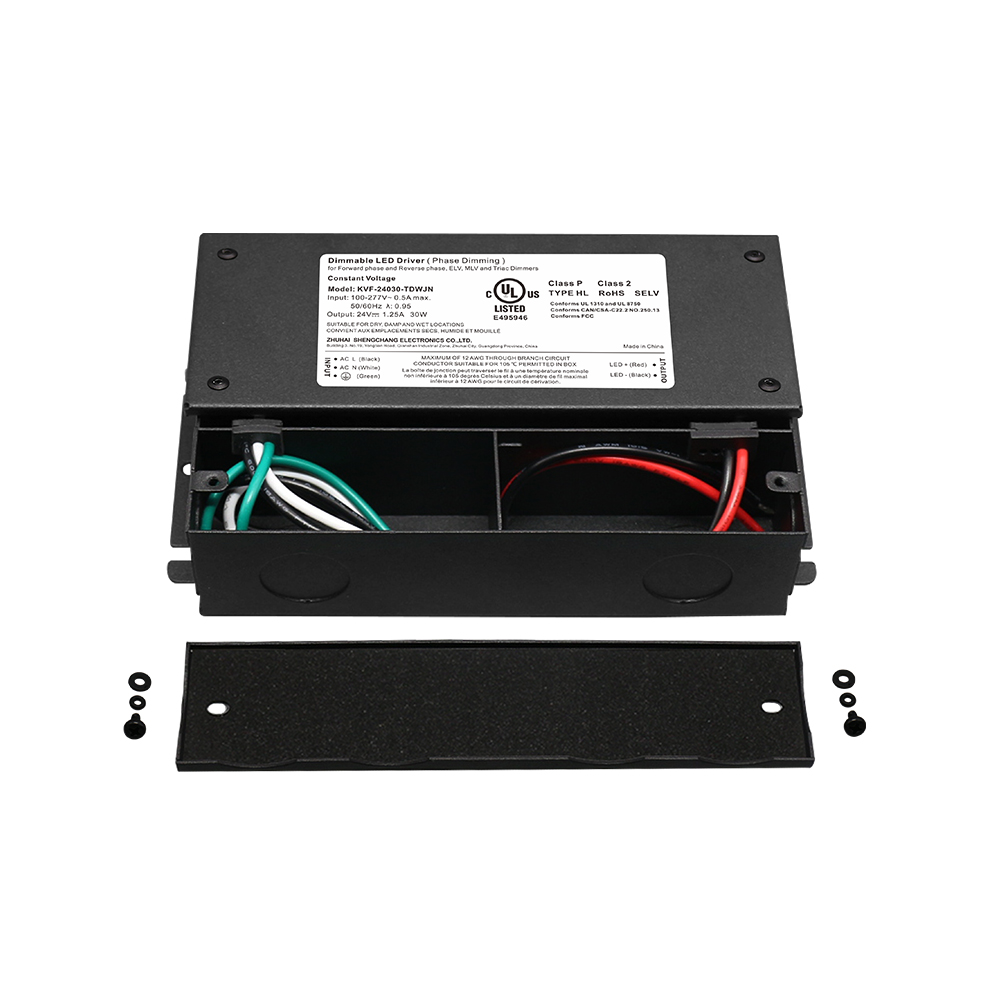

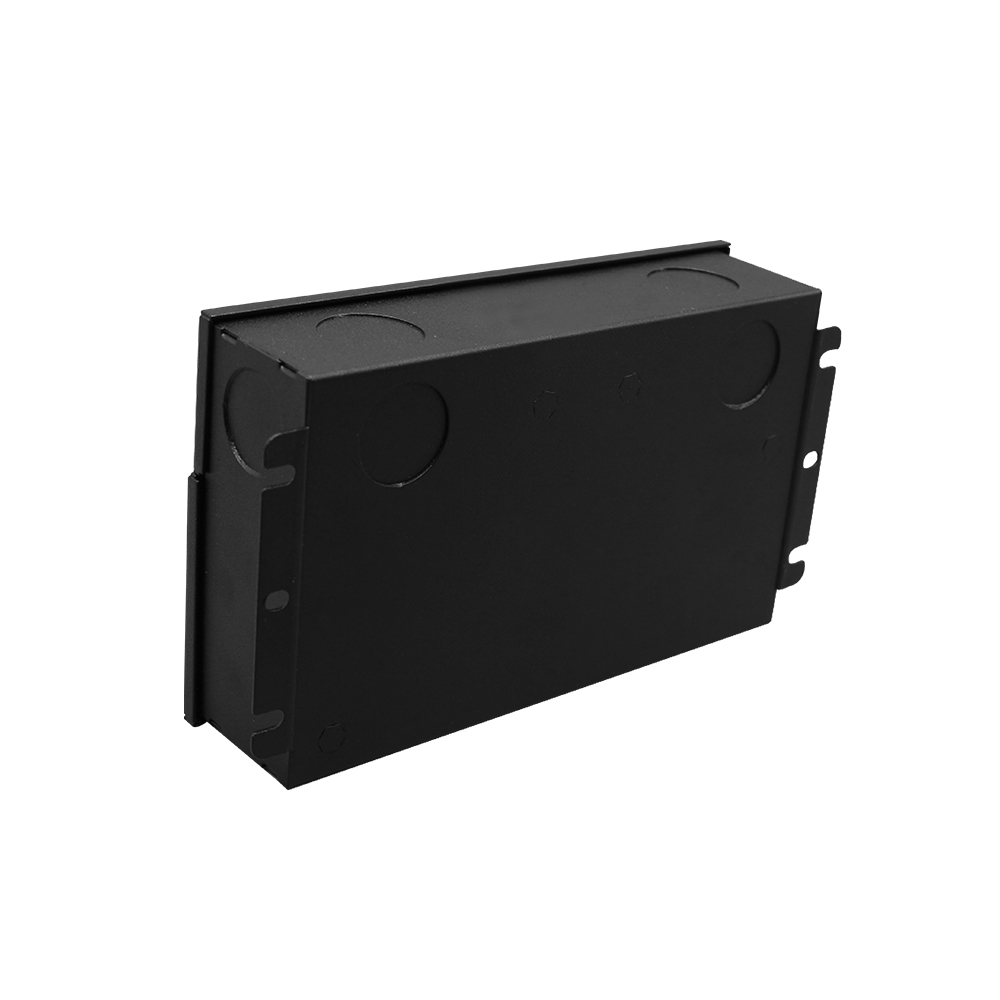

30W to 600W Triac Dimmable LED Power Supply CV with Junction Box
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection iron housing, for dry, damp & wet location |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |

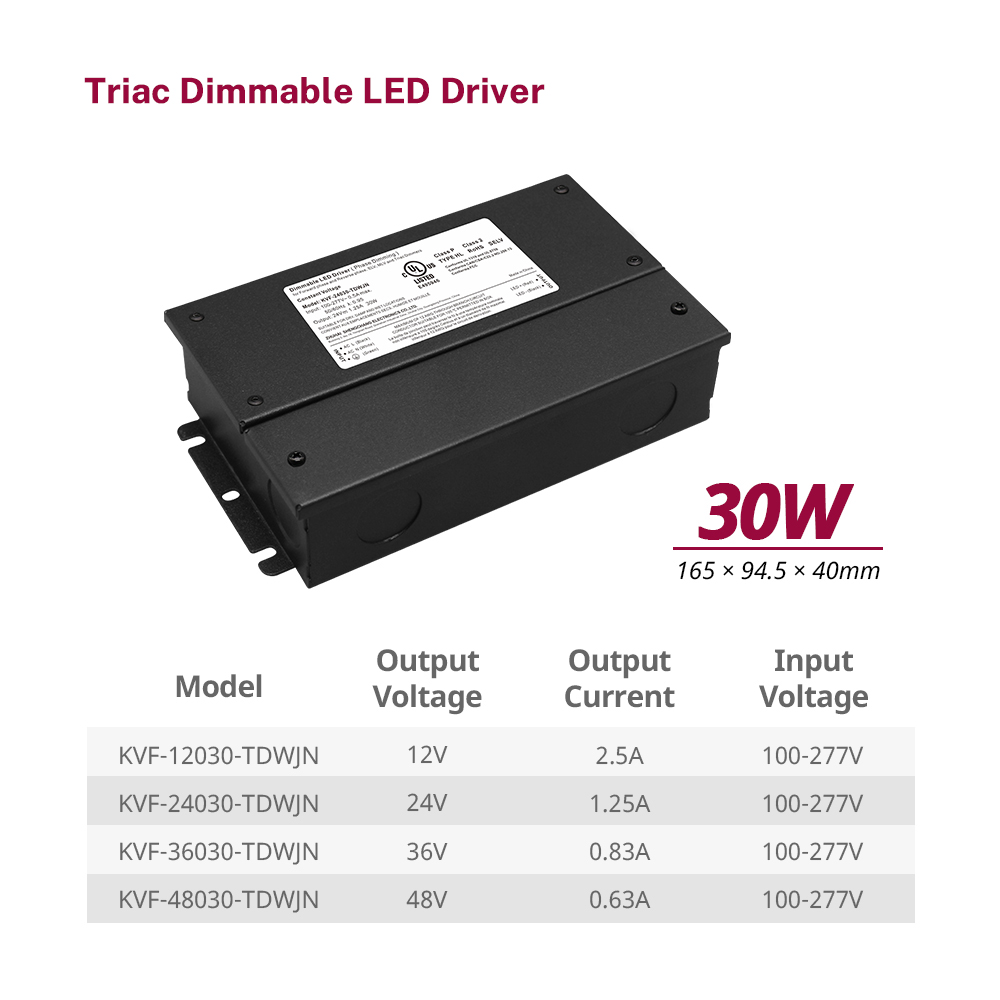

30W | KVF-12030-TDWJN | 12V | 2.5A | 165*94.5*40mm | 0.93kg |
KVF-24030-TDWJN | 24V | 1.25A |
KVF-36030-TDWJN | 36V | 0.83A |
KVF-48030-TDWJN | 48V | 0.63A |
60W | KVF-12060-TDWJN | 12V | 5A | 188*94.5*40mm | 1.03kg |
KVF-24060-TDWJN | 24V | 2.5A |
KVF-36060-TDWJN | 36V | 1.67 |
KVF-48060-TDWJN | 48V | 1.25A |
|
80W | KVF-12080-TDWJN | 12V | 6.66A | 220*94.5*42.7mm | 1.26kg |
KVF-24080-TDWJN | 24V | 3.34A |
KVF-36080-TDWJN | 36V | 2.22A |
KVF-48080-TDWJN | 48V | 1.67A |
96W | KVF-24096-TDWJN | 24V | 4A |
KVF-36096-TDWJN | 36V | 2.67A |
KVF-48096-TDWJN | 48V | 2A |
100W | KVF-12100-TDWJN | 12V | 8.34A |
KVF-24100-TDWJN | 24V | 4.17A |
KVF-36100-TDWJN | 36V | 2.78A |
KVF-48100-TDWJN | 48V | 2.09A |
120W | KVF-12120-TDWJN | 12V | 10A |
KVF-24120-TDWJN | 24V | 5A |
KVF-36120-TDWJN | 36V | 3.33A |
KVF-48120-TDWJN | 48V | 2.5A |
|
150W | KVF-12150-TDWJN | 12V | 12.5A | 260*105*45mm | 1.81kg |
KVF-24150-TDWJN | 24V | 6.25A |
KVF-36150-TDWJN | 36V | 4.17A |
KVF-48150-TDWJN | 48V | 3.13A |
200W | KVF-12200-TDWJN | 12V | 16.67A |
KVF-24200-TDWJN | 24V | 8.34A |
KVF-36200-TDWJN | 36V | 5.56A |
KVF-48200-TDWJN | 48V | 4.17A |
|
300W | KVF-12300-TDWJN | 12V | 25A | 278*110*45mm | 2.15kg |
KVF-24300-TDWJN | 24V | 12.5A |
KVF-36300-TDWJN | 36V | 8.33A |
KVF-48300-TDWJN | 48V | 6.25A |
500W | KVF-12150-TDWJ | 12V | 12.5A | 280*140*50.2mm | 2.70kg |
KVF-24150-TDWJ | 24V | 6.25A |
KVF-36150-TDWJ | 36V | 4.17A |
KVF-48150-TDWJ | 48V | 3.13A |
600W | KVF-12200-TDWJ | 12V | 16.67A |
KVF-24200-TDWJ | 24V | 8.34A |
KVF-36200-TDWJ | 36V | 5.56A |
KVF-48200-TDWJ | 48V | 4.17A |
Triac LED Driver Wiring Diagram
30W Triac LED Driver Wiring Diagram
30W to 60W Triac LED Driver Size（see the spec download）
30W to 600W Triac Dimmable LED Power Supply CV with Junction Box
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection iron housing, for dry, damp & wet location |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KVF-12030-TDWJN | 12V | 2.5A | 165*94.5*40mm | 0.93kg |
KVF-24030-TDWJN | 24V | 1.25A |
KVF-36030-TDWJN | 36V | 0.83A |
KVF-48030-TDWJN | 48V | 0.63A |
60W | KVF-12060-TDWJN | 12V | 5A | 188*94.5*40mm | 1.03kg |
KVF-24060-TDWJN | 24V | 2.5A |
KVF-36060-TDWJN | 36V | 1.67 |
KVF-48060-TDWJN | 48V | 1.25A |
|
80W | KVF-12080-TDWJN | 12V | 6.66A | 220*94.5*42.7mm | 1.26kg |
KVF-24080-TDWJN | 24V | 3.34A |
KVF-36080-TDWJN | 36V | 2.22A |
KVF-48080-TDWJN | 48V | 1.67A |
96W | KVF-24096-TDWJN | 24V | 4A |
KVF-36096-TDWJN | 36V | 2.67A |
KVF-48096-TDWJN | 48V | 2A |
100W | KVF-12100-TDWJN | 12V | 8.34A |
KVF-24100-TDWJN | 24V | 4.17A |
KVF-36100-TDWJN | 36V | 2.78A |
KVF-48100-TDWJN | 48V | 2.09A |
120W | KVF-12120-TDWJN | 12V | 10A |
KVF-24120-TDWJN | 24V | 5A |
KVF-36120-TDWJN | 36V | 3.33A |
KVF-48120-TDWJN | 48V | 2.5A |
|
150W | KVF-12150-TDWJN | 12V | 12.5A | 260*105*45mm | 1.81kg |
KVF-24150-TDWJN | 24V | 6.25A |
KVF-36150-TDWJN | 36V | 4.17A |
KVF-48150-TDWJN | 48V | 3.13A |
200W | KVF-12200-TDWJN | 12V | 16.67A |
KVF-24200-TDWJN | 24V | 8.34A |
KVF-36200-TDWJN | 36V | 5.56A |
KVF-48200-TDWJN | 48V | 4.17A |
|
300W | KVF-12300-TDWJN | 12V | 25A | 278*110*45mm | 2.15kg |
KVF-24300-TDWJN | 24V | 12.5A |
KVF-36300-TDWJN | 36V | 8.33A |
KVF-48300-TDWJN | 48V | 6.25A |
500W | KVF-12150-TDWJ | 12V | 12.5A | 280*140*50.2mm | 2.70kg |
KVF-24150-TDWJ | 24V | 6.25A |
KVF-36150-TDWJ | 36V | 4.17A |
KVF-48150-TDWJ | 48V | 3.13A |
600W | KVF-12200-TDWJ | 12V | 16.67A |
KVF-24200-TDWJ | 24V | 8.34A |
KVF-36200-TDWJ | 36V | 5.56A |
KVF-48200-TDWJ | 48V | 4.17A |
Triac LED Driver Wiring Diagram
30W Triac LED Driver Wiring Diagram
30W to 60W Triac LED Driver Size（see the spec download）
