Triac
Isolated
Constant Voltage
1CH (Dimming)
IP20, Dry & Damp
100-277VAC
150W
12/ 24/ 48V
UL & cUL, CE, RoHS, REACH

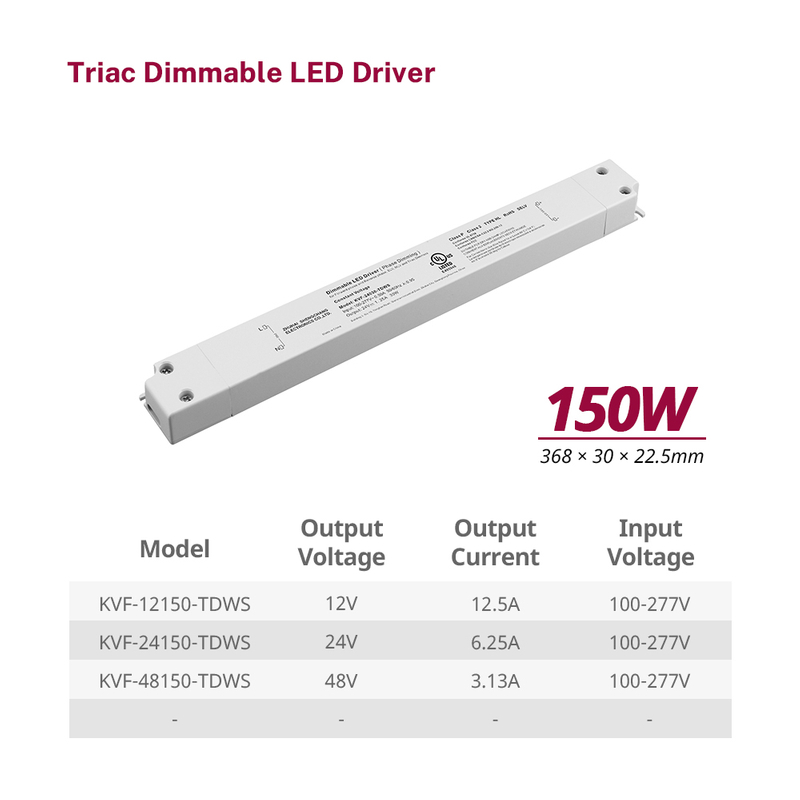

150W Triac Dimmable Linear LED Power Supply CV for led lamp lighting
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 91% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection plastic housing, for indoor dry, damp locations |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KVF-12030-TDWS | 12V | 2.5A | 260*30*18.5mm | 0.2kg |
KVF-24030-TDWS | 24V | 1.25A | |||
KVF-48030-TDWS | 48V | 0.63A | |||
36W | KVF-12036-TDWS | 12V | 3A | 260*30*18.5mm | 0.2kg |
KVF-24036-TDWS | 24V | 1.5A | |||
KVF-48036-TDWS | 48V | 0.75A | |||
60W | KVF-12060-TDWS | 12V | 5A | 300*30*18.5mm | 0.25kg |
KVF-24060-TDWS | 24V | 2.5A | |||
KVF-48060-TDWS | 48V | 1.25A | |||
96W | KVF-24096-TDWS | 24V | 4A | 330*30*22mm | 0.29kg |
KVF-48096-TDWS | 48V | 2A | |||
100W | KVF-12100-TDWS | 12V | 8.34A | 330*30*22mm | 0.29kg |
KVF-24100-TDWS | 24V | 4.17A | |||
KVF-48100-TDWS | 48V | 2.09A | |||
150W | KVF-12150-TDWS | 12V | 12.5A | 368*30*22.5mm | 0.3kg |
KVF-24150-TDWS | 24V | 6.25A | |||
KVF-48150-TDWS | 48V | 3.13A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
150W Triac Dimmable Linear LED Power Supply CV for led lamp lighting
Output: | Constant Voltage |
Range: | 110-277VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 91% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection plastic housing, for indoor dry, damp locations |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | PWM output, High power factor PF≥0.95, flicker-free dimming |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KVF-12030-TDWS | 12V | 2.5A | 260*30*18.5mm | 0.2kg |
KVF-24030-TDWS | 24V | 1.25A | |||
KVF-48030-TDWS | 48V | 0.63A | |||
36W | KVF-12036-TDWS | 12V | 3A | 260*30*18.5mm | 0.2kg |
KVF-24036-TDWS | 24V | 1.5A | |||
KVF-48036-TDWS | 48V | 0.75A | |||
60W | KVF-12060-TDWS | 12V | 5A | 300*30*18.5mm | 0.25kg |
KVF-24060-TDWS | 24V | 2.5A | |||
KVF-48060-TDWS | 48V | 1.25A | |||
96W | KVF-24096-TDWS | 24V | 4A | 330*30*22mm | 0.29kg |
KVF-48096-TDWS | 48V | 2A | |||
100W | KVF-12100-TDWS | 12V | 8.34A | 330*30*22mm | 0.29kg |
KVF-24100-TDWS | 24V | 4.17A | |||
KVF-48100-TDWS | 48V | 2.09A | |||
150W | KVF-12150-TDWS | 12V | 12.5A | 368*30*22.5mm | 0.3kg |
KVF-24150-TDWS | 24V | 6.25A | |||
KVF-48150-TDWS | 48V | 3.13A |
