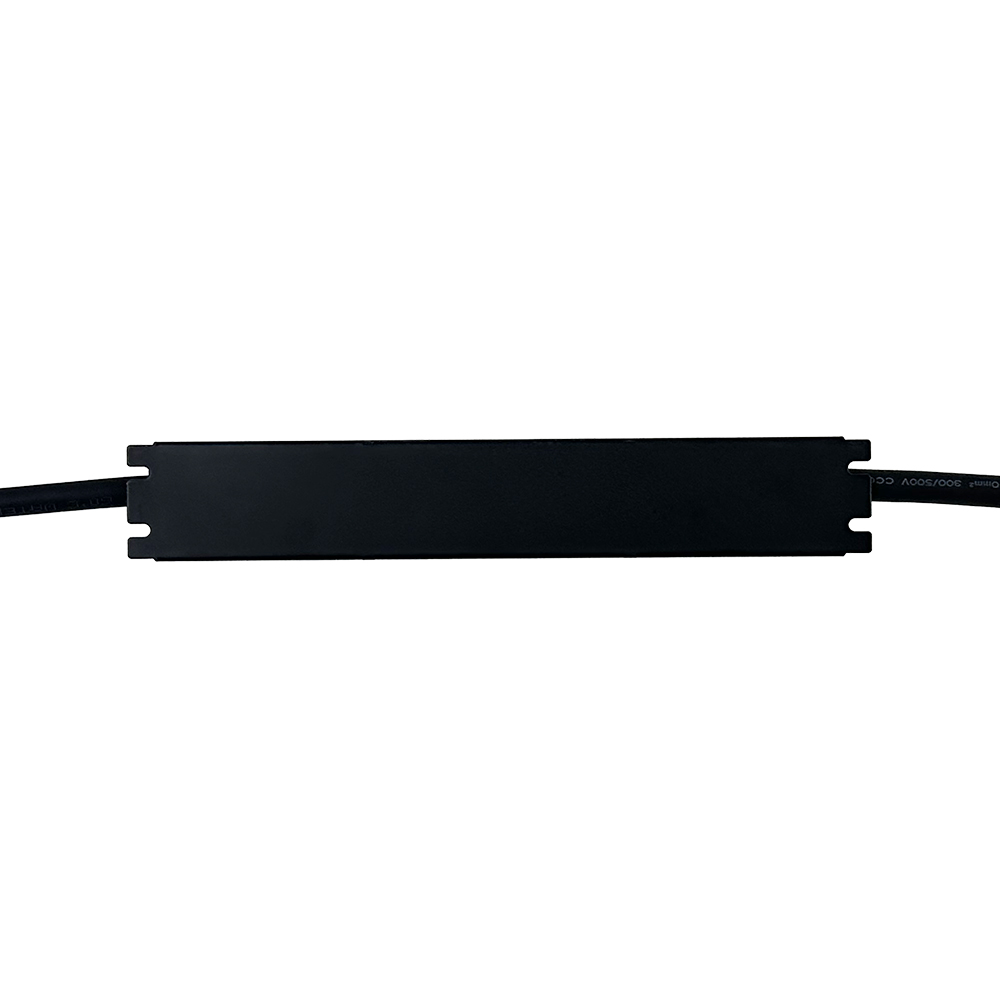

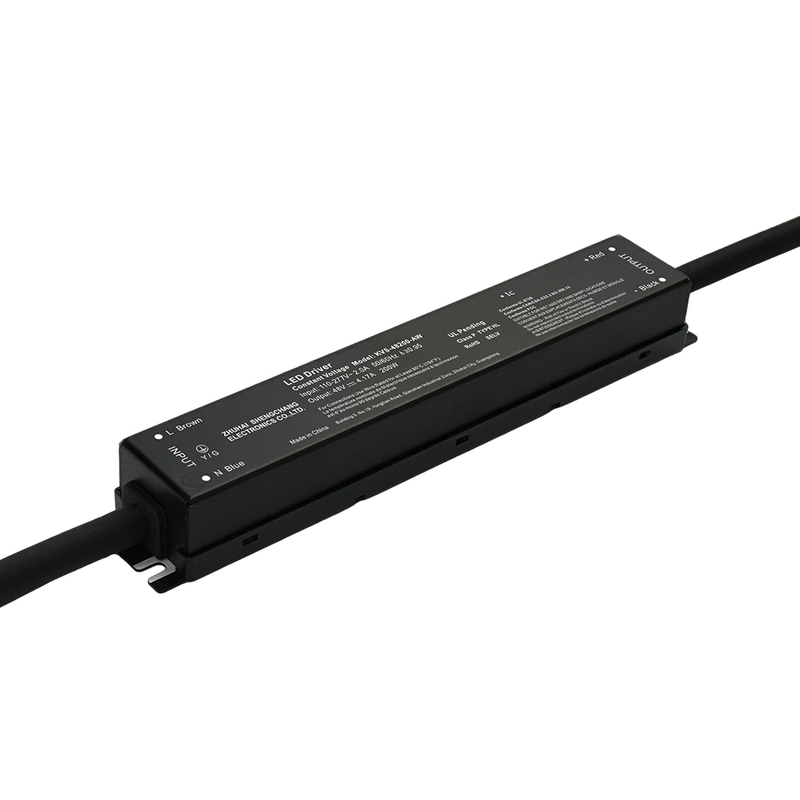

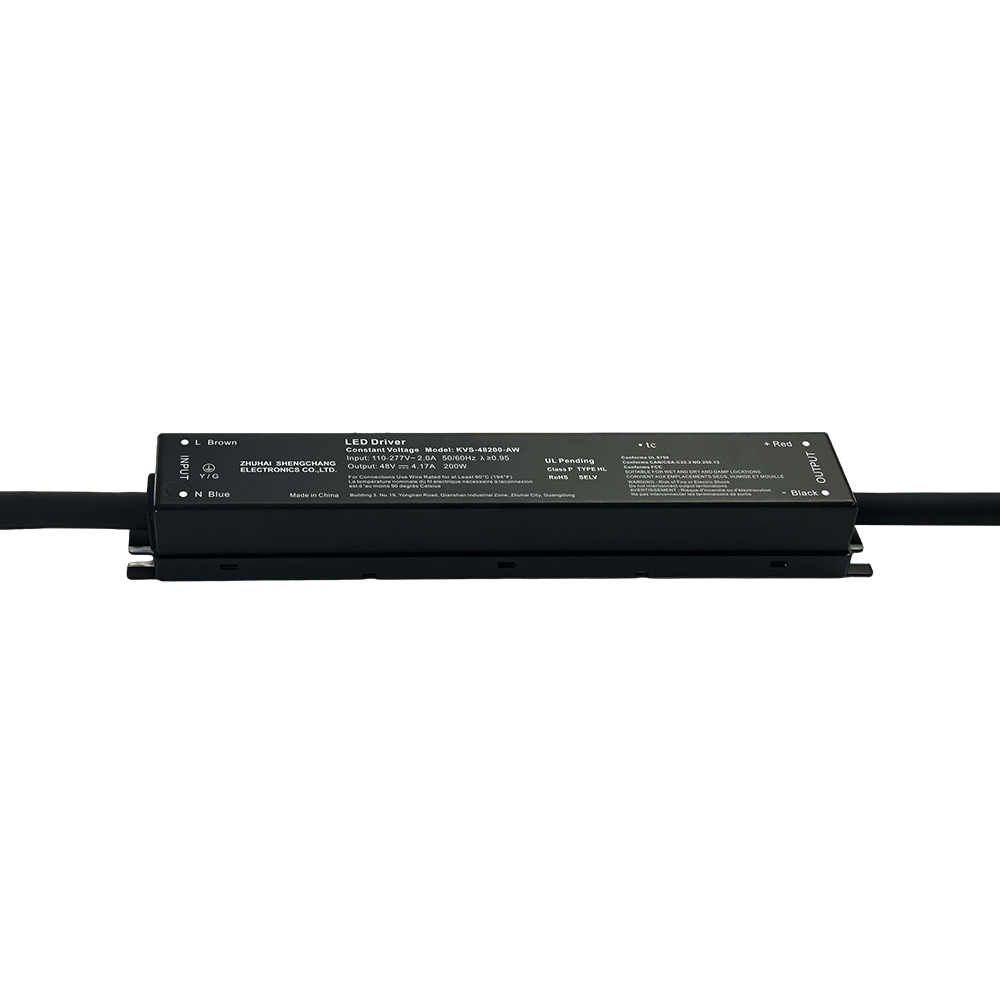

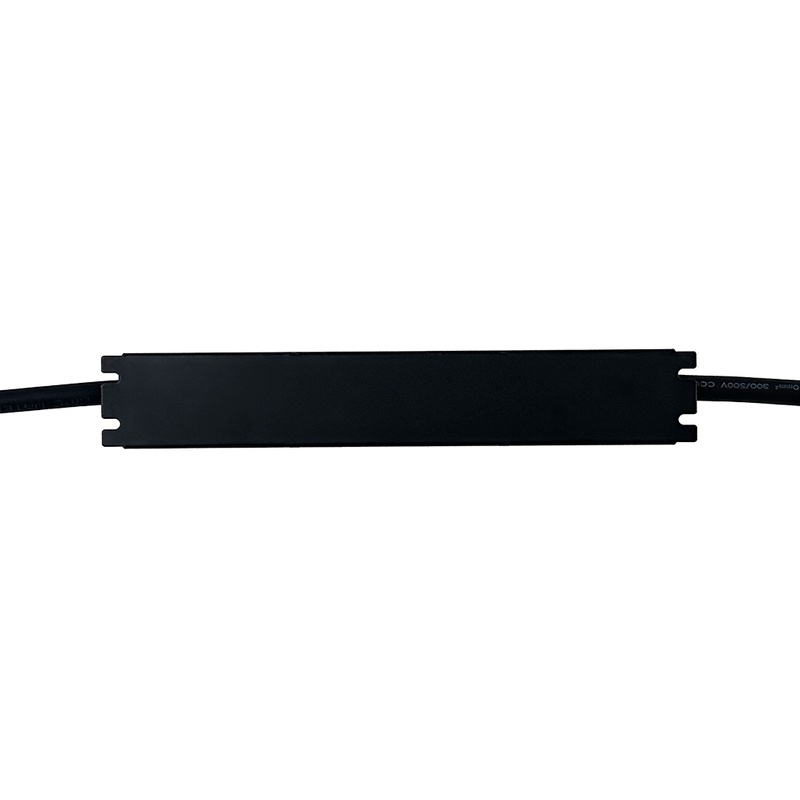

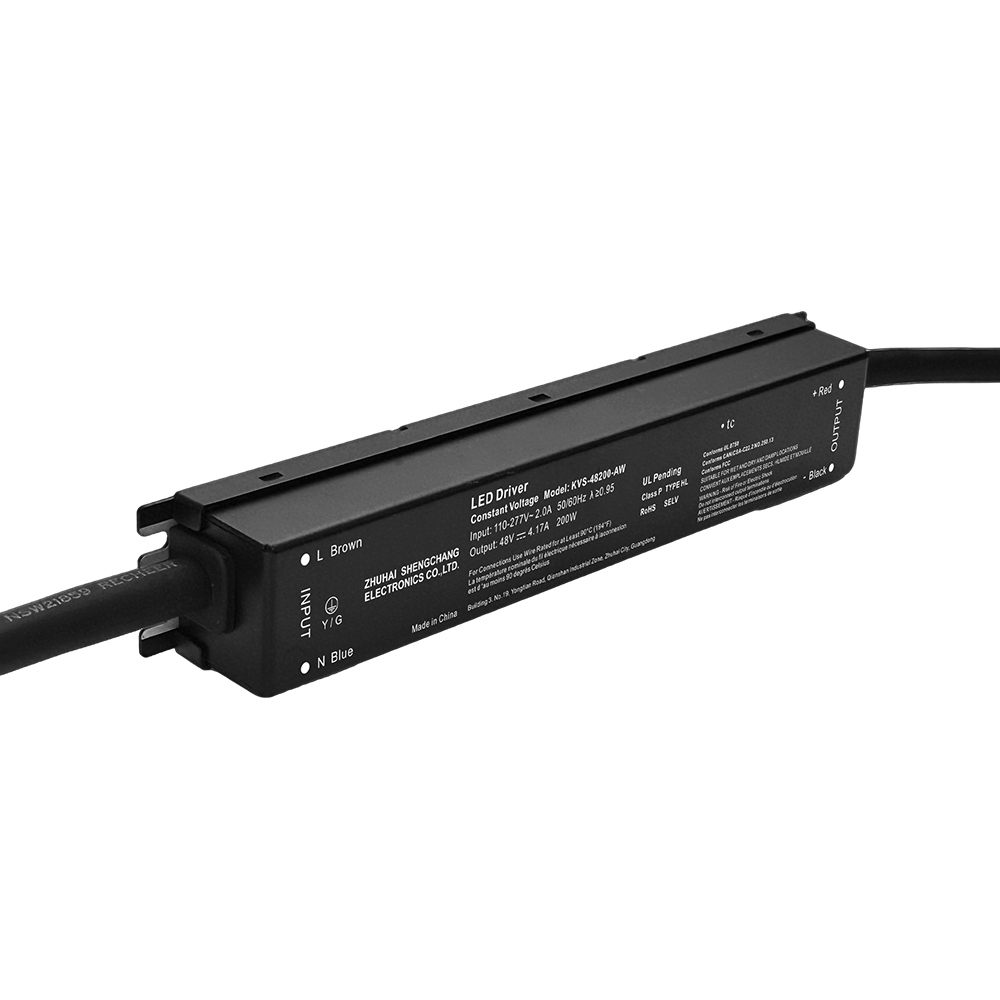

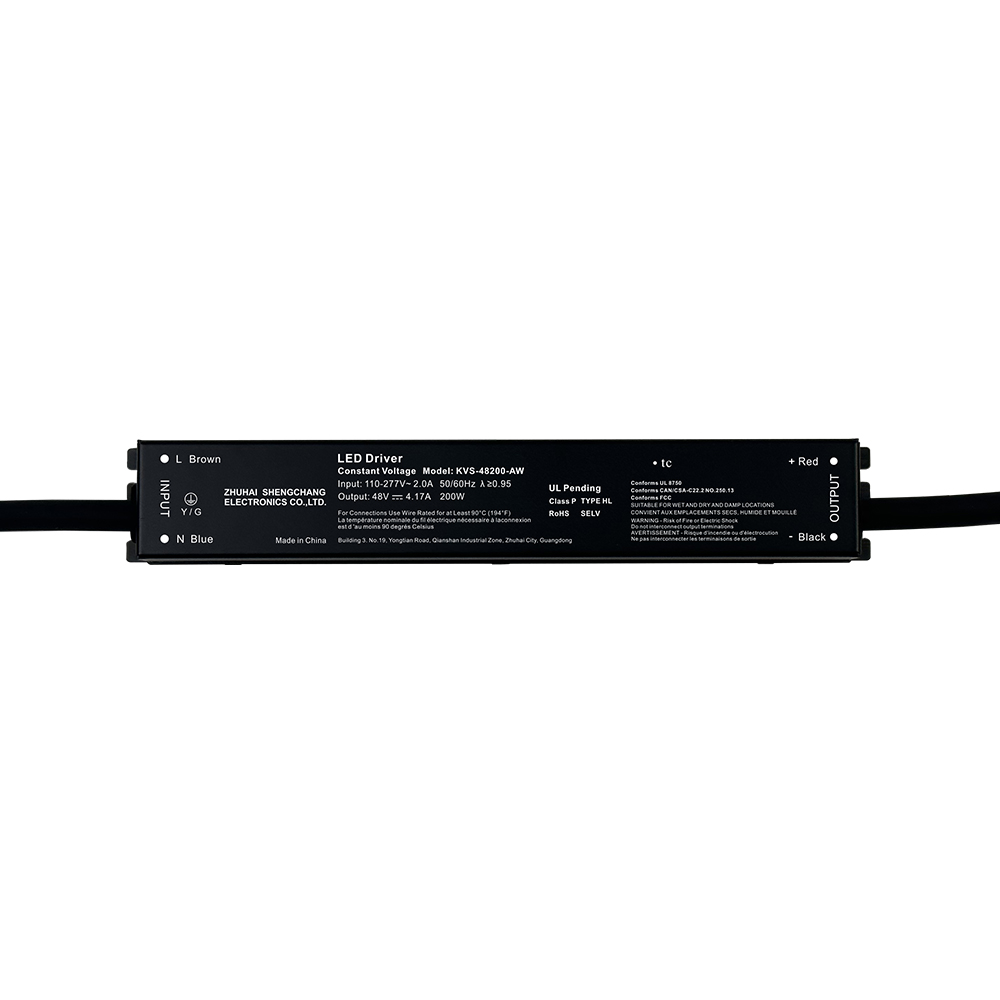

100W 150W 200W CV Small Size 24V or 48V DC Switching Power Supply CE Certification

Output	Constant Voltage
Input voltage range	100-277VAC
PFC design	Built-in active PFC function
Protections	Short circuit/over temperature/over load
Heat dissipation	Cooling by free air convection
Waterproof performance	Driver built in junction box,for dry ,damp&wet locations(US)
Dimming function	Non-dimmable
Application	Suitable for the application of LED lighting
Warranty	5 years warranty
Others	High efficiency, small size, high power factor, low THD

Specification

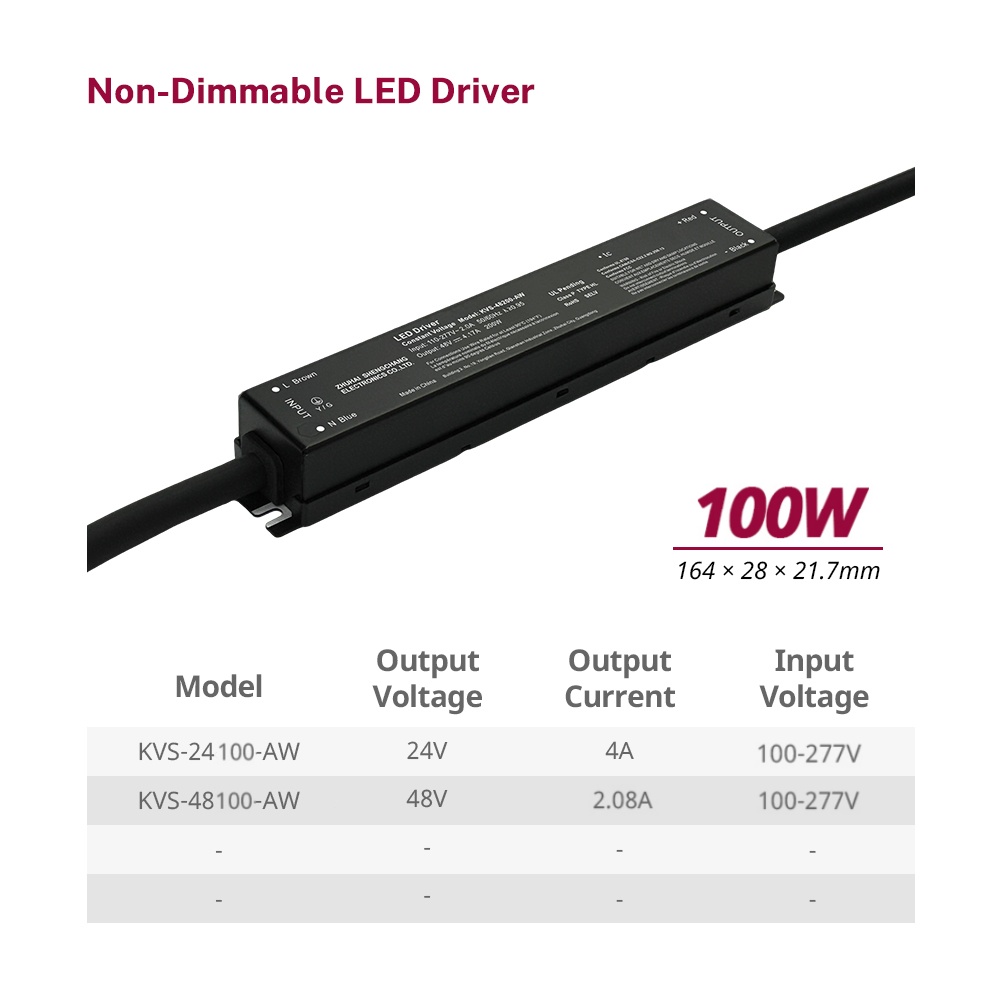

Output Power	Model Number	Output Voltage	Output Current	Size	Weight
100W	KVS-24100-AW	24V	4.17A	1642821.7mm
100W	KVS-48100-AW	48V	2.08A	1642821.7mm
150W	KVS-24150-AW	24V	4.17A	1833027.5mm
150W	KVS-48150-AW	48V	2.08A	1833027.5mm
200W	KVS-24200-AW	24V	8.33A	1833027.5mm
200W	KVS-48200-AW	48V	4.17A	1833027.5mm

Small Size 24V or 48V DC Switching Power Supply Wiring Diagram

Product Overview

The 100W 150W 200W CV Small Size Switching Power Supply features a space-saving design and delivers high-efficiency power conversion, providing stable, low-noise DC power for smart home appliances. Supporting a universal 100–277VAC input, it ensures a constant 24V 48V DC output (CV mode) across all power. The rugged aluminum housing (IP66-rated) offers waterproof protection, and CE certification guarantees reliable quality.

Product Features

1. Compact Size & Scalable Power: Occupying less volume than standard models, this series fits concealed enclosures and tight spaces. Users select optimal power (100W/150W/200W) and voltage (24V/48V) combinations to match load requirements, reducing inventory complexity for OEMs and system integrators.

2. CE-Certified Safety: Integrated safeguards include over-current, over-voltage, short-circuit, and over-temperature protection – auto-recovering after fault clearance.

3. High efficiency: High efficiency minimizes heat generation; aluminum housing allows for natural convection cooling.
