Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP66, Dry & Damp, Wet
100-277VAC
30W, 36W, 60W, 96W, 100W, 150W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, SAA, CE, RoHS, REACH
30W 36W 60W 96W 100W 150W CV Build in Active PFC Switching Power Supply of Low Ripple Lighting
Output | Constant Voltage |
Input voltage range | 100-277VAC |
PFC design | Built-in active PFC function |
Efficiency | Up to 83% |
Protections | Short circuit/ over load/ over temperature |
Heat dissipation | Cooling by free air convection |
Waterproof performance | For dry damp and wet locations(US) |
Dimming function | Non-dimmable |
Application | Suitable for LED lighting and moving sign applications |
Warranty | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KV-12030-ASLJV2 | 12V | 2.5A | 470*36.5*36mm | |
KV-24030-ASLJV2 | 24V | 1.25A | |||
KV-36030-ASLJV2 | 36V | 0.83A | |||
KV-48030-ASLJV2 | 48V | 0.63A | |||
36W | KV-12036-ASLJV2 | 12V | 3A | ||
KV-24036-ASLJV2 | 24V | 1.5A | |||
KV-36036-ASLJV2 | 36V | 1A | |||
KV-48036-ASLJV2 | 48V | 0.75A | |||
60W | KV-12060-ASLJV2 | 12V | 5A | ||
KV-24060-ASLJV2 | 24V | 2.5A | |||
KV-36060-ASLJV2 | 36V | 1.67A | |||
KV-48060-ASLJV2 | 48V | 1.25A | |||
96W | KV-24096-ASLJV2 | 24V | 4A | 0.73kg | |
KV-36096-ASLJV2 | 36V | 2.67A | |||
KV-48096-ASLJV2 | 48V | 2A | |||
100W | KV-12100-ASLJV2 | 12V | 8.34A | ||
KV-24100-ASLJV2 | 24V | 4.17A | |||
KV-36100-ASLJV2 | 36V | 2.78A | |||
KV-48100-ASLJV2 | 48V | 2.08A | |||
150W | KV-12150-ASLJV2 | 12V | 12.5A | 508*36.5*36mm | |
KV-24150-ASLJV2 | 24V | 6.25A | |||
KV-36150-ASLJV2 | 36V | 4.17A | |||
KV-48150-ASLJV2 | 48V | 3.13A |
No Dimmable Switching Power Supply Wiring Diagram

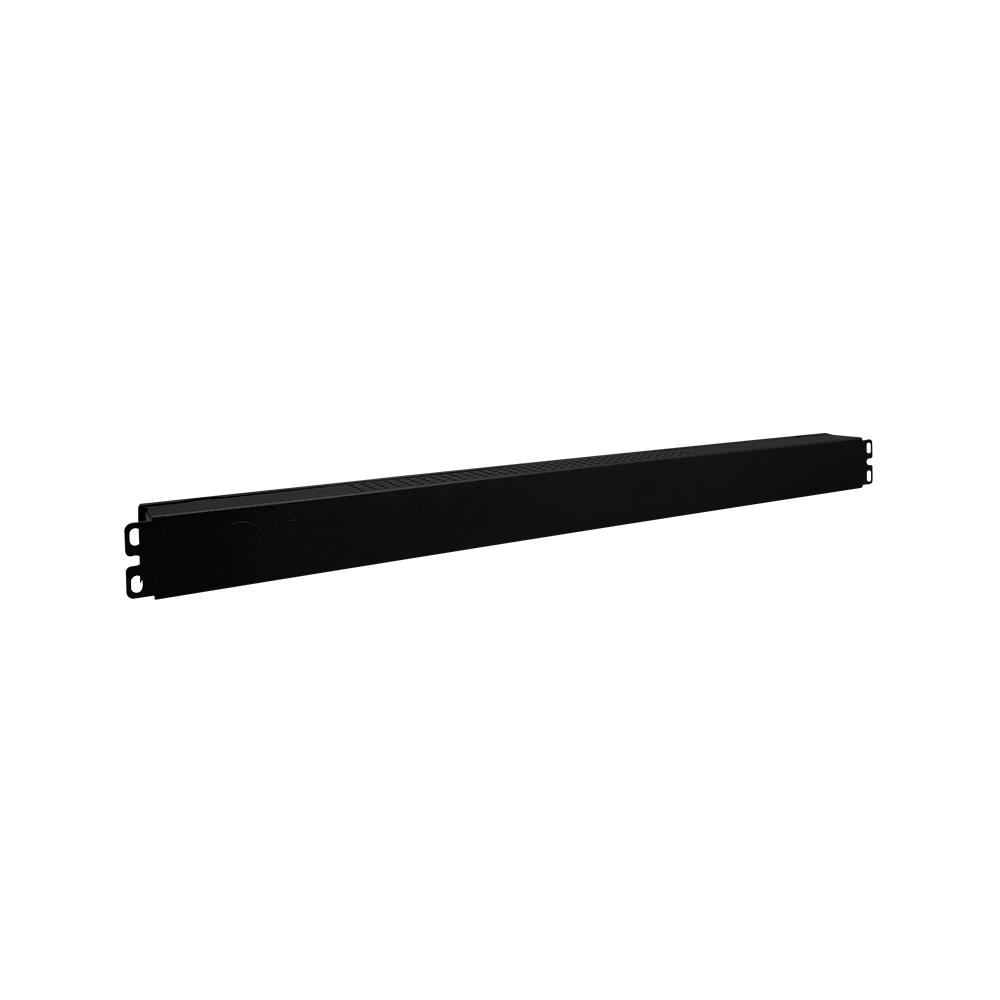

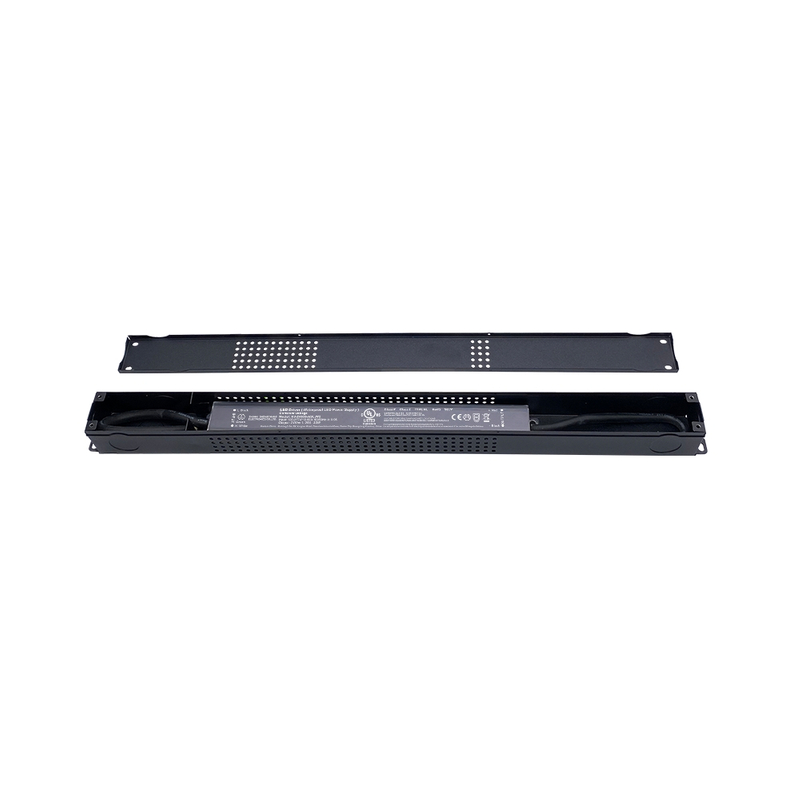

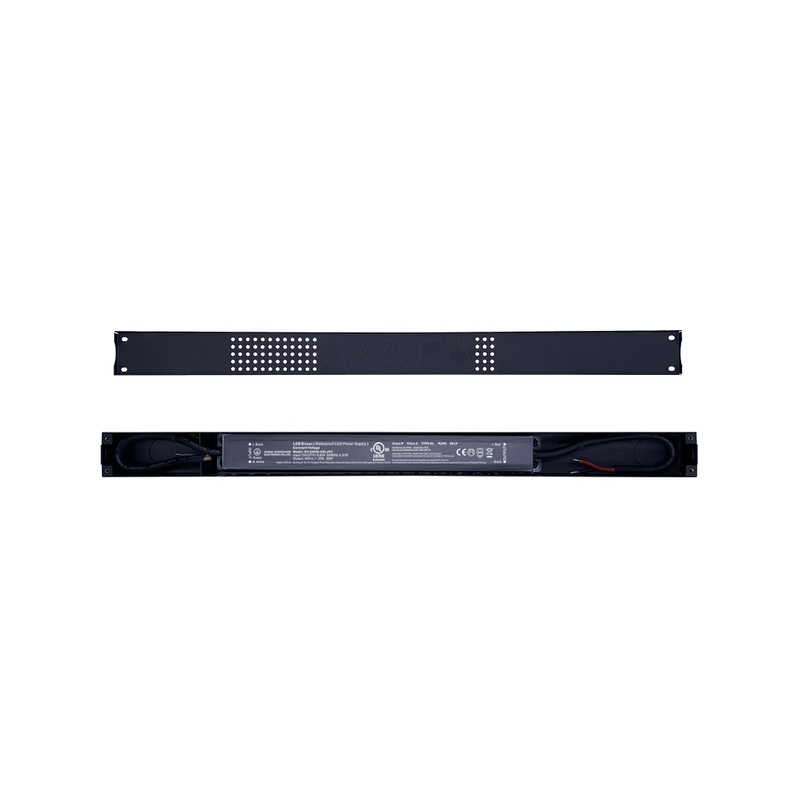

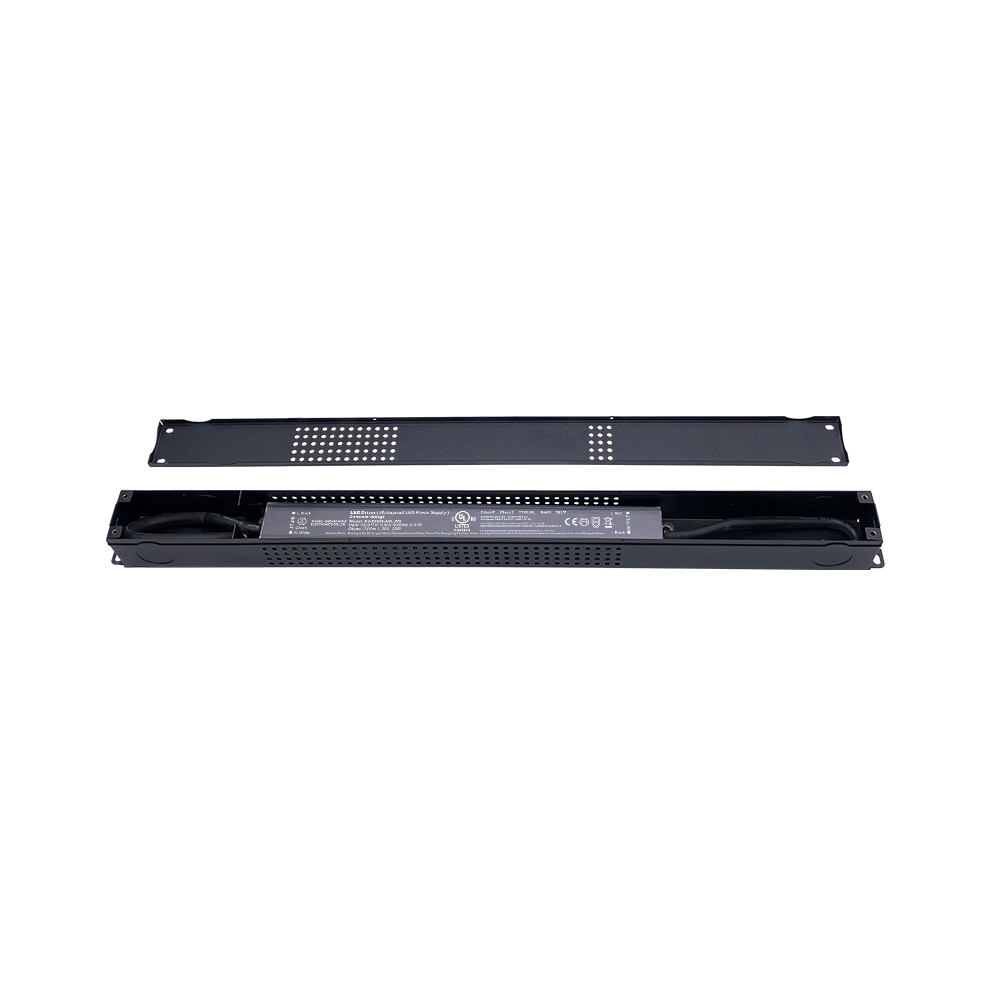

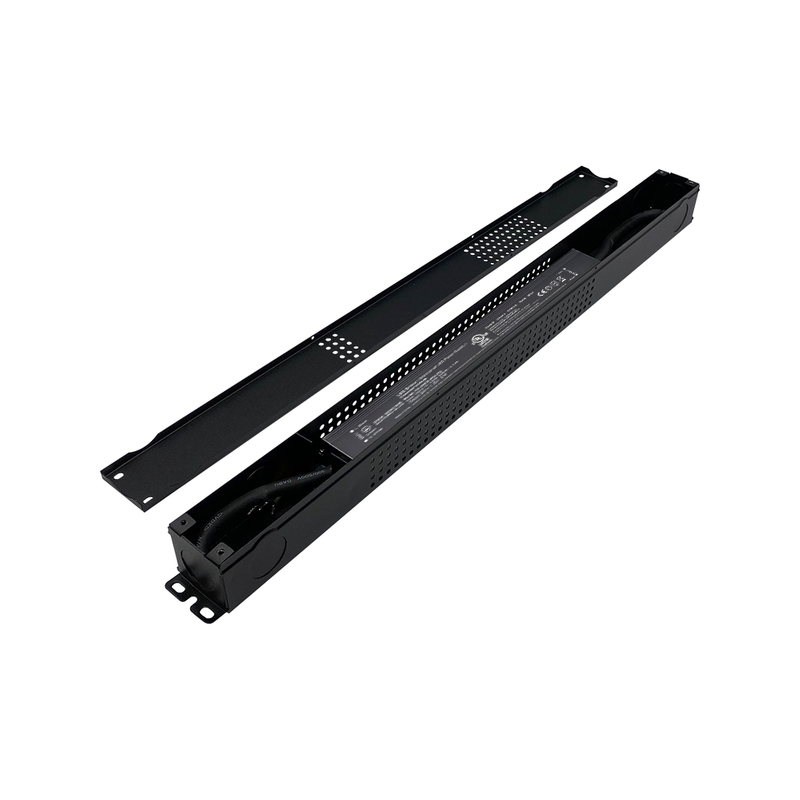

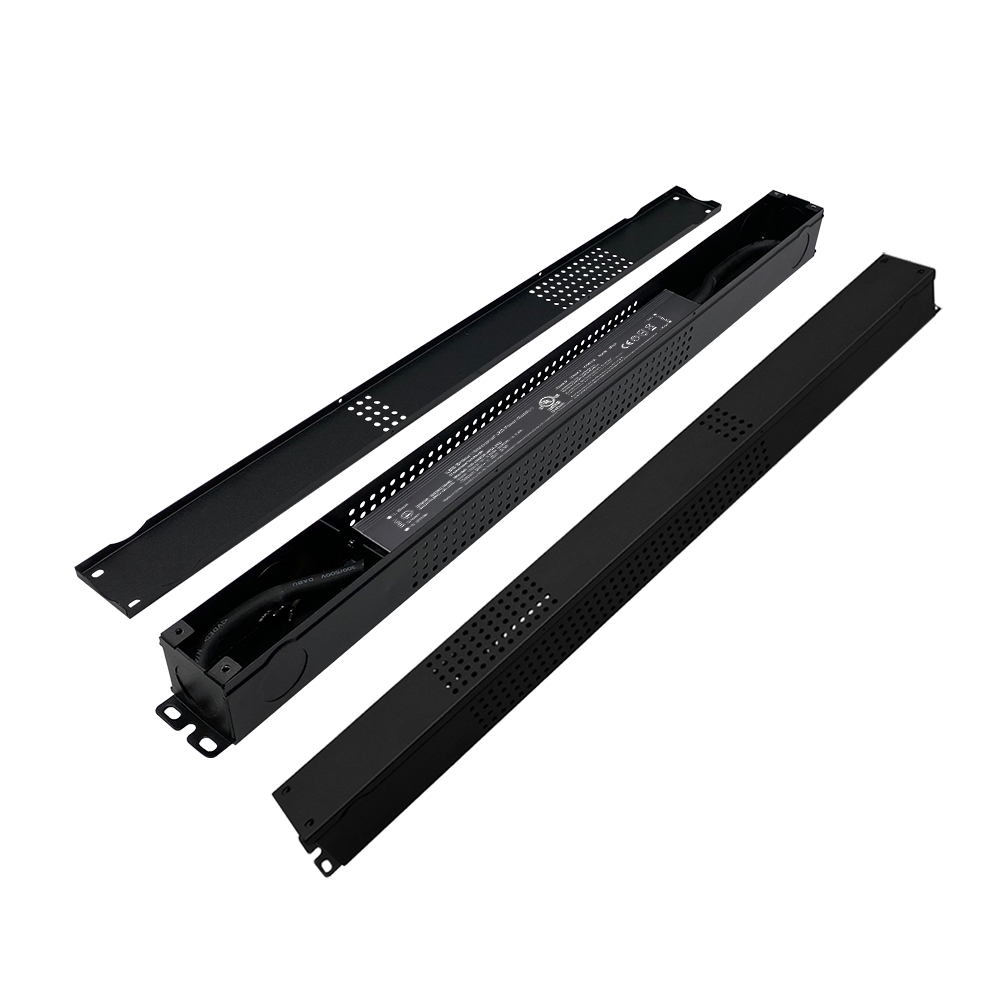

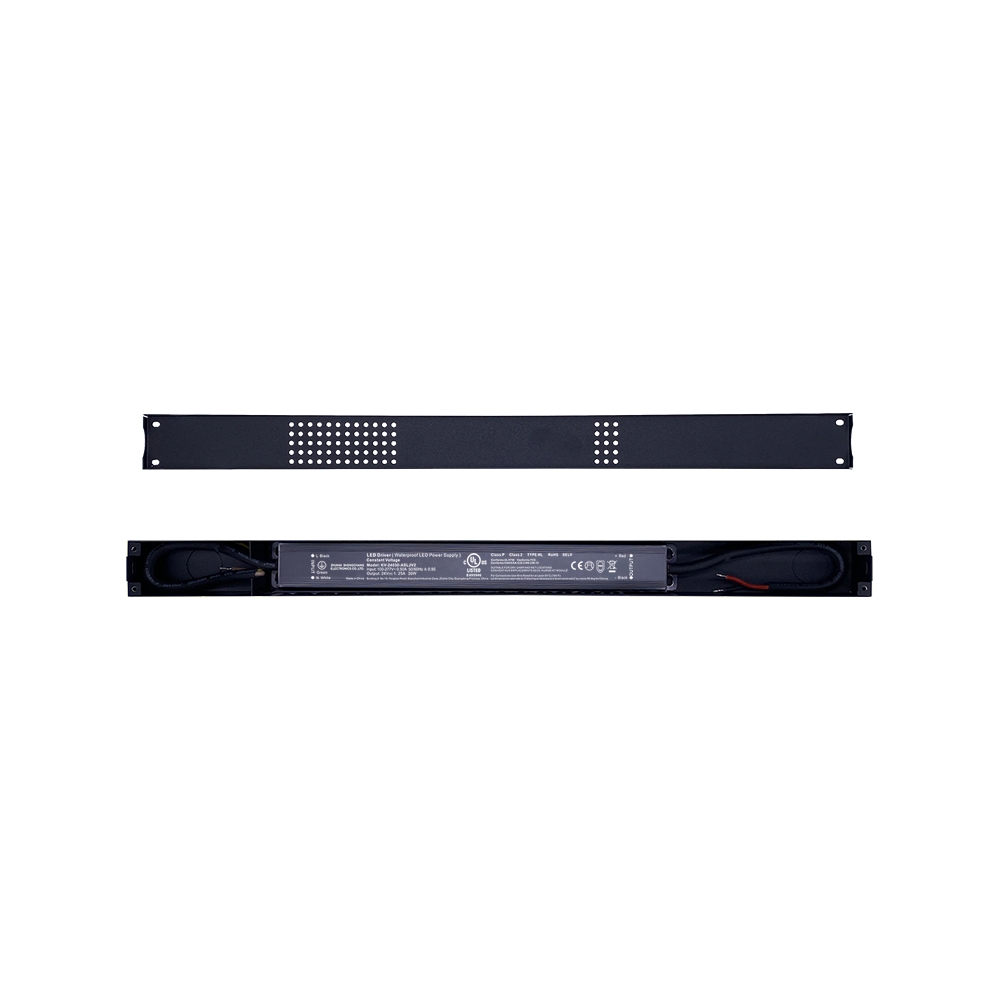

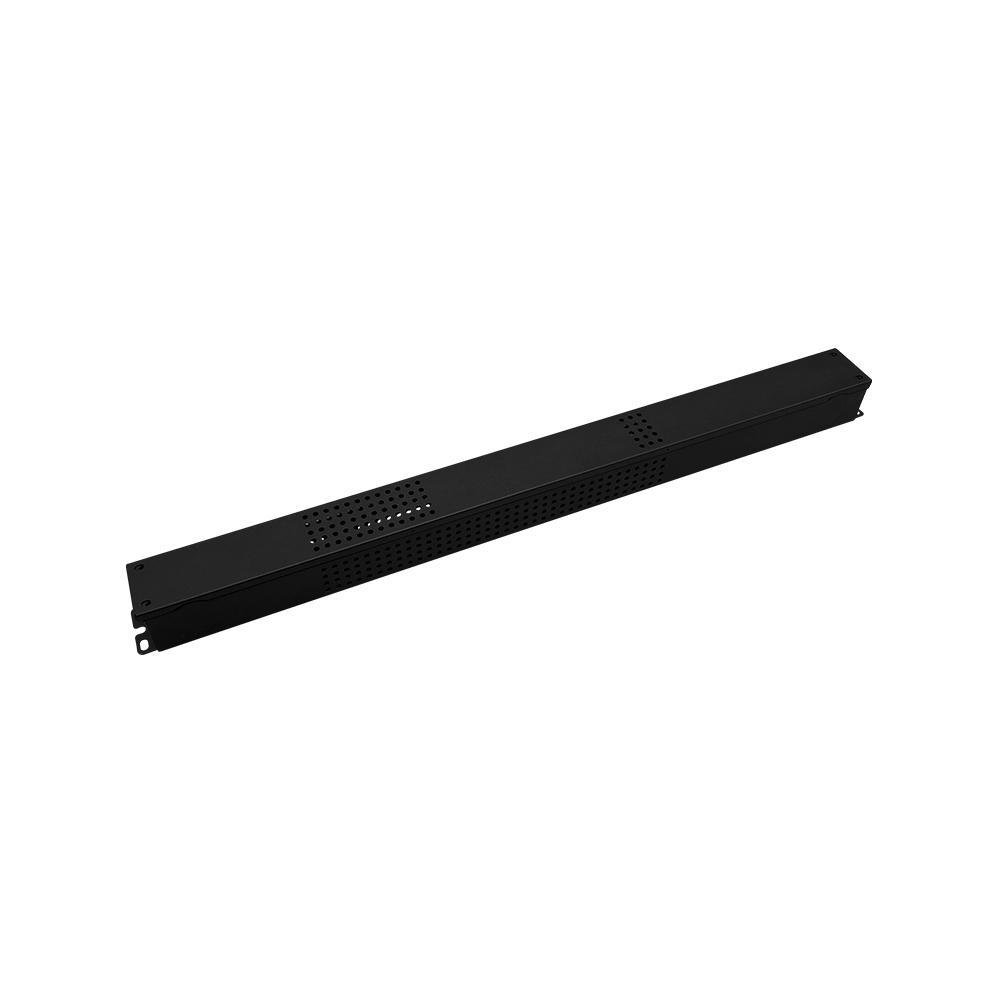

The 30W 36W 60W 96W 100W 150W CV built-in active PFC switching power supply provides 12V 24V 36V 48VDC power. Its rugged shell is linear aluminum driver with separated junction box (IP66 rated) protects against dust, moisture, and extreme temperatures (-40°C to 40°C). This non-dimmable driver features active PFC power savings, leakage current of less than 0.5mA, UL/cUL/FCC approvals, and a 5-year warranty.
Active PFC boosts power factor to 0.99 (0.99@120VAC / 0.94@277VAC).
-40°C cold-start capability for freezer rooms & outdoor use.
4KV surge protection against voltage spikes.
Color-coded terminals: Red (V+), Black (V-), Green (G).
Auto-recovery from short circuits/overloads (no manual reset).
Thermal shutdown at 45°C±5° prevents burnout.
±0.2% voltage tolerance and down to 0.5% voltage regulation eliminates LED flicker.
Application Scenarios
Industrial Facilities: Freezer warehouse lighting • Production line LEDs • High-bay fixtures.
Critical Infrastructure: Highway tunnel lights • Airport runway signs • Bridge illumination.
Commercial Environments: Port crane lighting • Parking garage LEDs • Coastal billboards.
