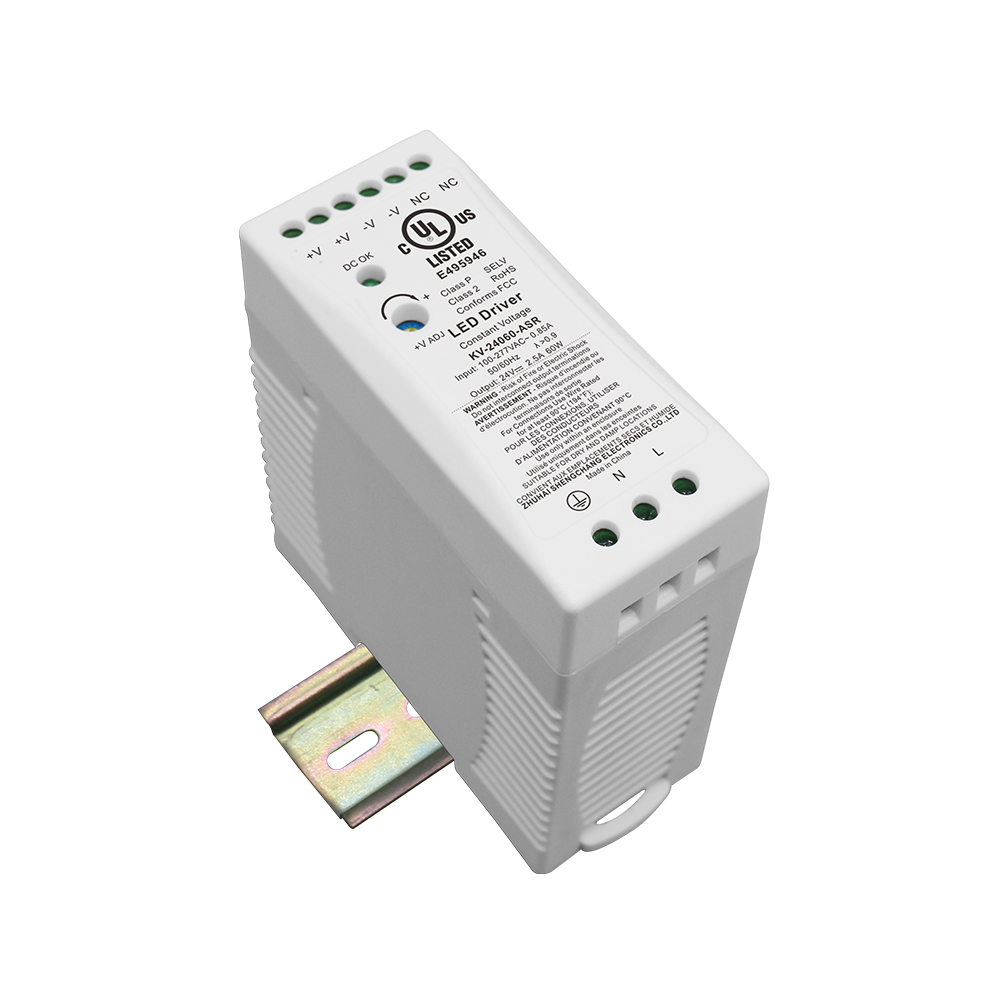

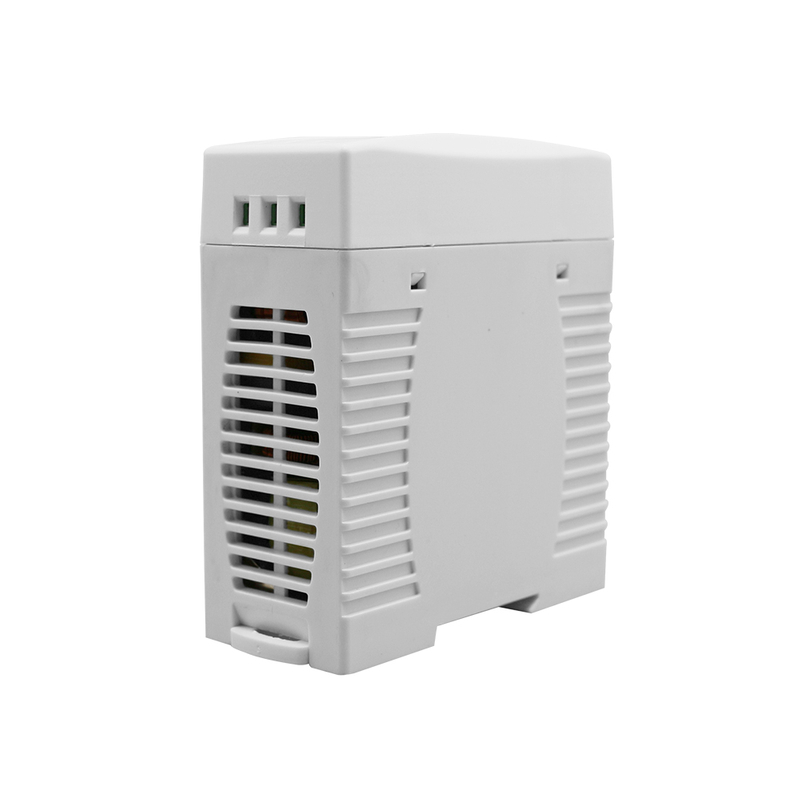

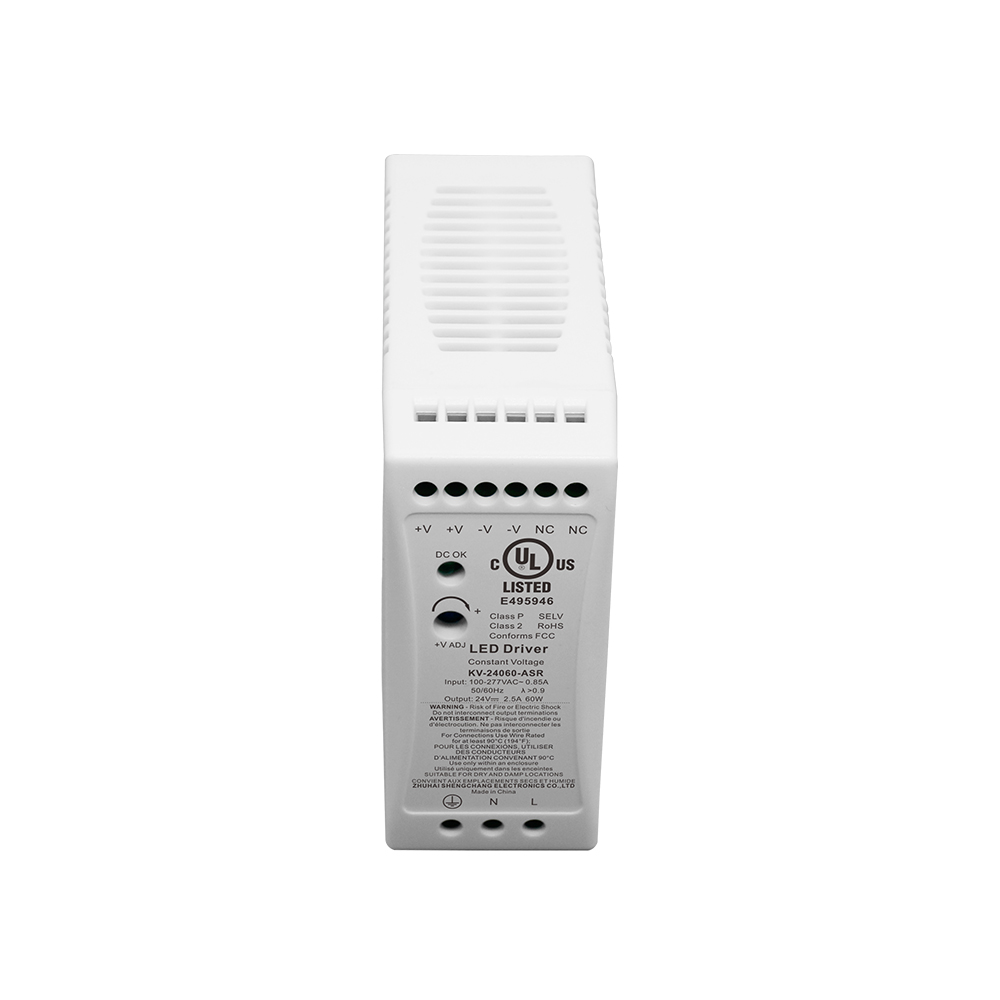

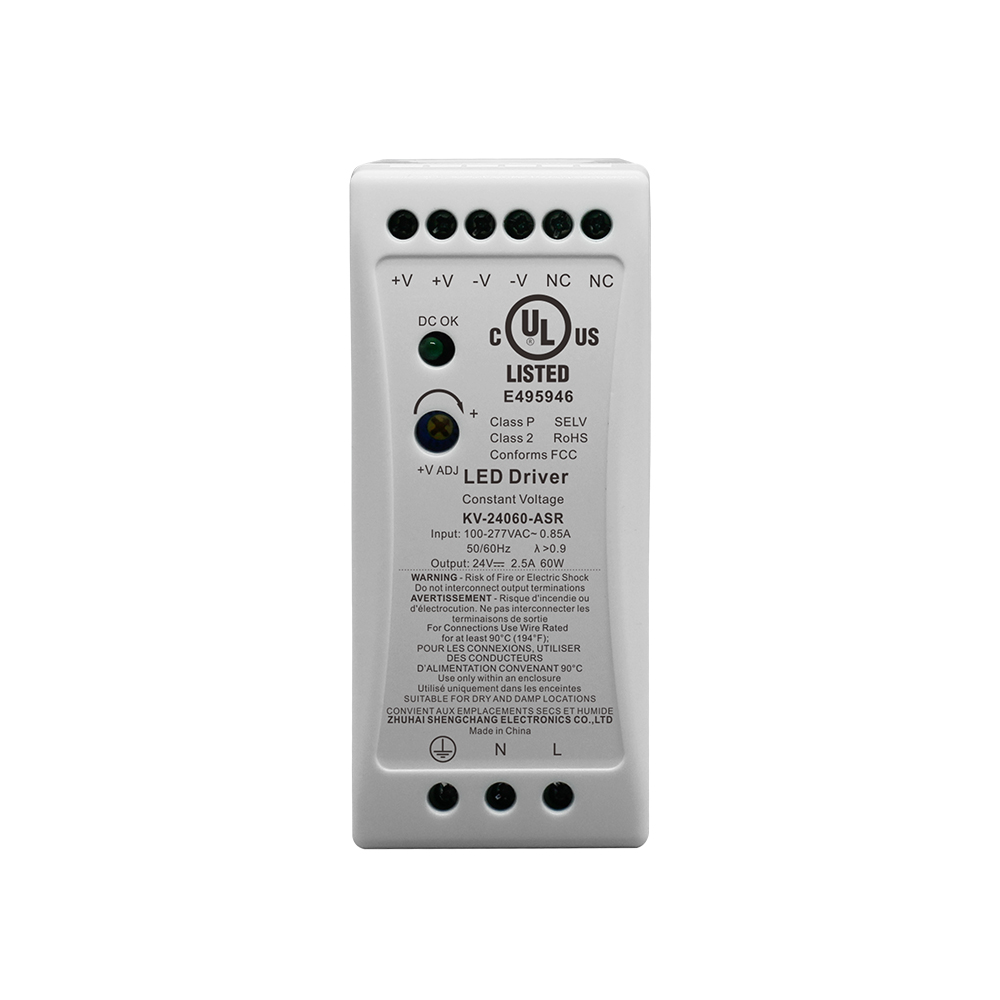

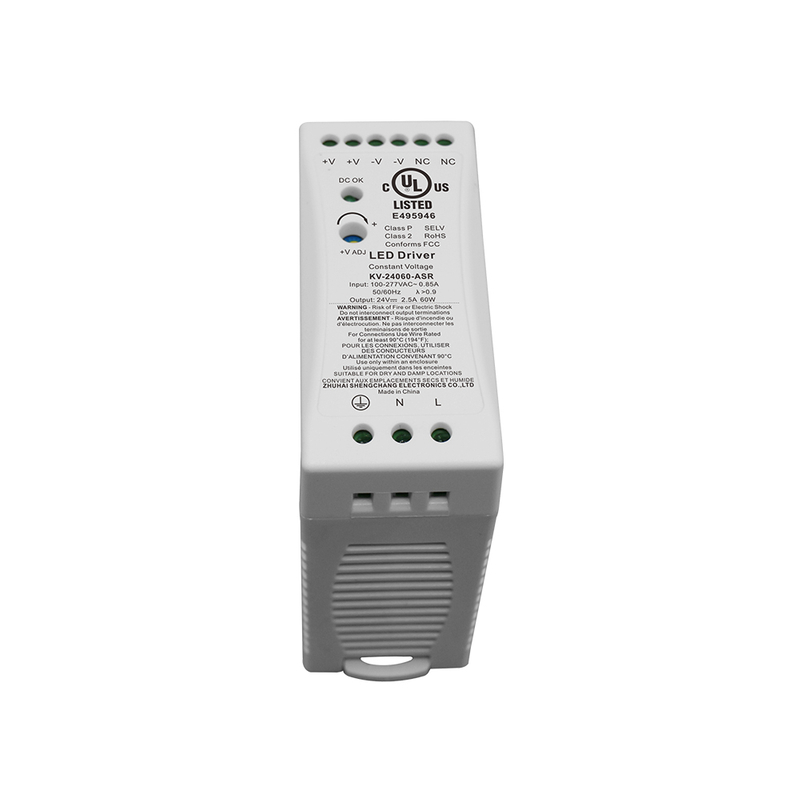

60W 96W 100W CV Plastic Din Rail LED Driver Switching Power Supply Conforms FCC
Output
Constant Voltage
Range
100-277VAC
PFC design
Built-in active PFC function,PF＞0.95
Efficiency
Up to 89%
Protections
Short circuit/ over load/ over temperature
Heat dissipation
Cooling by free air convection
Waterproof performance
Full plastic protection housing, for dry and damp locations (US)
Dimming features
Fine-tune the voltage by the knob
Dimming function
Non-dimmable
Application
Suitable for the application of LED lighting
Warranty
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight

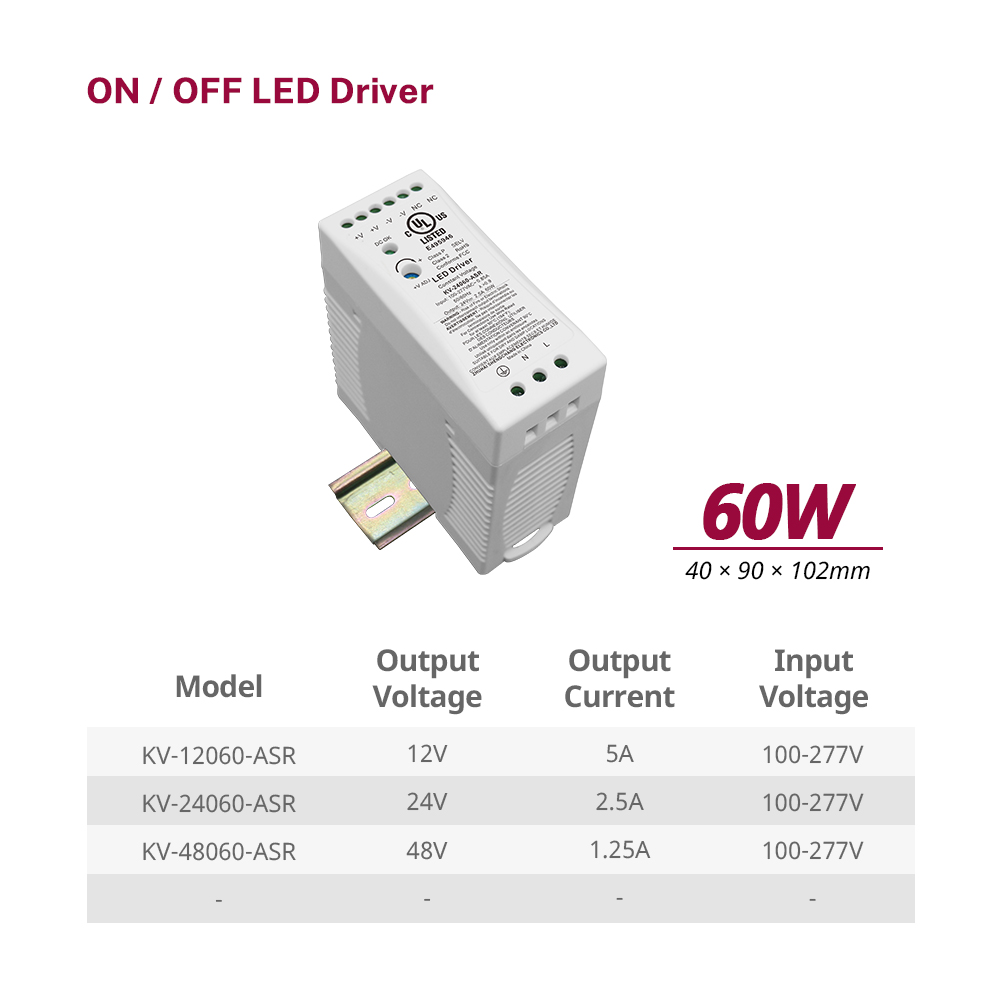

60W
KV-12060-ASR
12V
5A
40*90*102mm
0.3KG
KV-24060-ASR
24V
2.5A
KV-48060-ASR
48V
1.25A
96W
KV-24096-ASR
24V
4A
55*90*102mm
0.38KG
KV-36096-ASR
48V
2A
100W
KV-12100-ASR
12V
8.34A
KV-24100-ASR
24V
4.17A
KV-48100-ASR
48V
2.08A
No Dimmable Switching Power Supply Wiring Diagram
No Dimmable Switching Power Supply Wiring Diagram
Product Overview
The Plastic Din Rail LED Driver Switching Power Supply designed for LED lighting applications. With a robust plastic housing, it offers reliable performance in dry and damp locations. Available in 60W, 96W, and 100W models, this driver features active PFC (PF > 0.95), high efficiency (up to 89%), and comprehensive protections (short circuit, overload, over-temperature). Certified by UL, cUL, FCC, and CE, it ensures safety and compliance for commercial and industrial use.
Product Features
High Efficiency & Active PFC: Achieves up to 89% efficiency with built-in active PFC (PF ≥ 0.95), reducing energy waste and lowering operational costs.
Durable & Safe Design: Full plastic housing with IP20 rating, suitable for dry/damp locations, and certified by UL/cUL FCC / Class 2 / Class P / TYPE HL / RoHS / Reach for safety.
Easy Installation & Adjustable Voltage: Din rail mounting design with a voltage adjustment knob (23-25V ±0.5V) for flexible installation and fine-tuning.
Application Scenarios
Commercial Lighting: Ideal for LED strip lights, panel lights, and downlights in offices, retail stores, and hotels.
Industrial Facilities: Perfect for warehouses and factories requiring stable, high-efficiency power supplies.
Smart Buildings: Compatible with LED systems in smart homes and automated environments.
Advantage
60W 96W 100W CV Plastic Din Rail LED Driver Switching Power Supply Conforms FCC
Output
Constant Voltage
Range
100-277VAC
PFC design
Built-in active PFC function,PF＞0.95
Efficiency
Up to 89%
Protections
Short circuit/ over load/ over temperature
Heat dissipation
Cooling by free air convection
Waterproof performance
Full plastic protection housing, for dry and damp locations (US)
Dimming features
Fine-tune the voltage by the knob
Dimming function
Non-dimmable
Application
Suitable for the application of LED lighting
Warranty
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight
60W
KV-12060-ASR
12V
5A
40*90*102mm
0.3KG
KV-24060-ASR
24V
2.5A
KV-48060-ASR
48V
1.25A
96W
KV-24096-ASR
24V
4A
55*90*102mm
0.38KG
KV-36096-ASR
48V
2A
100W
KV-12100-ASR
12V
8.34A
KV-24100-ASR
24V
4.17A
KV-48100-ASR
48V
2.08A
No Dimmable Switching Power Supply Wiring Diagram
No Dimmable Switching Power Supply Wiring Diagram
Product Overview
The Plastic Din Rail LED Driver Switching Power Supply designed for LED lighting applications. With a robust plastic housing, it offers reliable performance in dry and damp locations. Available in 60W, 96W, and 100W models, this driver features active PFC (PF > 0.95), high efficiency (up to 89%), and comprehensive protections (short circuit, overload, over-temperature). Certified by UL, cUL, FCC, and CE, it ensures safety and compliance for commercial and industrial use.
Product Features
High Efficiency & Active PFC: Achieves up to 89% efficiency with built-in active PFC (PF ≥ 0.95), reducing energy waste and lowering operational costs.
Durable & Safe Design: Full plastic housing with IP20 rating, suitable for dry/damp locations, and certified by UL/cUL FCC / Class 2 / Class P / TYPE HL / RoHS / Reach for safety.
Easy Installation & Adjustable Voltage: Din rail mounting design with a voltage adjustment knob (23-25V ±0.5V) for flexible installation and fine-tuning.
Application Scenarios
Commercial Lighting: Ideal for LED strip lights, panel lights, and downlights in offices, retail stores, and hotels.
Industrial Facilities: Perfect for warehouses and factories requiring stable, high-efficiency power supplies.
Smart Buildings: Compatible with LED systems in smart homes and automated environments.
