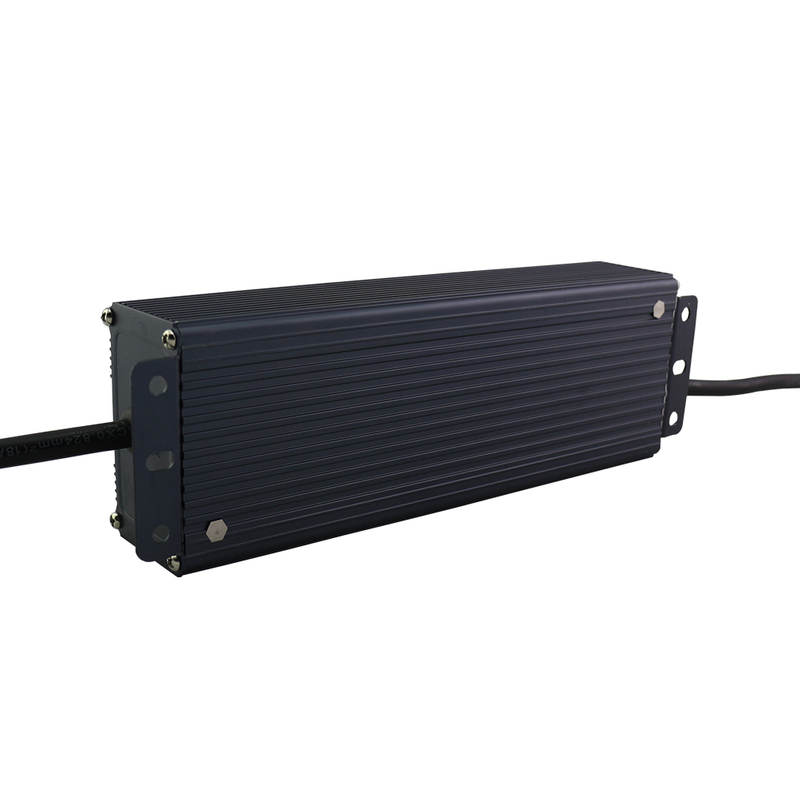

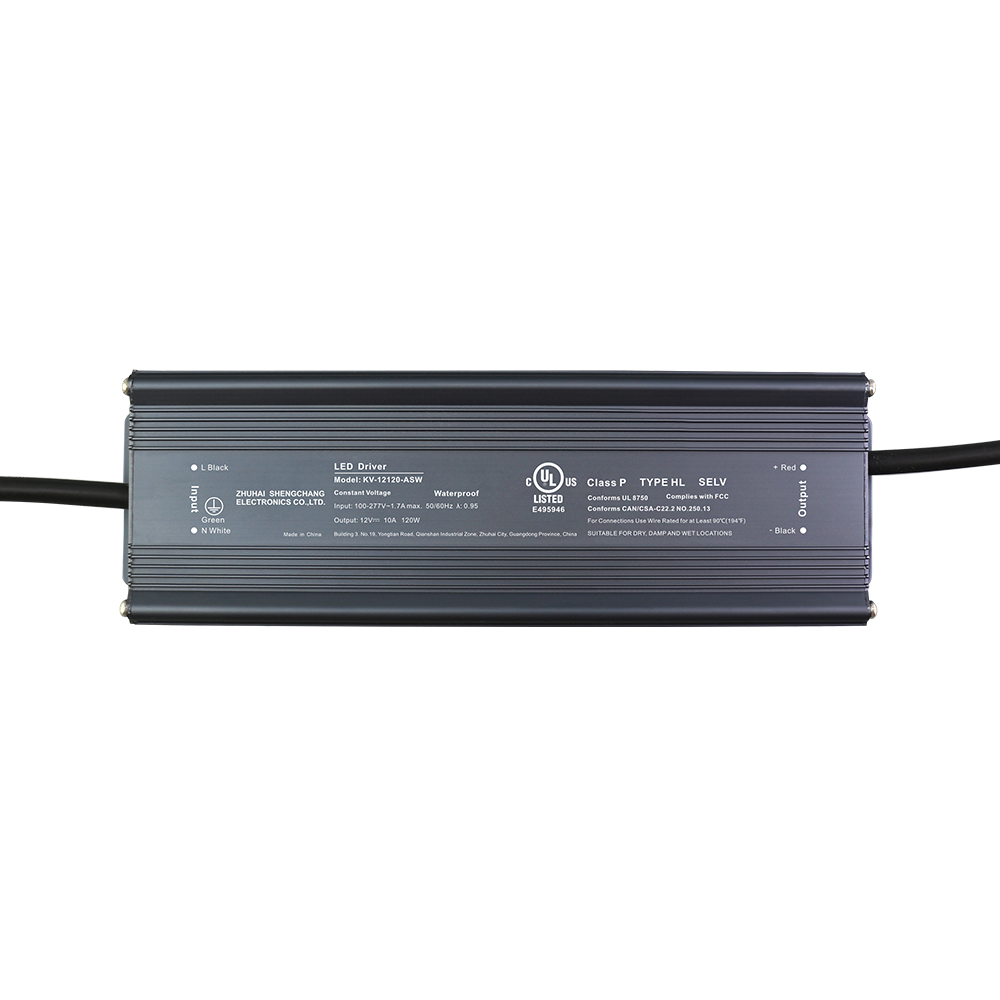

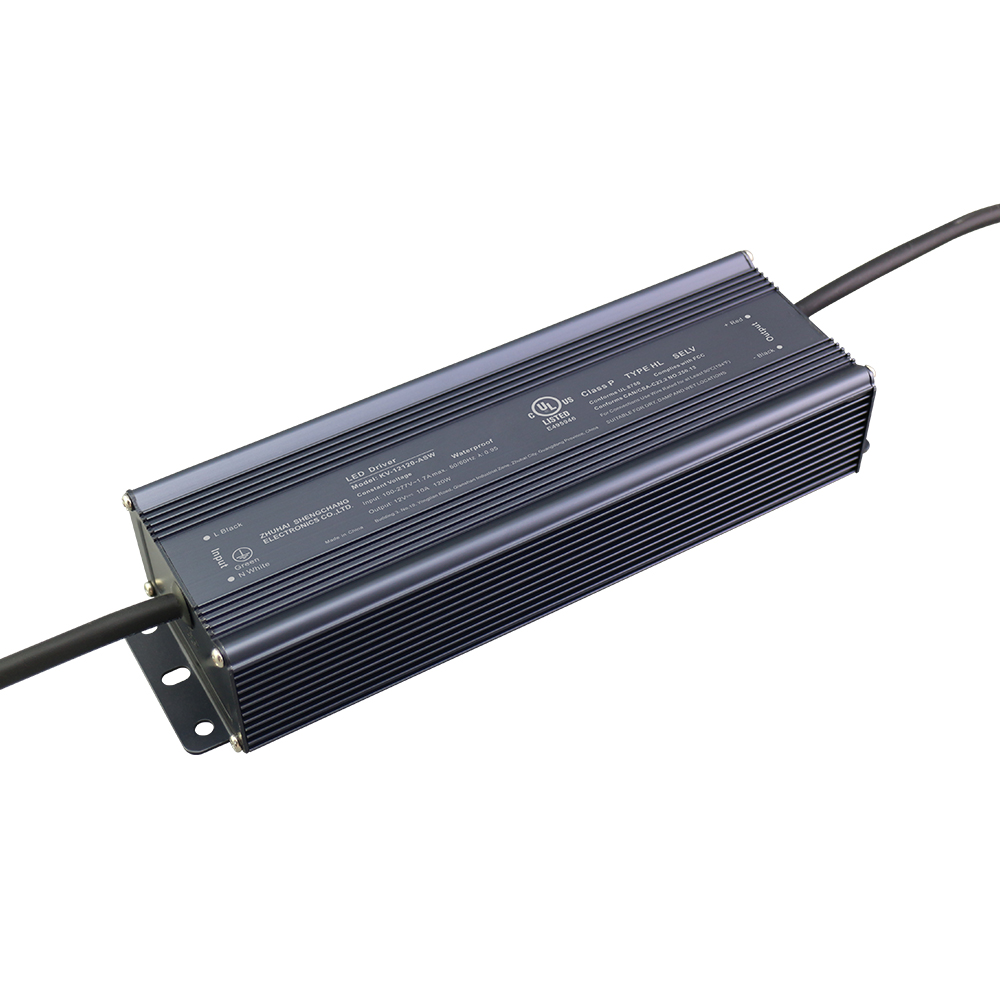

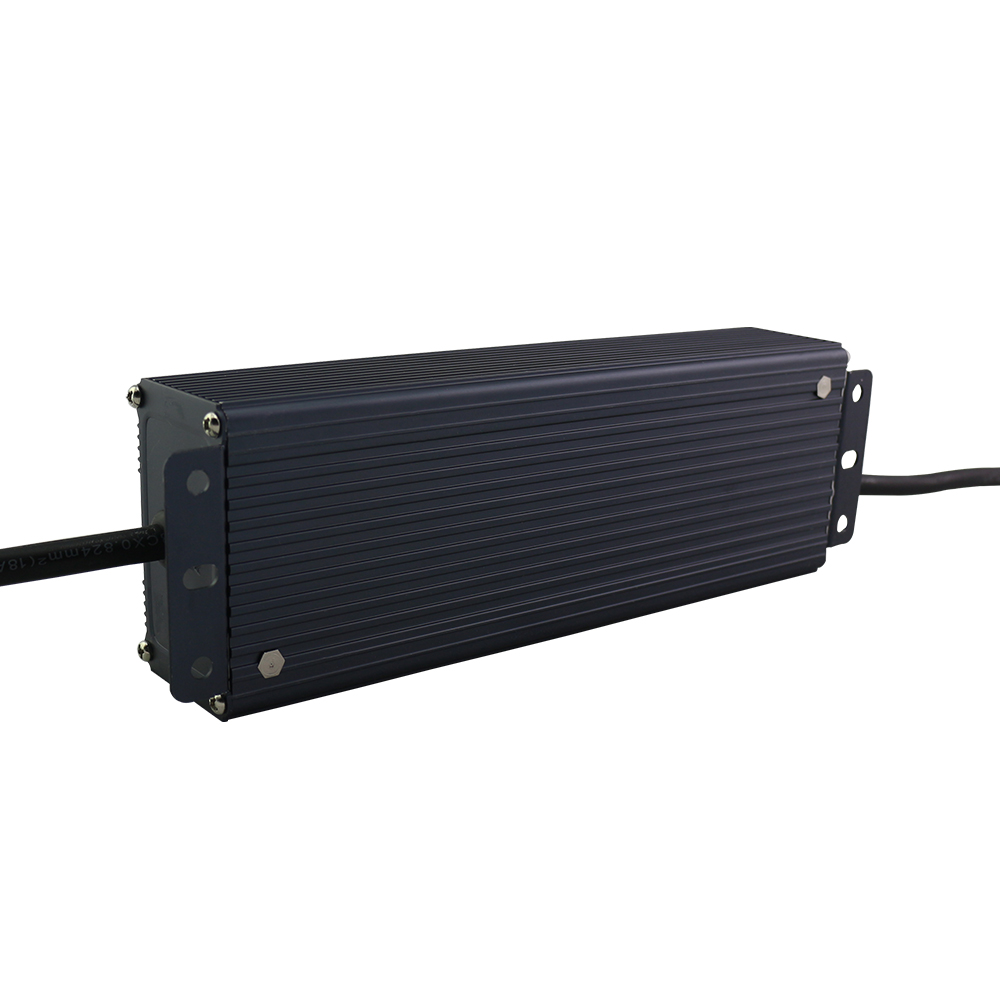

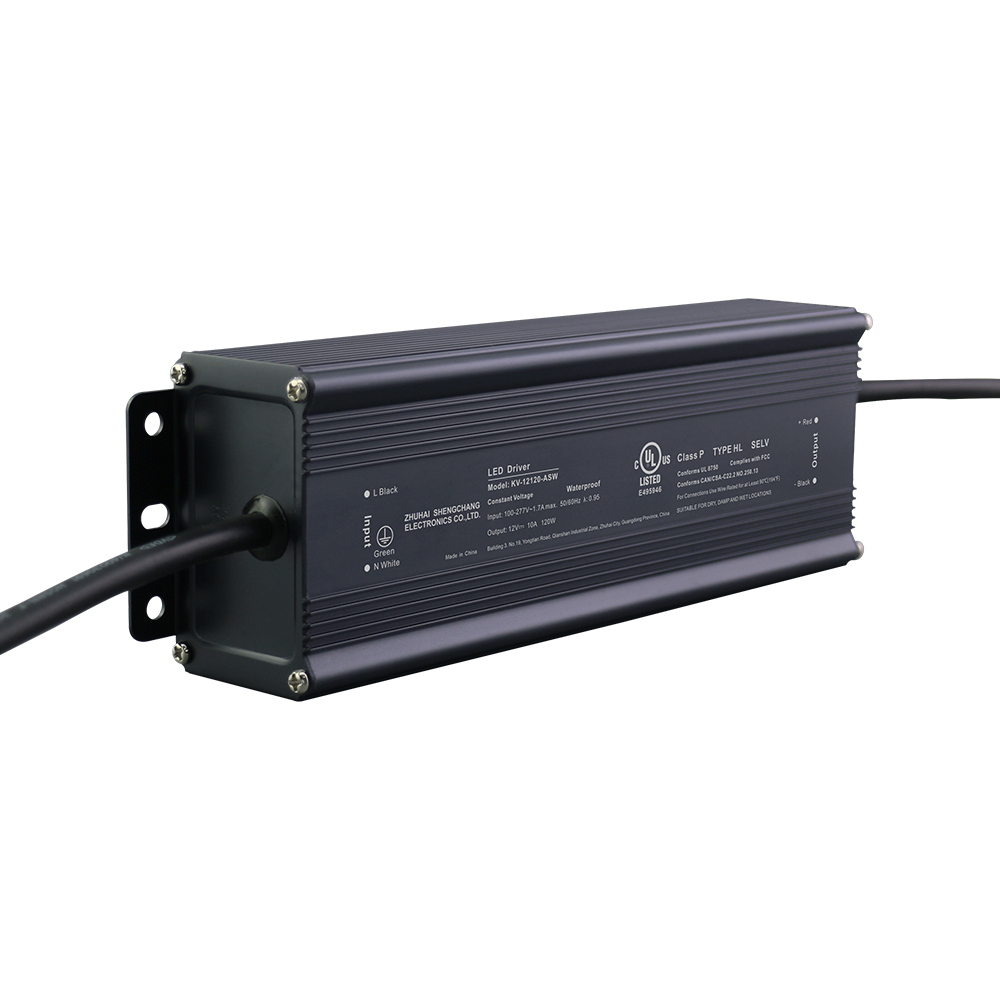

80W 96W 100W 120W 150W 200W 300W 500W 600W 180W 192W 288W 384W CV Aluminum Shell Switching Power Supply for LED Fixtures
Output
Constant Voltage
Range
100-277VAC
PFC design
Built-in active PFC function
Efficiency
Up to 87%
Protections
Short circuit/ over load/ over temperature
Heat dissipation
Cooling by free air convection
Waterproof performance
Full protection aluminum case, for dry,damp and wet locations
Dimming function
Non-dimmable
Application
Suitable for the application of LED lighting
Warranty
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Size
Weight

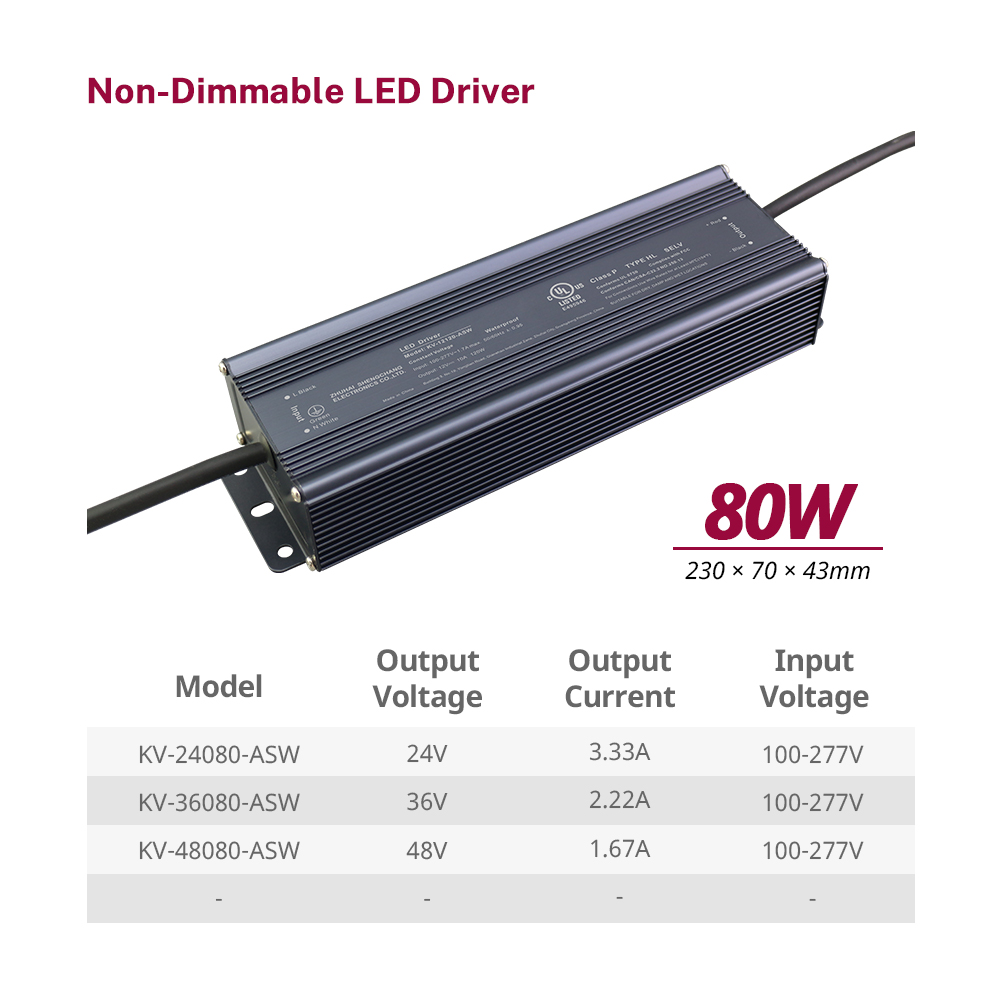

80W
KV-24080-ASW
24V
3.33A
230*70*43mm
1.05kg
KV-36080-ASW
36V
2.22A
KV-48080-ASW
48V
1.67A
96W
KV-24096-ASW
24V
4A
KV-36096-ASW
36V
2.67A
KV-48096-ASW
48V
2A
100W
KV-12100-ASW
12V
8.33A
1.07kg
KV-24100-ASW
24V
4.16A
KV-36100-ASW
36V
2.78A
KV-48100-ASW
48V
2.08A
120W
KV-12120-ASW
12V
10A
1.05kg
KV-24120-ASW
24V
5A
KV-36120-ASW
36V
3.33A
KV-48120-ASW
48V
2.5A
150W
KV-12150-ASW
12V
12.5A
256*78*47mm
1.45kg
KV-24150-ASW
24V
6.25A
KV-36150-ASW
36V
4.17A
KV-48150-ASW
48V
3.13A
200W
KV-12200-ASW
12V
16.6A
KV-24200-ASW
24V
8.33A
KV-36200-ASW
36V
5.56A
KV-48200-ASW
48V
4.17A
300W
KV-12300-ASW
12V
25A
276*78*47mm
1.67kg
KV-24300-ASW
24V
12.5A
KV-36300-ASW
36V
8.33A
KV-48300-ASW
48V
6.25A
500W
KV-12500-ASW
12V
41.67A
284*109*48.5mm
1.98kg
KV-24500-ASW
24V
20.84A
KV-36500-ASW
36V
13.89A
KV-48500-ASW
48V
10.42A
600W
KV-24600-ASW
24V
25A
KV-36600-ASW
36V
16.67A
KV-48600-ASW
48V
12.5A
180W 192W
KV-C12180-ASW
12V
MULTI 3*5A
276*78*47mm
1.70kg
KV-C24192-ASW
24V
MULTI 2*4A
KV-C48192-ASW
48V
MULTI 2*2A
288W 300W
KV-C12300-ASW
12V
MULTI 5*5A
301*78*47mm
1.775kg
KV-C24288-ASW
24V
MULTI 3*4A
KV-C48288-ASW
48V
MULTI 3*2A
384W
KV-C24384-ASW
24V
MULTI 4*4A
322*78*44mm
2.0kg
KV-C48384-ASW
48V
MULTI 4*2A
No Dimmable Switching Power Supply Wiring Diagram
No Dimmable Switching Power Supply Wiring Diagram
Product Overview
This Aluminum Shell Switching Power Supply delivers stable 12V 24V 36V 48V DC output with ±0.5V precision. Encased in a full-protection aluminum shell (IP66 rated), it withstands dry, damp, and wet environments while operating flawlessly from -40°C to +60°C. With built-in active PFC (up to 0.99 PF), 88% peak efficiency, and 5-year warranty, it’s engineered for reliable commercial and outdoor LED installations.
Product Features
Waterproof & Durable: IP67-rated casing resists dust and moisture – ideal for indoor signs and garden lights.
Energy-Saving Performance: Active PFC boosts power factor to 0.99@120VAC, while 88% efficiency reduces energy waste and operating costs.
Smart Protection: Auto-restores power after short circuit/overload/overheating (100°C shutdown), minimizing maintenance downtime.

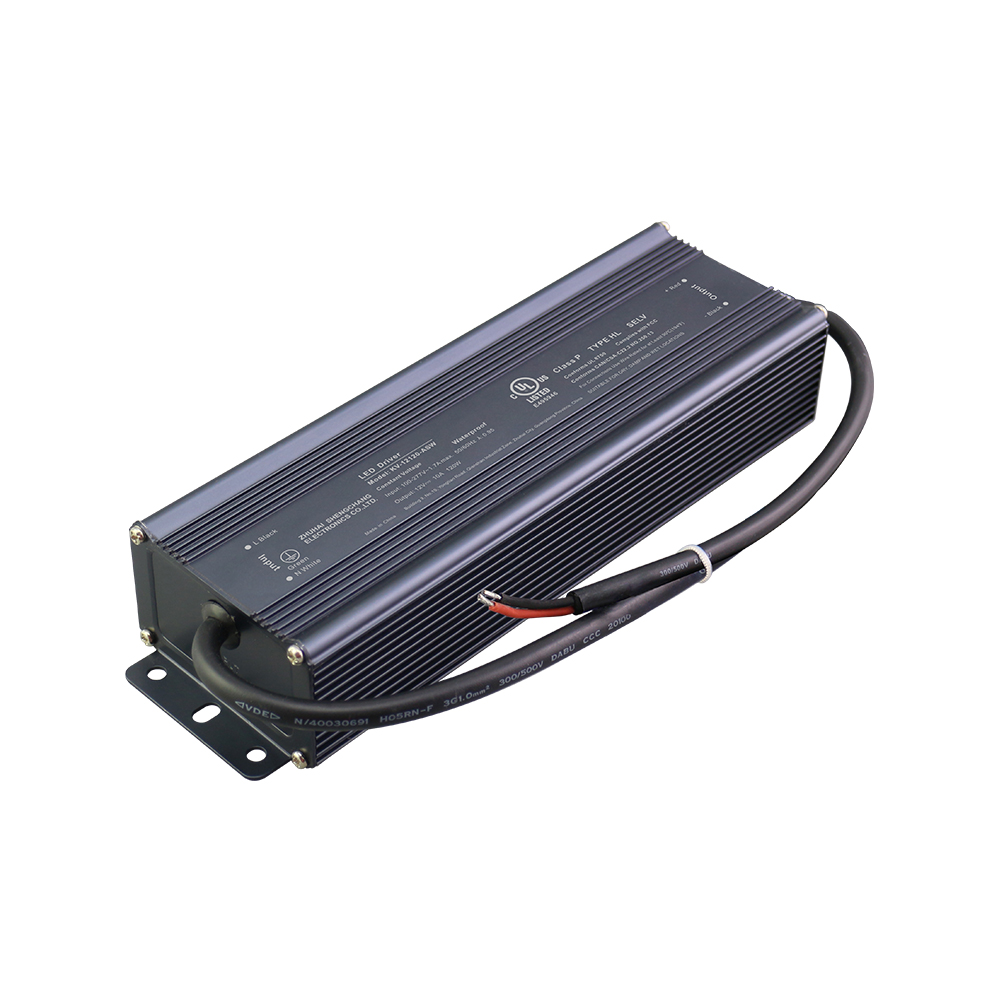

Plug-&-Play Installation: Pre-wired with 18AWG input (L/N/G) and 16AWG output (red+/black-) cables for error-proof setup.
Commercial Lighting: Powers LED strips for storefronts, cabinet lighting, and architectural accents in malls/offices.
