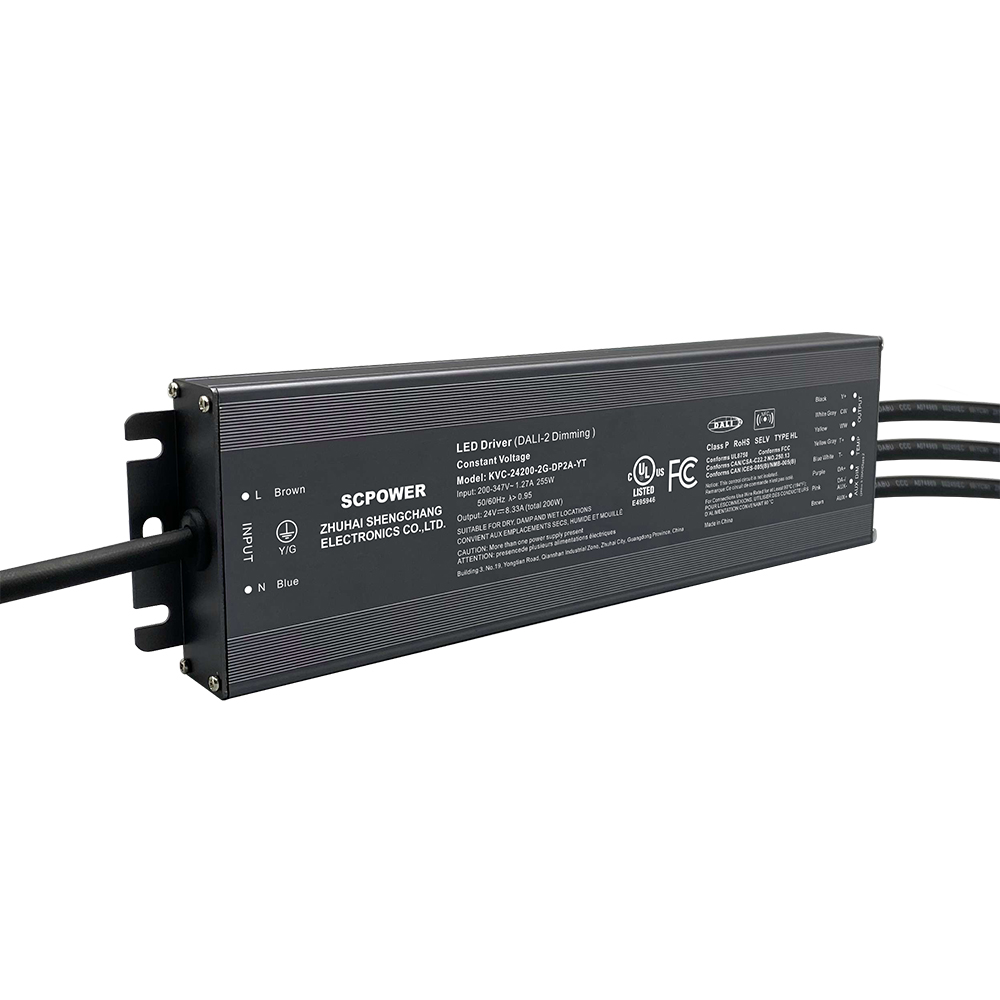

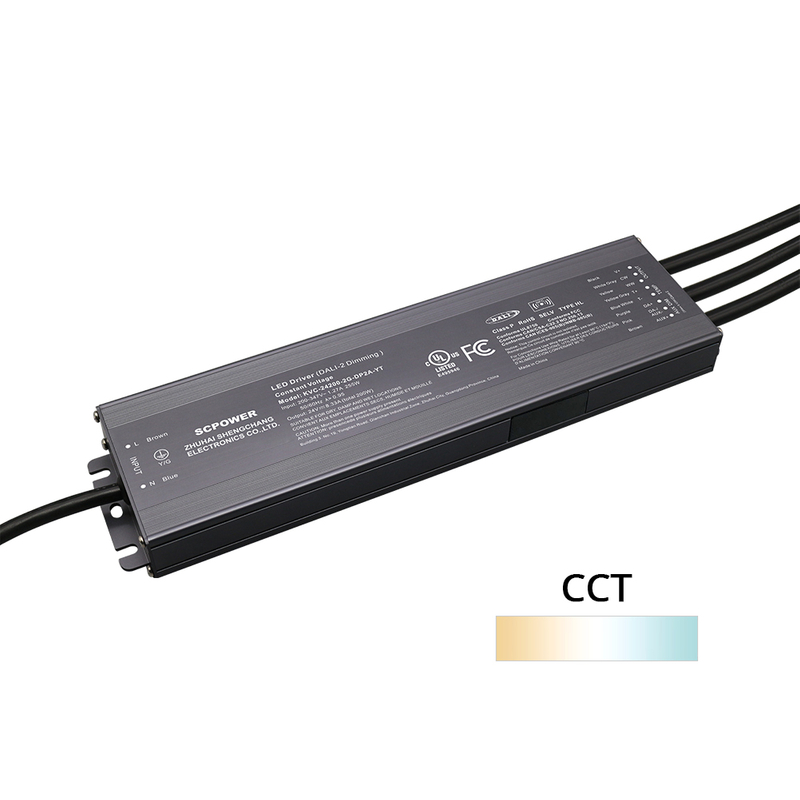

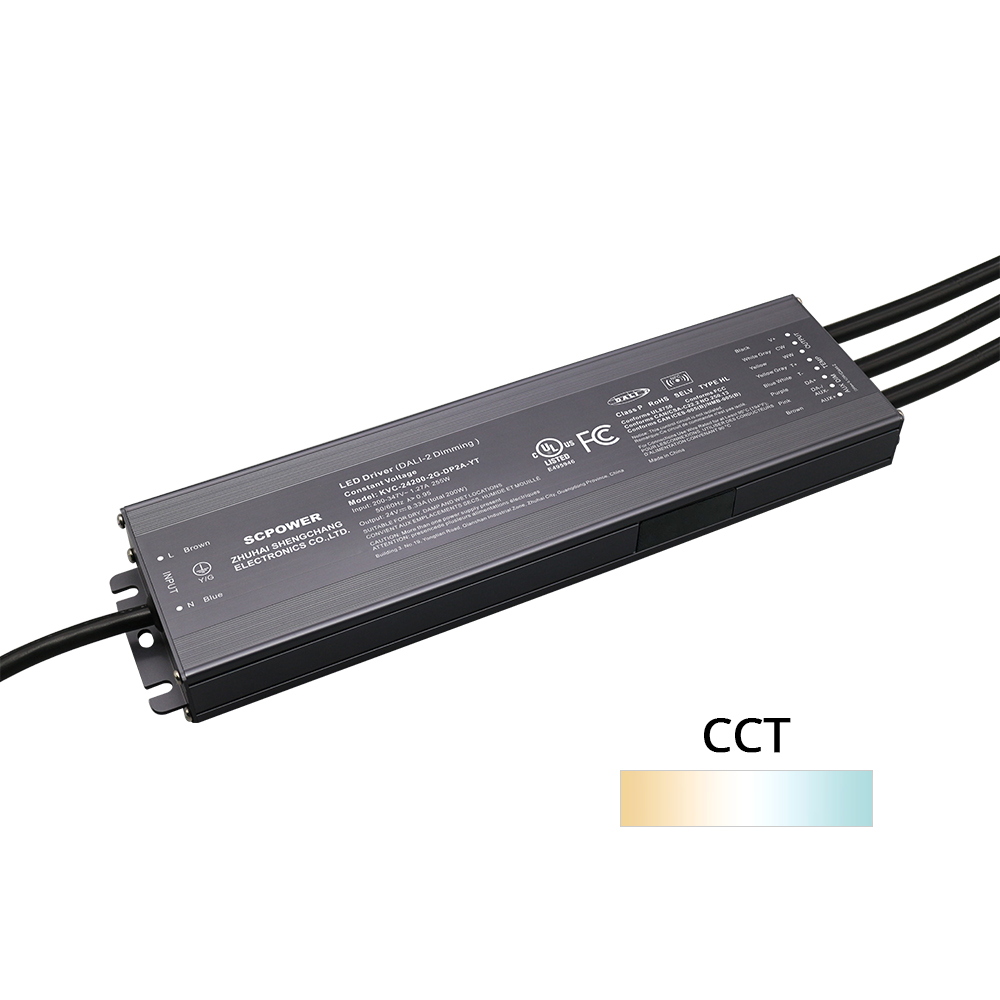

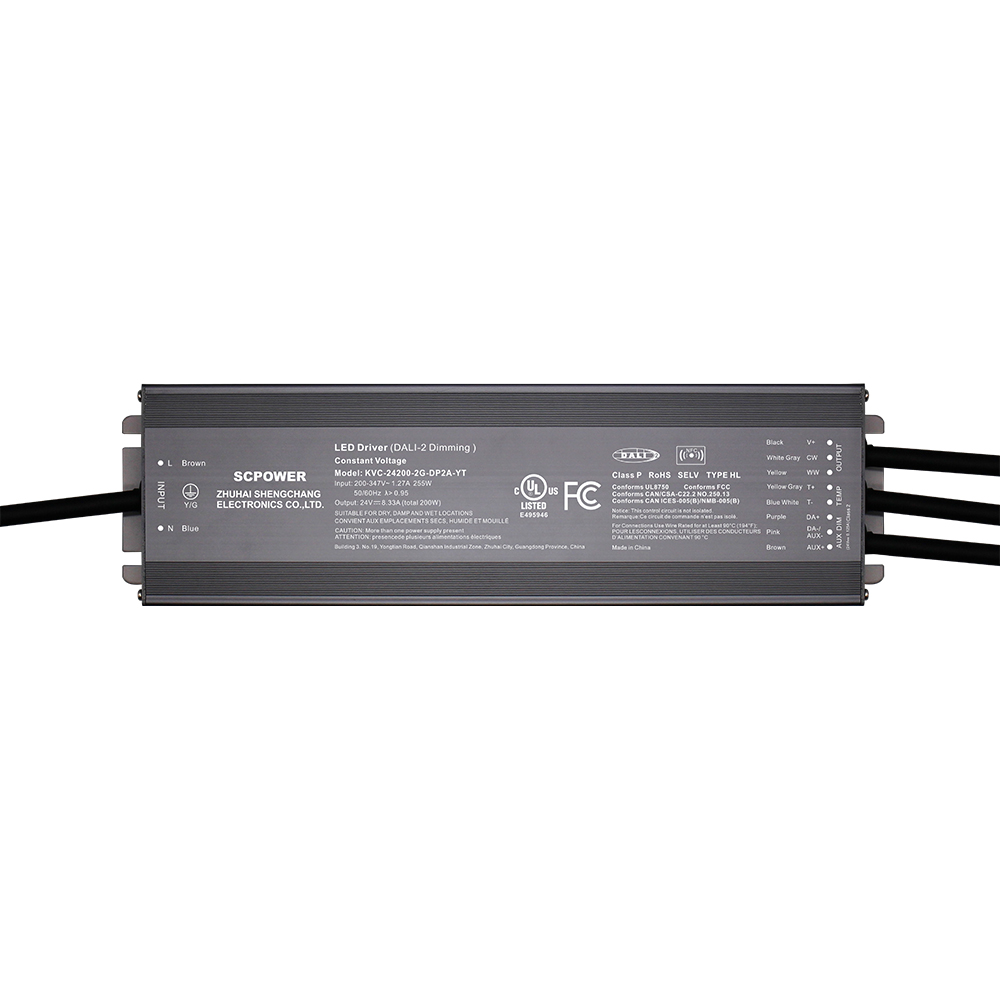

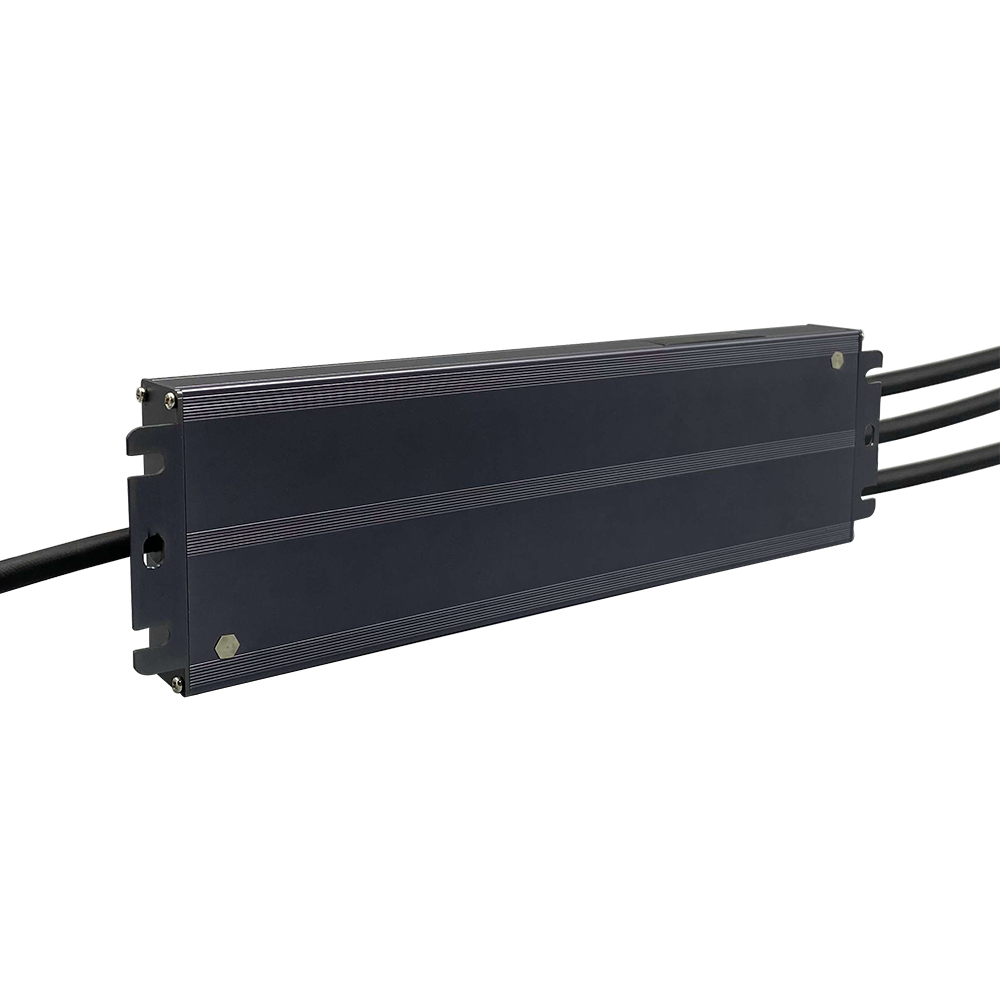

192W 200W CCT DALI 2 D4i Dimmable Constant Voltage Power LED Driver 200 347 Volt AC

Ouput Power:
Availability:
  • DALI-2 D4i

  • Isolated

  • Constant Voltage

  • Dimming, CCT

  • IP66, Dry & Damp, Wet

  • 100-277VAC

  • 200W, 192W

  • 24/ 36/ 48V

  • UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

Advantage

192W 200W CCT DALI 2 D4i Dimmable Constant Voltage Power LED Driver 200 347 Volt AC


Flicker-free,output dimming frequency 20KHz reach the exemption level,

Digital dimming, single light control,with auxiliary power supply & temperature control


Output:

Constant Voltage

Range:

200-347VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 89%

Protections:

Short circuit/ over load/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full protection iron housing, for dry, damp and wet locations

Dimming function:

DALI-2 dimming, Flicker-free, D4I signal-side isolation,accurately dimming, stable and smooth With the DALI 2 bus power supply and auxiliary power supply

Equipped with power status detection function (D4i function) and external temperature control detection function

Dimming range:

0.1-100%

NFC function

Fine tune the output voltage, write and read address

Application:

Suitable for LED lighting and moving sign applications

Warranty:

Others:

5 years warranty

High efficiency, high power factors, and low THD

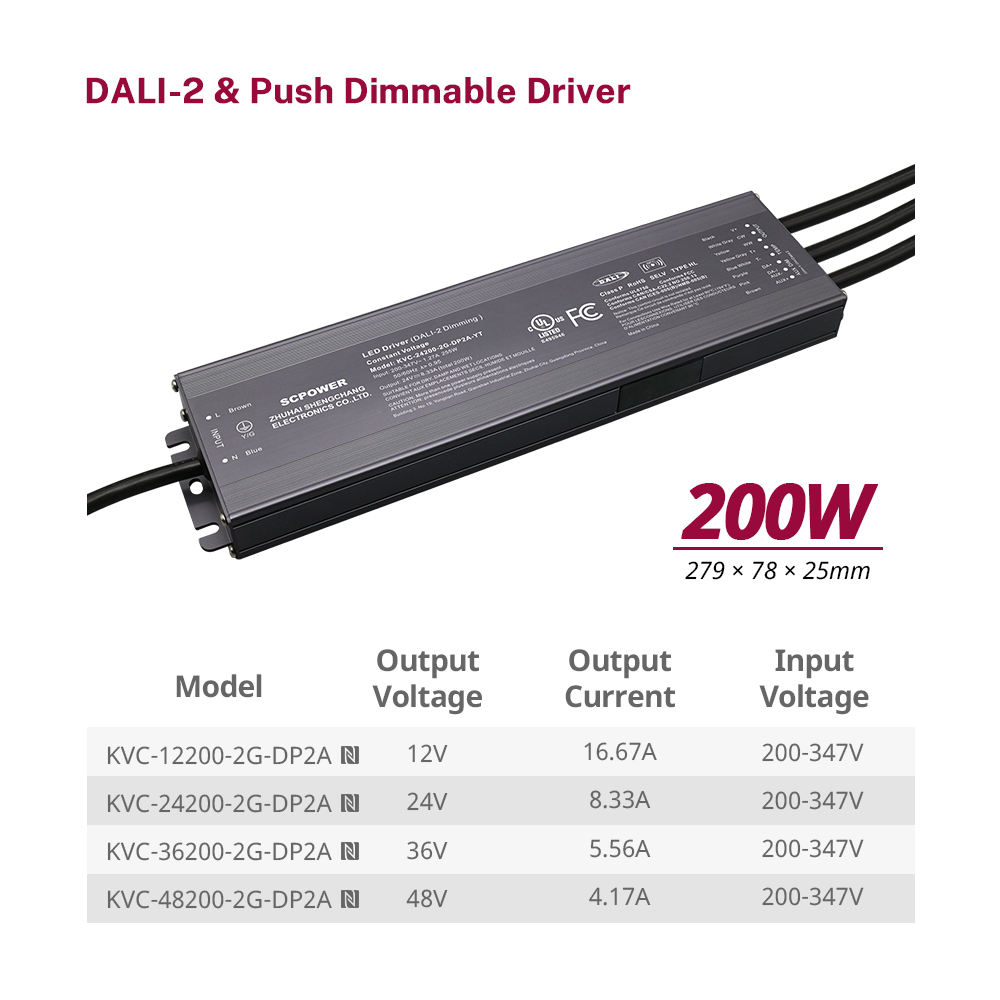

Specification


Model Number

Output Power

Output Voltage

Output Current

Size

Weight

KVC-C24192-2G-D4IA

192W

24V

2*4A

279*78*25mm


KVC-C36192-2G-D4IA

36V

2*2.67A

KVC-C48192-2G-D4IA

48V

2*2A

KVC-12200-2G-D4IA

200W

12V

16.67A

KVC-24200-2G-D4IA

24V

8.33A

KVC-36200-2G-D4IA

36V

5.56A

KVC-48200-2G-D4IA

48V

4.16A

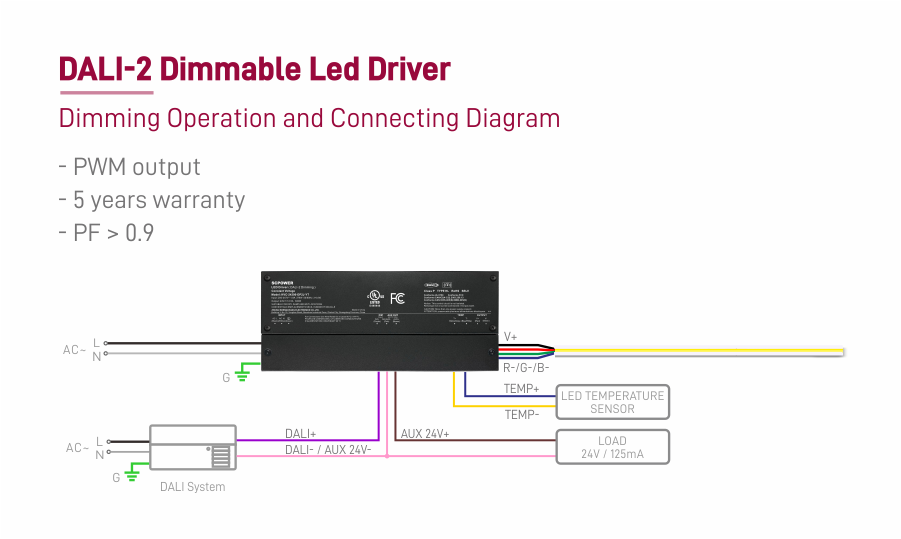

DALI LED Driver Wiring Diagram
