288W 300W RGB DALI 2 D4i Dimmable Constant Voltage L E D Driver 2A 4A 25A

Ouput Power:
Availability:
  • DALI-2 D4i

  • Isolated

  • Constant Voltage

  • Dimming, CCT, RGB

  • IP66, Dry & Damp, Wet

  • 100-277VAC

  • 300W, 288W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2, ICES, CE, RoHS, REACH

Advantage

288W 300W RGB DALI 2 D4i Dimmable Constant Voltage L E D Driver 2A 4A 25A

Flicker-free,

output dimming frequency 20KHz reach the exemption level,

Digital dimming,

single light control,

with auxiliary power supply & temperature control


Specification


Model Number

Watts

Output Voltage

Output Current

Class 2

Listings

Output Mode

Size

Weight

KVC-12060-D4IJ-YT

60W

12V

5A

Yes

cUL, UL, FCC, ICES, CE, RoHS, Reach

Dimming

202.5*114.2*40mm


KVC-24060-D4IJ-YT

24V

2.5A

KVC-36060-D4IJ-YT

36V

1.67

KVC-48060-D4IJ-YT

48V

1.25A


KVC-24096-D4IJ-YT

96W

24V

4A

Yes

cUL, UL, FCC, ICES, CE, RoHS, Reach

Dimming

241*125*40mm


KVC-36096-D4IJ-YT

36V

2.67A

KVC-48096-D4IJ-YT

48V

2A

KVC-12100-D4IJ-YT

100W

12V

8.34A

No

KVC-24100-D4IJ-YT

24V

4.17A

KVC-36100-D4IJ-YT

36V

2.78A

KVC-48100-D4IJ-YT

48V

2.09A

KVC-12120-D4IJ-YT

120W

12V

10A

No

KVC-24120-D4IJ-YT

24V

5A

KVC-36120-D4IJ-YT

36V

3.33A

KVC-48120-D4IJ-YT

48V

2.5A


KVC-C24192-2G-D4IJ-YT

192W

24V

2*4A

Yes

cUL, UL, FCC, ICES, CE, RoHS, Reach

CCT
Dimming

293*125*42.7mm


KVC-C36192-2G-D4IJ-YT

36V

2*2.67A

KVC-C48192-2G-D4IJ-YT

48V

2*2A

KVC-12200-2G-D4IJ-YT

200W

12V

16.67A

No

KVC-24200-2G-D4IJ-YT

24V

8.33A

KVC-36200-2G-D4IJ-YT

36V

5.56A

KVC-48200-2G-D4IJ-YT

48V

4.16A


KVC-C24288-3G-D4IJ-YT

288W

24V

3*4A

Yes

cUL, UL, FCC, ICES, CE, RoHS, Reach

RGB
CCT
Dimming

316*125*42.7mm


KVC-C36288-3G-D4IJ-YT

36V

3*2.67A

KVC-C48288-3G-D4IJ-YT

48V

3*2A

KVC-12300-3G-D4IJ-YT

300W

12V

25A

No

KVC-24300-3G-D4IJ-YT

24V

12.5A

KVC-36300-3G-D4IJ-YT

36V

8.33A

KVC-48300-3G-D4IJ-YT

48V

6.25A

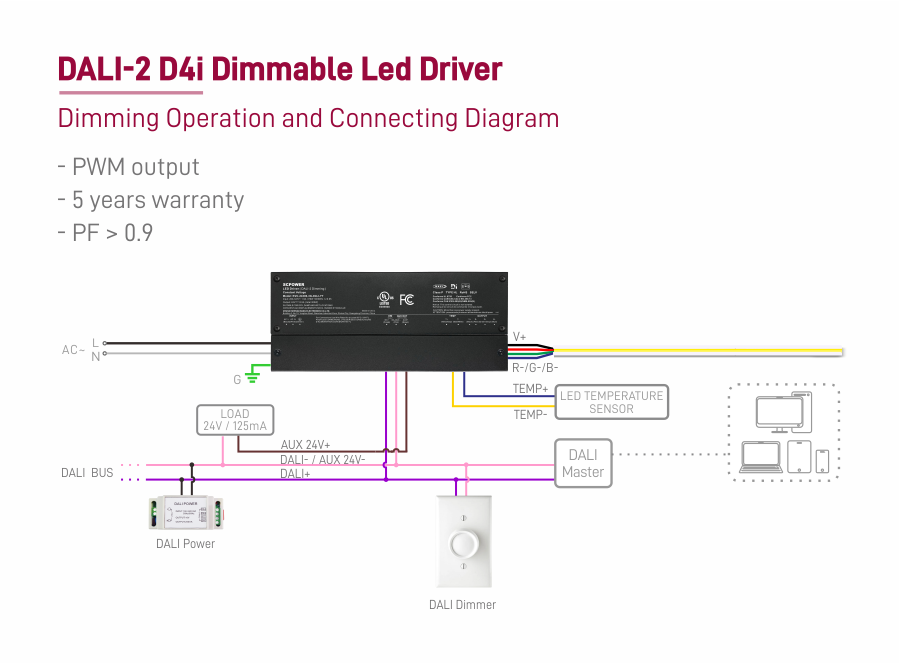

DALI LED Driver Wiring Diagram
