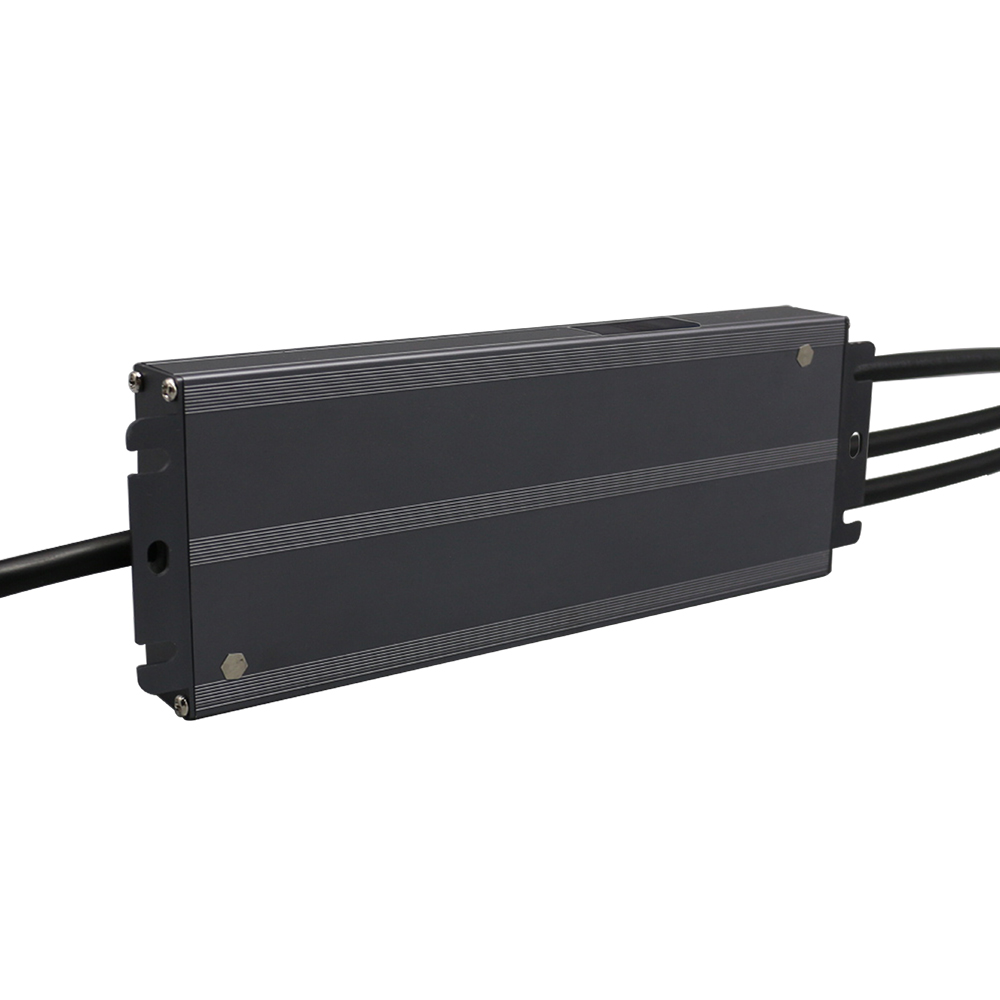

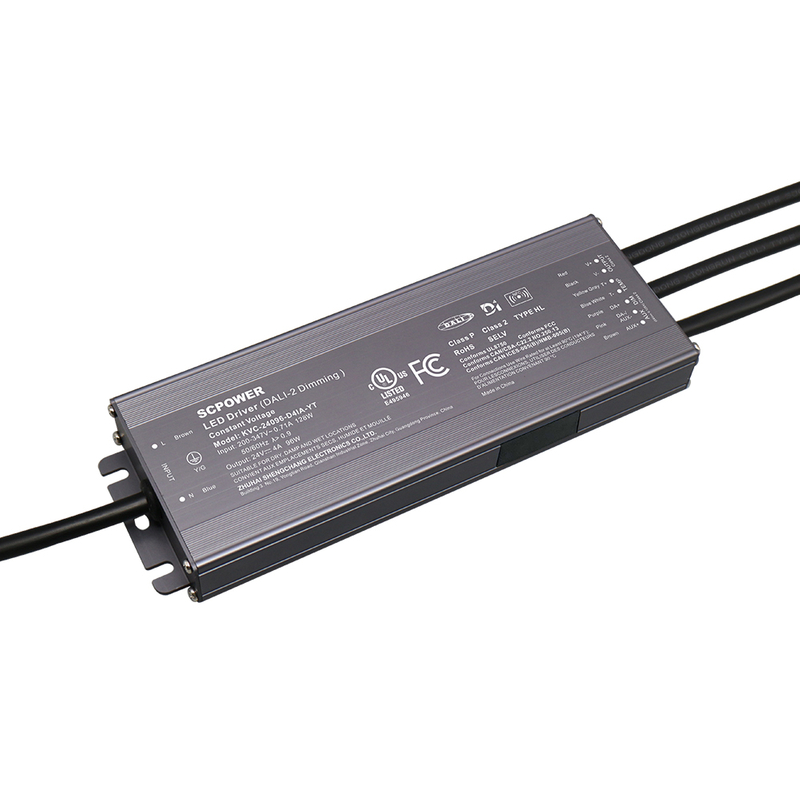

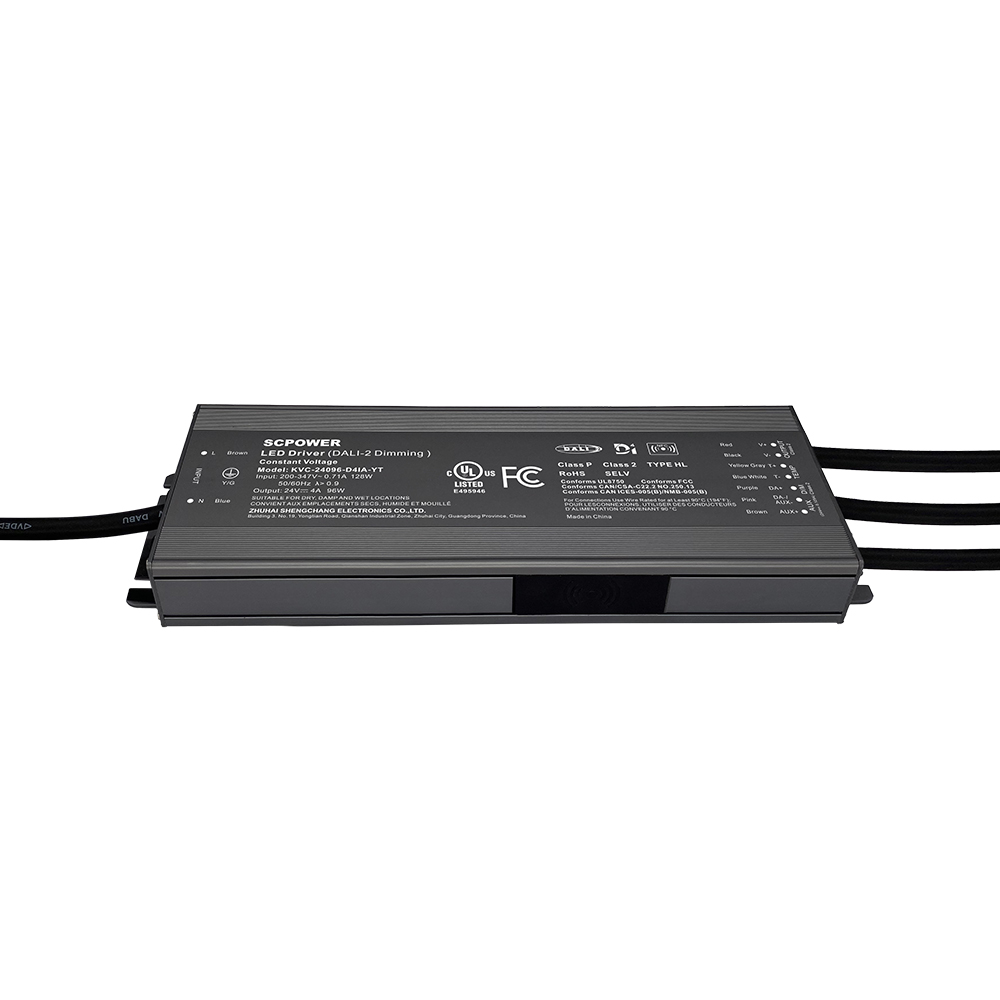

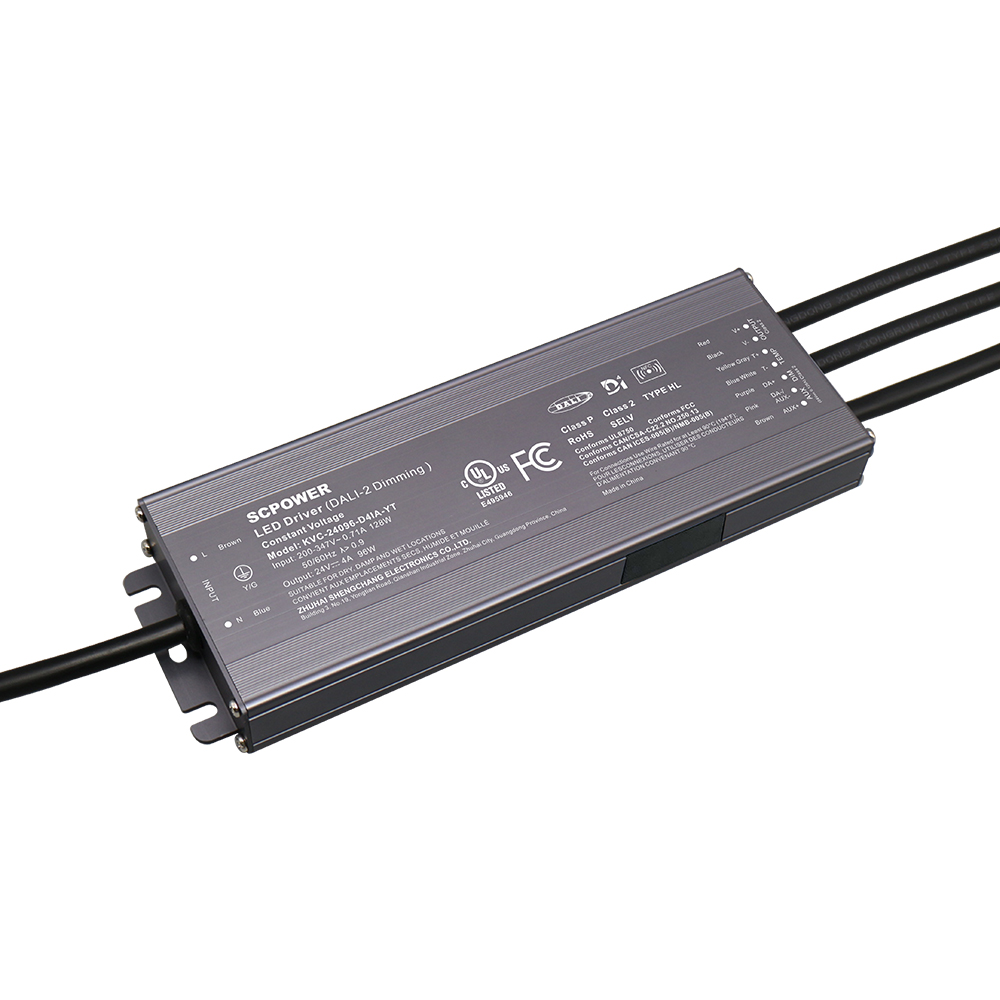

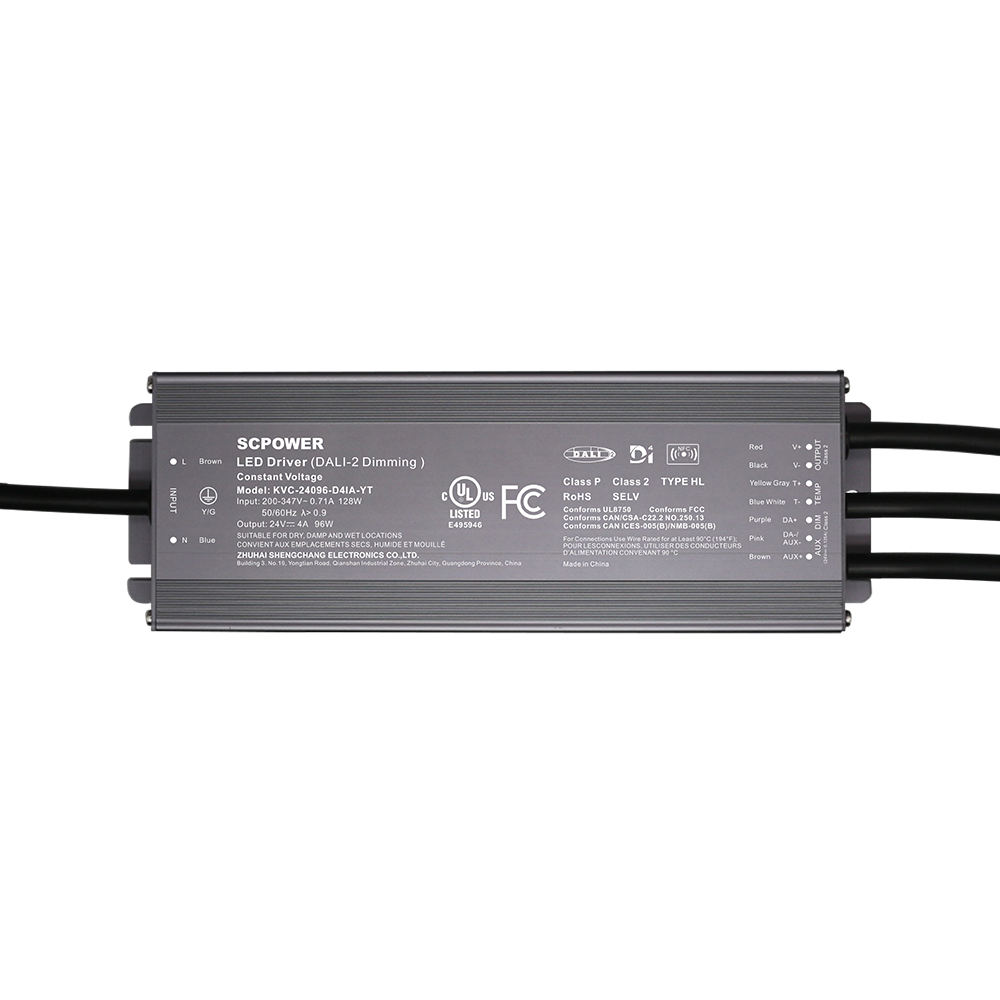

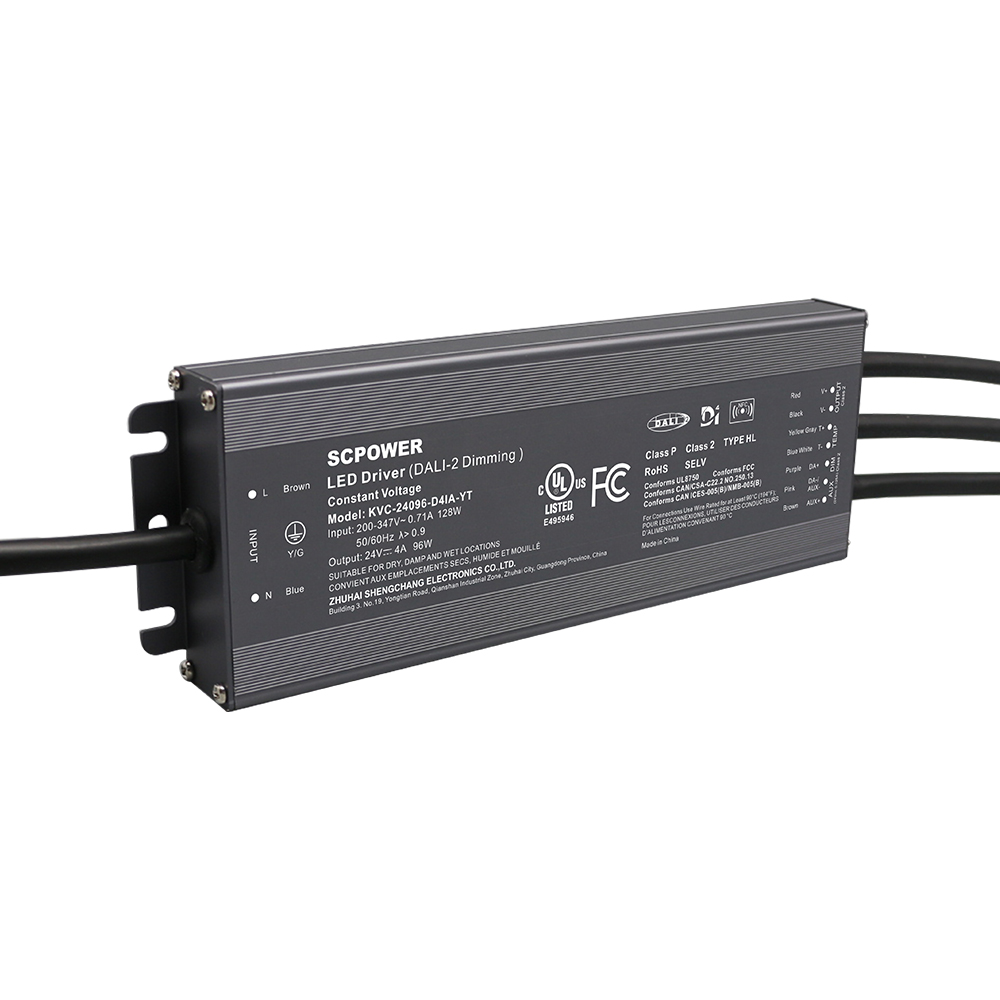

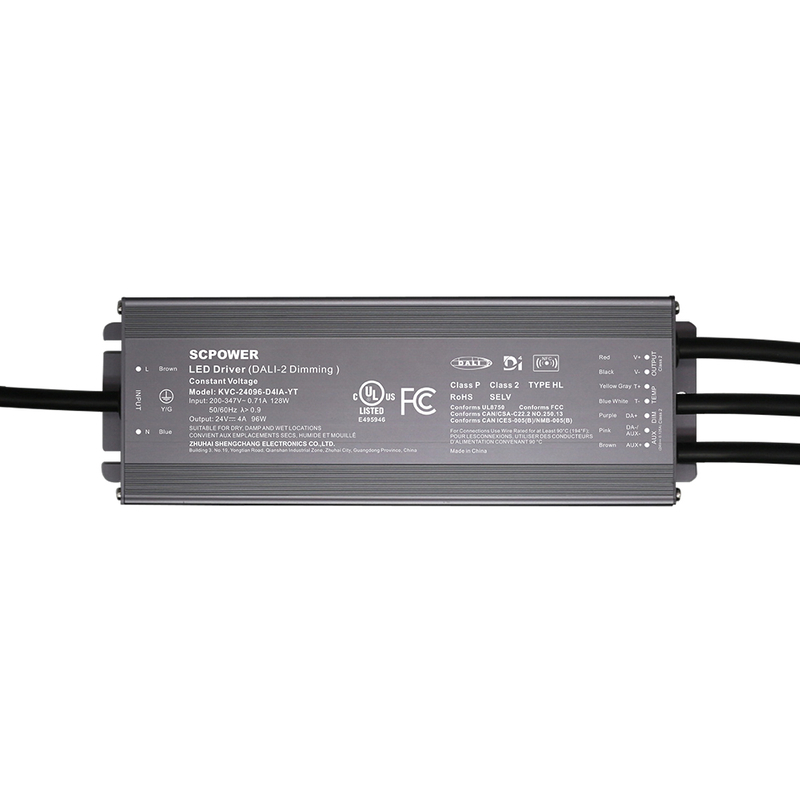

60W 96W 100W 120W DALI 2 D4i Dimmable Constant Voltage Power LED Driver 12V 24V 36V 48V DC

Ouput Power:
60W
96W
100W
120W
Availability:
Inquire Add to Basket

  • KVC-D4IA

  • DALI-2 D4i

  • Isolated

  • Constant Voltage

  • Dimming

  • IP66, Dry & Damp, Wet

  • 100-277VAC

  • 60W, 96W, 100W, 120W

  • 12/ 24/ 36/ 48V

  • UL & cUL, FCC, Class 2, CE, RoHS, REACH

Advantage

60W 96W 100W 120W DALI 2 D4i Dimmable Constant Voltage Power LED Driver 12V 24V 36V 48V DC


Flicker-free,output dimming frequency 20KHz reach the exemption level,

Digital dimming, single light control,with auxiliary power supply & temperature control

Features

● Output: Constant Voltage

● Range: 200-347VAC

● PFC design: Built-in active PFC function

● Protections: Short circuit / Over load / Over temperature

● Heat dissipation: Cooling by free air convection

● Waterproof performance: Full protection Aluminum housing, for dry, damp and wet locations

● Dimming function: DALI-2 D4i dimming

● Dimming range: 0.1-100%

● NFC function: Fine tune the output voltage, write and read address

● Application: Suitable for LED lighting and moving sign applications

● Warranty: 5 years warranty

Specification


Output Power

Model Number

Output Voltage

Output Current

Size

Weight

60W

KVC-12060-D4IA

12V

5A

200*78*25.1mm

KVC-24060-D4IA

24V

2.5A

KVC-36060-D4IA

36V

1.67A

KVC-48060-D4IA

48V

1.25A

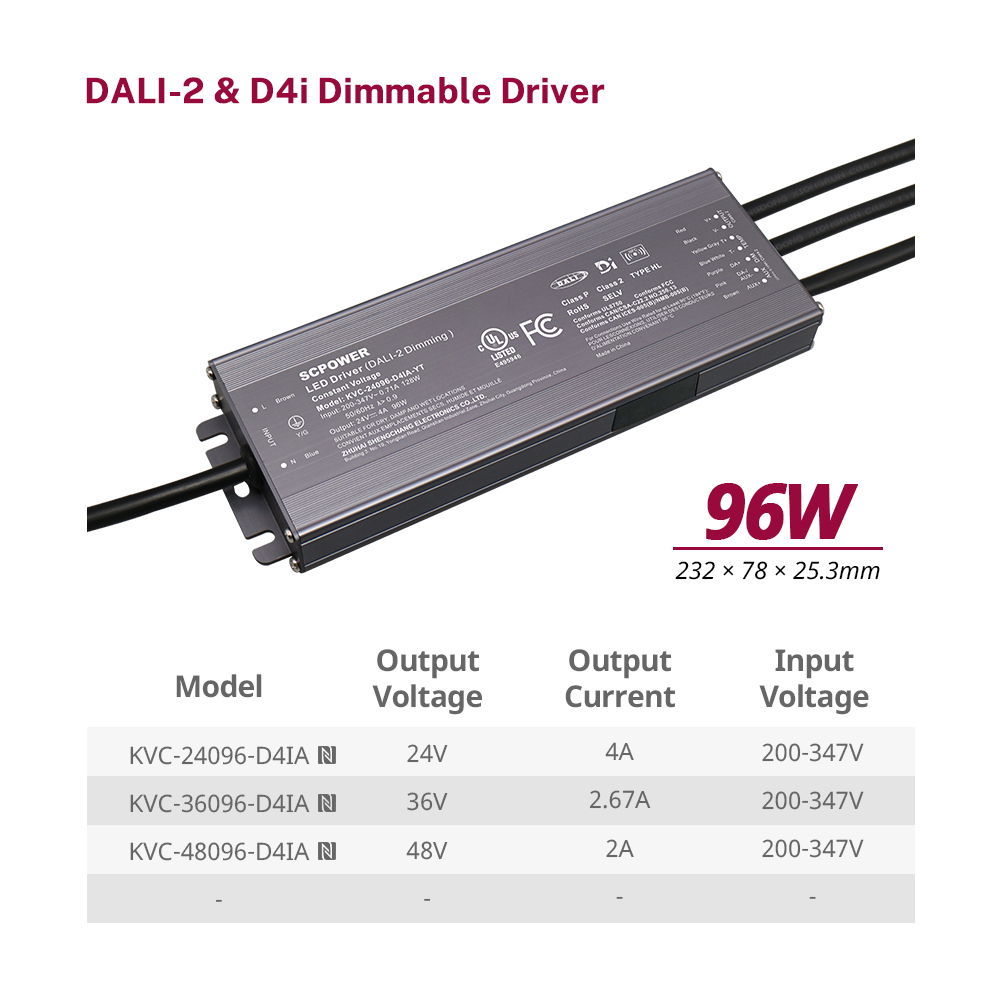

96W

KVC-24096-D4IA

24V

4A

232*78*25.3mm

0.83kg

KVC-36096-D4IA

36V

2.67A

KVC-48096-D4IA

48V

2A

100W

KVC-12100-D4IA

12V

8.33A

KVC-24100-D4IA

24V

4.17A

KVC-36100-D4IA

36V

2.78A

KVC-48100-D4IA

48V

2.08A

120W

KVC-12120-D4IA

12V

10A

KVC-24120-D4IA

24V

5A

KVC-36120-D4IA

36V

3.33A

KVC-48120-D4IA

48V

2.5A


KVC Series Dimmable Constant Voltage LED Driver 200V -347V AC

KVC Series Dimmable Constant Voltage LED Driver with NFC


DALI-2 D4i LED Driver Wiring Diagram

06-KVC-详情页-接线图-DALI-2 D4i-260611

download spec_60W DALI-2 dim. CV driver KVC-D4IA-YT 12V&24V&48V.pdf

download spec_96W DALI-2 dim. CV driver KVC-D4IA-YT 24V&48V.pdf

download spec_100W DALI-2 dim. CV driver KVC-D4IA-YT 12V&24V&48V.pdf

download spec_120W DALI-2 dim. CV driver KVC-D4IA-YT 12V&24V&48V.pdf
