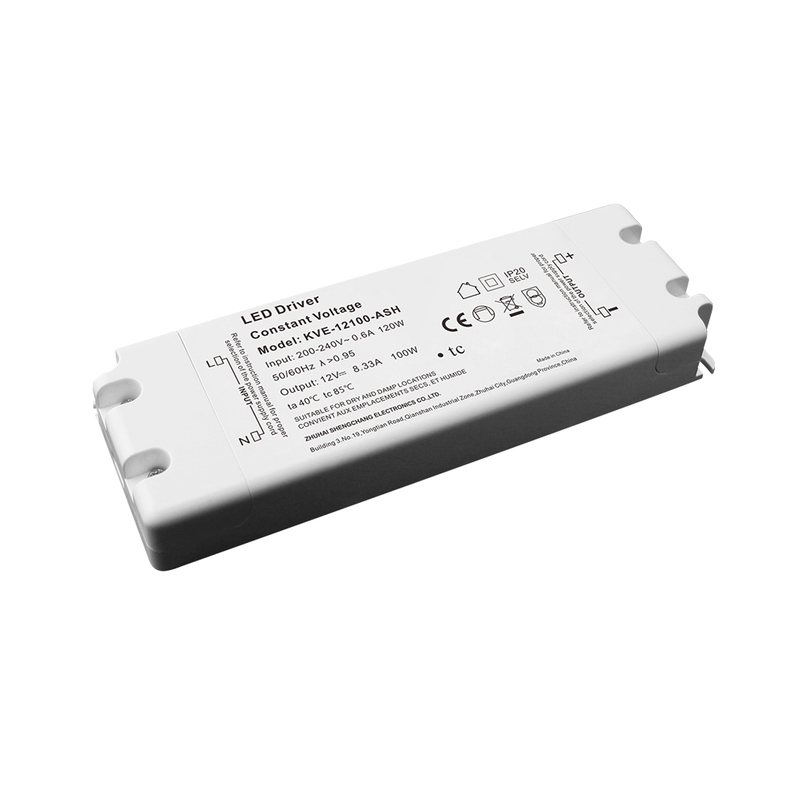

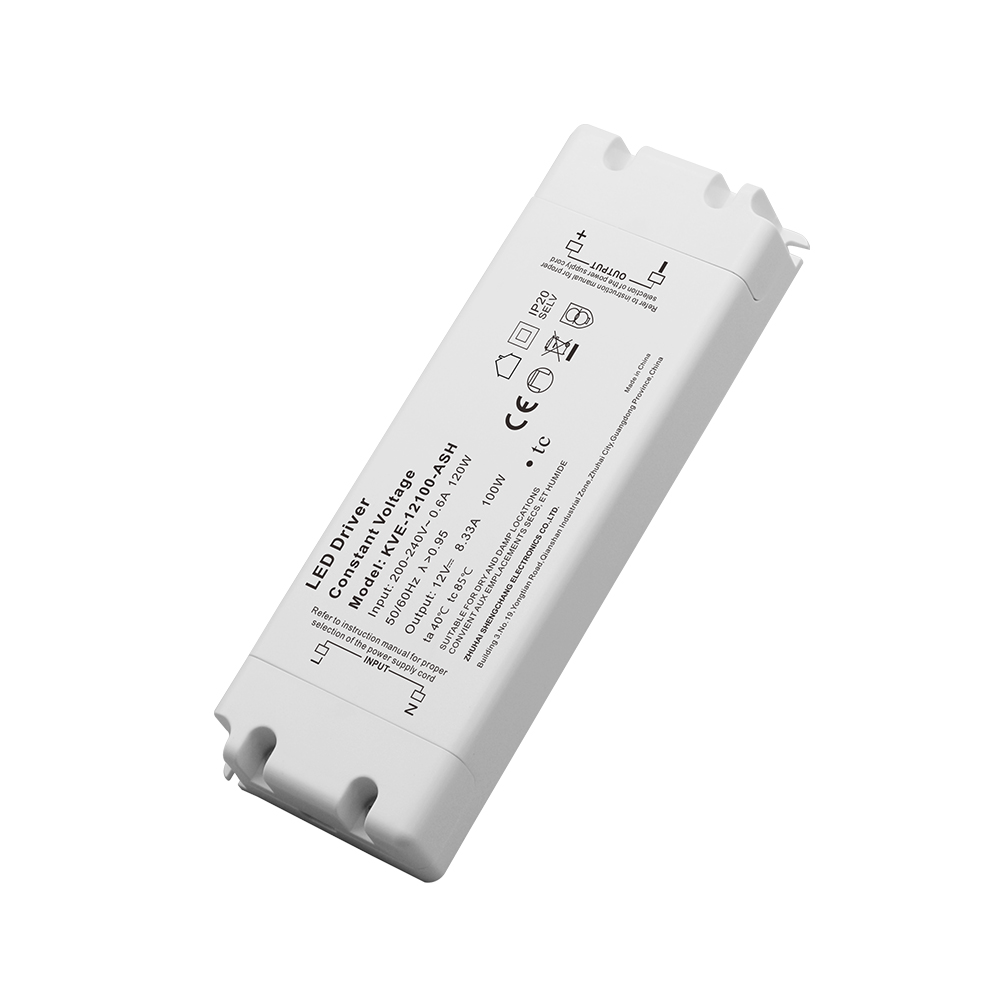

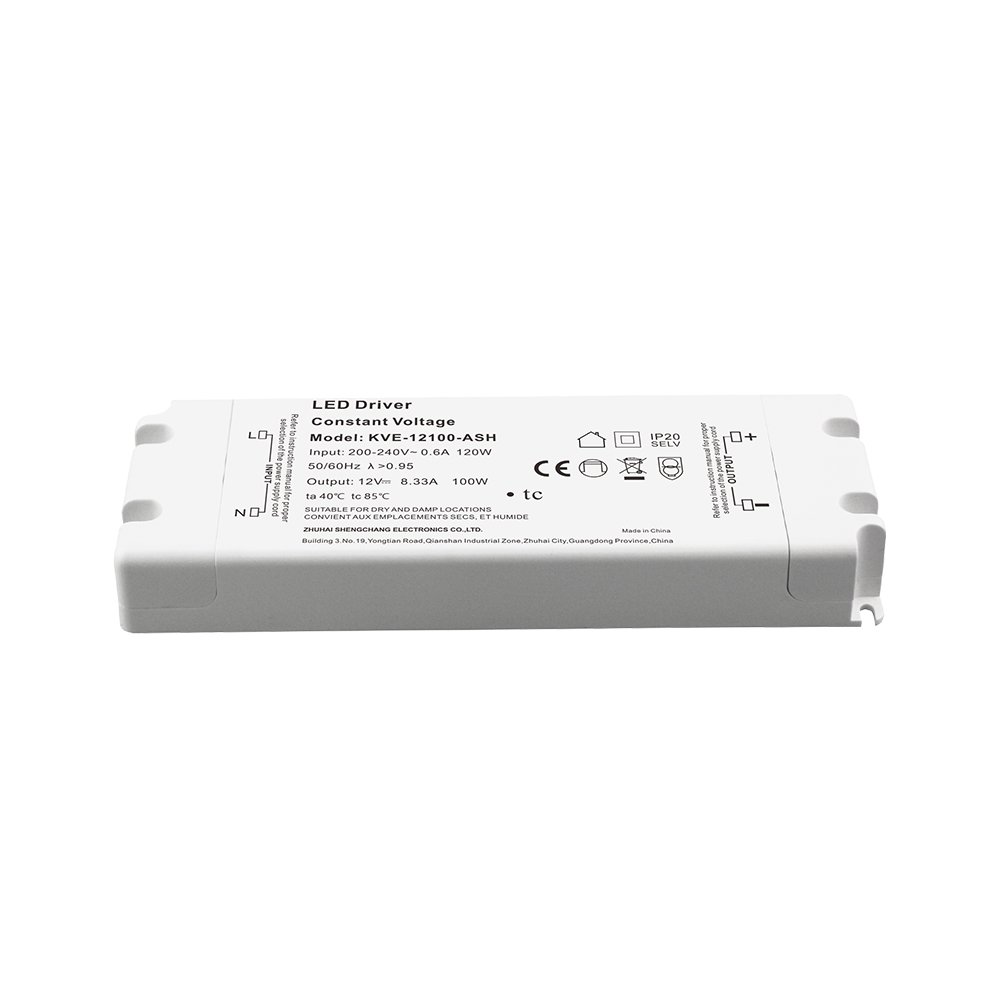

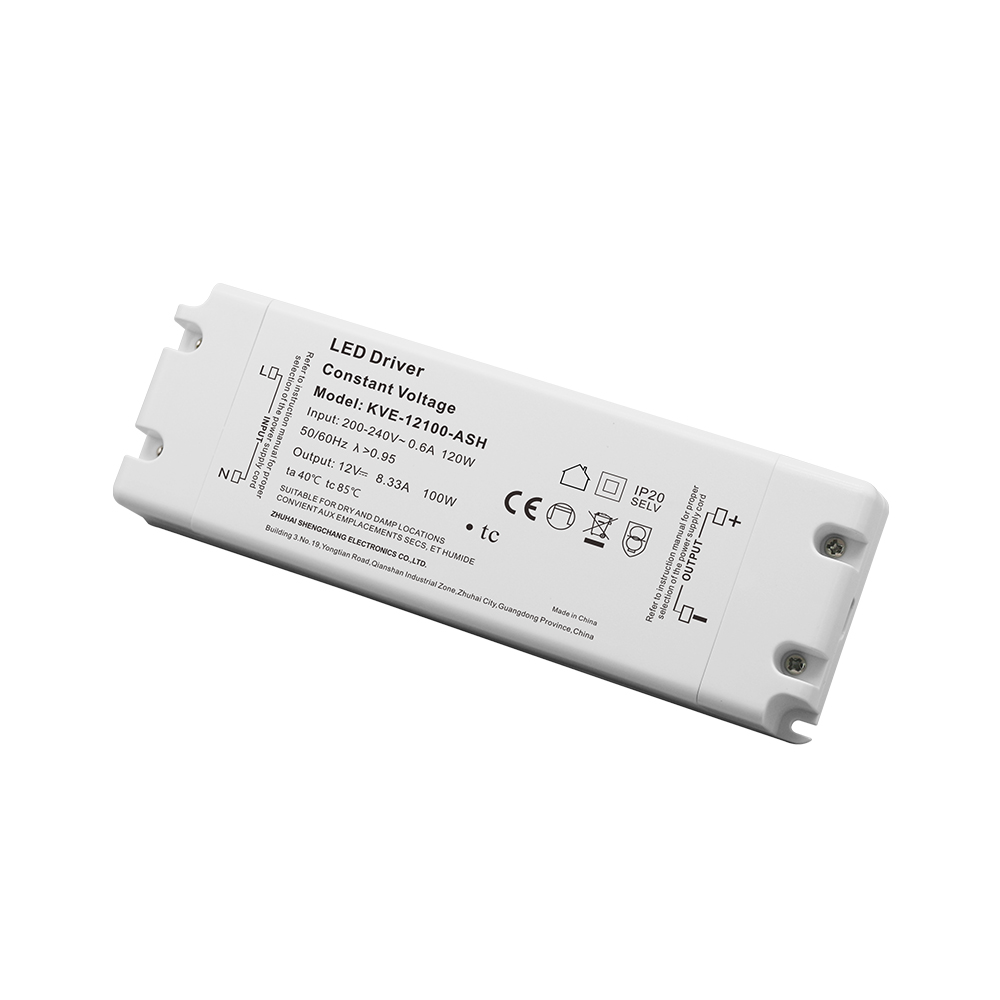

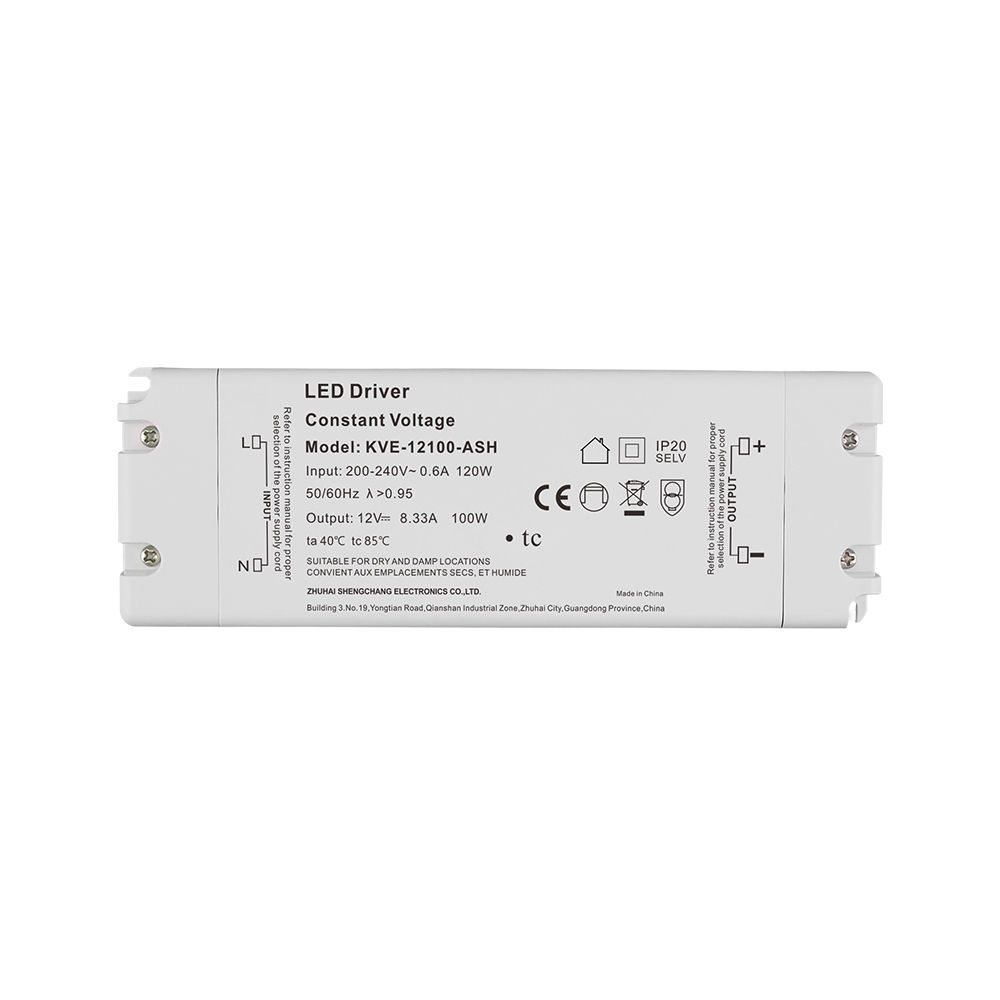

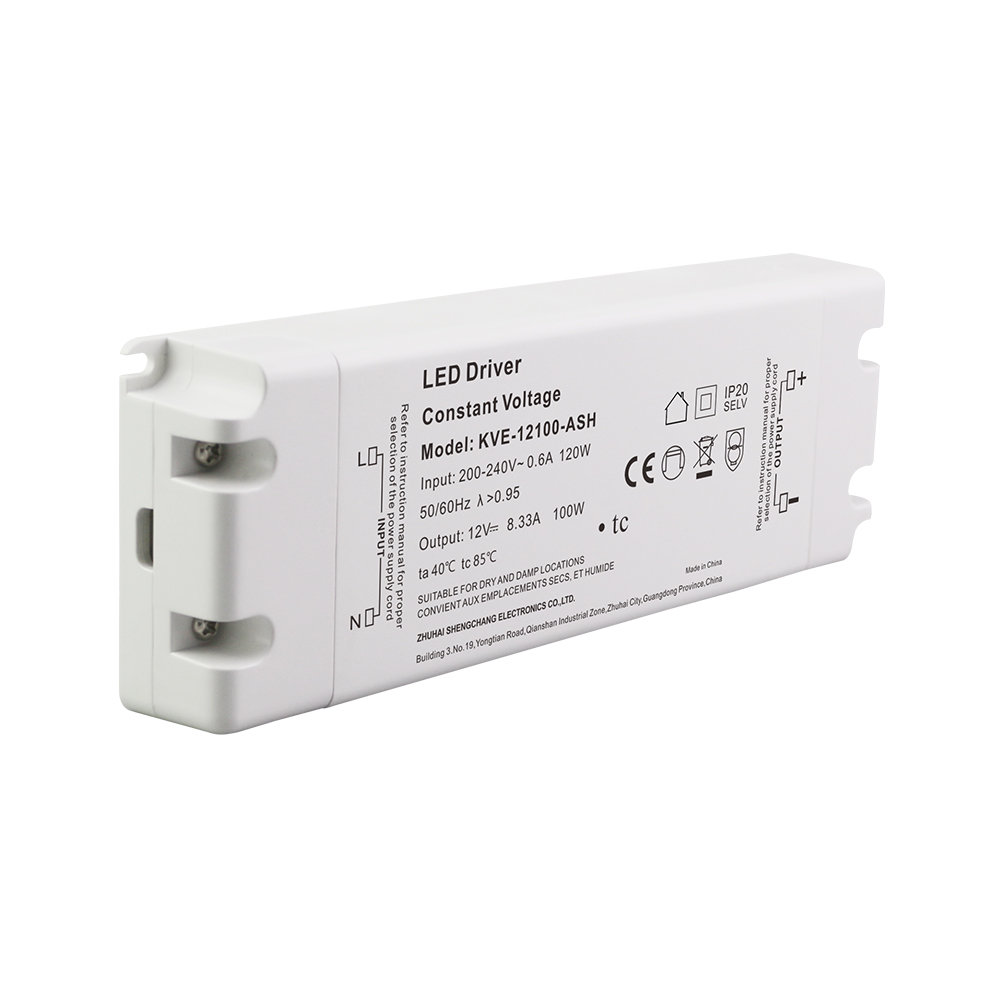

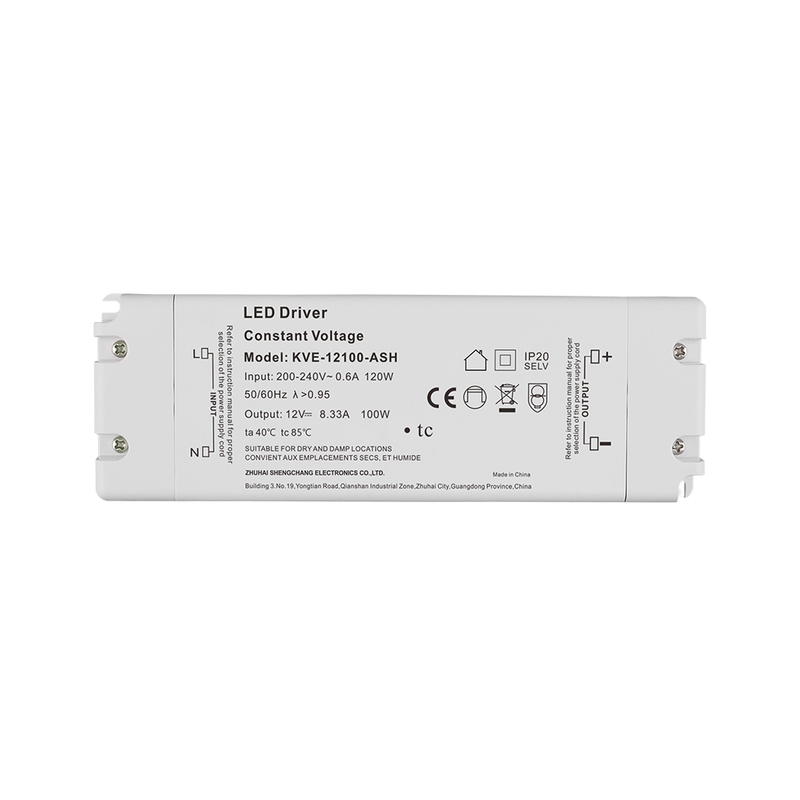

30 60 80 100 Watt CV Low-profile Plastic Switching Power Supply with Frequency Conversion

Output	Constant Voltage
Range	200-240VAC
PFC design	Built-in active PFC function
Efficiency	Up to 82.5%
Protections	Short circuit/ over load/ over temperature
Heat dissipation	Cooling by free air convection
Waterproof performance	IP20
Dimming function	Non-dimmable
Application	Suitable for LED lighting and moving sign applications
Warranty	5 years warranty
Others	High efficiency, smaller size, high power factor, low THD

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight
30W	KVE-12030-ASH	12V	2.5A	1555420mm	0.25kg
	KVE-24030-ASH	24V	1.25A
	KVE-36030-ASH	36V	0.83A
	KVE-48030-ASH	48V	0.63A

60W	KVE-12060-ASH	12V	5A	1786124mm	0.35kg
	KVE-24060-ASH	24V	2.5A
	KVE-36060-ASH	36V	1.67A
	KVE-48060-ASH	48V	1.25A
80W	KVE-12080-ASH	12V	6.67A
	KVE-24080-ASH	24V	3.34A
	KVE-36080-ASH	36V	2.23A
	KVE-48080-ASH	48V	1.67A
100W	KVE-12100-ASH	12V	8.33A
	KVE-24100-ASH	24V	4.16A
	KVE-36100-ASH	36V	2.78A
	KVE-48100-ASH	48V	2.08A

No Dimmable Switching Power Supply Wiring Diagram

No Dimmable Switching Power Supply Wiring Diagram

Product Overview

The 30 60 80 100 Watt CV Low-profile Plastic Switching Power Supply designed for LED lighting and moving sign applications. With a robust PFC design and multiple protections, it ensures stable performance and long-term reliability. Available in 12V, 24V, 36V and 48V DC outputs, this non-dimmable power supply is perfect for commercial and industrial lighting solutions.

Product Features

High Efficiency & Energy Saving: Achieves up to 82.5% efficiency, reducing energy waste and operational costs.
Wide Input Voltage Range: Supports 200-240V AC input, compatible with most commercial power grids.
Built-in Protections: Features short circuit, overload, and over-temperature protections for enhanced safety.
Compact & Lightweight: Slim design (155*54*19.7mm or 178*61*24mm) and lightweight (0.25kg or 0.35kg) for easy installation.
Long Warranty & Reliable Performance: Backed by a 5-year warranty, ensuring durability and peace of mind.

Application Scenarios

LED Lighting: Ideal for indoor and outdoor LED strips, panels, and spotlights.
Commercial Signage: Powers moving signs and display boards with stable voltage.
Industrial Use: Suitable for machinery and equipment requiring low-profile power solutions.
