Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP66, Dry & Damp, Wet
200-240VAC
60W, 80W, 100W, 120W, 150W, 200W, 300W, 320W, 360W, 500W, 600W, 800W, 1000W
12/ 24/ 36 /48V
SAA, CE, RoHS, REACH

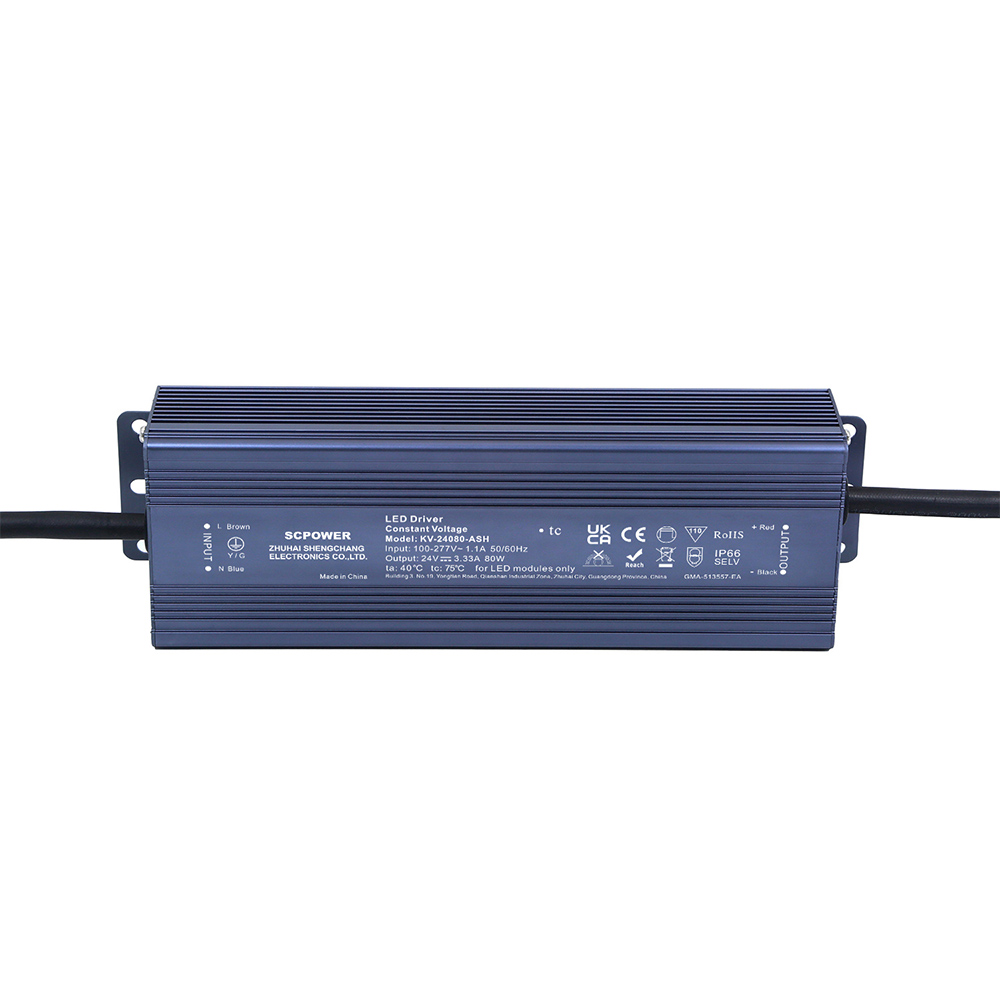

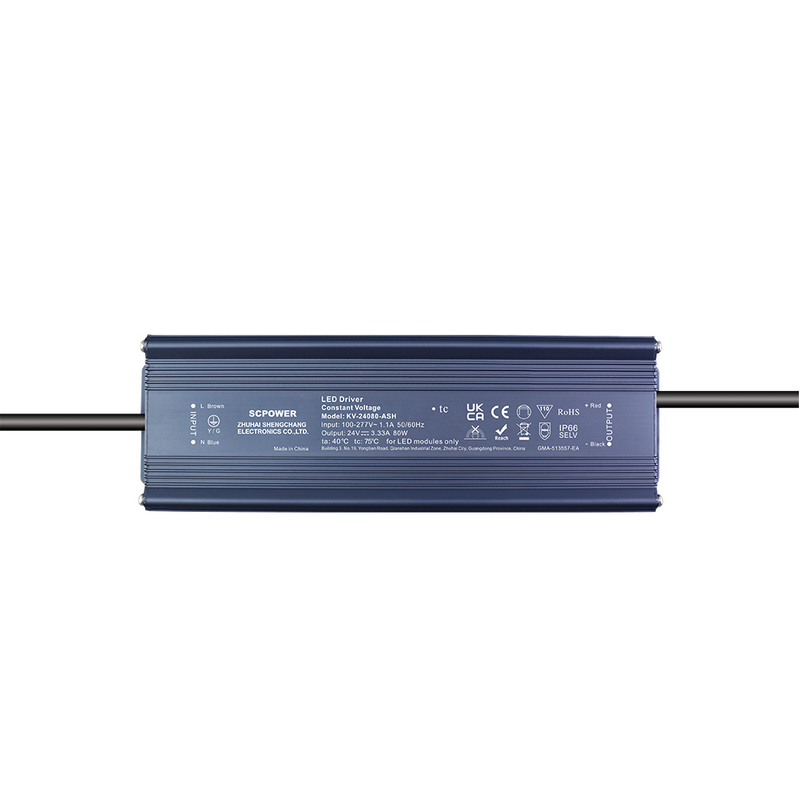

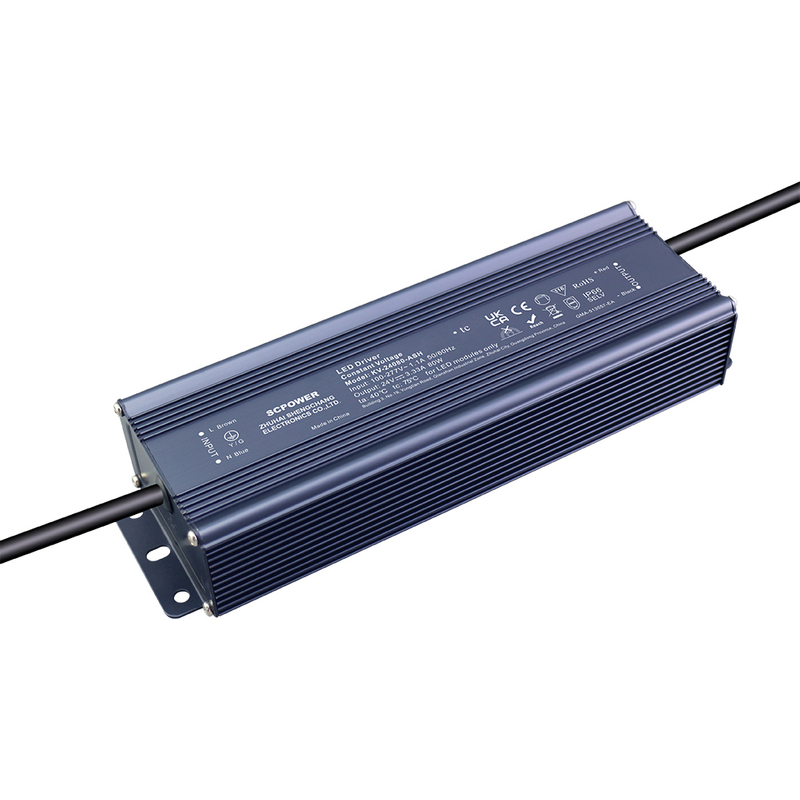

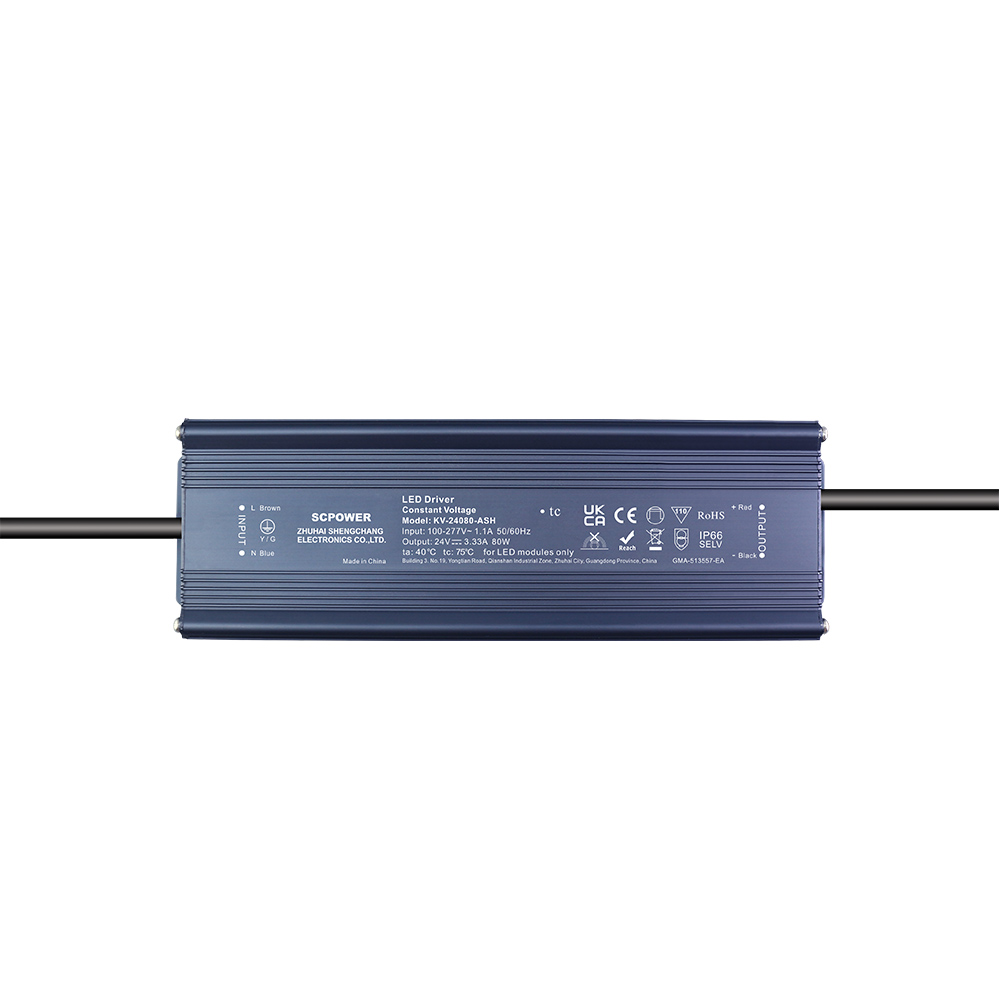

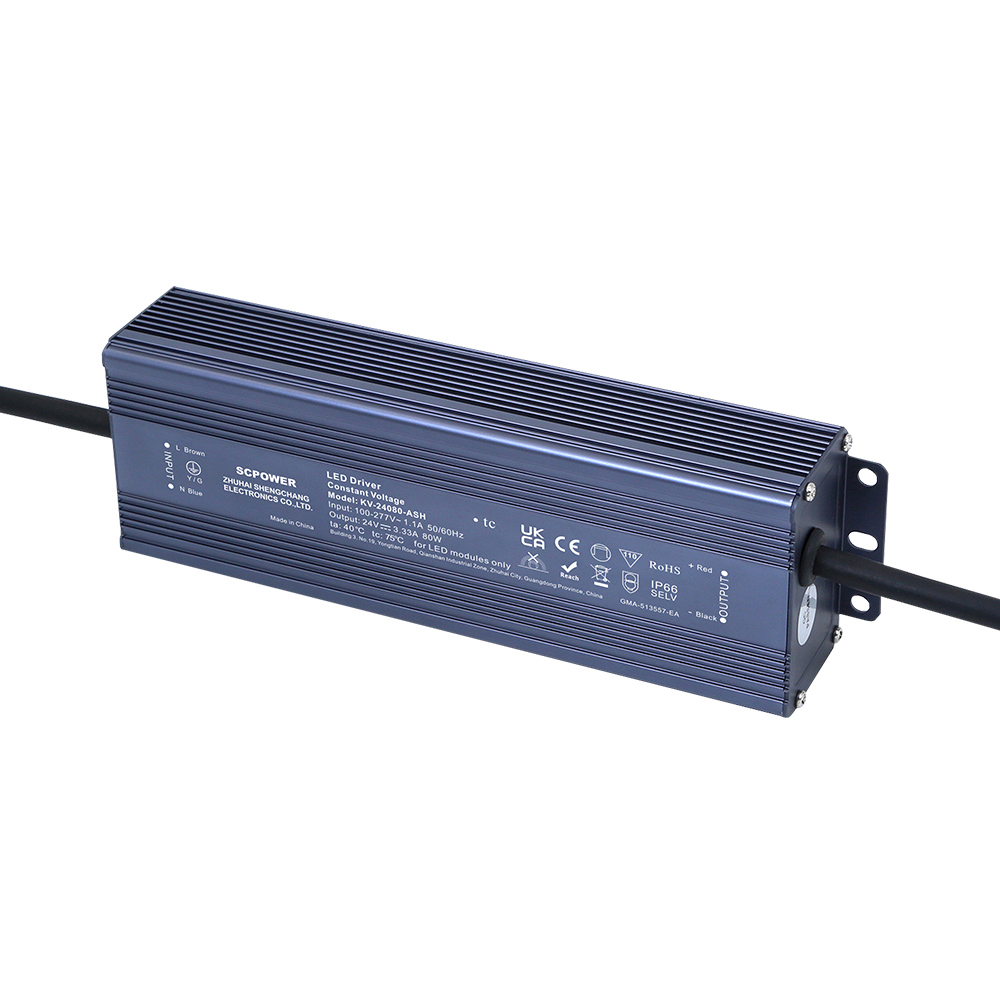

60 80 100 120 150 200 300 320 360 500 600 800 1000 Watt CV PFC function Switching Power Supply SAA Listed
Output | Constant Voltage |
Range | 200-240VAC |
PFC design | Built-in active PFC function |
Efficiency | Up to 92% |
Protections | Short circuit/ over load/ over temperature |
Heat dissipation | Cooling by free air convection |
Waterproof performance | IP66 |
Dimming function | Non-dimmable |
Application | Suitable for the application of LED lighting |
Warranty | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | KV-12060-ASH | 12V | 5A | 200*70*43mm | 1.10kg |
KV-24060-ASH | 24V | 2.5A | |||
KV-36060-ASH | 36V | 1.67A | |||
KV-48060-ASH | 48V | 1.25A | |||

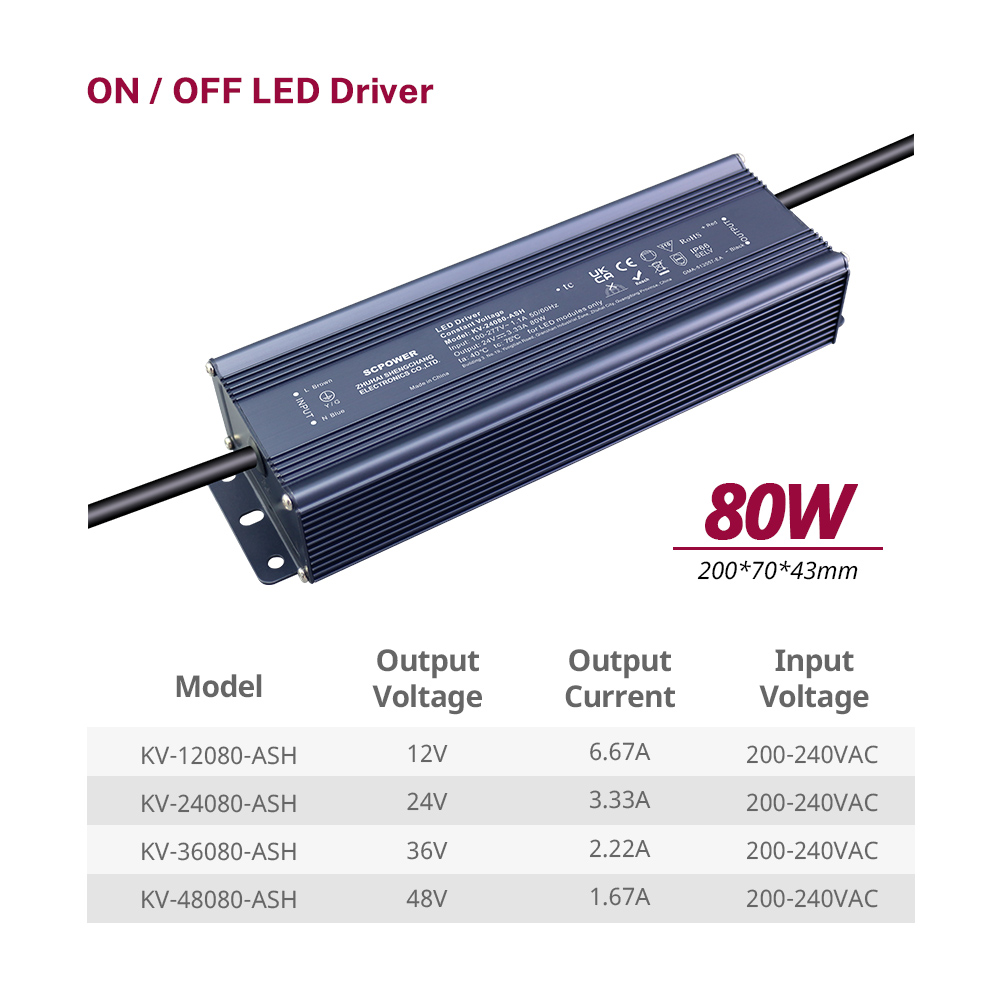

80W | KV-12080-ASH | 12V | 6.67A | ||
KV-24080-ASH | 24V | 3.33A | |||
KV-38080-ASH | 36V | 2.22A | |||
KV-48080-ASH | 48V | 1.67A | |||

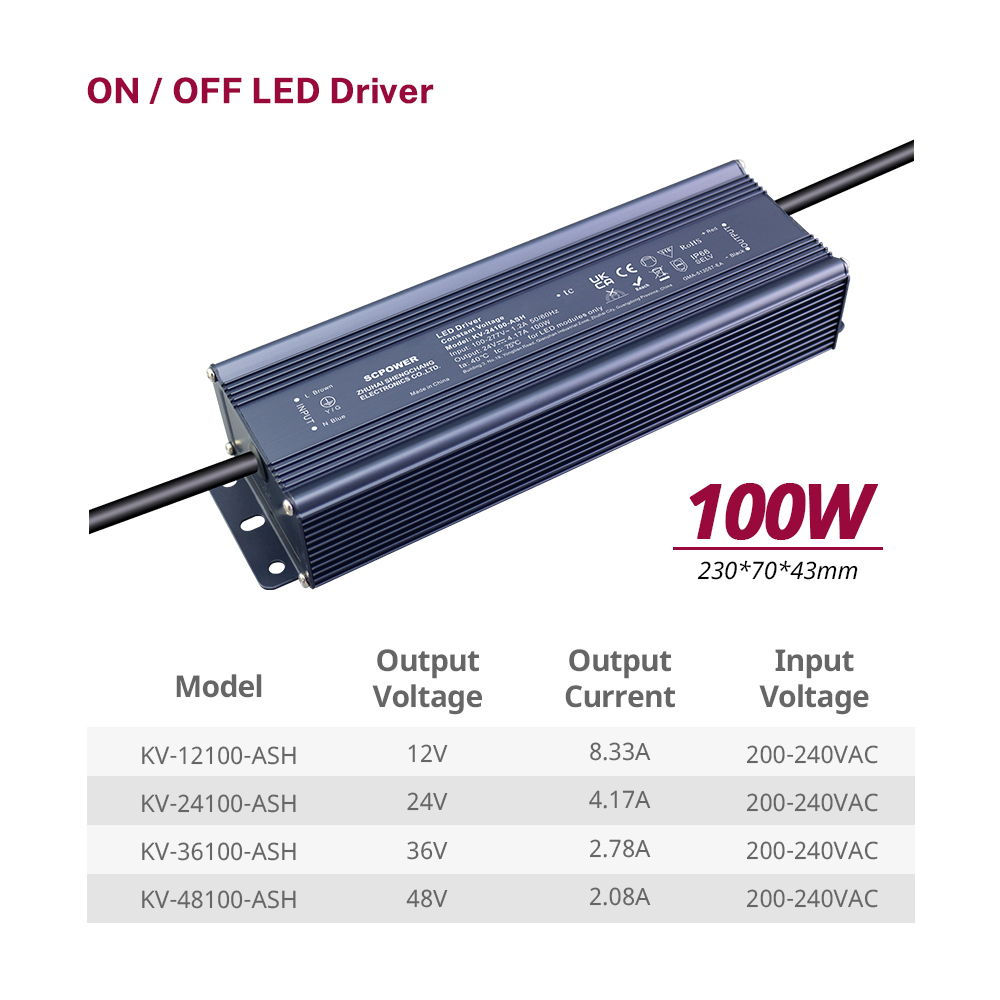

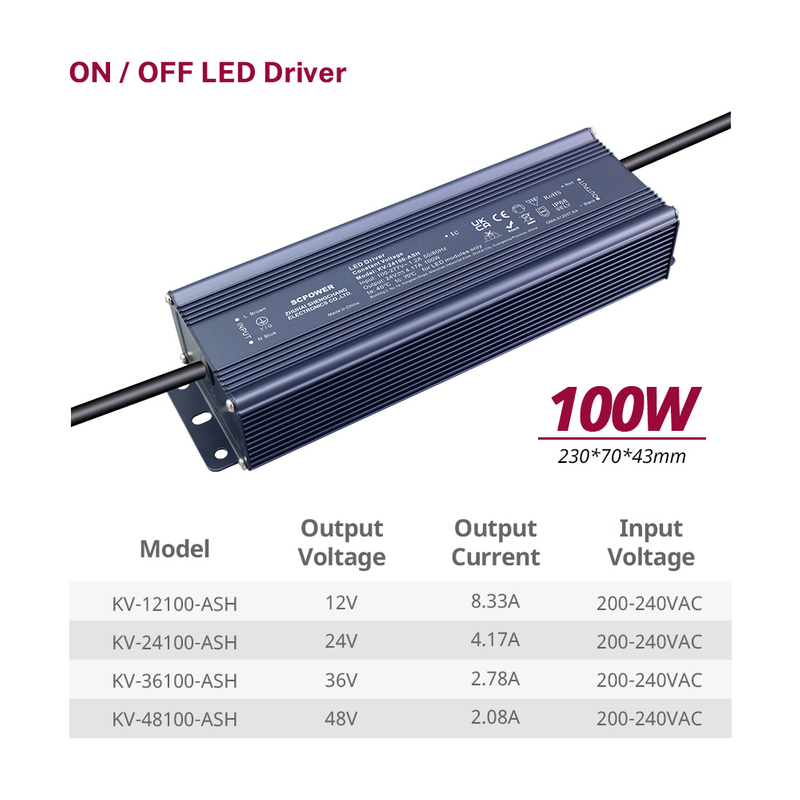

100W | KV-12100-ASH | 12V | 8.33A | 230*70*43mm | 1.05kg |
KV-24100-ASH | 24V | 4.17A | |||
KV-36100-ASH | 36V | 2.78A | |||
KV-48100-ASH | 48V | 2.08A | |||
120W | KV-12120-ASH | 12V | 10A | ||
KV-24120-ASH | 24V | 5A | |||
KV-39120-ASH | 36V | 3.33A | |||
KV-48120-ASH | 48V | 2.5A | |||
150W | KV-12150-ASH | 12V | 12.5A | 256*80*53mm | 1.50kg |
KV-24150-ASH | 24V | 6.25A | |||
KV-36150-ASH | 36V | 4.17A | |||
KV-48150-ASH | 48V | 3.13A | |||
200W | KV-12200-ASH | 12V | 16.67A | ||
KV-24200-ASH | 24V | 8.33A | |||
KV-36200-ASH | 36V | 5.56A | |||
KV-48200-ASH | 48V | 4.17A | |||
300W | KV-12300-ASH | 12V | 25A | 276*78*47mm | 1.70kg |
KV-24300-ASH | 24V | 12.5A | |||
KV-36300-ASH | 36V | 8.33A | |||
KV-48300-ASH | 48V | 6.25A | |||
360W | KV-12320-ASH | 12V | 26.67A | ||
KV-24360-ASH | 24V | 15A | |||
KV-36360-ASH | 36V | 10A | |||
KV-48360-ASH | 48V | 7.5A | |||
600W | KV-12500-ASH | 12V | 41.67A | 322*78*47mm | 2.00kg |
KV-24600-ASH | 24V | 25A | |||
KV-36600-ASH | 36V | 16.67A | |||
KV-48600-ASH | 48V | 12.5A | |||
1000W | KV-12800-ASH | 12V | 66.67A | 342*114*53.3mm | |
KV-241K0-ASH | 24V | 41.67A | |||
KV-361K0-ASH | 36V | 27.78A | |||
KV-481K0-ASH | 48V | 20.83A |
No Dimmable Switching Power Supply Wiring Diagram
The PFC function Switching Power Supply offers high-efficiency, reliable performance for LED lighting applications. With a wide power range from 60 80 100 120 150 200 300 320 360 500 600 800 1000 Watt CV and multiple output voltage options (12V/24V/36V/48V), this power supply is designed to meet diverse lighting needs. Built-in active PFC ensures energy efficiency, while robust protections like short circuit, overload, and over-temperature safeguards ensure long-term durability. The IP66 waterproof rating makes it suitable for both indoor and outdoor use.
High Efficiency & Energy Saving: With an efficiency of up to 92%, this power supply reduces energy consumption and operating costs. The built-in active PFC function ensures compliance with energy-saving standards.
Multiple Protections for Safety: Equipped with short circuit, overload, and over-temperature protections, the power supply automatically recovers after fault conditions are resolved, ensuring safe and reliable operation.
Wide Voltage & Power Range: Available in 12V, 24V, 36V, and 48V output options, with power ranging from 60W to 1000W, making it versatile for various LED lighting setups.
Global Certifications & Warranty: Compliant with SAA / CE / RoHS / Reach standards, and backed by a 5-year warranty for peace of mind.
Application Scenarios
Commercial LED Lighting: Ideal for retail stores, offices, and hotels, providing stable and efficient power for LED panels, downlights, and strip lights.
Outdoor & Industrial Lighting: The IP66 rating makes it perfect for street lights, parking lot lights, and industrial high-bay lighting, even in wet or dusty conditions.
Architectural & Decorative Lighting: Suitable for landscape lighting, facade lighting, and other decorative applications, ensuring consistent brightness and color.
Specialty Lighting Projects: A reliable choice for stage lighting, signage, and other specialty projects requiring high-power, stable voltage output.
