| Model: | |
|---|---|
Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP20, Dry & Damp
100-277VAC
75W, 90W
SAA, ENEC, CB, CE, RoHS, REACH

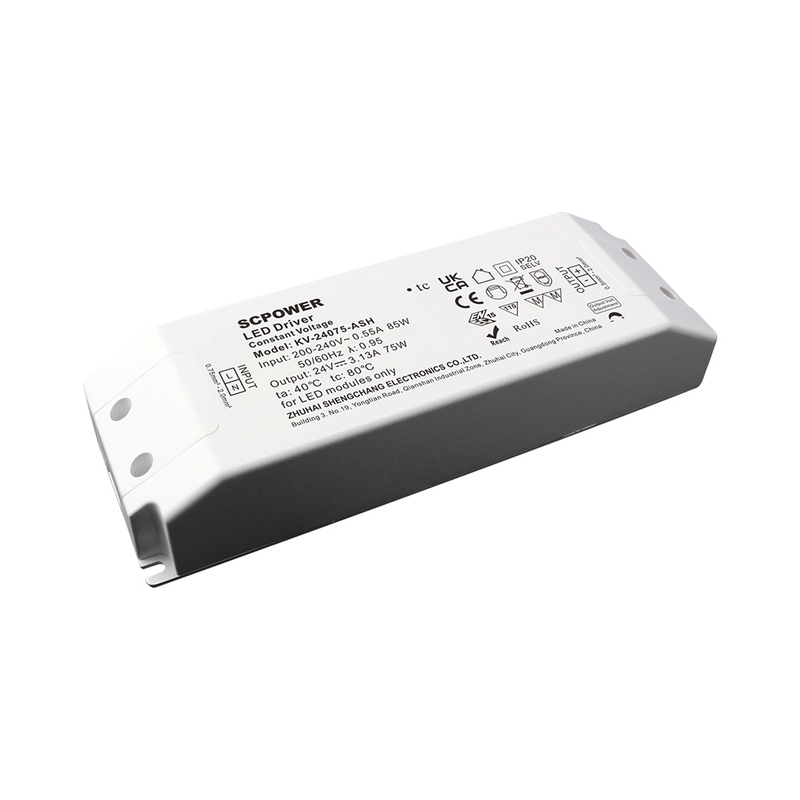

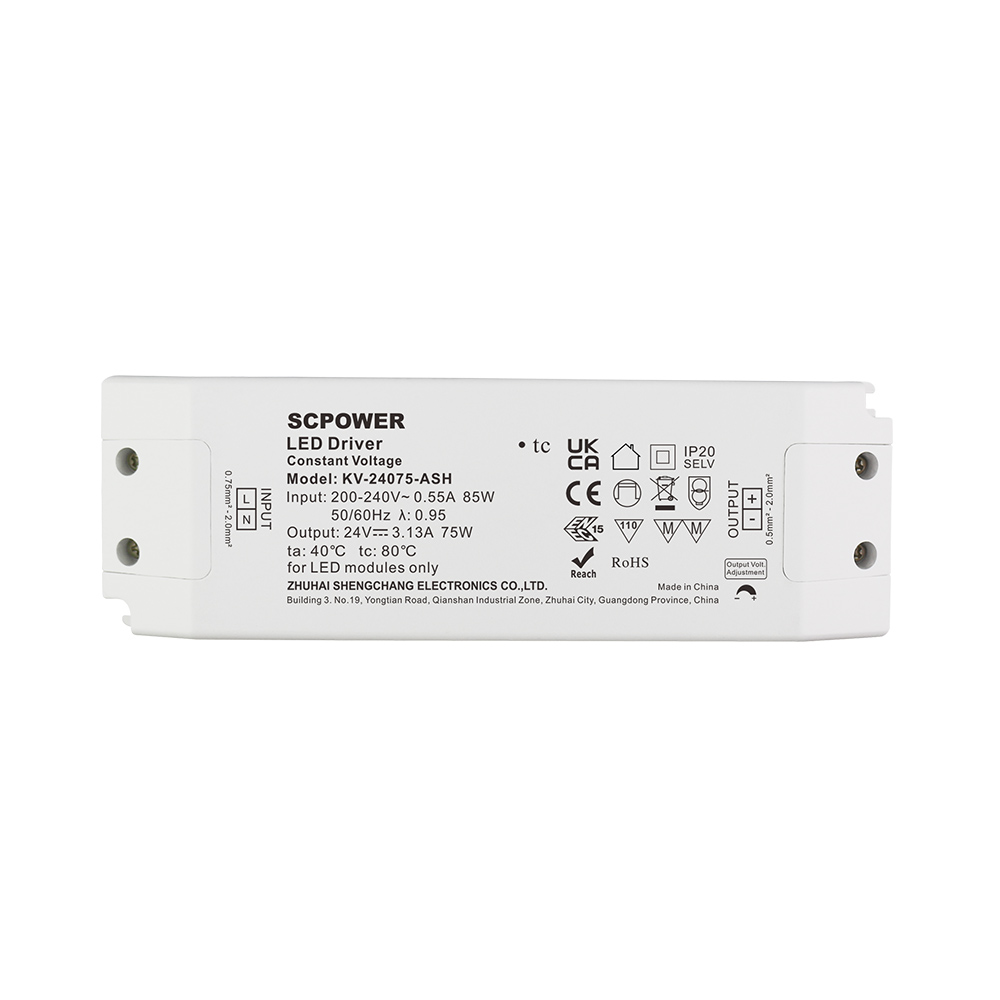

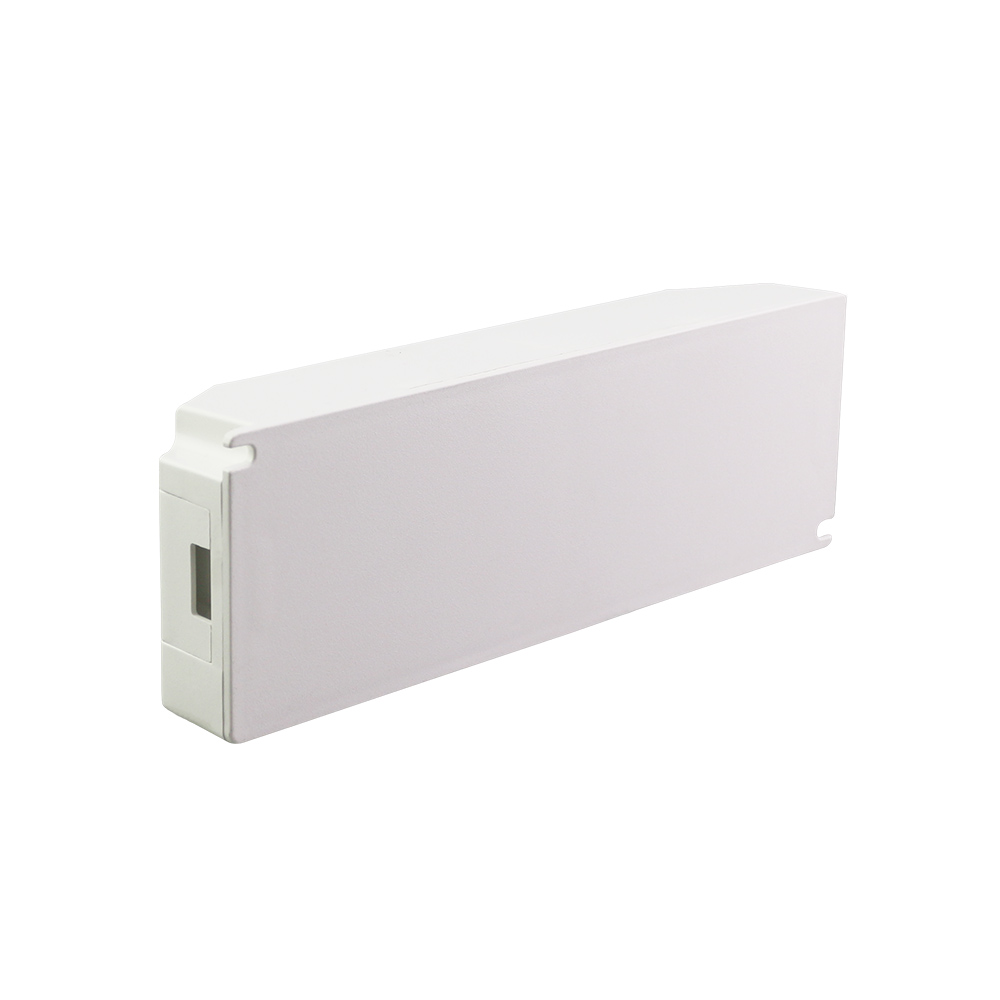

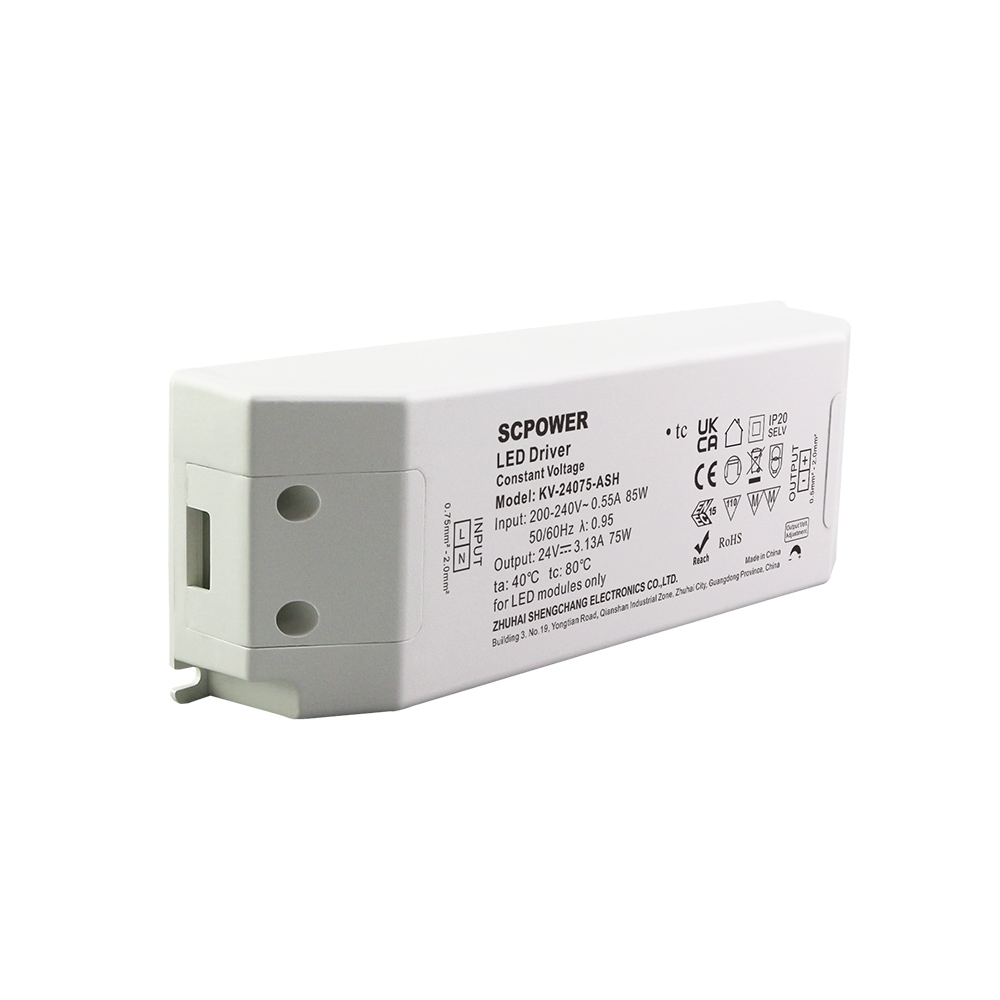

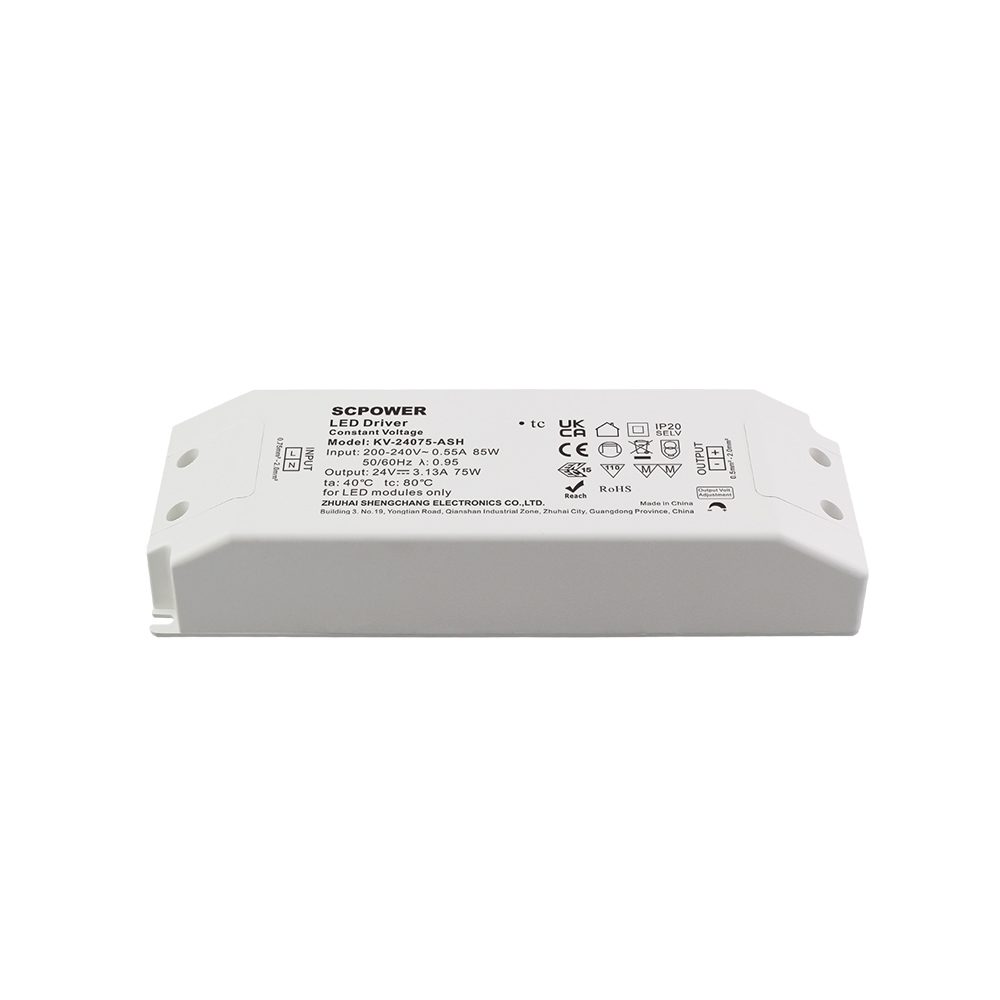

75 90 Watt CV Single-Level Lighting Switching Power Supply Up to 0.9 High Efficiency
Output | Constant Voltage |
Range | 200-240VAC |
PFC design | Built-in active PFC function |
Efficiency | Up to 90% |
Protections | Short circuit/ over load/ over temperature |
Heat dissipation | Cooling by free air convection |
| Waterproof performance | IP20 |
Dimming features | Fine-tune the voltage by the knob |
Dimming function | Non-dimmable |
Application | Suitable for the application of LED lighting |
Warranty | 5 years warranty |

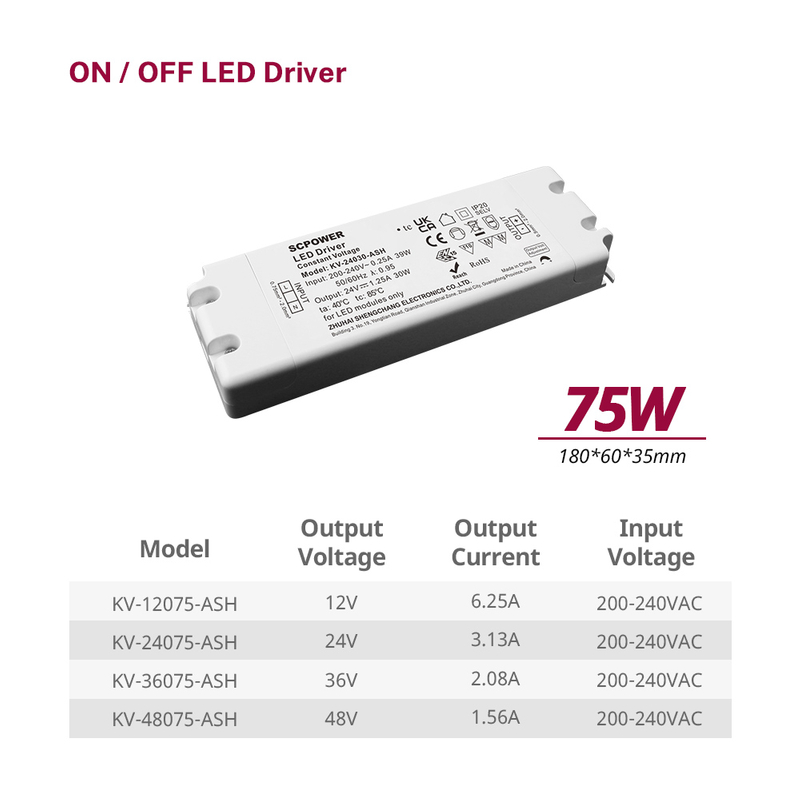

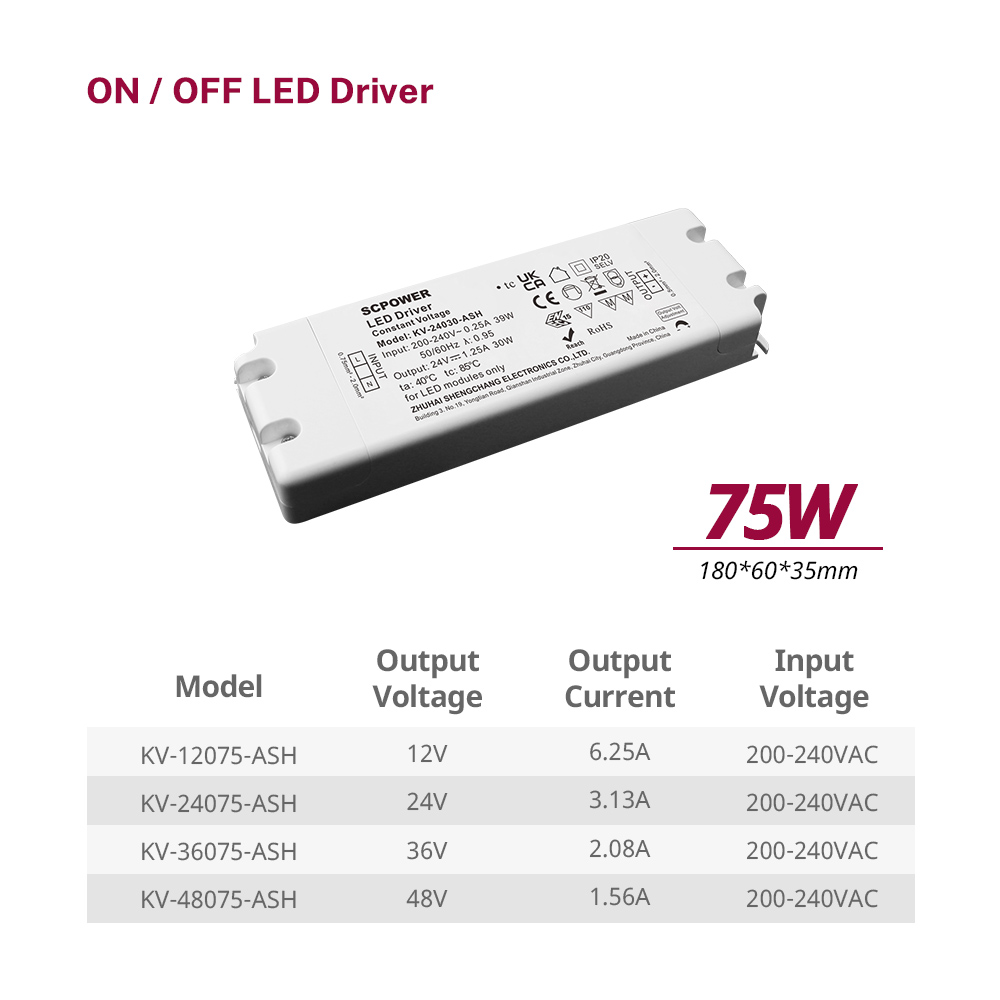

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
75W | KV-12075-ASH | 12V | 6.25A | 180*60*35mm | 0.45kg |
KV-24075-ASH | 24V | 3.13A | |||
KV-36075-ASH | 36V | 2.08A | |||
KV-48075-ASH | 48V | 1.56A | |||
90W | KV-12090-ASH | 12V | 7.5A | ||
KV-24090-ASH | 24V | 3.75A | |||
KV-39090-ASH | 36V | 2.5A | |||
KV-48090-ASH | 48V | 1.88A |
No Dimmable Switching Power Supply Wiring Diagram
The 75 90 Watt CV Single-Level Lighting Switching Power Supply delivers stable 12V 24V 36V 48V DC output with high efficiency (up to 90%) and built-in active PFC for optimal performance.
Reliable Protections: Auto-recovery hiccup mode for short circuit, overload (≤120%), and over-temperature (100°C shutdown), ensuring long-term safety.
Wide Compatibility: Adjustable output voltage suits diverse 12V/24V36V/48V LED setups, from strip lights to commercial fixtures.
5-Year Warranty: Trusted quality with extended warranty, minimizing downtime and replacement costs.
