| Model: | |
|---|---|
Non-Dimming
Isolated
Constant Voltage
Non-Dimming
IP20, Dry & Damp
200-240VAC
30W, 60W
SAA, ENEC, CB, CE, RoHS, REACH

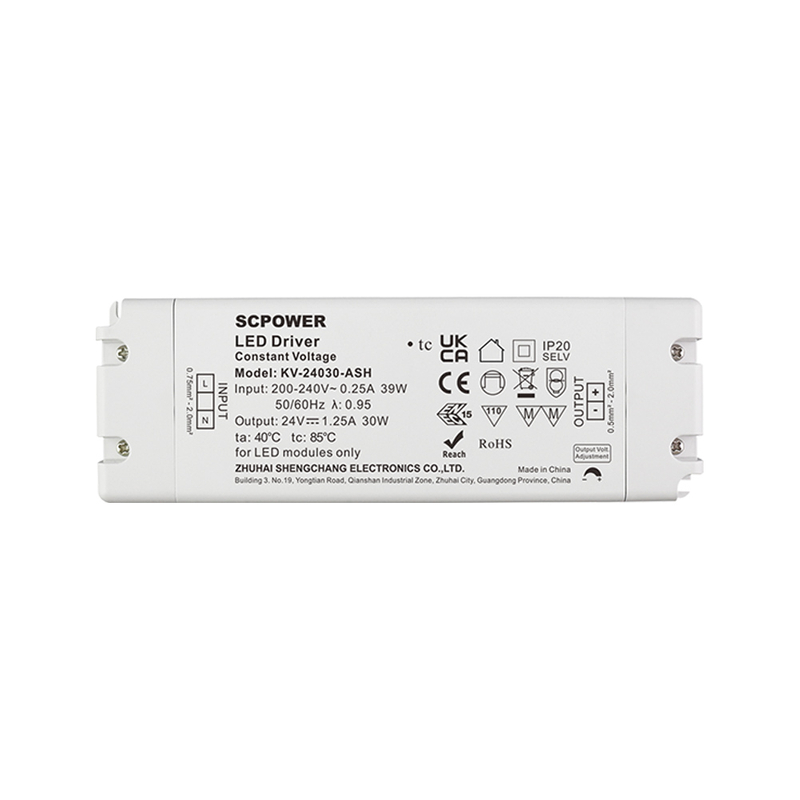

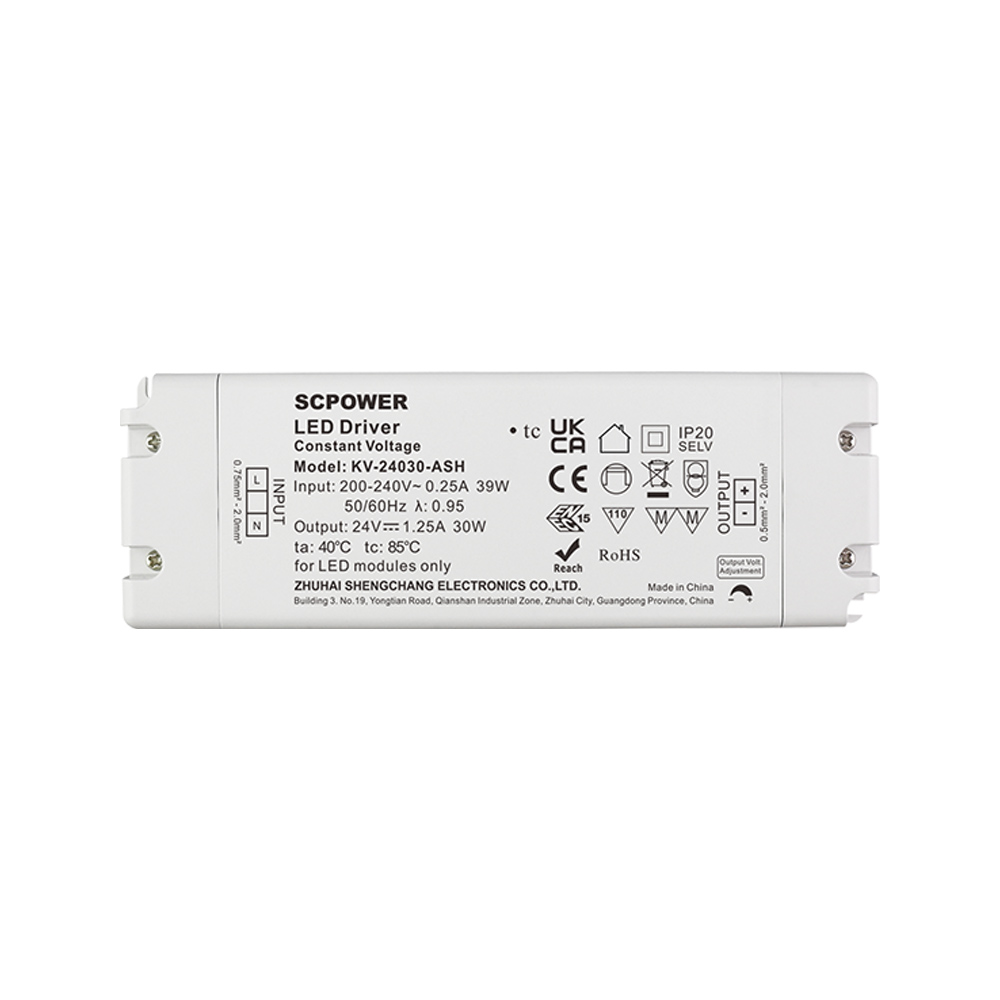

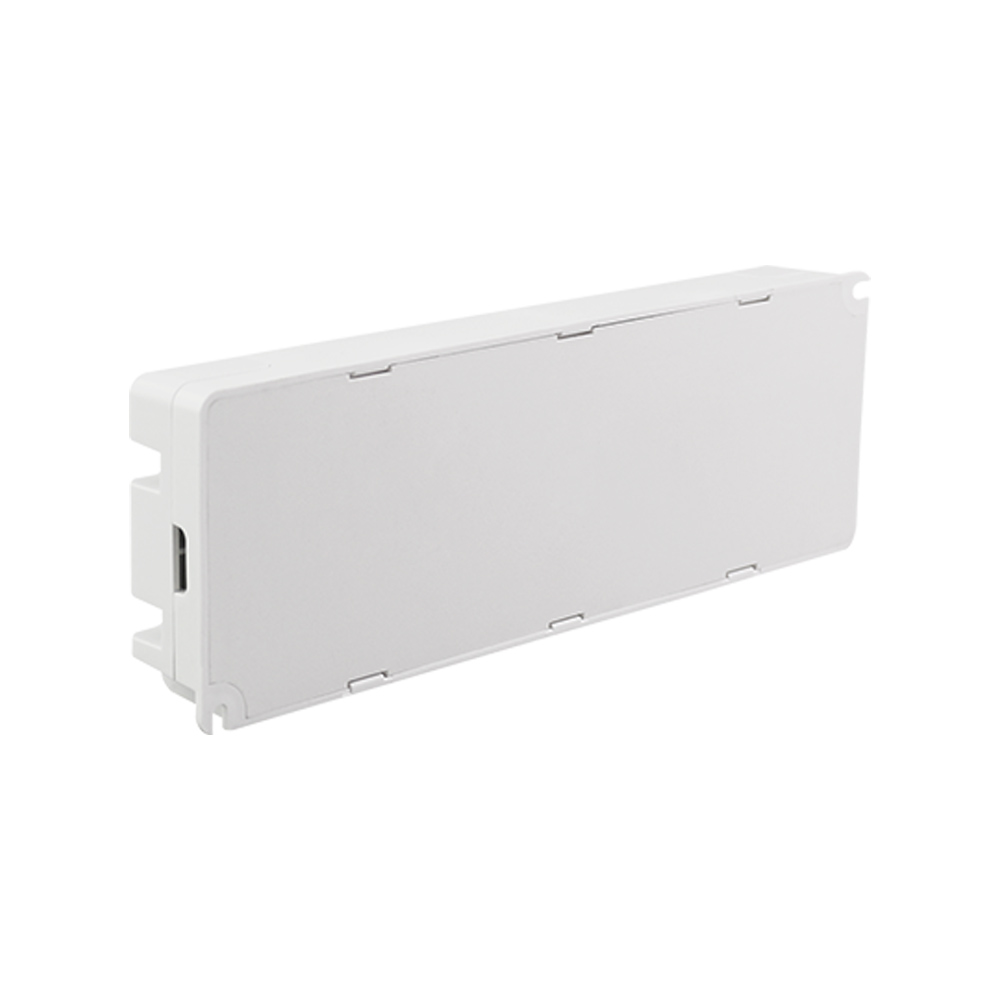

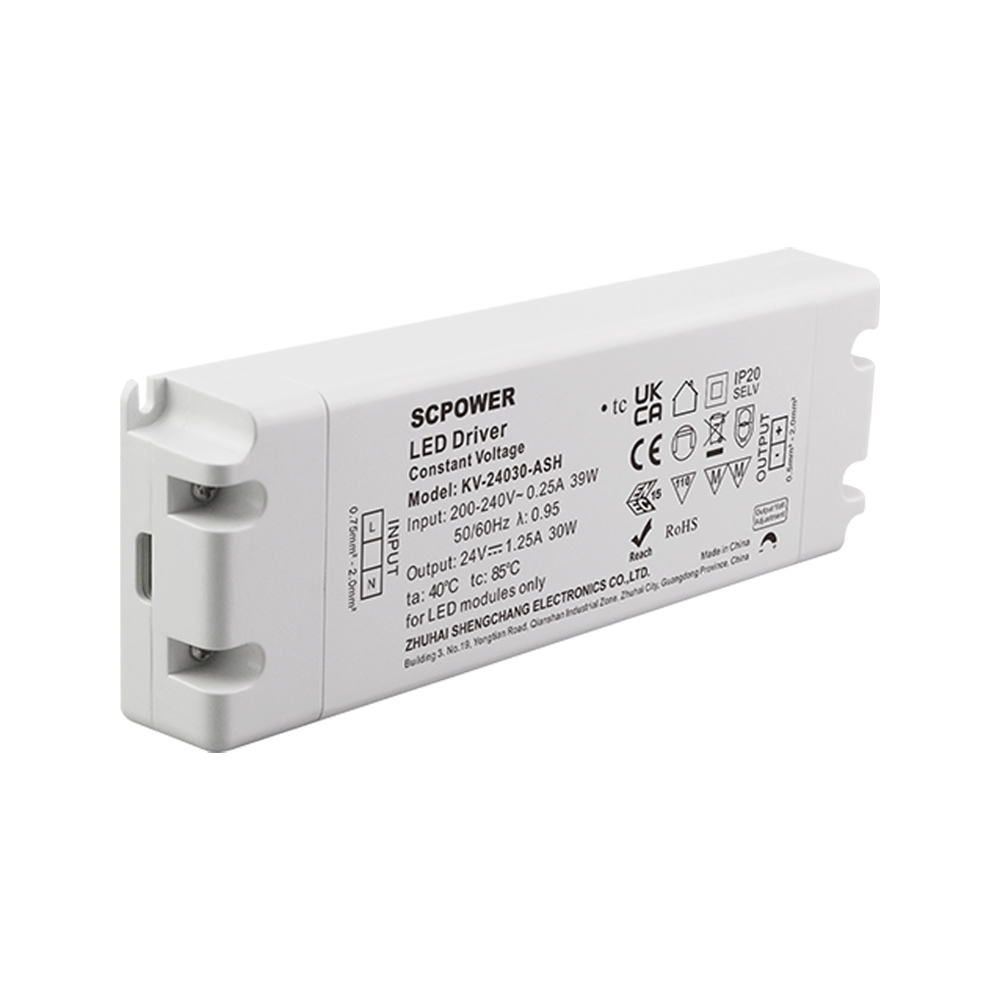

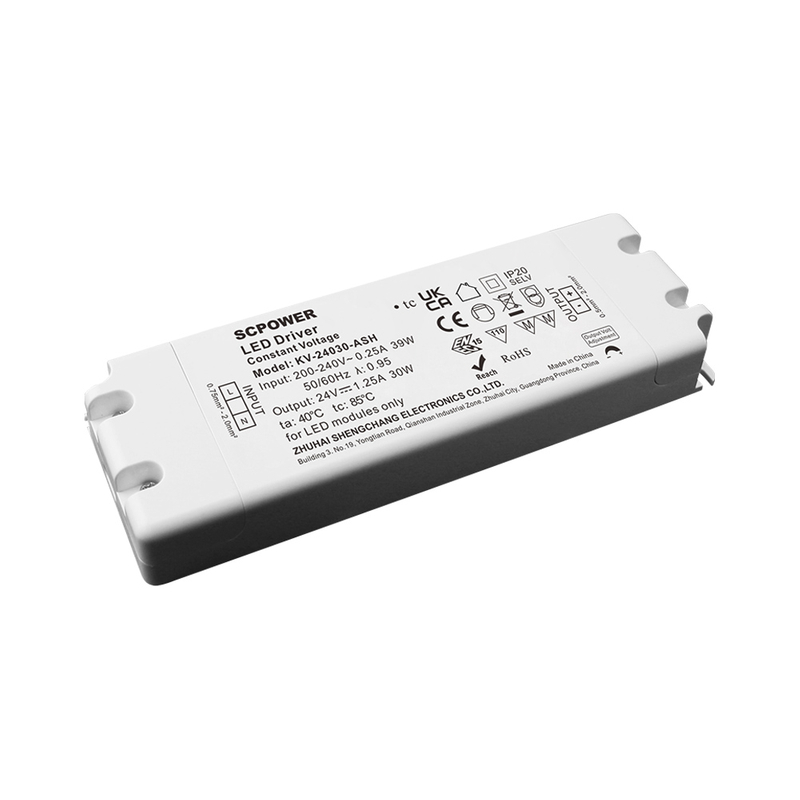

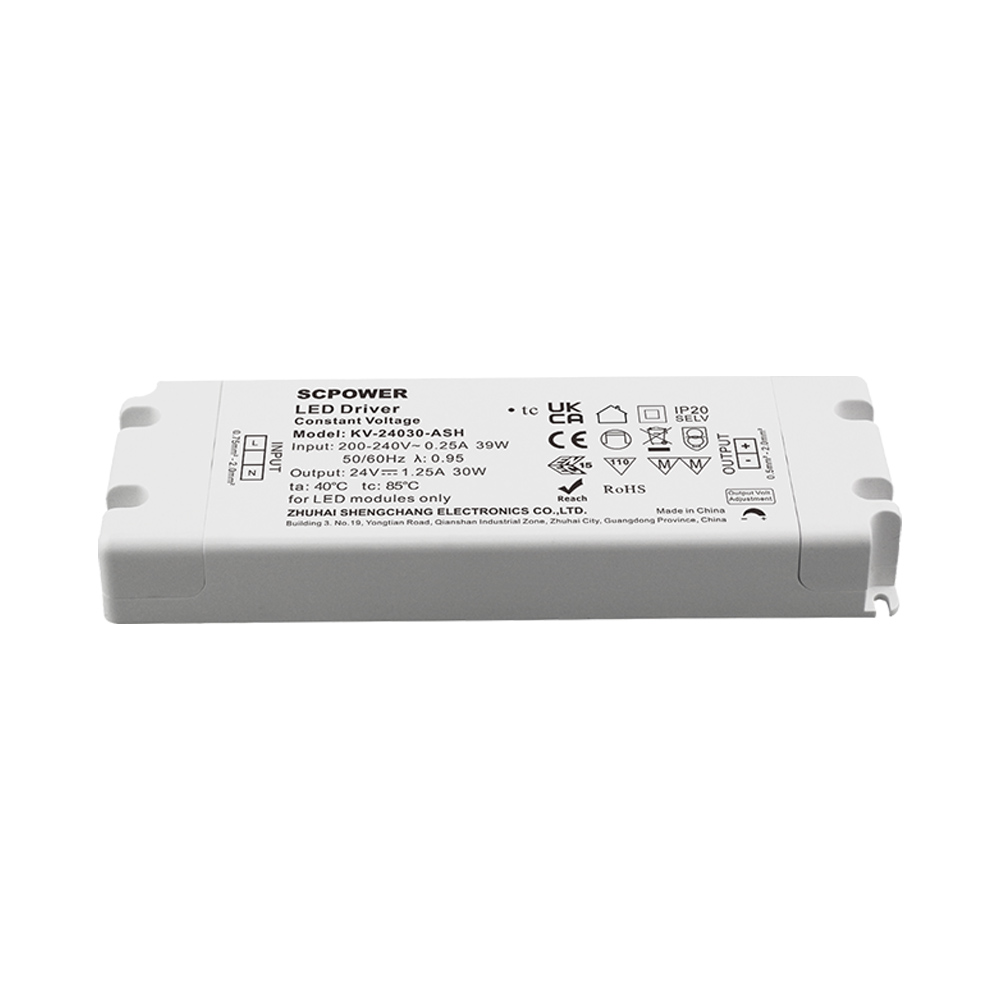

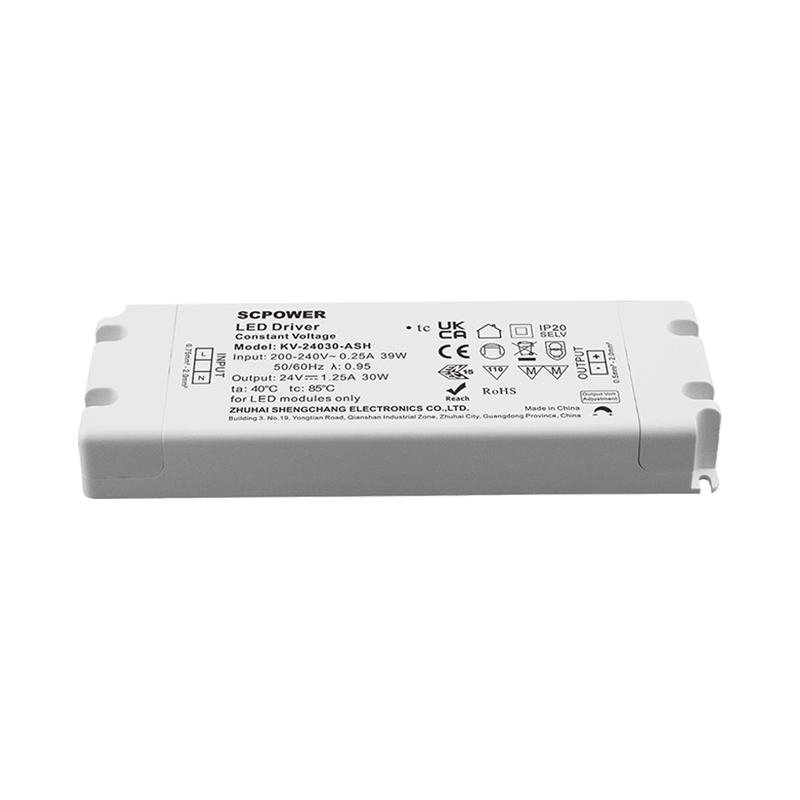

30 60 Watt CV Non-Dimmable Switching Power Supply for LED Lighting
Output | Constant Voltage |
Range | 200-240VAC |
PFC design | Built-in active PFC function |
Efficiency | Up to 84% |
Protections | Short circuit/ over load/ over temperature |
Heat dissipation | Cooling by free air convection |
| Waterproof performance | IP20 |
Dimming features | Fine-tune the voltage by the knob |
Dimming function | Non-dimmable |
Application | Suitable for the application of LED lighting |
Warranty | 5 years warranty |

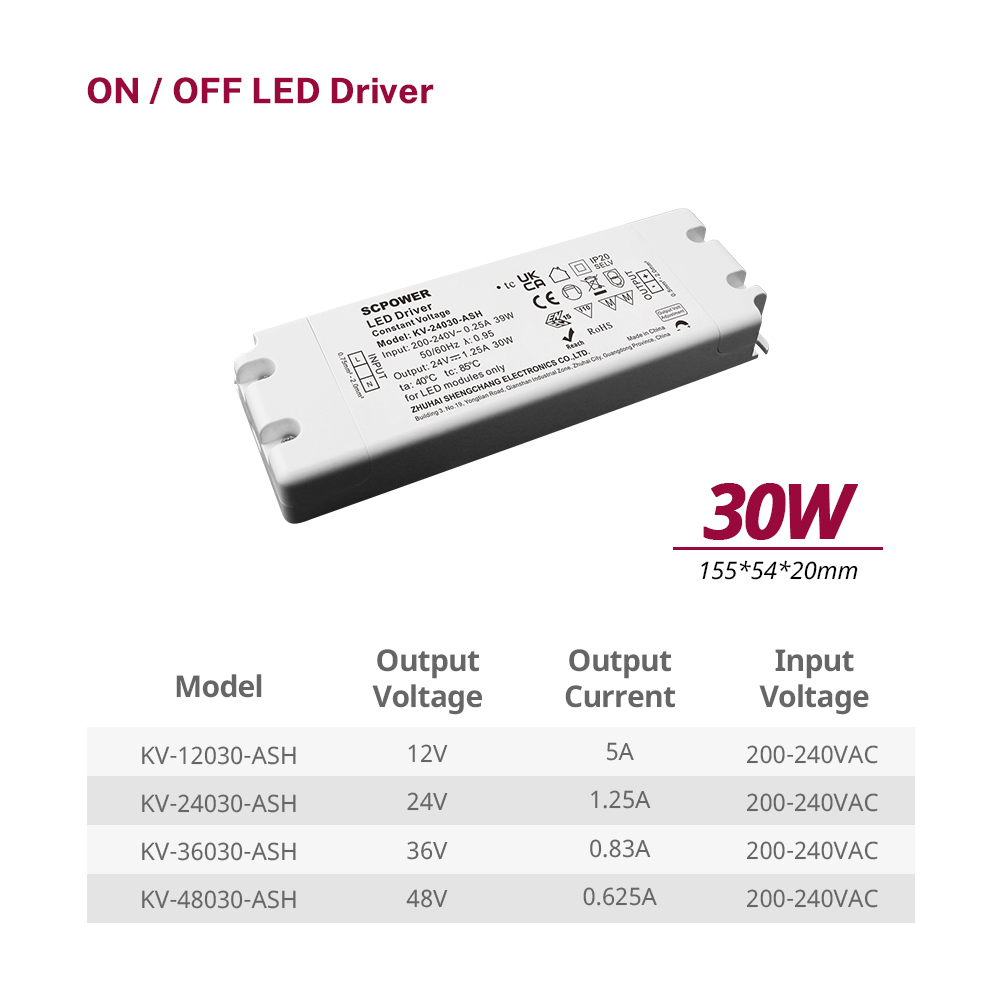

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
30W | KV-12030-ASH | 12V | 5A | 155*54*20mm | 0.21kg |
KV-24030-ASH | 24V | 1.25A | |||
KV-36030-ASH | 36V | 0.83A | |||
KV-48030-ASH | 48V | 0.625A | |||
60W | KV-12060-ASH | 12V | 5A | 178*61*24mm | 0.35kg |
KV-24060-ASH | 24V | 2.5A | |||
KV-36060-ASH | 36V | 1.67A | |||
KV-48060-ASH | 48V | 1.25A | |||

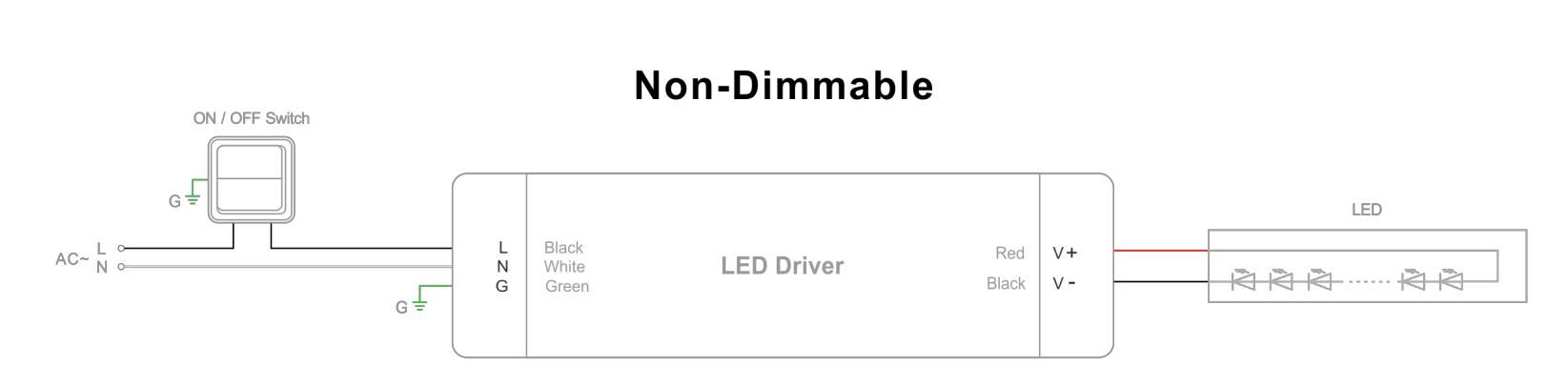

No Dimmable Switching Power Supply Wiring Diagram
The 30 60 Watt CV Non-Dimmable Switching Power Supply delivers stable and reliable constant voltage output (12V/24V/36V/48V), designed for LED lighting applications. With built-in active PFC, high efficiency up to 84%, and robust protections (short circuit, overload, over-temperature), this driver ensures long-lasting performance. Its compact design, IP20 rating, and 5-year warranty make it ideal for commercial lighting solutions.
Constant Voltage Output: Adjustable DC voltage (12V/24V/48V) with fine-tuning knob for precise control, ensuring compatibility with various LED fixtures.
High Efficiency & Energy Saving: Achieves up to 84% efficiency with active PFC (PF≥0.96), reducing energy waste and operational costs.
Robust Protections: Built-in safeguards against short circuits, overloads, and overheating (auto-recovery), enhancing safety and durability.
Wide Operating Range: Works in extreme temperatures (-40°C to +60°C) and humidity (20-90% RH), suitable for indoor environments.
Application Scenarios
Commercial Lighting: Ideal for LED strip lights, signage, and display cabinets in retail stores.
Industrial Use: Perfect for warehouse lighting, factory workstations, and outdoor LED fixtures.
Architectural Lighting: Supports landscape lighting, facade illumination, and decorative LED projects.
