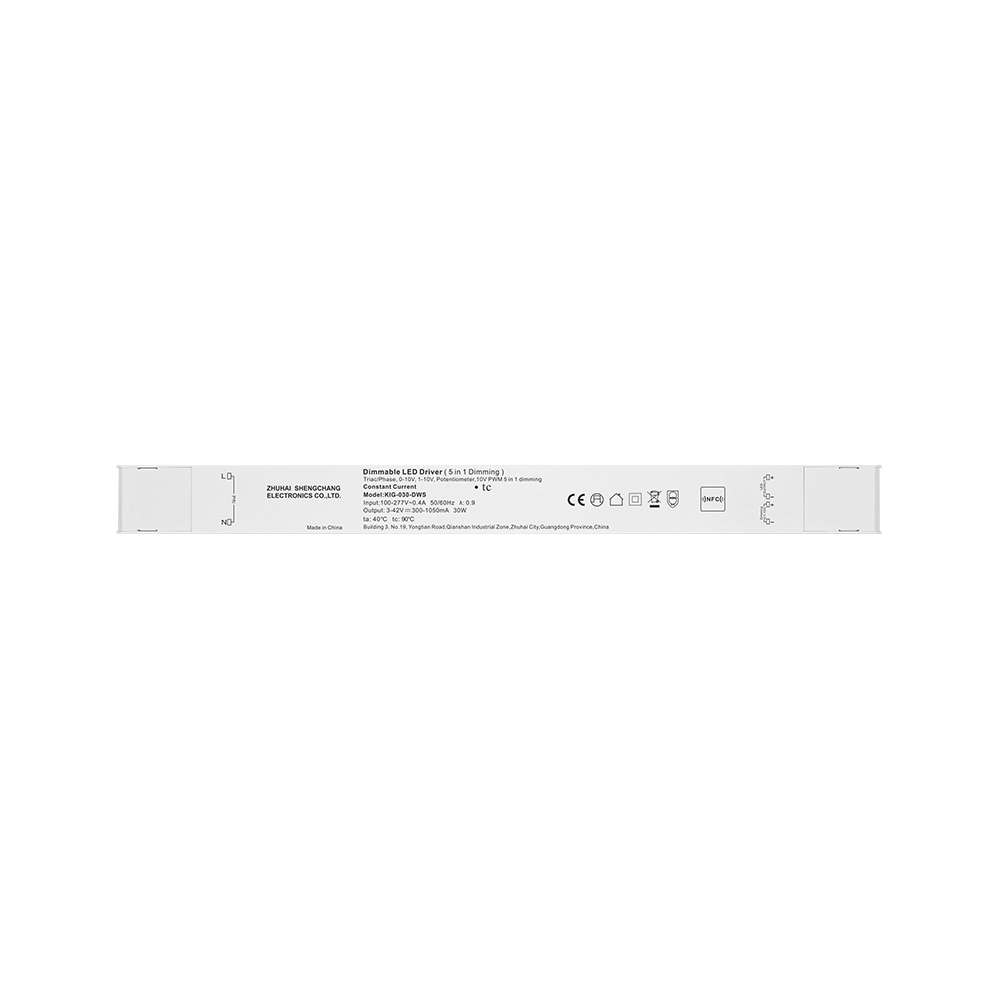

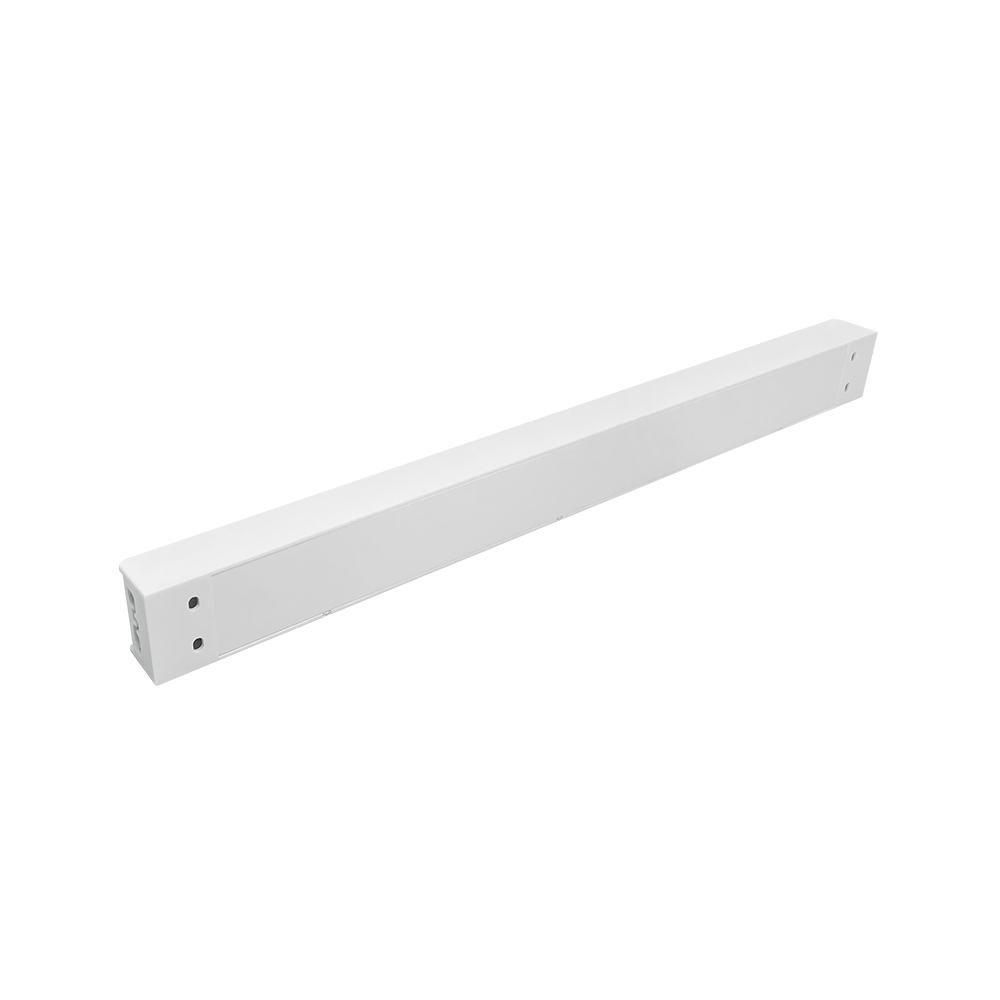

30W 40W 60W Triac 0-10V Dimming Linear Driver CC 100vac 110vac 120vac 277vac
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20 for indoor; Full protection plastic housing, for dry, damp, locations |
Dimming function: | Phase dimming the leading edge or trailing edge dimming can be selected by built in a red switch 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Model Number | Output Power | Output Voltage | Output Current | Size |
KIG-030-DWS | 30W | 3-42V | 300-1050mA | 320*37*24mm |
KIG-040-DWS | 40W | 3-42V | 400-1400mA | 324.7*34.8*24.1mm |

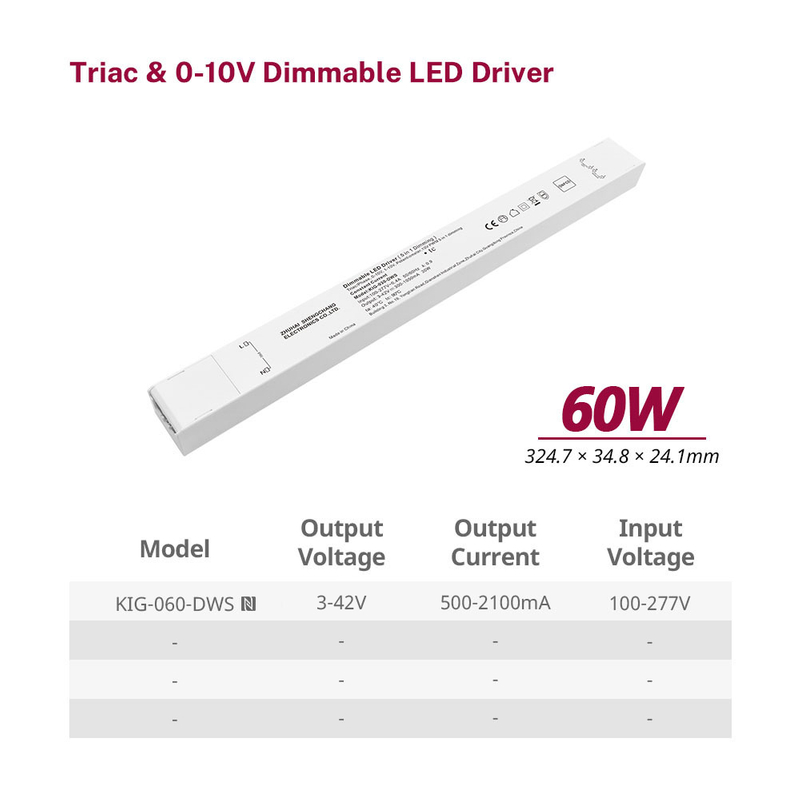

KIG-060-DWS | 60W | 3-42V | 500-2100mA | 342*34.8*24.1mm |
30W 40W 60W Triac 0-10V Dimming Linear Driver CC 100vac 110vac 120vac 277vac
Output: | Constant Current |
NFC function: | Adjust output current by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP20 for indoor; Full protection plastic housing, for dry, damp, locations |
Dimming function: | Phase dimming the leading edge or trailing edge dimming can be selected by built in a red switch 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Model Number | Output Power | Output Voltage | Output Current | Size |
KIG-030-DWS | 30W | 3-42V | 300-1050mA | 320*37*24mm |
KIG-040-DWS | 40W | 3-42V | 400-1400mA | 324.7*34.8*24.1mm |
KIG-060-DWS | 60W | 3-42V | 500-2100mA | 342*34.8*24.1mm |
