Triac 0-10V
Isolated
Constant Current
1CH (Dimming)
IP20, Dry & Damp
100-277VAC
10W, 20W, 40W, 60W
3V-42V
UL & cUL

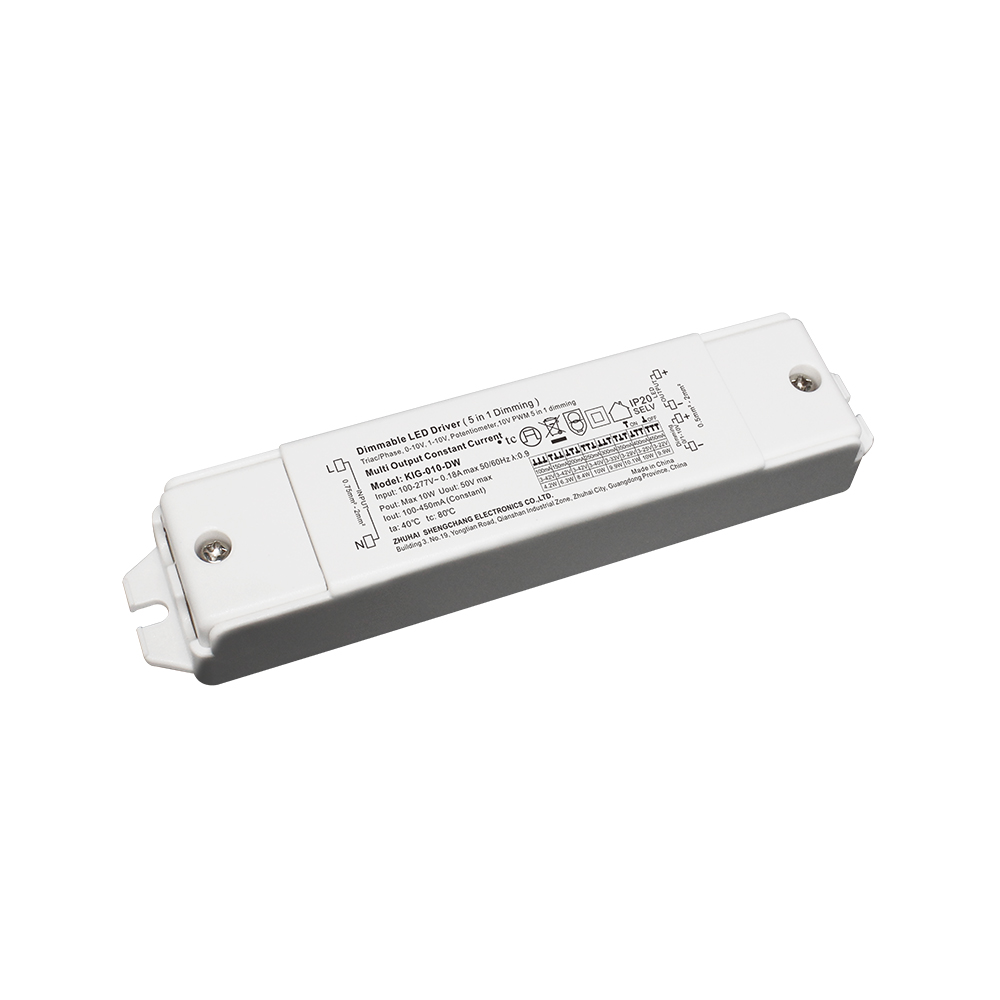

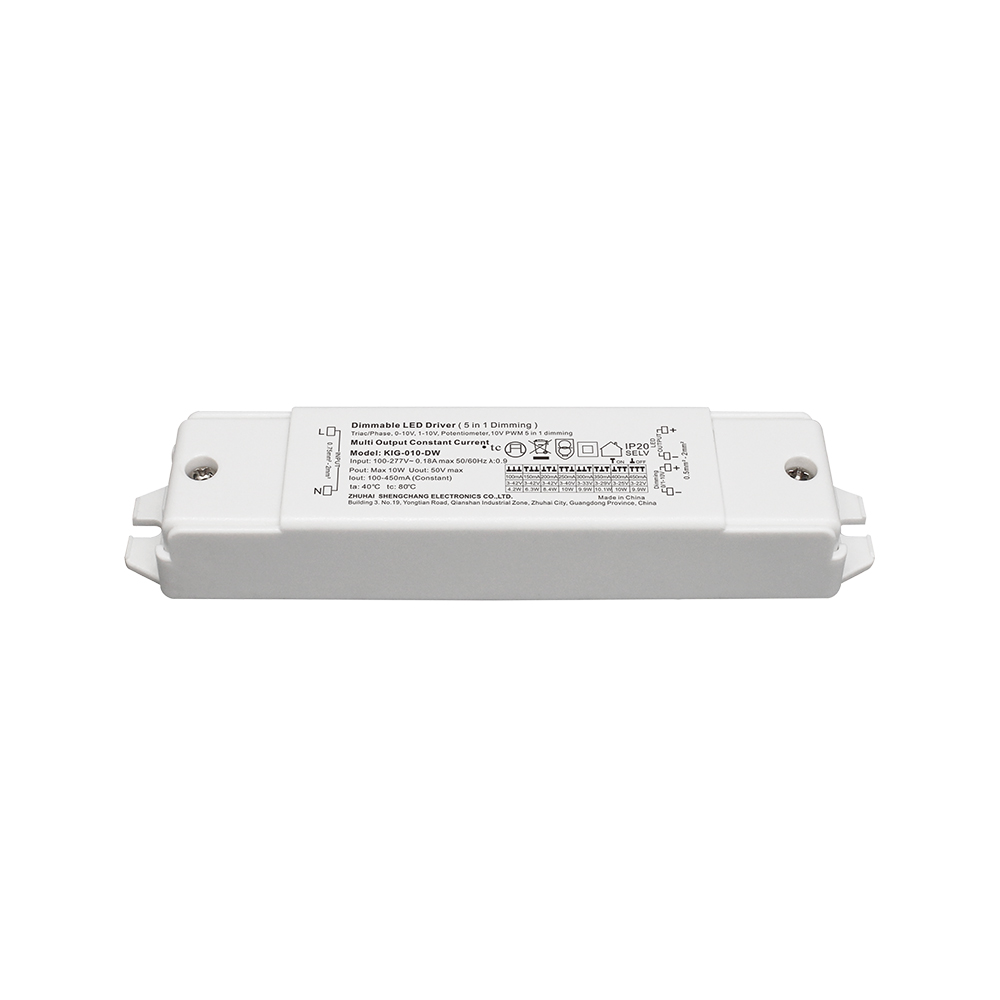

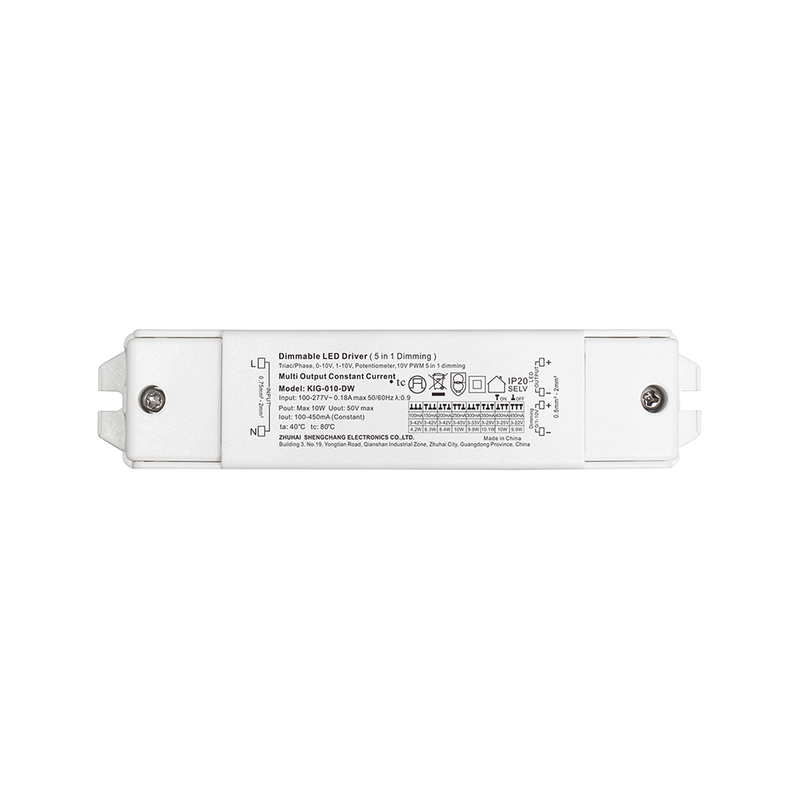

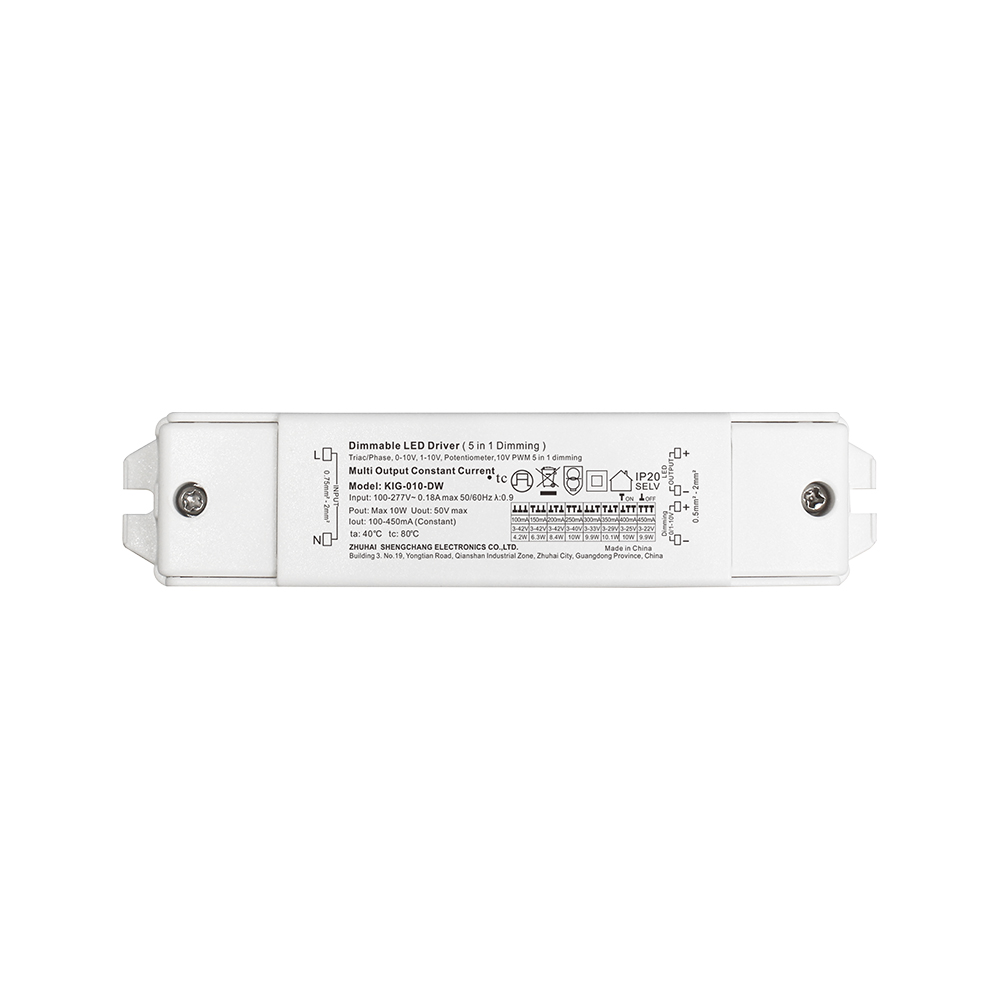

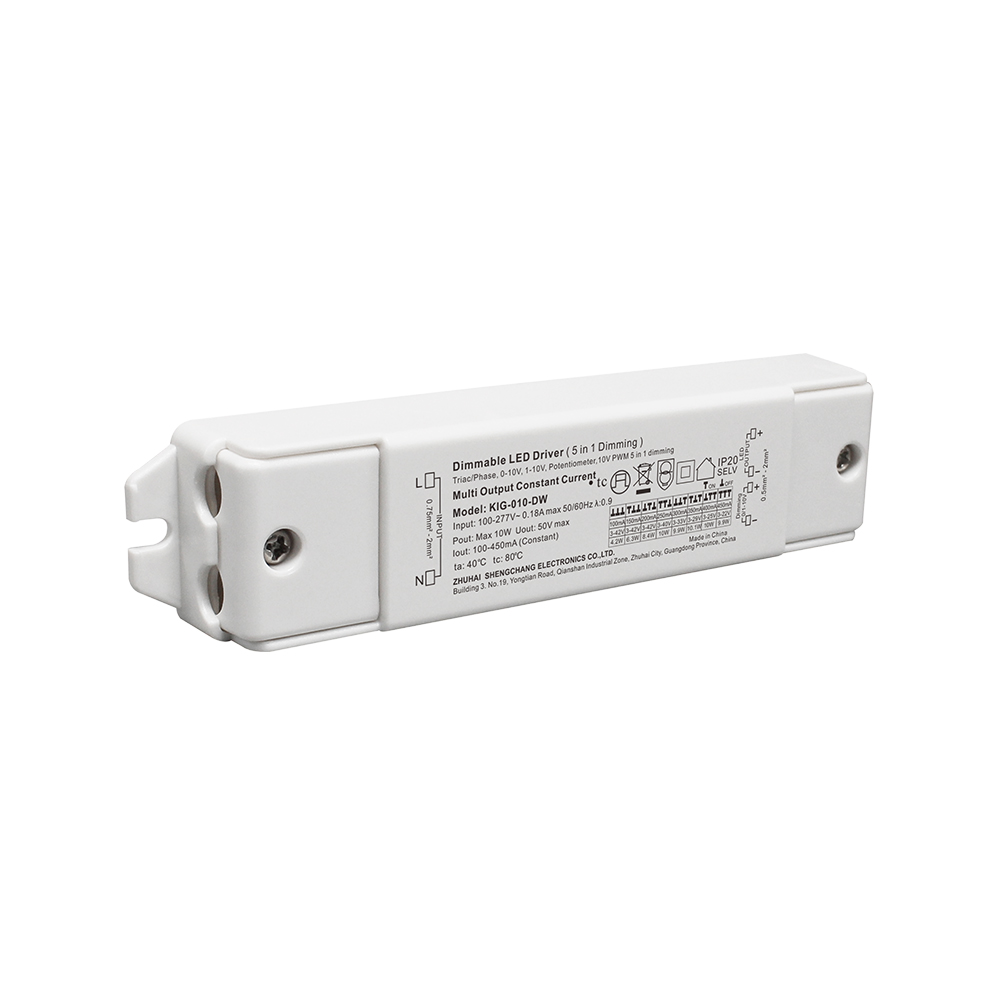

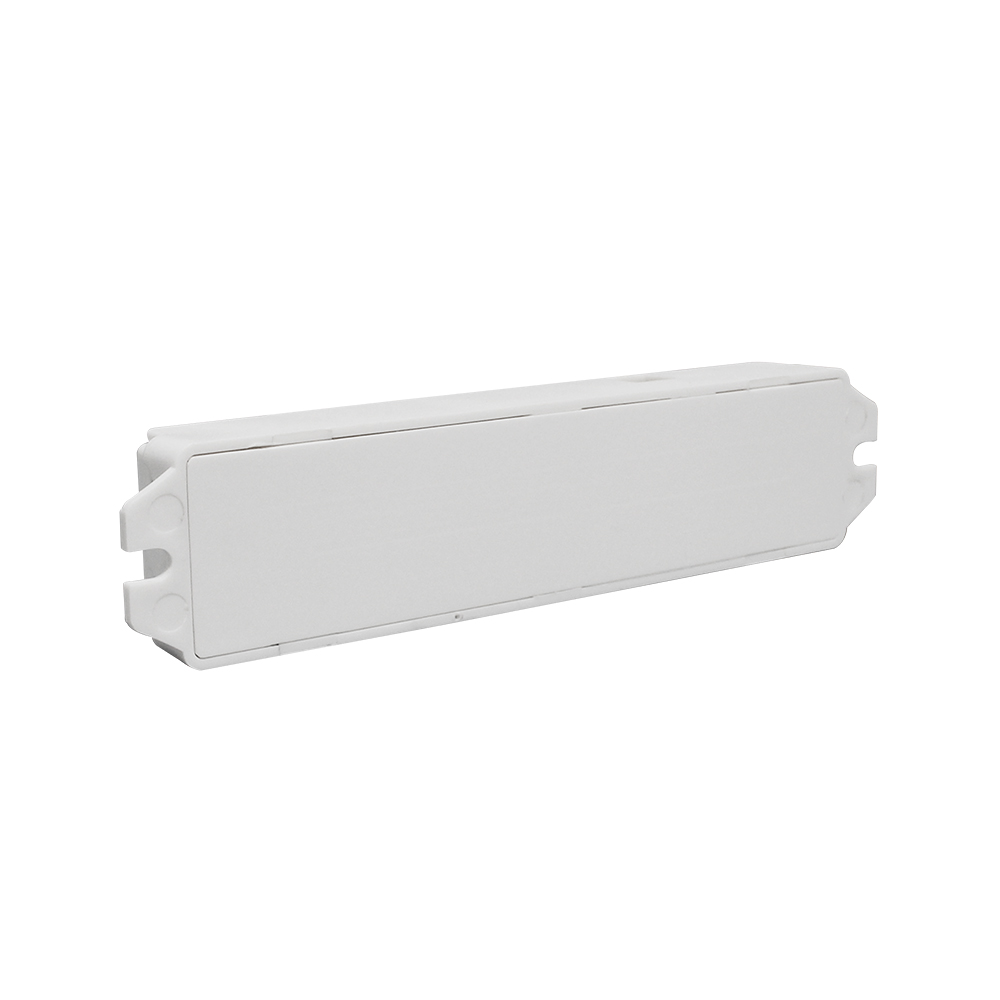

10W 20W 40W 60W Triac 0-10V Dimmable LED Driver CC 100-277v
Output: NFC function: | Constant Current Adjust output current by NFC |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full protection plastic housing, for dry, damp, locations |
Dimming function: | Phase dimming: work with Forward phase, MLV and Reverse phase, ELV, TRIAC dimmers 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 1-100% |
Application: | Suitable for the application of indoor LED lighting |
Warranty: | 5 years warranty |
Model Number | Output Power | Output | Power Factor | Size | Weight |
KIG-010-DW | 10W | 3-42V 100mA | 0.98 | 135*30*20mm | 0.10Kg |
3-42V 150mA | |||||
3-42V 200mA | |||||
3-40V 250mA | |||||
3-33V 300mA | |||||
3-29V 350mA | |||||
3-25V 400mA | |||||
3-22V 450mA | |||||
KIG-020-DW | 20W | 3-42V 250mA | 0.95 | 159.5*43*20mm | 0.15K |
3-42V 350mA | |||||
3-42V 400mA | |||||
3-42V 450mA | |||||
3-40V 500mA | |||||
3-36V 550mA | |||||
3-33V 600mA | |||||
3-29V 700mA | |||||

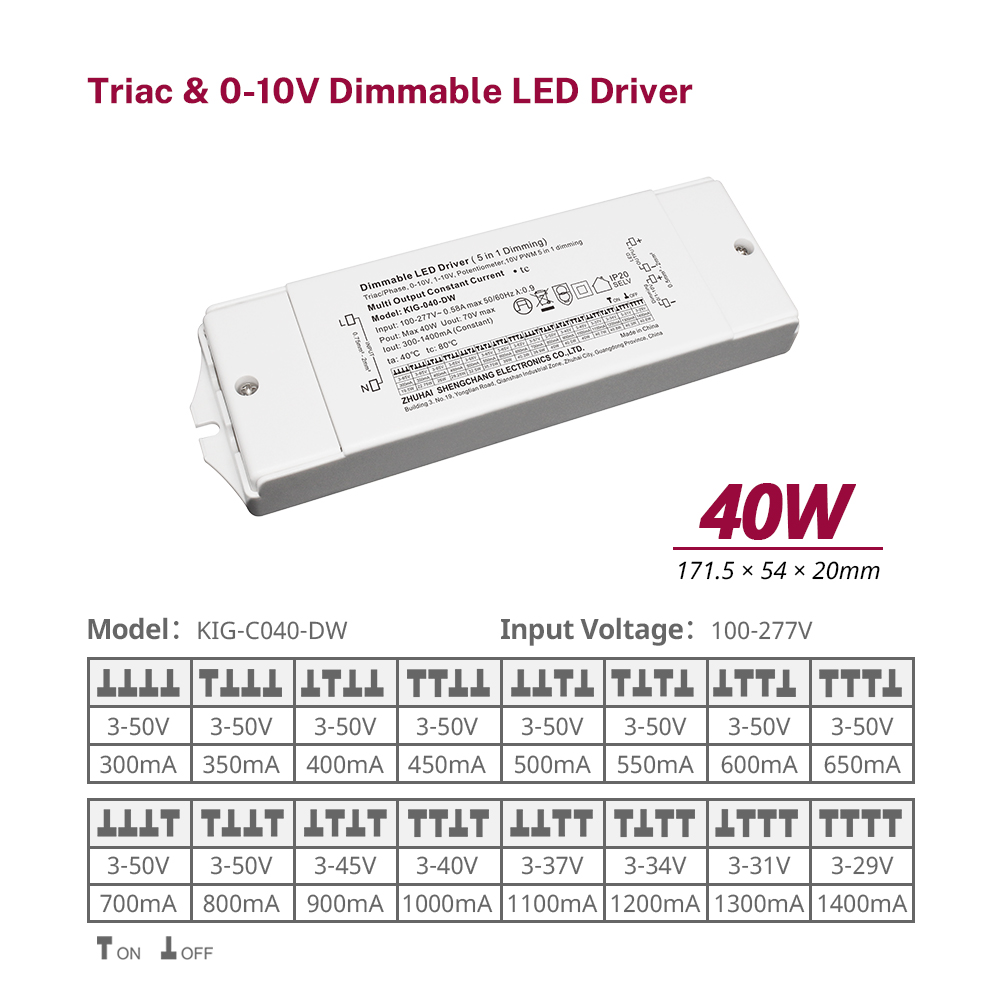

KIG-C040-DW | 40W | 3-50V 300mA | 0.95 | 171.5*54*20mm | 0.17Kg |
3-50V 350mA | |||||
3-50V 400mA | |||||
3-50V 450mA | |||||
3-50V 500mA | |||||
3-50V 550mA | |||||
3-50V 600mA | |||||
3-50V 650mA | |||||
3-50V 700mA | |||||
3-50V 800mA | |||||
3-45V 900mA | |||||
3-40V 1000mA | |||||
3-37V 1100mA | |||||
3-34V 1200mA | |||||
3-31V 1300mA | |||||
3-29V 1400mA | |||||
KIG-C060-DW | 60W | 3-50V 600mA | 0.99 | 192.5*62*24mm | 0.30Kg |
3-50V 700mA | |||||
3-50V 800mA | |||||
3-50V 900mA | |||||
3-50V 1000mA | |||||
3-50V 1100mA | |||||
3-50V 1200mA | |||||
3-46V 1300mA | |||||
3-43V 1400mA | |||||
3-40V 1500mA | |||||
3-38V 1600mA | |||||
3-35V 1700mA | |||||
3-33V 1800mA | |||||
3-32V 1900mA | |||||
3-30V 2000mA | |||||
3-29V 2100mA |
