0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP20, Dry & Damp
110-277VAC
30W, 60W, 80W, 96W, 100W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES

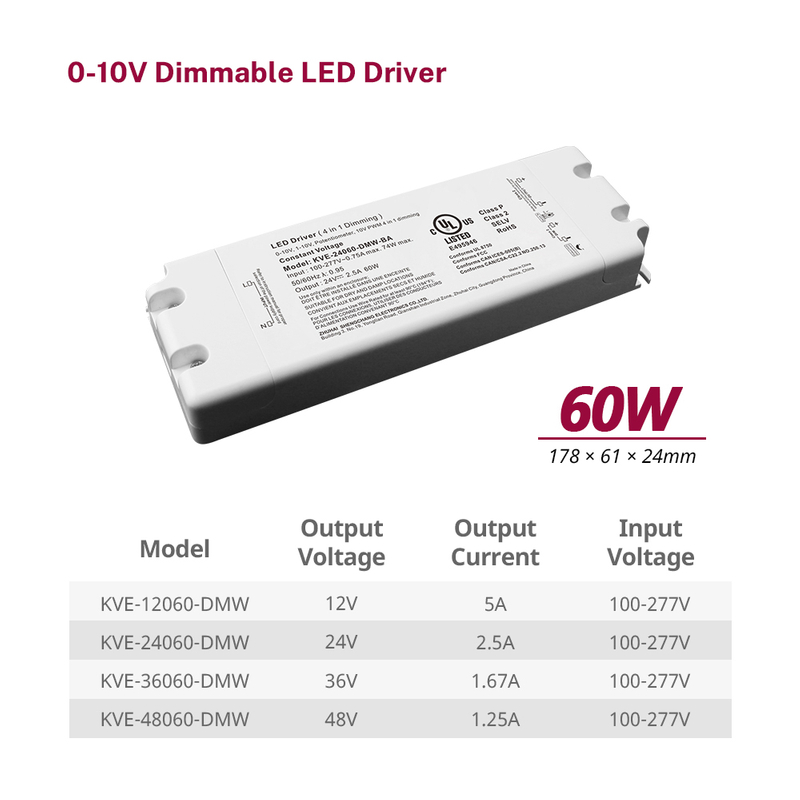

30W 60W 80W 96W 100W CV 0-10V Dimmable LED Power Supplies 12V 24V 36V 48V DC Output
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry, damp & wet location |
Dimming function: Dimming range: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
30W | KVE-12030-DMW | 12V | 5A | 100-277V AC | 155*24*20mm | 0.21kg |
KVE-24030-DMW | 24V | 2.5A | ||||
KVE-33030-DMW | 36V | 1.67 | ||||
KVE-48030-DMW | 48V | 1.25A | ||||
60W | KVE-12060-DMW | 12V | 5A | 178*61*24mm | 0.35kg | |
KVE-24060-DMW | 24V | 2.5A | ||||
KVE-36060-DMW | 36V | 1.67 | ||||
KVE-48060-DMW | 48V | 1.25A | ||||
80W | KVE-12080-DMW | 12V | 6.66A | |||
KVE-24080-DMW | 24V | 3.34A | ||||
KVE-36080-DMW | 36V | 2.22A | ||||
KVE-48080-DMW | 48V | 1.67A | ||||
96W | KVE-24096-DMW | 24V | 4A | |||
KVE-36096-DMW | 36V | 2.67A | ||||
KVE-48096-DMW | 48V | 2A | ||||
100W | KVE-12100-DMW | 12V | 8.34A | |||
KVE-24100-DMW | 24V | 4.17A | ||||
KVE-36100-DMW | 36V | 2.78A | ||||
KVE-48100-DMW | 48V | 2.09A |
0-10V LED Power Supply
0-10V LED Power Supply Size:
30W 60W 80W 96W 100W CV 0-10V Dimmable LED Power Supplies 12V 24V 36V 48V DC Output
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry, damp & wet location |
Dimming function: Dimming range: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Input Voltage | Size | Weight |
30W | KVE-12030-DMW | 12V | 5A | 100-277V AC | 155*24*20mm | 0.21kg |
KVE-24030-DMW | 24V | 2.5A | ||||
KVE-33030-DMW | 36V | 1.67 | ||||
KVE-48030-DMW | 48V | 1.25A | ||||
60W | KVE-12060-DMW | 12V | 5A | 178*61*24mm | 0.35kg | |
KVE-24060-DMW | 24V | 2.5A | ||||
KVE-36060-DMW | 36V | 1.67 | ||||
KVE-48060-DMW | 48V | 1.25A | ||||
80W | KVE-12080-DMW | 12V | 6.66A | |||
KVE-24080-DMW | 24V | 3.34A | ||||
KVE-36080-DMW | 36V | 2.22A | ||||
KVE-48080-DMW | 48V | 1.67A | ||||
96W | KVE-24096-DMW | 24V | 4A | |||
KVE-36096-DMW | 36V | 2.67A | ||||
KVE-48096-DMW | 48V | 2A | ||||
100W | KVE-12100-DMW | 12V | 8.34A | |||
KVE-24100-DMW | 24V | 4.17A | ||||
KVE-36100-DMW | 36V | 2.78A | ||||
KVE-48100-DMW | 48V | 2.09A |
0-10V LED Power Supply
0-10V LED Power Supply Size:
