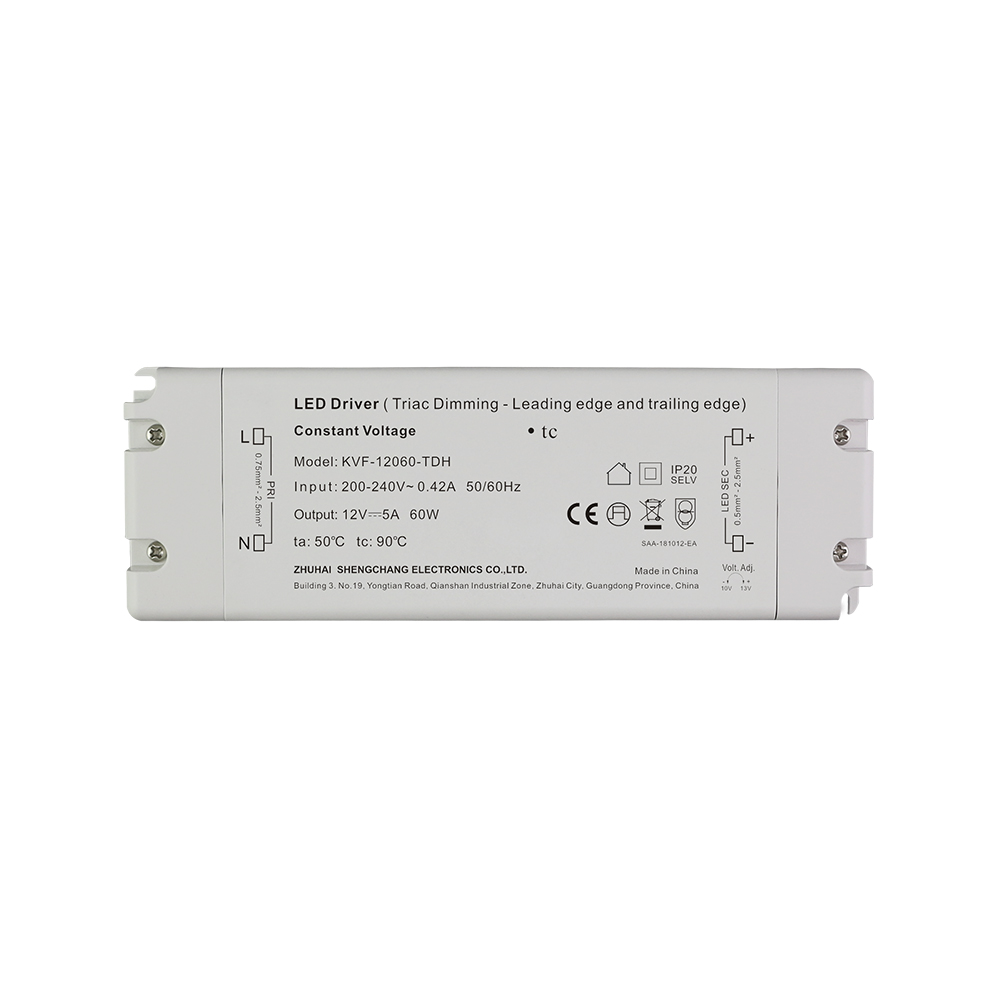

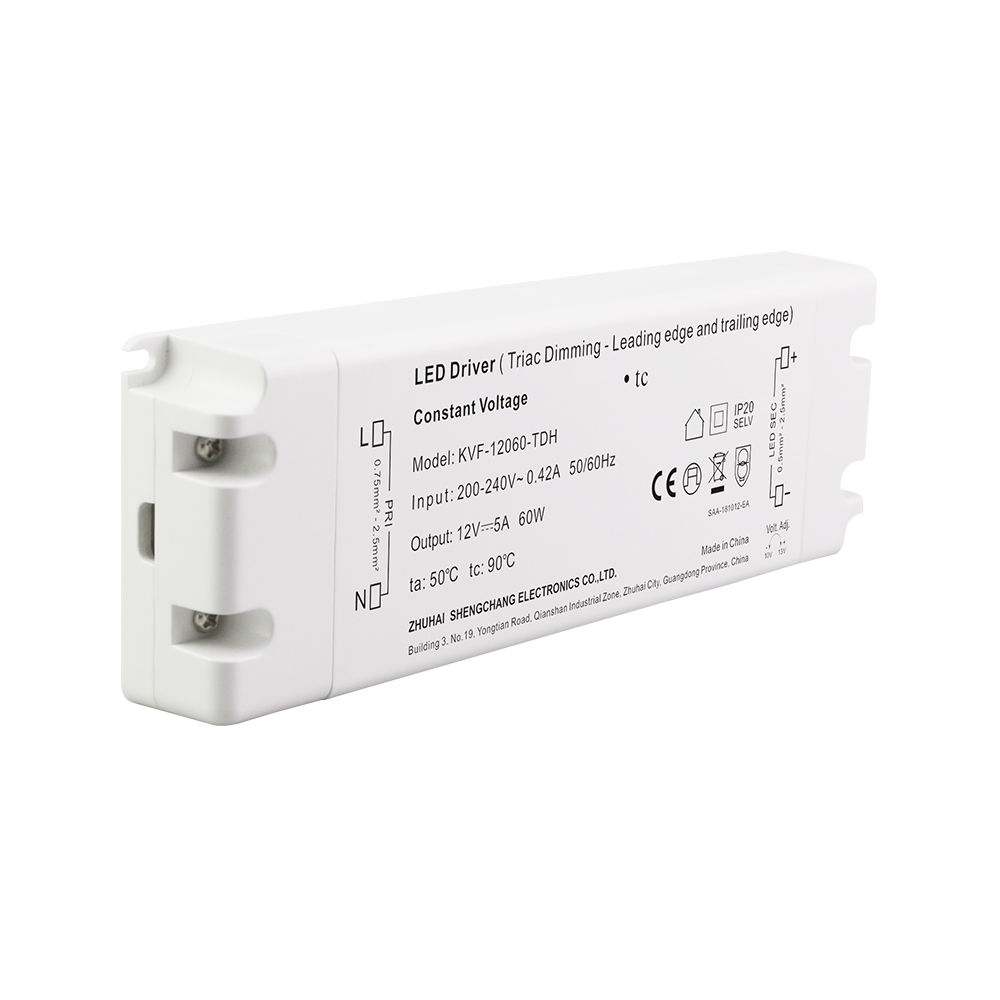

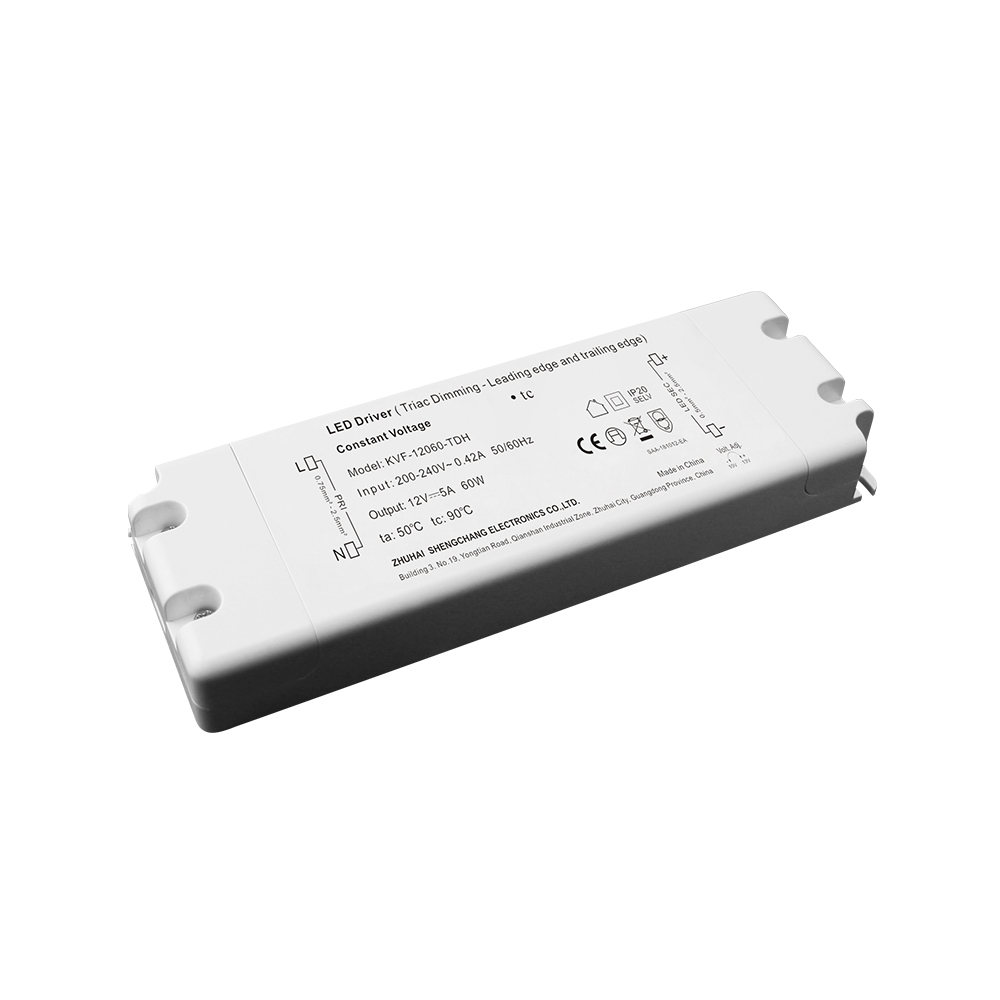

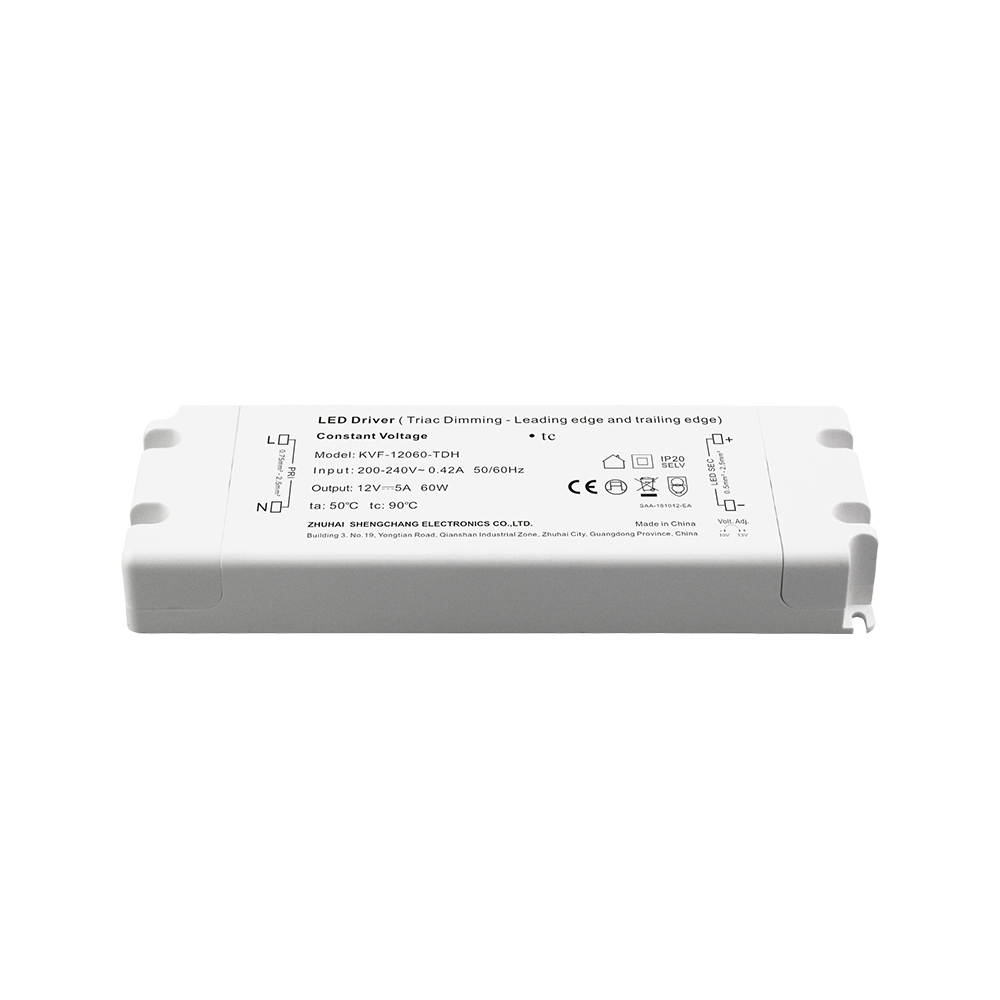

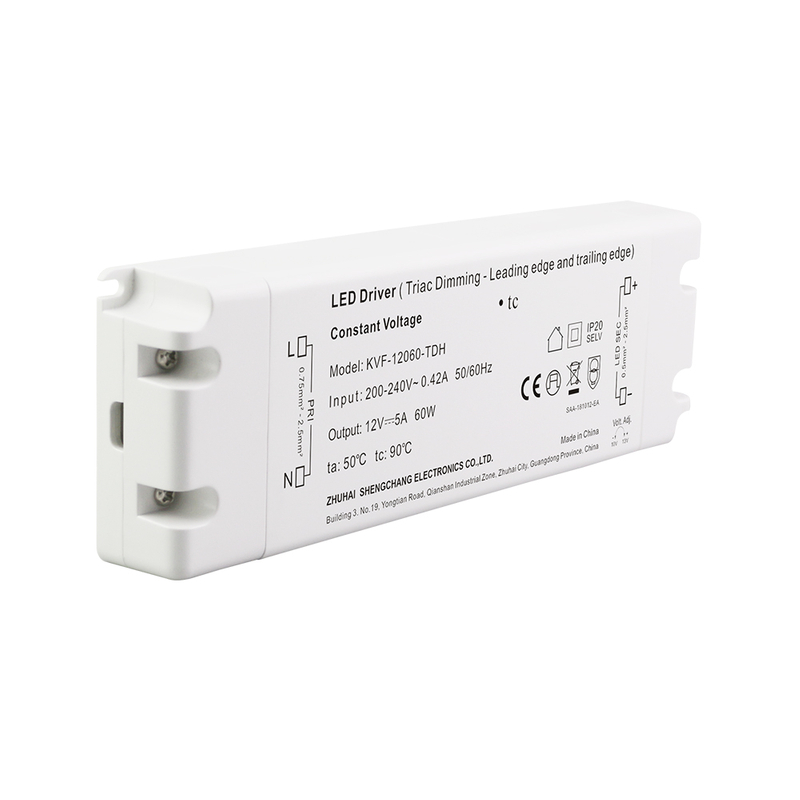

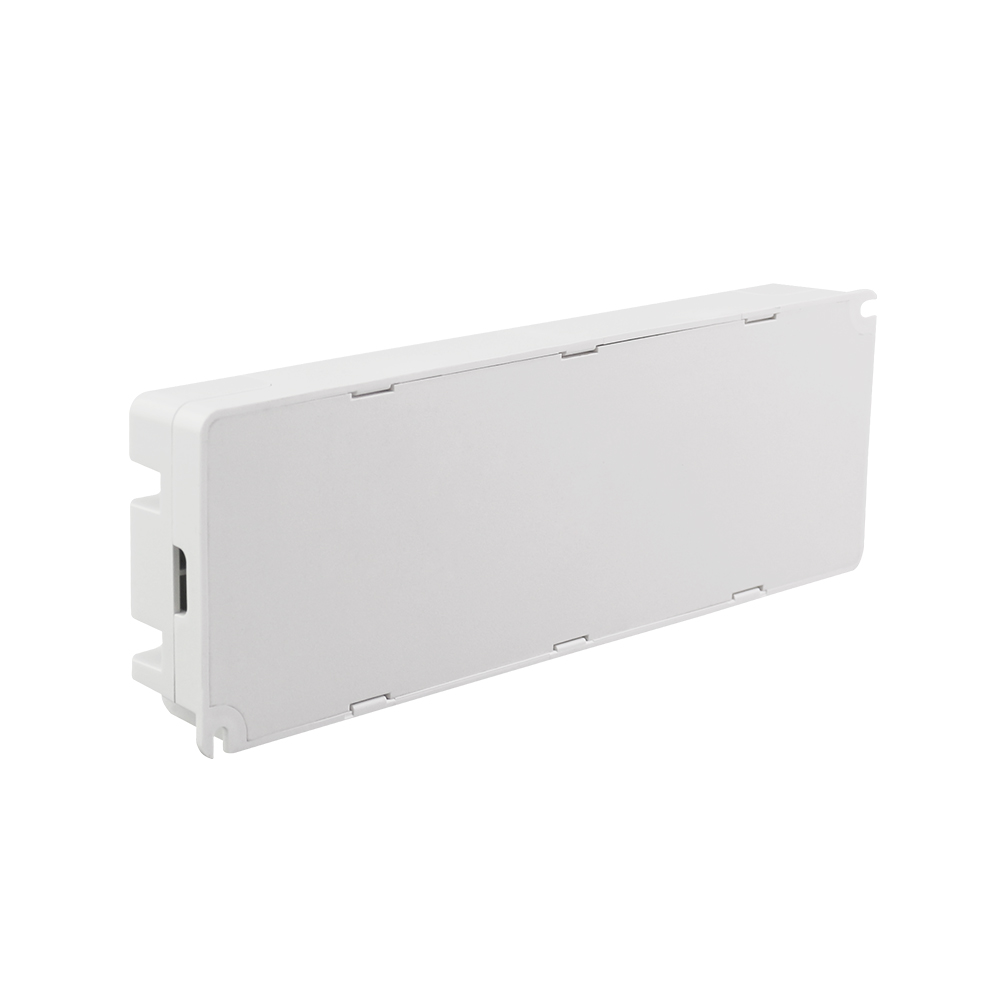

Our Dimmable 60W TRIAC LED Power Supply Driver CV delivers constant voltage power for dimmable LED lighting systems, featuring TRIAC dimming compatibility for smooth control. Ideal for commercial buildings, industrial applications, and professional installations, it ensures reliable performance and energy efficiency. As a manufacturer, we supply tailored solutions, including custom configurations and robust support for large-scale lighting projects, meeting industry standards.
Ouput Power: | |
---|---|
Availability: | |
Triac
Isolated
Constant Voltage
Dimming
IP20, Dry & Damp
200-240VAC
60W
12V/ 24V/ 36V/ 48V
ENEC, TUV, CE, RoHS, REACH
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 83% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: Dimming features: | IP20 Fine-tune the voltage by the knob |
Dimming function: | Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
The Dimmable 60W TRIAC LED Power Supply Driver CV is a high-performance electronic component designed specifically for LED lighting systems requiring constant voltage output and dimming functionality. As a critical part of LED lighting setups, this driver bridges the gap between the power source and LED fixtures, ensuring efficient energy conversion and reliable operation.
TRIAC Dimming Compatibility: Seamlessly works with standard TRIAC dimmers, providing smooth dimming from 0-100% without flicker or noise. This ensures consistent and comfortable lighting adjustments to meet various ambiance requirements.
Constant Voltage Output: Delivers a stable DC output voltage (typically 12V or 24V, depending on the model), ensuring uniform brightness across all connected LED fixtures and protecting LEDs from voltage spikes.
Wide Input Voltage Range: Accepts 100-277V AC input, allowing it to function reliably in different countries and regions with varying electrical standards, enhancing its global applicability.
High Efficiency: Boasts an efficiency rating of up to 90%, reducing energy consumption and operational costs. Lower energy loss also means less heat production, contributing to a longer service life.
Multiple Protection Mechanisms: Incorporates over-voltage protection, over-current protection, short-circuit protection, and over-temperature protection. These features prevent damage to the driver and connected LEDs in case of electrical faults or abnormal operating conditions.
Compact and Durable Design: The driver is housed in a robust, compact casing that saves installation space and withstands harsh environmental conditions, including high humidity and temperature variations.
Long Lifespan: Built with high-quality components and advanced thermal management, it offers a long operational life of up to 50,000 hours, reducing maintenance and replacement frequency.
Easy Installation: Designed for straightforward mounting and wiring, compatible with standard electrical boxes and connectors, simplifying the installation process for electricians and lighting professionals.
Commercial Lighting: Ideal for retail stores, shopping malls, and supermarkets.
Residential Lighting: Suitable for homes, including living rooms, bedrooms, and kitchens. It enables homeowners to set the desired mood with adjustable brightness, from bright lighting for daily activities to soft lighting for relaxation.
Hospitality Lighting: The smooth dimming capability helps create a cozy and elegant atmosphere, enhancing the guest experience.
Office Lighting: Can be used in offices, meeting rooms, and workstations.
Outdoor Landscape Lighting: Suitable for garden lighting, pathway lighting, and facade lighting.
Architectural Lighting: Used in lighting up buildings, monuments, and other architectural structures.
What is the dimming range of the Dimmable 60W TRIAC LED Power Supply Driver CV?
The driver offers a dimming range from 0-100%, enabling smooth adjustment from full brightness down to near darkness, depending on the connected TRIAC dimmer and LED fixtures.
Is the driver compatible with all TRIAC dimmers?
It is compatible with most standard leading-edge and trailing-edge TRIAC dimmers available in the market. However, for optimal performance, it is recommended to check the compatibility list provided by the manufacturer or consult with a lighting professional.
Can the driver be used with both 12V and 24V LED fixtures?
No, the driver is designed for either 12V or 24V constant voltage output (specific model-dependent). It is important to select the correct voltage version that matches the requirements of the LED fixtures to ensure proper operation.
How to install the Dimmable 60W TRIAC LED Power Supply Driver CV?
Installation should be performed by a qualified electrician. The driver can be mounted in a dry or damp location, following the wiring diagram provided. Connect the input to the mains power supply and the output to the LED fixtures, ensuring proper polarity and secure connections.

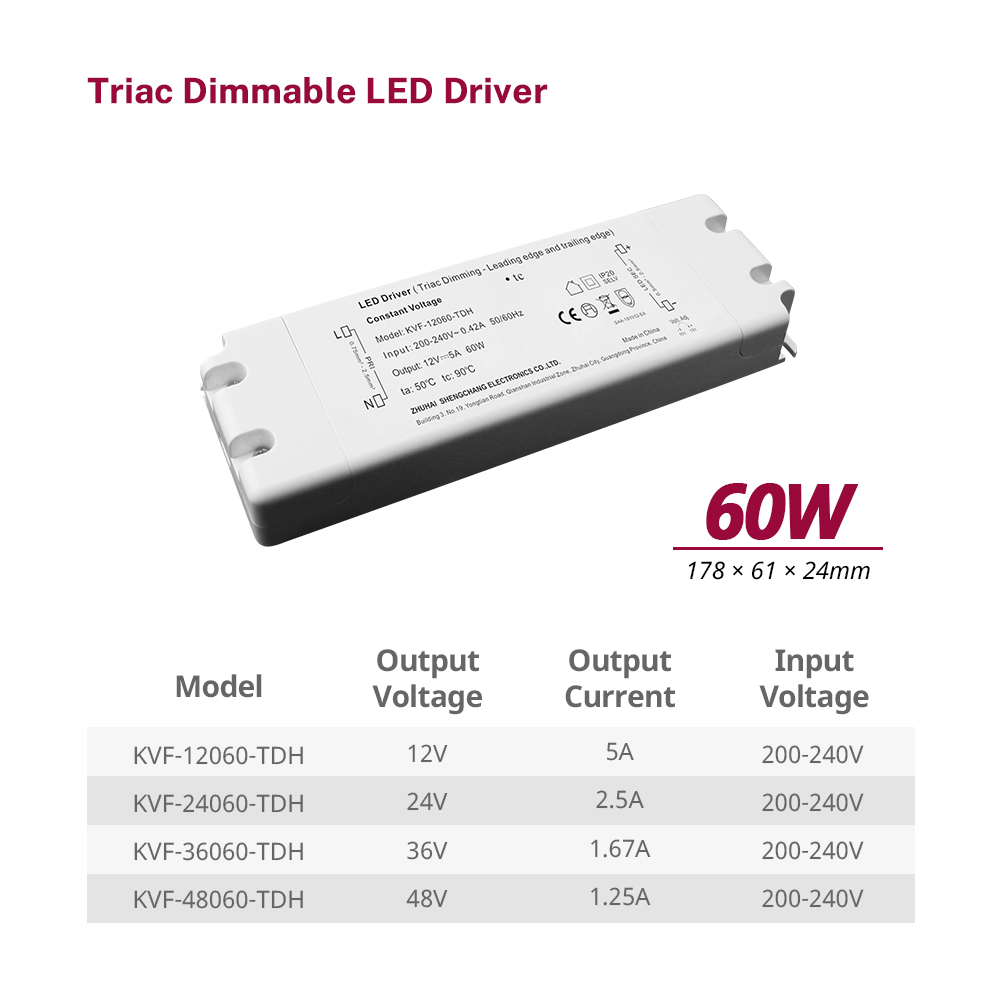

Output Power | Model Number | Output Voltage | Output Current | Size | N.W. |
60W | KVF-12060-TDH | 12V | 5A | 178*61*24mm | 0.35kg |
KVF-24060-TDH | 24V | 2.5A | |||
KVF-36060-TDH | 36V | 1.67 | |||
KVF-48060-TDH | 48V | 1.25A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size(see the spec download)
