| Ouput Power: | |
|---|---|
Triac
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
200-240VAC
80W, 100W, 120W
12/ 24/ 36/ 48V
ENEC, TUV, CE, RoHS, REACH

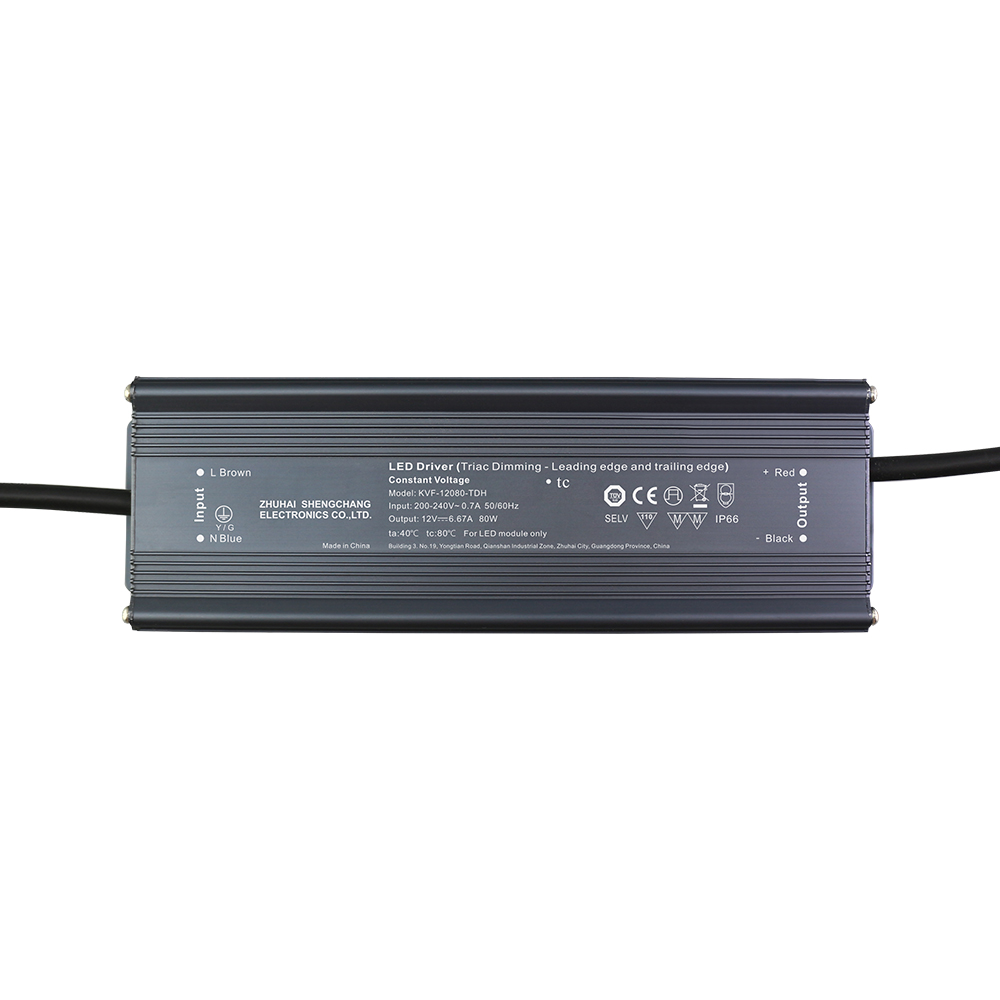

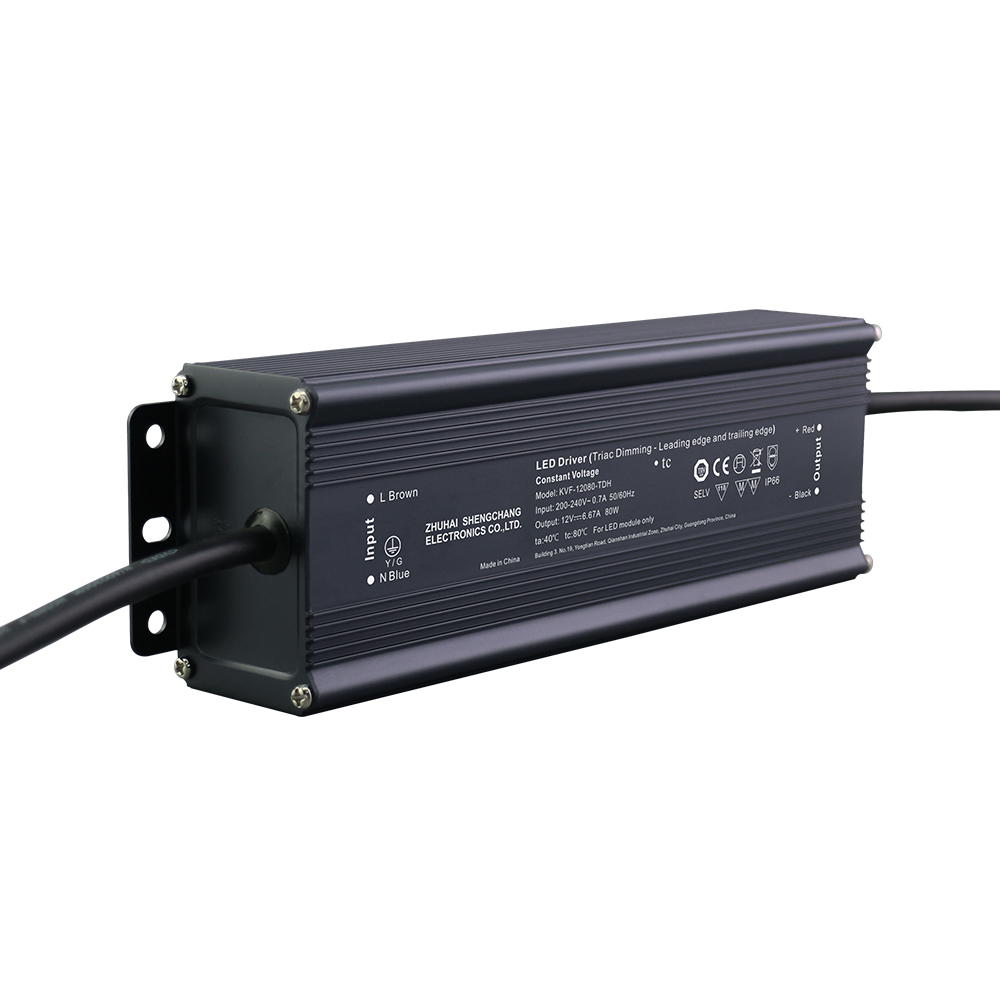

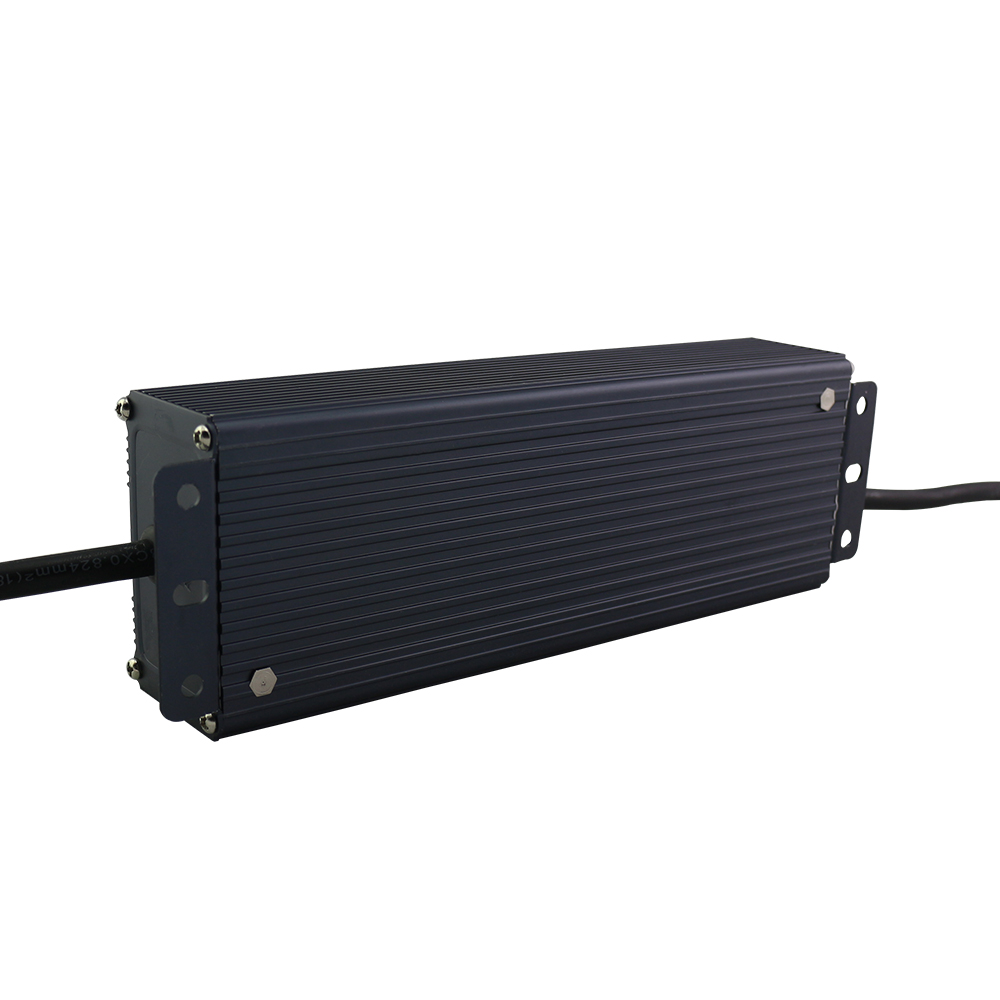

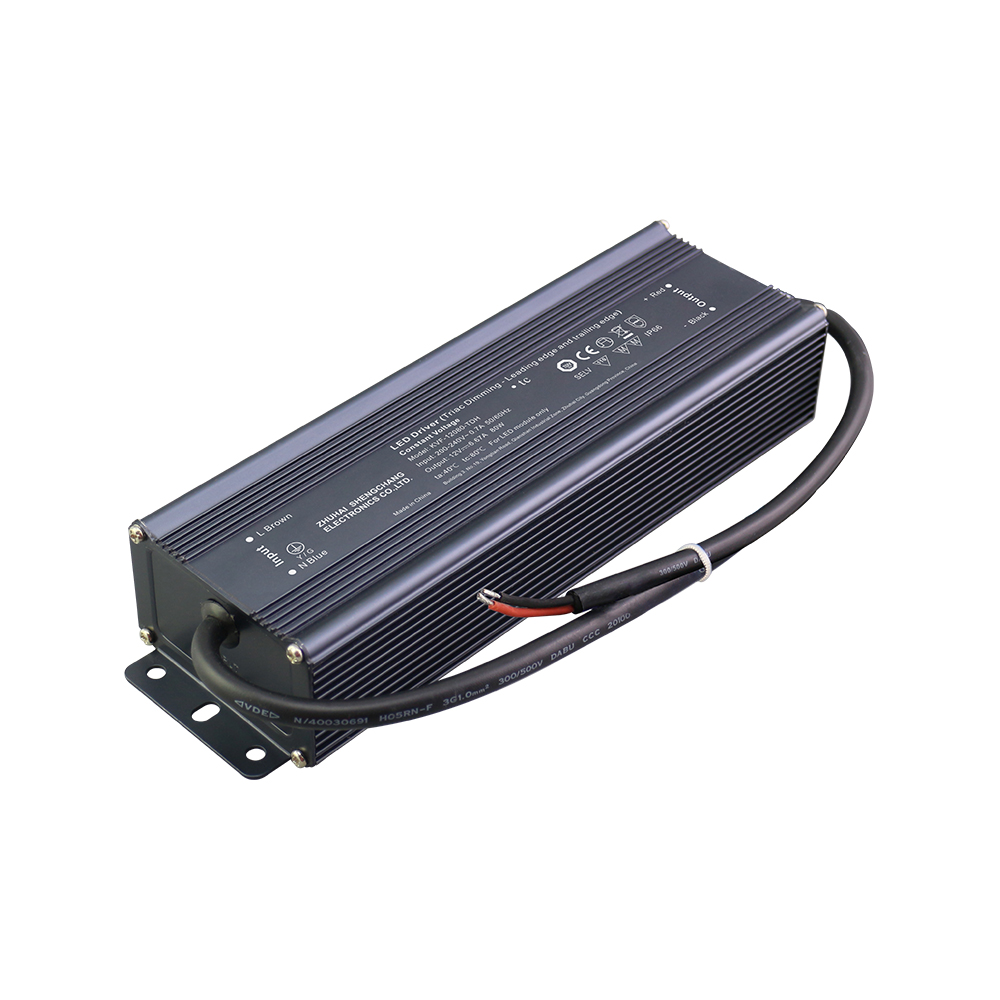

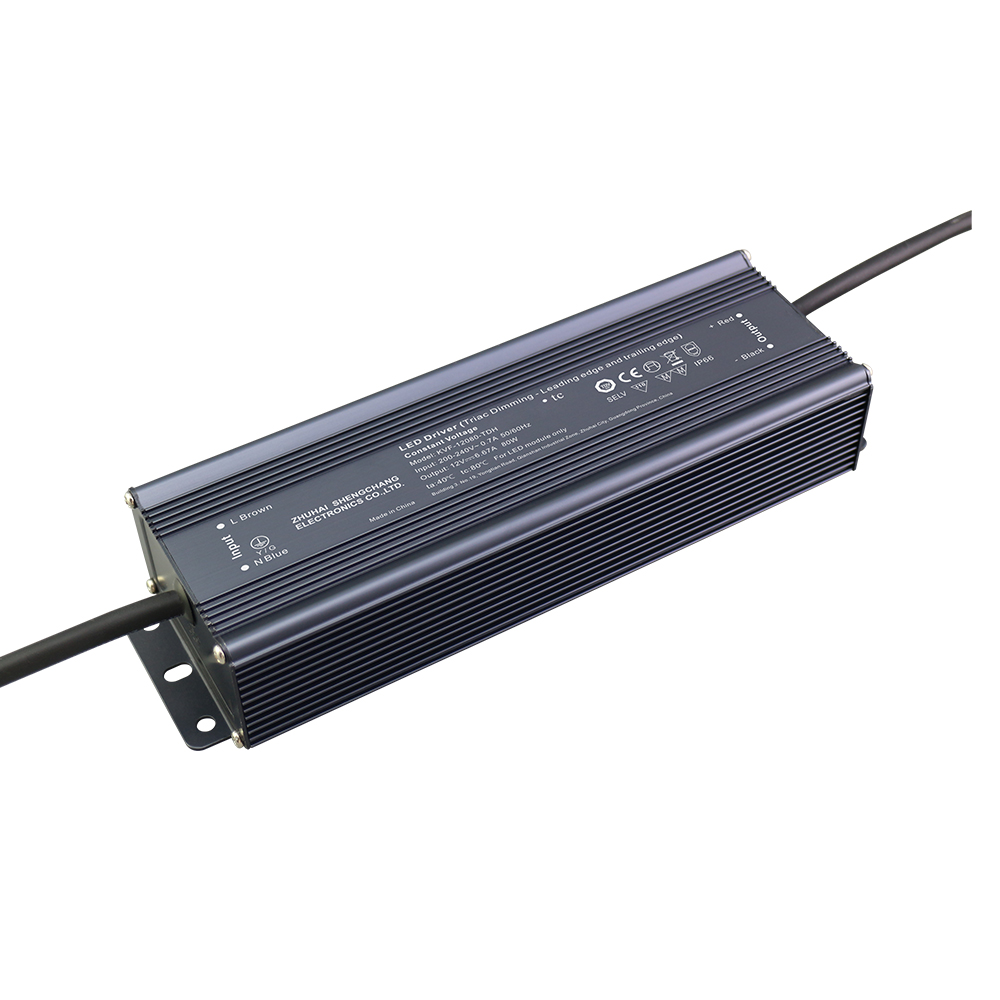

80 100 120 Watt CV Triac Dimmable LED Power Supply for led lampen lighting
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | IP66 |
Dimming function: | Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

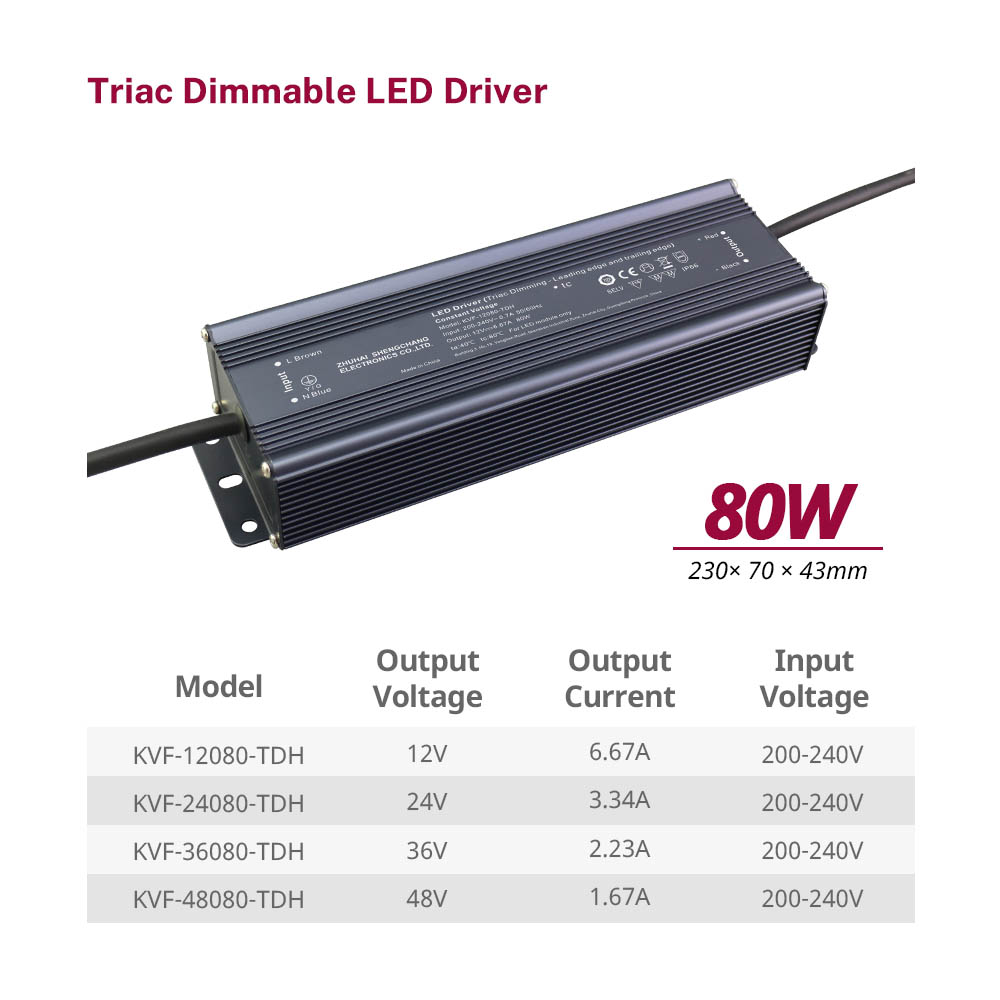

Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
80W | KVF-12080-TDH | 12V | 6.66A | 230*70*43mm | 1.10kg |
KVF-24080-TDH | 24V | 3.34A | |||
KVF-36080-TDH | 36V | 2.22A | |||
KVF-48080-TDH | 48V | 1.67A | |||
100W | KVF-12100-TDH | 12V | 8.34A | ||
KVF-24100-TDH | 24V | 4.17A | |||
KVF-36100-TDH | 36V | 2.78A | |||
KVF-48100-TDH | 48V | 2.09A | |||
120W | KVF-12120-TDH | 12V | 10A | ||
KVF-24120-TDH | 24V | 5A | |||
KVF-36120-TDH | 36V | 3.33A | |||
KVF-48120-TDH | 48V | 2.5A |
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
