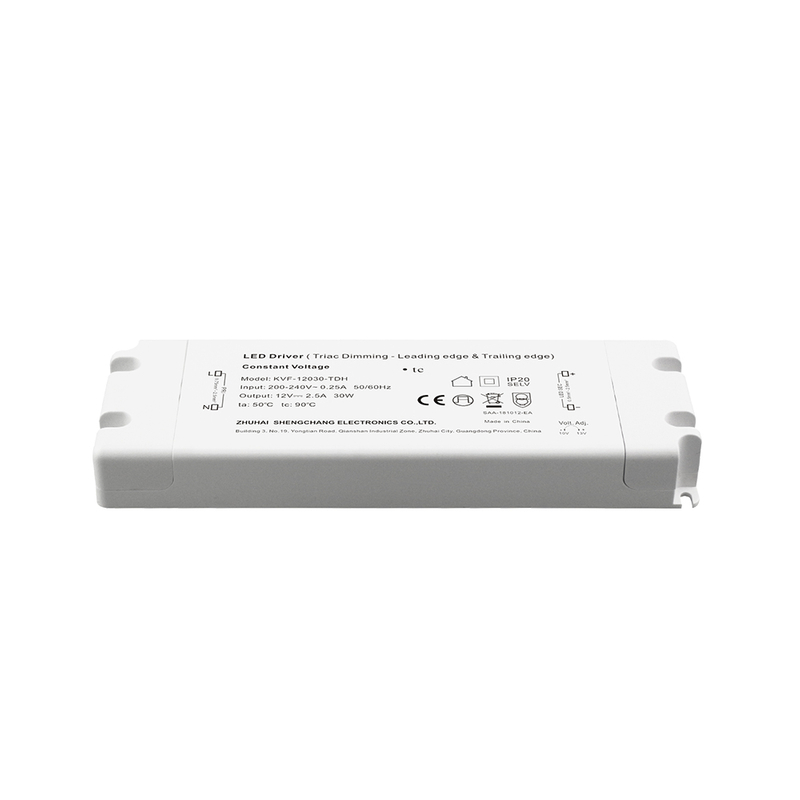

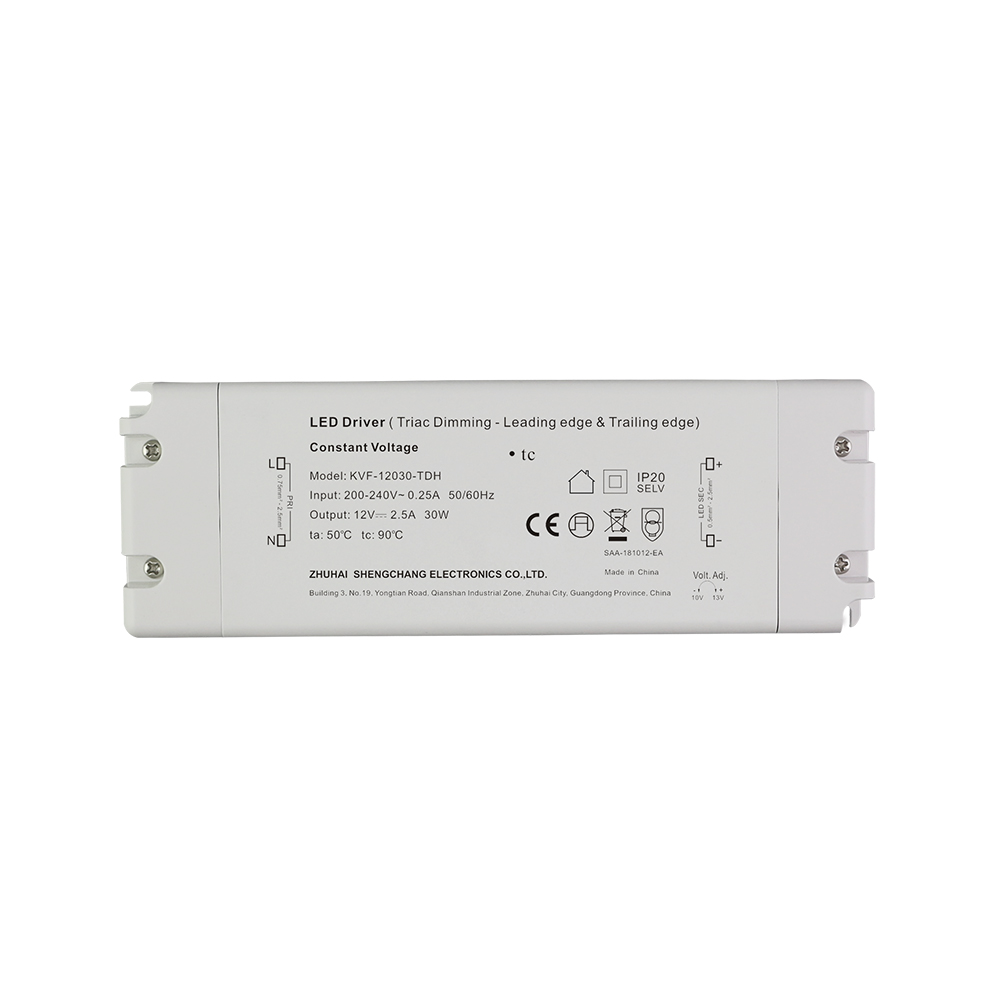

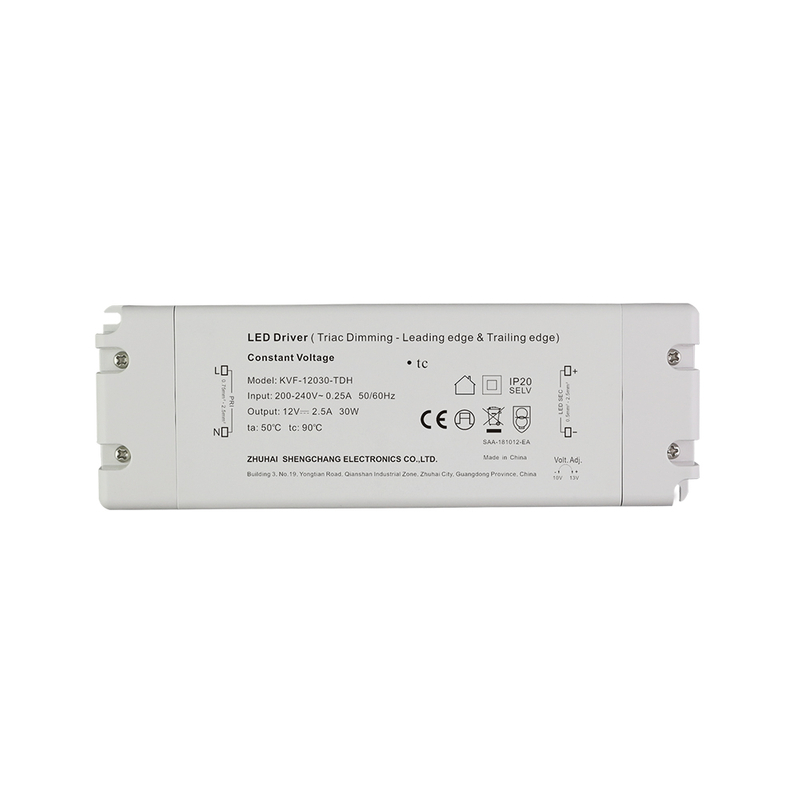

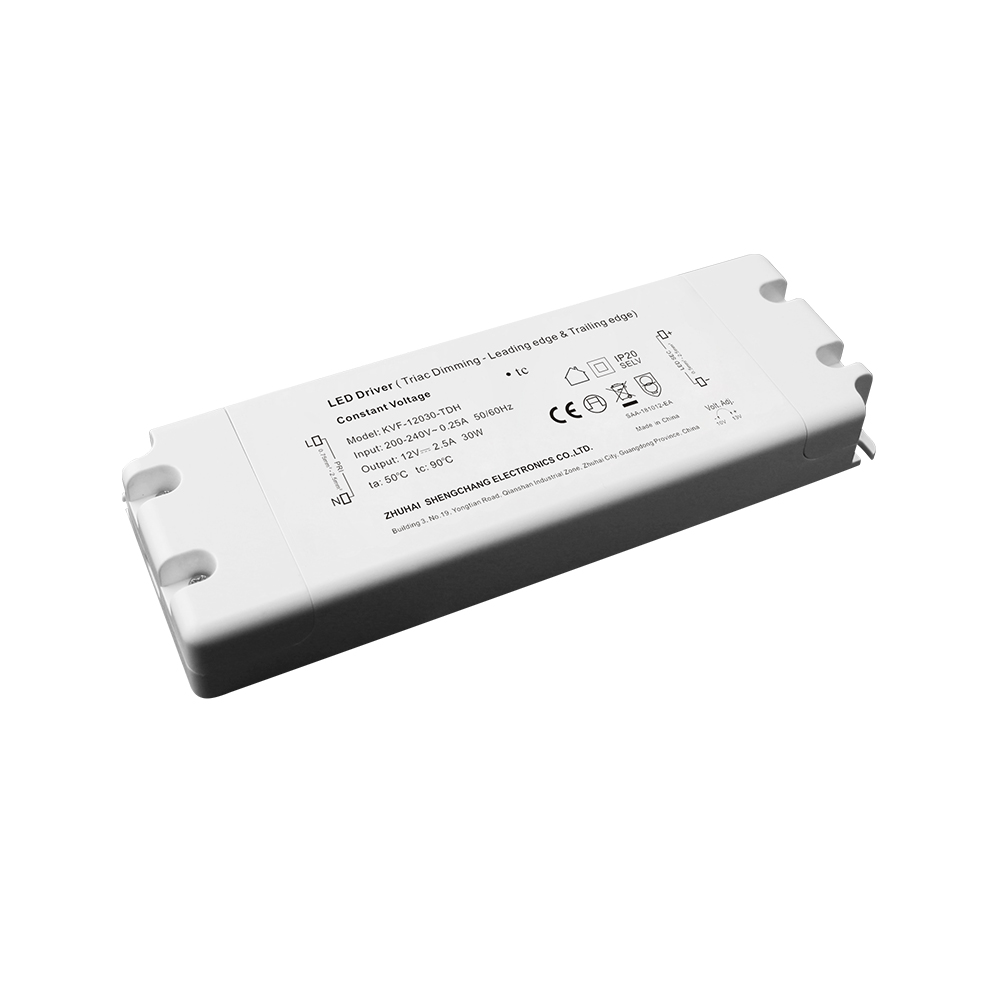

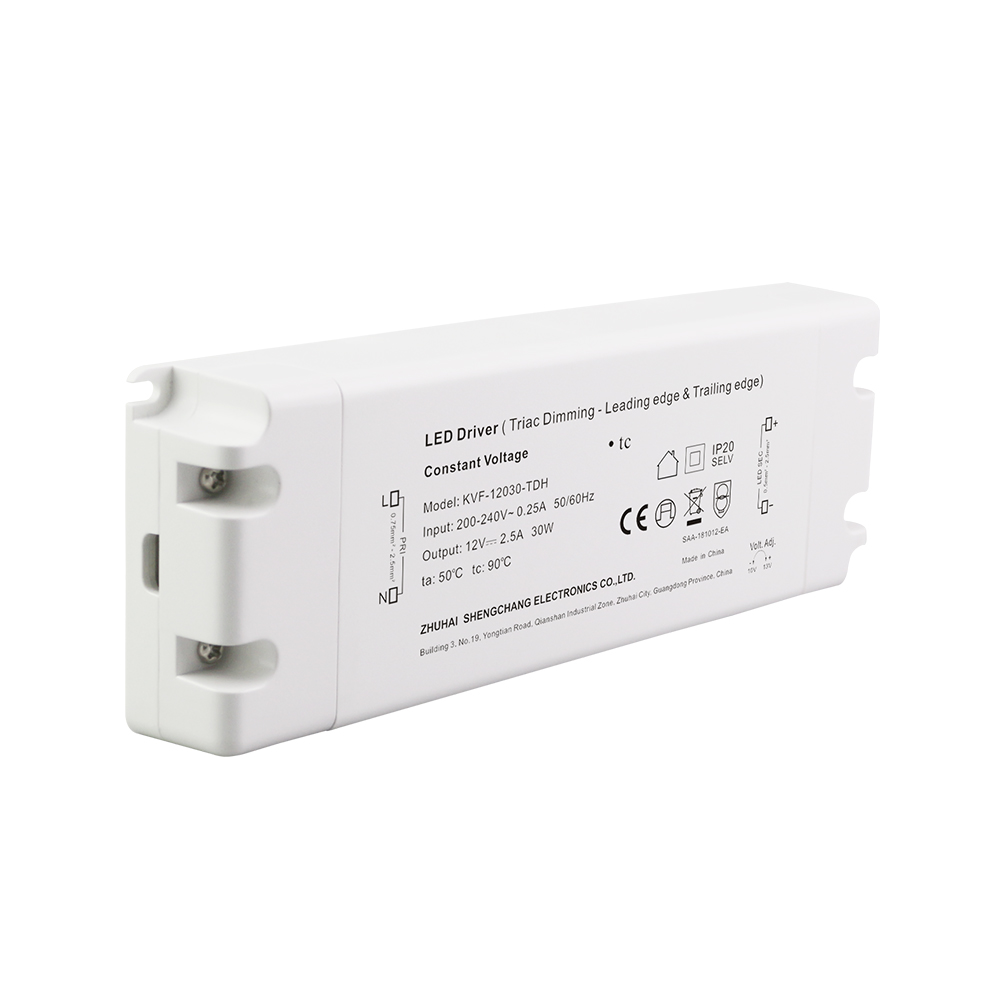

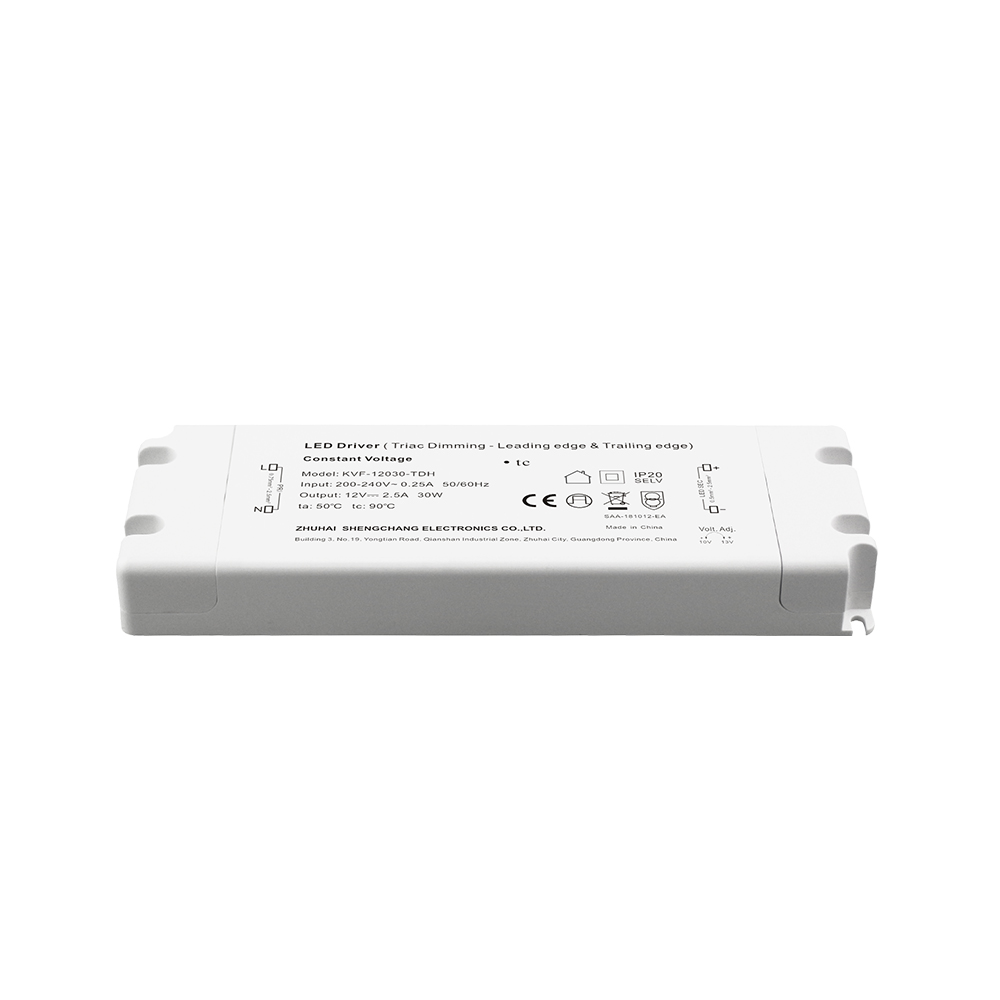

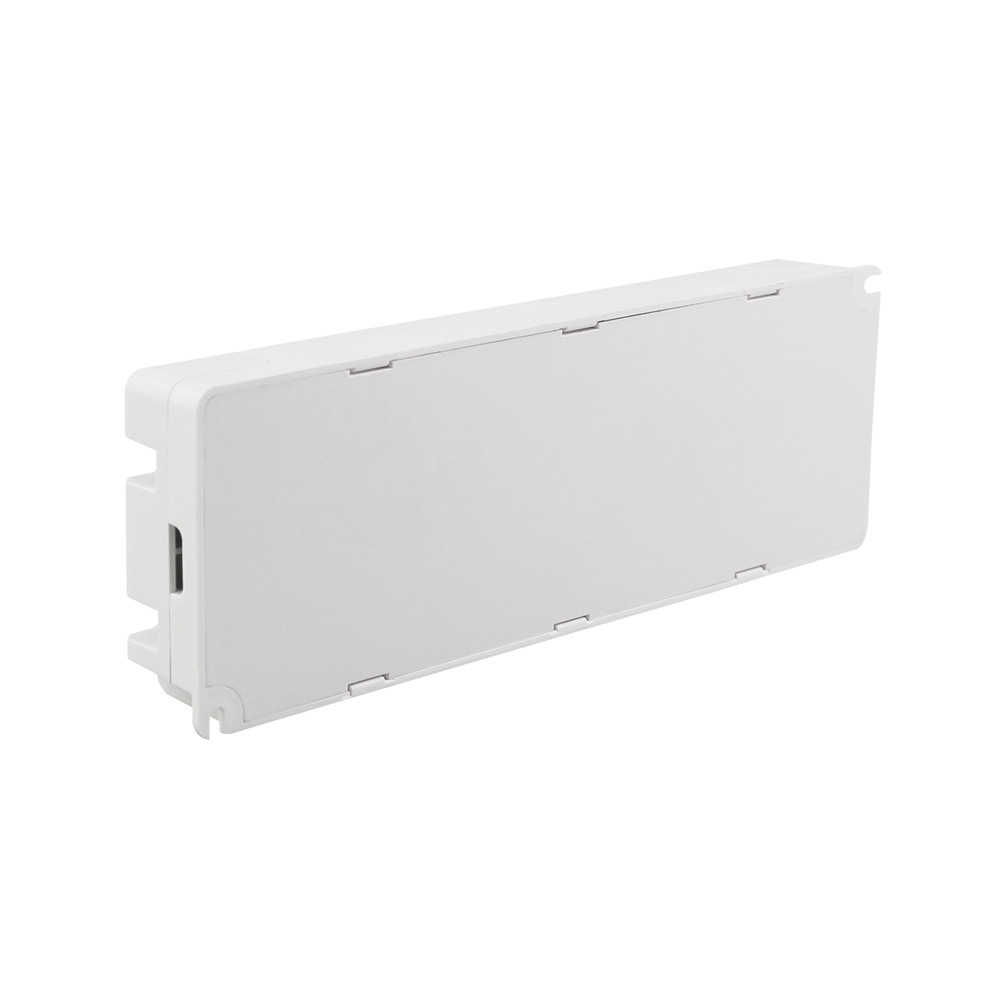

30 Watt CV Triac Dimmable LED Power Supply High voltage
Output: | Constant Voltage |
Range: | 200-240VAC |
PFC design: | Built-in active PFC function |
Efficiency: | Up to 79% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: Dimming features: | IP20 Fine-tune the voltage by the knob |
Dimming function: | Phase dimming: work with leading edge, MLV and trailing edge, ELV, TRIAC dimmers. |
Dimming range: | 0-100% |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |

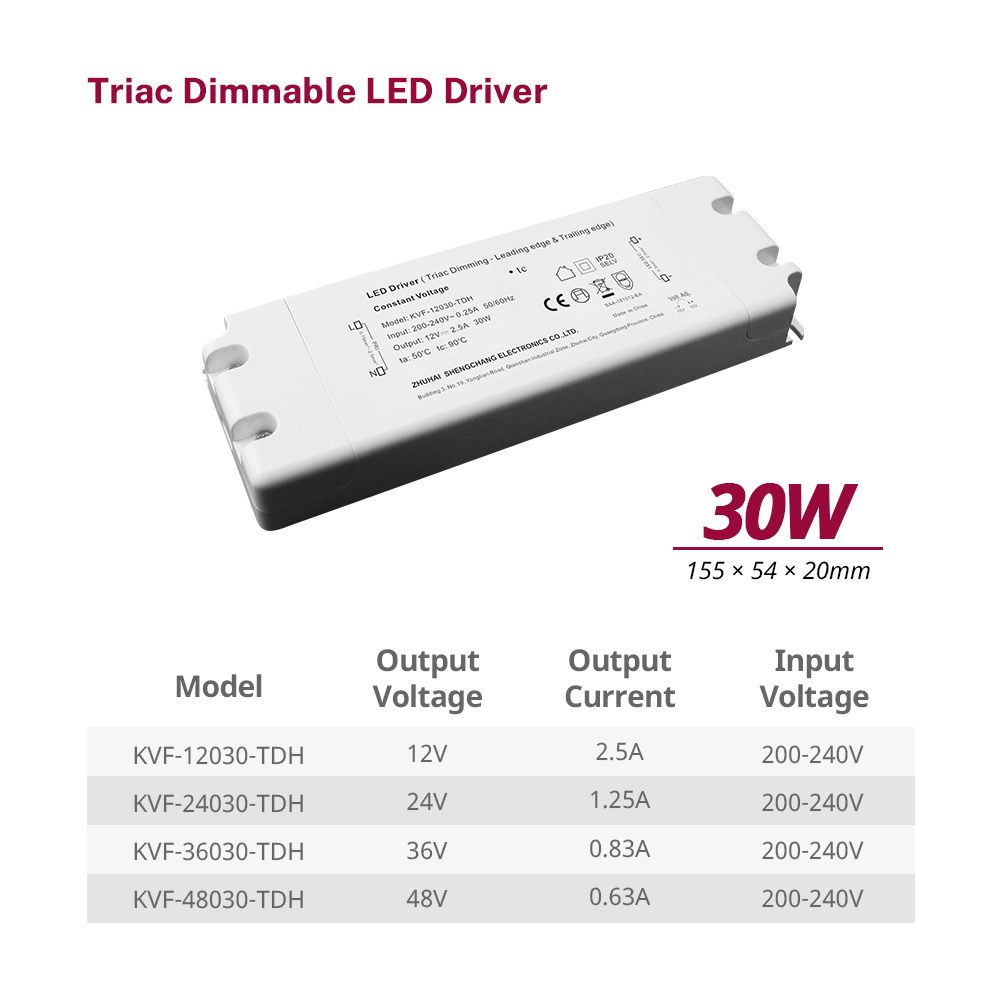

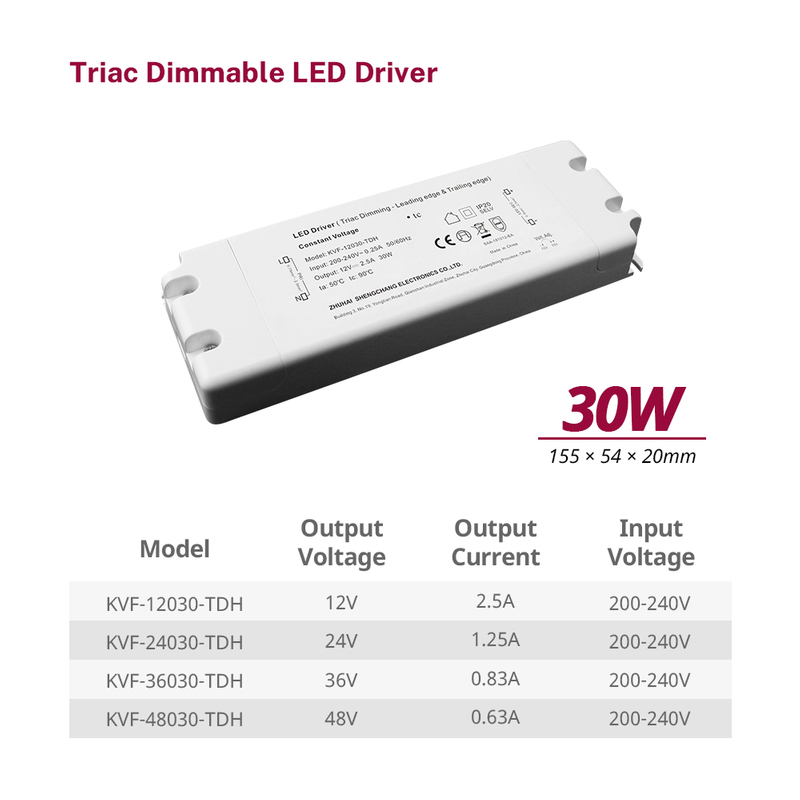

Model | KVF-12030-TDH | KVF-24030-TDH | |
Output | DC Voltage | 12V12V | 24V |
Voltage Tolerance | ±0.5V | ||
Rated current | 2.5A | 1.25A | |
Rated power | 30W | ||
Input | Voltage Range | 200-240VAC | |
Frequency Range | 47~63HZ | ||
Power Factor | PF≧0.97/200VAC PF≧0.97/230VAC PF≧0.97/240VAC(Full loading) | ||
Full Load Efficiency(Typ.) | 79% | 79% | |
AC Current (Max.) | 0.22A | 0.22A | |
Leakage current | <0.50mA | ||
Protection | Short Circuit | shut down o/p voltage, re-power on to recover after fault condition is removed | |
Over Loading | ≦120% shut down o/p voltage, re-power on to recover | ||
Over Current | ≦ 1.2 *Iout | ||
Over Temperature | 100℃± 10℃ shut down o/p voltage ,re-power on to recover | ||
Environment | Working TEMP. | -40-+70℃ | |
Working Humidity | 20-90%RH, non-condensing | ||
Storage TEM.,Humidity | -40~+80℃,10-95%RH | ||
TEMP.coefficient | ±0.03%/℃(0-50℃) | ||
Vibration | 10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes. | ||
Safety&EMC | Safety standards | EN61347-1 EN61347-2-13 | |
Withstand voltage | I/P-O/P:3.75KVAC | ||
Isolation resistance | I/P-O/P:100MΩ/500VDC/25℃/70%RH | ||
EMC EMISSION | EN55015,EN61000-3-2,3 (≧60%loading) | ||
Others | Net.Weight | 0.21KG | |
Size | 155*54*20mm (L*W*H) | ||
packing | 160*60*23mm for inner box ; 350*240*130mm for carton 40PCS/CTN | ||
Notes | 1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again 4. Loading range from 10% to 100% | ||
Triac LED Driver Wiring Diagram
Triac LED Driver Size（see the spec download）
