Class 2 180W 192W 288W 300W 384W CV 0-10V Dimmable LED Power Supply for Light
·Output constant Voltage
·Range: 100-277VAC
·Built-in active PFC function
·Protections: short circuit/over load/ over temperature
·Cooling by free air convection
·Full protection aluminum housing, for dry, damp, wet locations
·Dimming function:
·0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
·Dimming range: 0-100%
·Suitable for LED lighting and moving sign applications
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |

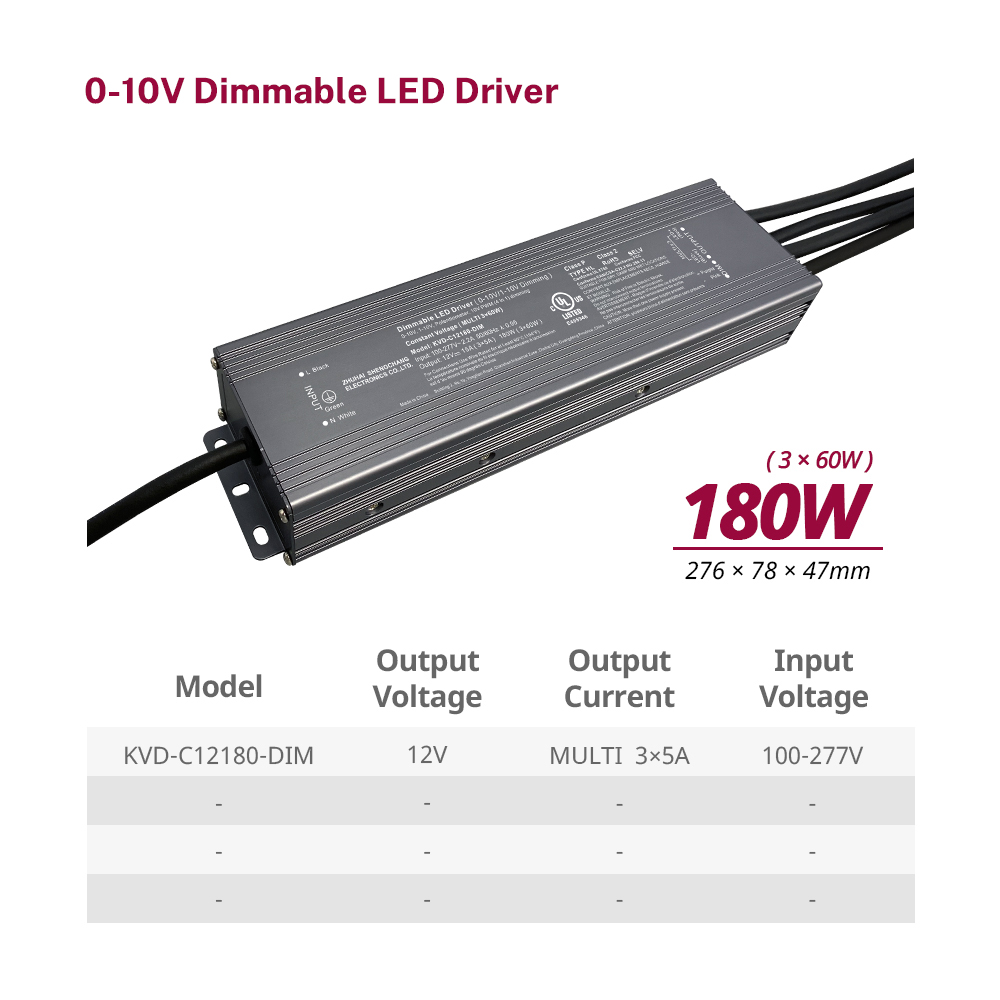

180W
(60W * 3) | KVD-C12180-DIM | 12V | 5A * 3 | 276*78*47mm | 1.6kg |
192W
(96W * 2) | KVD-C24192-DIM | 24V | 4A * 2 |
KVD-C36192-DIM | 36V | 2.67A * 2 |
KVD-C48192-DIM | 48V | 2A * 2 |
300W
(60W * 5) | KVD-C12300-DIM | 12V | 5A * 5 |
|
288W
(96W * 3) | KVD-C24288-DIM | 24V | 4A * 3 | 301*78*47mm | 1.88g |
KVD-C36288-DIM | 36V | 2.67A * 3 |
KVD-C48288-DIM | 48V | 2A * 3 |
|
384W
(96W * 4) | KVD-C24384-DIM | 24V | 4A * 4 | 322*78*44mm | 1.95kg |
KVD-C36384-DIM | 36V | 2.67A * 4 |
KVD-C48384-DIM | 48V | 2A * 4 |
0-10V LED Power Supply Wiring Diagram
180W/ 192W/ 288W/ 300W/ 384W 0-10V LED Power Supply
180W/ 192W 0-10V LED Power Supply Size:
288W/ 300W 0-10V LED Power Supply Size:
384W 0-10V LED Power Supply Size:
