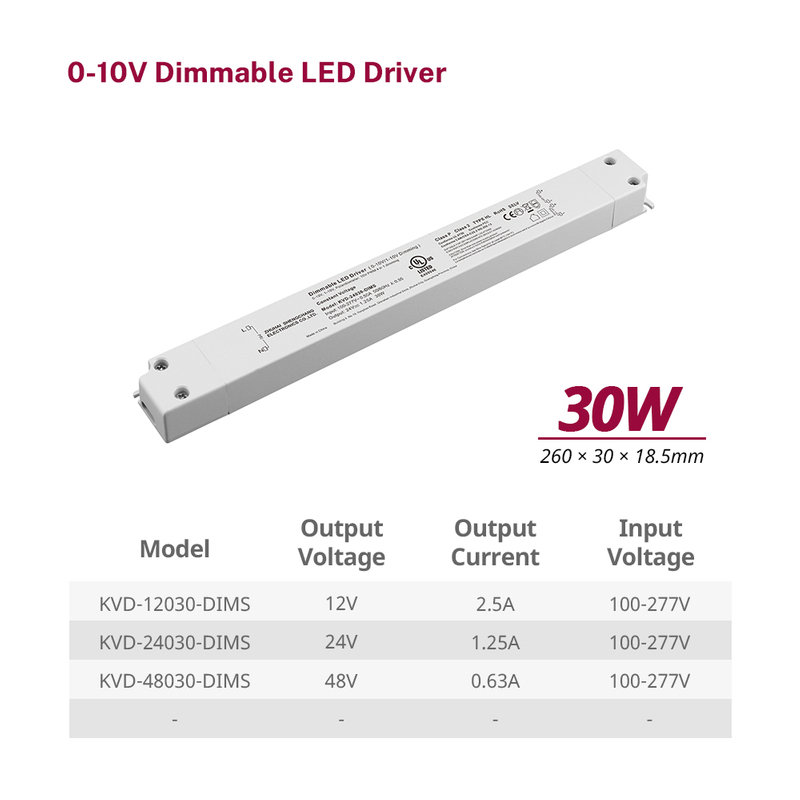

30W 36W 60W 96W 100W 150W CV 0-10V Dimmable Indoor Linear LED Power Supply for LED Strip
Output:
Constant Voltage
Range:
100-277VAC
PFC design:
Built-in active PFC function
Protections:
Short circuit/ over load/ over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
Full protection plastic housing, for dry and damp location
Dimming function:
Dimming range:
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
0-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Input Voltage
Size
Weight
30W
KVD-12030-DIMS
12V
2.5A
100-277VAC
260*30*18.5mm
0.2kg
KVD-24030-DIMS
24V
1.25A
KVD-48030-DIMS
48V
0.63A
36W
KVD-12036-DIMS
12V
3A
100-277VAC
260*30*18.5mm
0.2kg
KVD-24036-DIMS
24V
1.5A
KVD-48036-DIMS
48V
0.75A
60W
KVD-12060-DIMS
12V
5A
100-277VAC
300*30*18.5mm
0.25kg
KVD-24060-DIMS
24V
2.5A
KVD-48060-DIMS
48V
1.25A
96W
KVD-24096-DIMS
24V
4A
100-277VAC
330*30*22mm
0.29kg
KVD-48096-DIMS
48V
2A
100W
KVD-12100-DIMS
12V
8.34A
100-277VAC
330*30*22mm
0.29kg
KVD-24100-DIMS
24V
4.17A
KVD-48100-DIMS
48V
2.09A
150W
KVD-12150-DIMS
12V
12.5A
100-277VAC
368*30*22.5mm
0.3kg
KVD-24150-DIMS
24V
6.25A
KVD-48150-DIMS
48V
3.13A
0-10V LED Power Supply Wiring Diagram
30W 36W 60W 96W 100W 150W 0-10V LED Power Supply
Ultra-slim 30W-150W constant voltage 0-10V dimmable LED driver for indoor linear lighting.
Class 2 rated with noise-free operation. Features active PFC (PF>0.99), and UL/cUL/CE/FCC Class B certification. Direct compatibility with Lutron Caséta, Legrand, and leading 0-10V dimmers.
Optimized for LED strips in coves, cabinets, and retail displays（residential/commercial buildings, cabinet lighting）.
5-year warranty with lifetime technical support.
Advantage
30W 36W 60W 96W 100W 150W CV 0-10V Dimmable Indoor Linear LED Power Supply for LED Strip
Output:
Constant Voltage
Range:
100-277VAC
PFC design:
Built-in active PFC function
Protections:
Short circuit/ over load/ over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
Full protection plastic housing, for dry and damp location
Dimming function:
Dimming range:
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
0-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Input Voltage
Size
Weight
30W
KVD-12030-DIMS
12V
2.5A
100-277VAC
260*30*18.5mm
0.2kg
KVD-24030-DIMS
24V
1.25A
KVD-48030-DIMS
48V
0.63A
36W
KVD-12036-DIMS
12V
3A
100-277VAC
260*30*18.5mm
0.2kg
KVD-24036-DIMS
24V
1.5A
KVD-48036-DIMS
48V
0.75A
60W
KVD-12060-DIMS
12V
5A
100-277VAC
300*30*18.5mm
0.25kg
KVD-24060-DIMS
24V
2.5A
KVD-48060-DIMS
48V
1.25A
96W
KVD-24096-DIMS
24V
4A
100-277VAC
330*30*22mm
0.29kg
KVD-48096-DIMS
48V
2A
100W
KVD-12100-DIMS
12V
8.34A
100-277VAC
330*30*22mm
0.29kg
KVD-24100-DIMS
24V
4.17A
KVD-48100-DIMS
48V
2.09A
150W
KVD-12150-DIMS
12V
12.5A
100-277VAC
368*30*22.5mm
0.3kg
KVD-24150-DIMS
24V
6.25A
KVD-48150-DIMS
48V
3.13A
0-10V LED Power Supply Wiring Diagram
30W 36W 60W 96W 100W 150W 0-10V LED Power Supply
Ultra-slim 30W-150W constant voltage 0-10V dimmable LED driver for indoor linear lighting.
Class 2 rated with noise-free operation. Features active PFC (PF>0.99), and UL/cUL/CE/FCC Class B certification. Direct compatibility with Lutron Caséta, Legrand, and leading 0-10V dimmers.
Optimized for LED strips in coves, cabinets, and retail displays（residential/commercial buildings, cabinet lighting）.
