0-10V
Isolated
Constant Voltage
Dimming
IP66, Dry & Damp, Wet
100-277VAC
30W, 36W, 60W, 96W, 100W, 150W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES, RoHS, REACH
30W 36W 60W 96W 100W 150W CV 0-10V Dimmable Outdoor Linear LED Power Supply for LED Fixtures
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function,PF≥0.95 |
Efficiency: | Up to 80% |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | Full aluminum shell housing, for dry, damp and wet locations (US) |
Dimming function: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 |
Dimming range: | 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Size | Weight | Input Voltage | IP Rate |
30W | KVD-12030-DIML | 12V | 2.5A | 260*32*20mm | 0.35kg | 100-277V AC | IP 66 |
KVD-24030-DIML | 24V | 1.25A | |||||
KVD-48030-DIML | 48V | 0.63A | |||||
36W | KVD-12036-DIML | 12V | 3A | 260*32*20mm | 0.35kg | ||
KVD-24036-DIML | 24V | 1.5A | |||||
KVD-48036-DIML | 48V | 0.75A | |||||

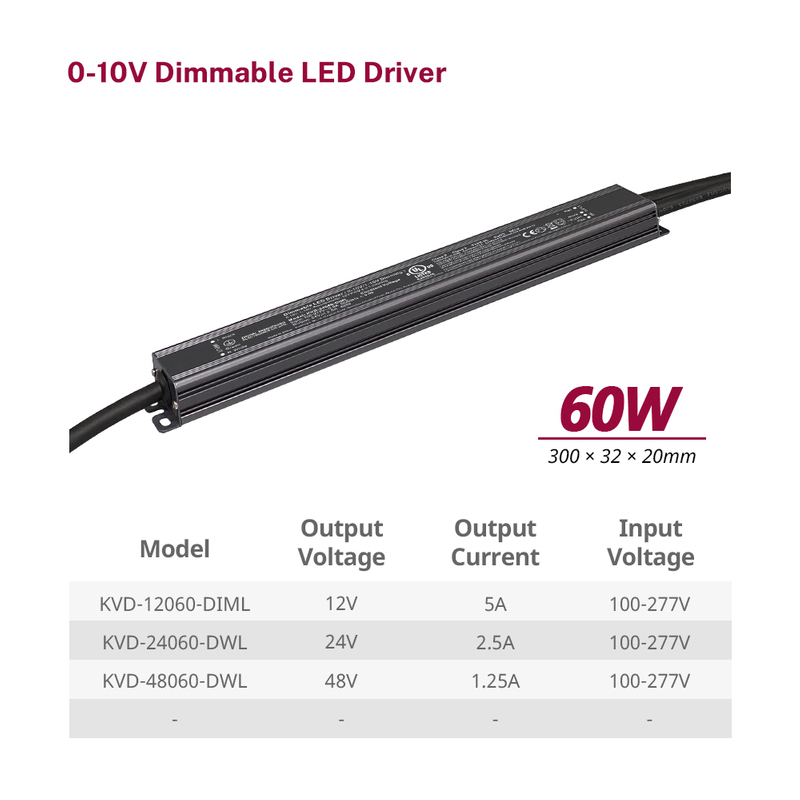

60W | KVD-12060-DIML | 12V | 5A | 300*32*20mm | 0.45kg | ||
KVD-24060-DIML | 24V | 2.5A | |||||
KVD-48060-DIML | 48V | 1.25A | |||||
96W | KVD-24096-DIML | 24V | 4A | 330*32*23mm | 0.55kg | ||
KVD-48096-DIML | 48V | 2A | |||||
100W | KVD-12100-DIML | 12V | 8.34A | 330*32*23mm | 0.55kg | ||
KVD-24100-DIML | 24V | 4.17A | |||||
KVD-48100-DIML | 48V | 2.09A | |||||
150W | KVD-12150-DIML | 12V | 12.5A | 368*32*23mm | 0.60kg | ||
KVD-24150-DIML | 24V | 6.25A | |||||
KVD-48150-DIML | 48V | 3.13A |
30W 36W 60W 96W 100W 150W 0-10V LED Power Supply
Commercial lighting 30W-150W constant voltage 0-10V dimmable LED power supply with IP66 waterproof rating (-40°C to +60°C).
ultra-low Features <10% THD, active PFC (PF>0.99).
UL/cUL/FCC/CE certified.
Compatible with Lutron, Hubbell, and universal 0-10V dimmers.
Linear design optimizes heat dissipation for enclosed fixtures.
5-year warranty.
Ideal for: studio and exhibition lighting, home lighting, commercial lighting.
