| Ouput Power: | |
|---|---|
0-10V
Isolated
Constant Voltage
1CH (Dimming)
IP66, Dry & Damp, Wet
100-277Vac (Global)
30W, 60W, 80W, 96W, 100W, 120W, 150W, 200W, 300W, 500W, 600W
12/ 24/ 36/ 48V
UL & cUL, FCC, Class 2, ICES, RoHS, REACH

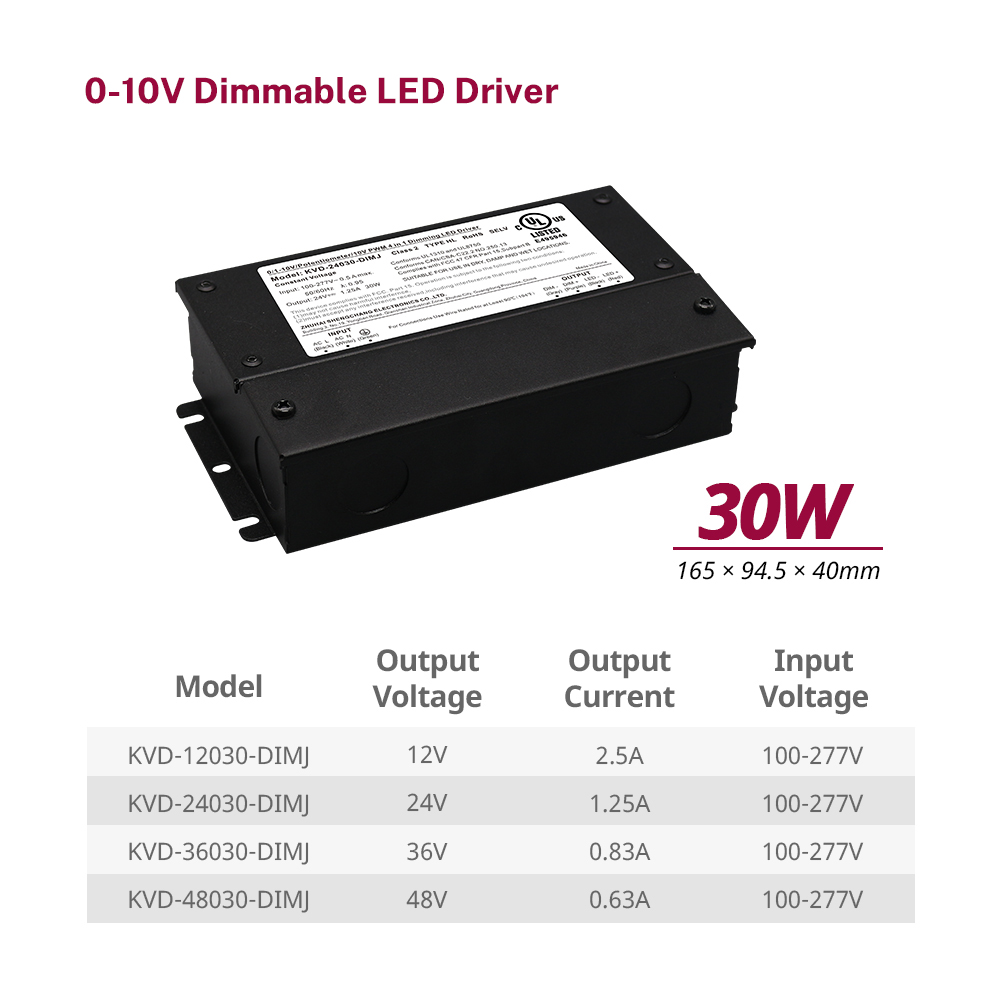

30W to 600W CV 0 - 10 V Dimmable LED Power Supply with Junction box
Output: | Constant Voltage |
Range: | 100-277VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ over load/ over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry, damp & wet location |
Dimming function: Dimming range: | 0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 0-100% |
Application: | Suitable for LED lighting and moving sign applications |
Warranty: | 5 years warranty |
Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
30W | KVD-12030-DIMJ | 12V | 2.5A | PF 0.99 | 165*94.5*40mm | 0.93kg |
KVD-24030-DIMJ | 24V | 1.25A | ||||
KVD-36030-DIMJ | 36V | 0.83A | ||||
KVD-48030-DIMJ | 48V | 0.63A | ||||
60W | KVD-12060-DIMJ | 12V | 5A | PF 0.98 | 188*94.5*40mm | 1.03kg |
KVD-24060-DIMJ | 24V | 2.5A | ||||
KVD-36060-DIMJ | 36V | 1.67 | ||||
KVD-48060-DIMJ | 48V | 1.25A | ||||
80W | KVD-12080-DIMJ | 12V | 6.66A | PF 0.98 | 220*94.5*42.7mm | 1.26kg |
KVD-24080-DIMJ | 24V | 3.34A | ||||
KVD-36080-DIMJ | 36V | 2.22A | ||||
KVD-48080-DIMJ | 48V | 1.67A | ||||
96W | KVD-24096-DIMJ | 24V | 4A | PF 0.98 | ||
KVD-36096-DIMJ | 36V | 2.67A | ||||
KVD-48096-DIMJ | 48V | 2A | ||||
100W | KVD-12100-DIMJ | 12V | 8.34A | PF 0.99 | ||
KVD-24100-DIMJ | 24V | 4.17A | ||||
KVD-36100-DIMJ | 36V | 2.78A | ||||
KVD-48100-DIMJ | 48V | 2.09A | ||||
120W | KVD-12120-DIMJ | 12V | 10A | PF 0.99 | ||
KVD-24120-DIMJ | 24V | 5A | ||||
KVD-36120-DIMJ | 36V | 3.33A | ||||
KVD-48120-DIMJ | 48V | 2.5A | ||||
150W | KVD-12150-DIMJ | 12V | 12.5A | PF 0.99 | 260*105*45mm | 1.81kg |
KVD-24150-DIMJ | 24V | 6.25A | ||||
KVD-36150-DIMJ | 36V | 4.17A | ||||
KVD-48150-DIMJ | 48V | 3.13A | ||||
200W | KVD-12200-DIMJ | 12V | 16.67A | PF 0.98 | ||
KVD-24200-DIMJ | 24V | 8.34A | ||||
KVD-36200-DIMJ | 36V | 5.56A | ||||
KVD-48200-DIMJ | 48V | 4.17A | ||||
300W | KVD-12300-DIMJ | 12V | 25A | PF 0.99 | 278*110*45mm | 2.15kg |
KVD-24300-DIMJ | 24V | 12.5A | ||||
KVD-36300-DIMJ | 36V | 8.33A | ||||
KVD-48300-DIMJ | 48V | 6.25A | ||||
500W | KVD-12500-DIMJ | 12V | 41.67A | PF 0.99 | 280*140*50.2mm | 2.70kg |
KVD-24500-DIMJ | 24V | 20.83A | ||||
KVD-36500-DIMJ | 36V | 13.89A | ||||
KVD-48500-DIMJ | 48V | 10.42A | ||||
600W | / | 12V | / | PF 0.98 | ||
KVD-24600-DIMJ | 24V | 25A | ||||
KVD-36600-DIMJ | 36V | 16.67A | ||||
KVD-48600-DIMJ | 48V | 12.5A | ||||
Output Power | Model Number | Output Voltage | Output Current | Power Factor | Size | Weight |
60W | KVD-12060-DIMJ | 12V | 1 x 5A | PF 0.98 | 188*94.5*40mm | 1.03kg |
KVD-24060-DIMJ | 24V | 1 x 2.5A | ||||
KVD-36060-DIMJ | 36V | 1 x 1.67 | ||||
KVD-48060-DIMJ | 48V | 1 x 1.25A | ||||
180W | KVD-C12180-DIMJ | 12V | 3 x 5A | PF 0.98 | 278*110*45mm | 2.15kg |
300W | KVD-C12300-DIMJ | 12V | 5 x 5A | PF 0.99 | 301*110*45mm | 2.37kg |
96W | KVD-24096-DIMJ | 24V | 1 x 4A | PF 0.98 | 220*94.5*42.7mm | 1.26kg |
KVD-36096-DIMJ | 36V | 1 x 2.67A | ||||
KVD-48096-DIMJ | 48V | 1 x 2A | ||||
192W | KVD-C24192-DIMJ | 24V | 2 x 4A | PF 0.99 | 278*110*45mm | 2.15kg |
KVD-C36192-DIMJ | 36V | 2 x 2.67A | ||||
KVD-C48192-DIMJ | 48V | 2 x 2A | ||||
288W | KVD-C24288-DIMJ | 24V | 3 x 4A | PF 0.99 | 301*110*45mm | 2.37kg |
KVD-C36288-DIMJ | 36V | 3 x 2.67A | ||||
KVD-C48288-DIMJ | 48V | 3 x 2A | ||||
384W | KVD-C24384-DIMJ | 24V | 4 x 4A | PF 0.99 | 325*140*48mm | 2.85kg |
KVD-C36384-DIMJ | 36V | 4 x 2.67A | ||||
KVD-C48384-DIMJ | 48V | 4 x 2A | ||||
30W 36W 60W 96W 100W 150W 0-10V LED Power Supply
