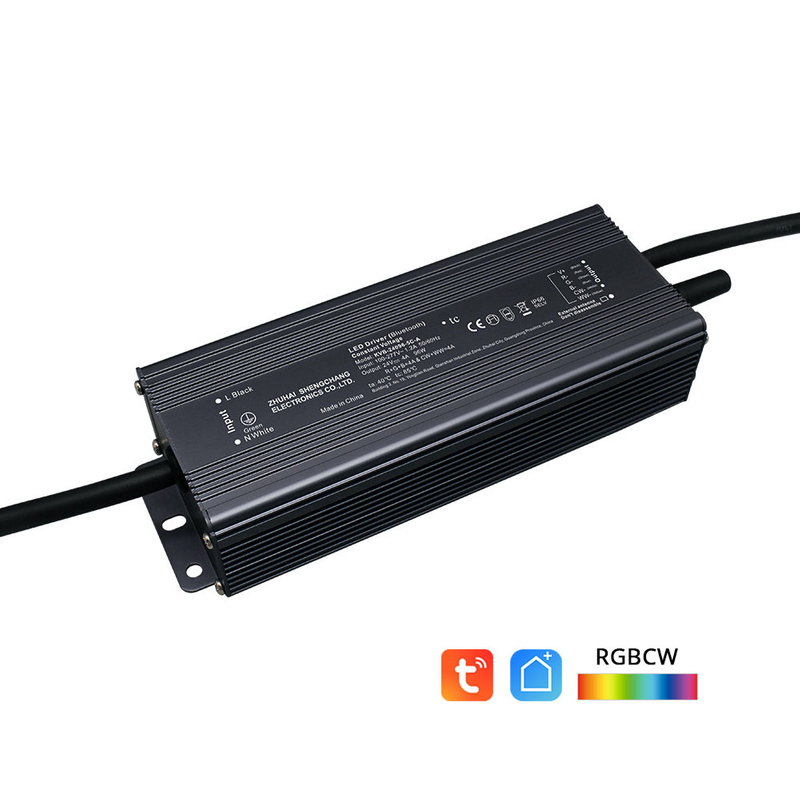

96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Constant Voltage Stromforsyning 100-277V 100V 110V 120V 220V 230V 240V

Beskikberens:
Freegje Taheakje oan Basket

  • ZigBee (Tuya, Smart Life)

  • Isolearre

  • Konstante spanning

  • Dimming, CCT, RGBCW, Warm-dim

  • IP66, droech en fochtich, wiet

  • 100-277VAC

  • 96W, 100W, 120W

  • 12/ 24/ 36/ 48V

  • UL & cUL, Klasse 2, CE, RoHS, REACH

Foardiel

96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Constant Voltage Stromforsyning 100-277V 100V 110V 120V 220V 230V 240V


Utfier:

Konstante spanning

Berik:

100-277VAC

PFC ûntwerp:

Ynboude aktive PFC-funksje, PF≥0.95

Effisjinsje:

oant 91%

Beskermings:

Koartesluting / te folle lading / oer temperatuer

Heat dissipation:

Cooling troch frije lucht konveksje

Waterproof prestaasjes:

Folsleine kompakte húsfesting fan aluminium shell, foar droege, fochtige en wiete lokaasjes

Dimmen funksje:

ZigBee draadloze dim., dy't controller kin wêze troch mobile app of smart sprekker, lykas Google thús of Amazon echo. Adopte TUYA module, 8K Hz PWM útfier

Dimming berik:

1-100%

Oanfraach:

Geskikt foar it tapassen fan LED-ferljochting

Garânsje:

5 jier garânsje

Oaren:

Flikkerfrij, 8KHZ PWM-útfier om it stroboskopyske ûntheffingsnivo te berikken


Spesifikaasje


Utfierkanalen

Model Number

Output Voltage

Output Strom

Output Power

Grutte

Gewicht

1 kanaal
(dimmen)

KVB-24096-1C-A

24V

4A

96W

200*70*43mm

1,02kg

KVB-48096-1C-A

48V

2A

KVB-12100-1C-A

12V

8.34A

100W

KVB-24100-1C-A

24V

4.17A

KVB-36100-1C-A

36V

2.78A

KVB-48100-1C-A

48V

2.09A

KVB-12120-1C-A

12V

10A

120W

KVB-24120-1C-A

24V

5A

KVB-36120-1C-A

36V

3.33A

KVB-48120-1C-A

48V

2.5A

2 kanalen
(CCT)

KVB-12100-2C-A

12V

8.34A

100W

KVB-24100-2C-A

24V

4.17A

KVB-36100-2C-A

36V

2.78A

KVB-48100-2C-A

48V

2.09A

KVB-12120-2C-A

12V

10A

120W

KVB-24120-2C-A

24V

5A

KVB-36120-2C-A

36V

3.33A

KVB-48120-2C-A

48V

2.5A

3 kanalen
(RGB)

KVB-12100-3C-A

12V

8.34A

100W

KVB-24100-3C-A

24V

4.17A

KVB-36100-3C-A

36V

2.78A

KVB-48100-3C-A

48V

2.09A

KVB-12120-3C-A

12V

10A

120W

KVB-24120-3C-A

24V

5A

KVB-36120-3C-A

36V

3.33A

KVB-48120-3C-A

48V

2.5A

4 kanalen
(RGBWW)

KVB-12100-4C-A

12V

8.34A

100W

KVB-24100-4C-A

24V

4.17A

KVB-36100-4C-A

36V

2.78A

KVB-48100-4C-A

48V

2.09A

KVB-12120-4C-A

12V

10A

120W

KVB-24120-4C-A

24V

5A

KVB-36120-4C-A

36V

3.33A

KVB-48120-4C-A

48V

2.5A

5 kanalen
(RGB + CCT)

KVB-12100-5C-A

12V

8.34A

100W

KVB-24100-5C-A

24V

4.17A

KVB-36100-5C-A

36V

2.78A

KVB-48100-5C-A

48V

2.09A

KVB-12120-5C-A

12V

10A

120W

KVB-24120-5C-A

24V

5A

KVB-36120-5C-A

36V

3.33A

KVB-48120-5C-A

48V

2.5A


96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Constant Voltage Stromforsyning 100-277V 100V 110V 120V 220V 230V 240VWiFi Bluetooth-bestjoerder 100wBluetooth led driver 500w


download spec_96W CASAMBI Bluetooth Wireless Dim. CV Driver KVB-5C-A 24V & 48V.pdf

download spec_100W CASAMBI Bluetooth Wireless Dim. CV Driver KVB-5C-A 24V & 48V.pdf

download spec_120W ZigBee Wireless dim. CV-bestjoerder KVZ-XC-A 12V & 24V & 36V & 48V.pdf
