Ebintu Ebikwata ku

Oli wano: Ewaka / Ebintu ebikolebwa / Wireless Dimmable LED Ddereeva-Casambi Tuya BLE WiFi ZigBee / Voltage etakyukakyuka Zigbee / 96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Amasannyalaze aga Voltage aga bulijjo 100-277V 100V 110V 120V 220V 230V 240V

Ekika ky'ebintu

okutikka

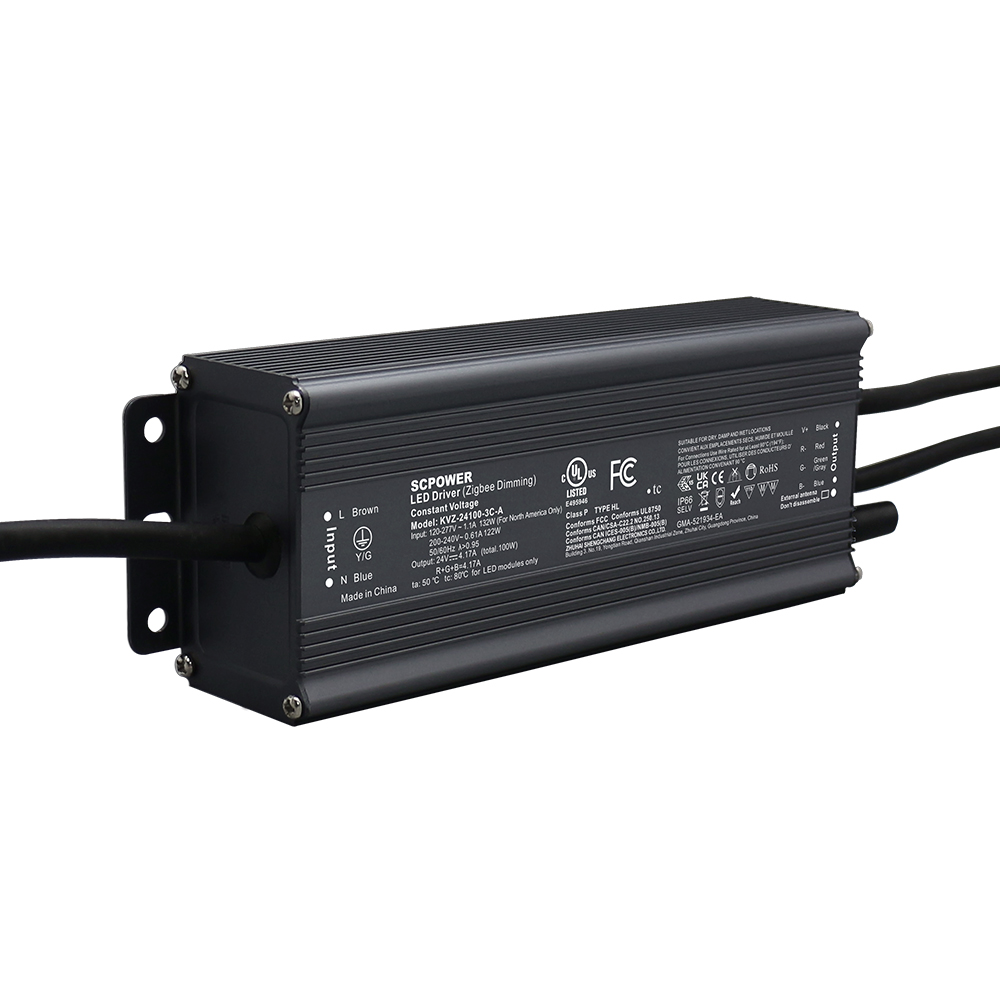

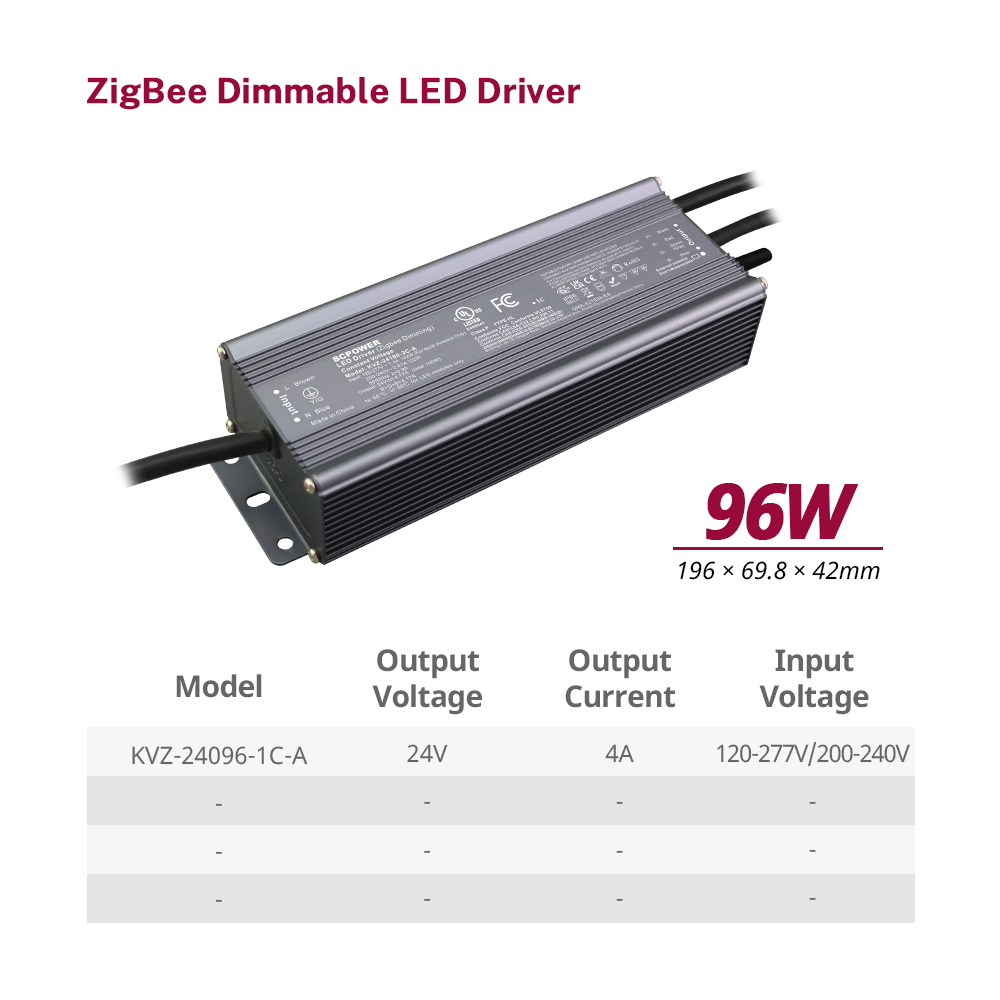

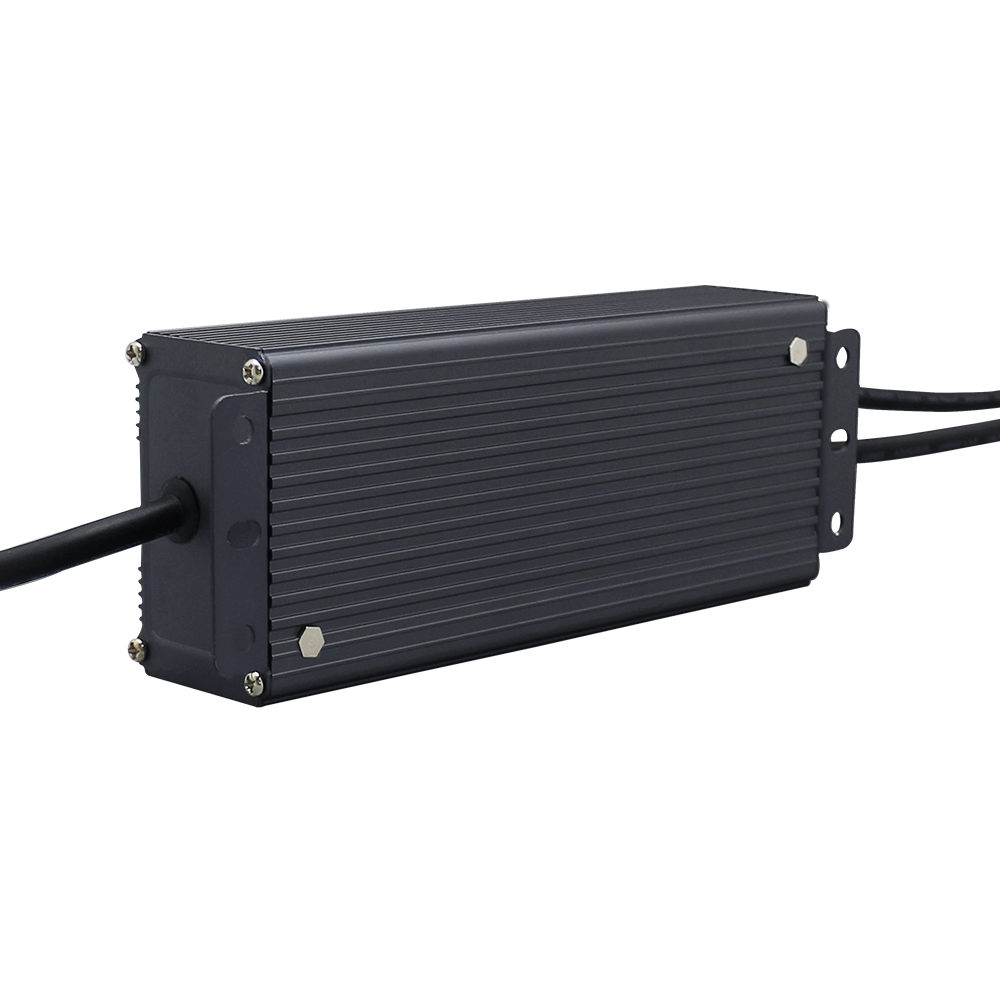

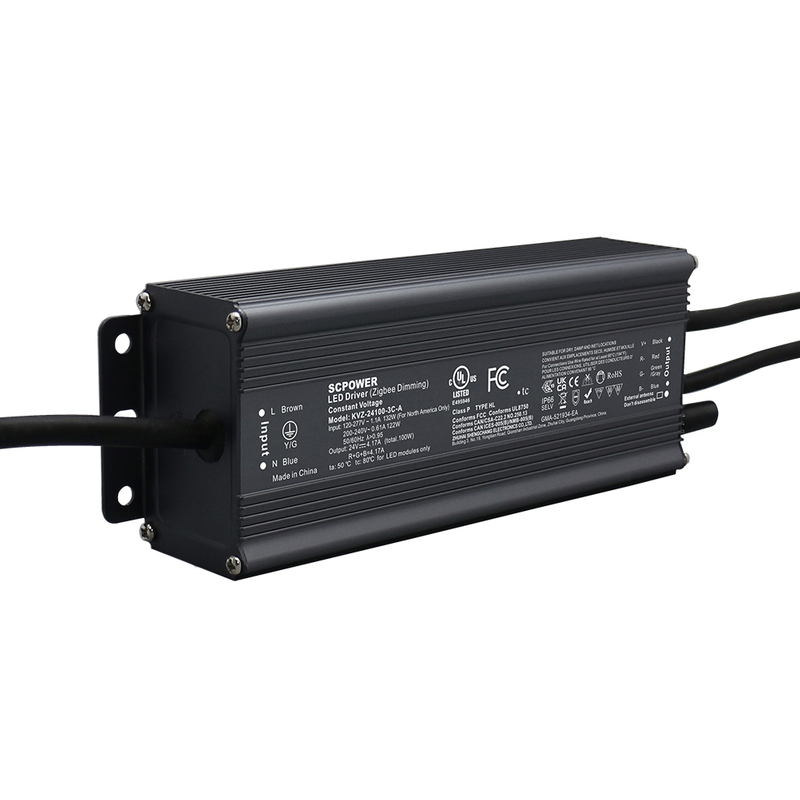

96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Amasannyalaze aga vvulovumenti etakyukakyuka 100-277V 100V 110V 120V 220V 230V 240V

Okubeerawo:
Buuza Yongera ku Basket

  • ZigBee (Tuya, Obulamu Obugezi)

  • Kifikkiriza

  • Voltage etakyukakyuka

  • Okuziba, CCT, RGBCW, Okubuguma-okuzibikira

  • IP66, Enkalu & Ennyogovu, Ennyogovu

  • 100-277VAC

  • 96W, 100W, 120W, amaanyi g’obwagazi

  • 12/ 24/ 36/ 48V

  • UL & cUL, Ekibiina eky’okubiri, CE, RoHS, REACH

Ekirungi kya

96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Amasannyalaze aga vvulovumenti etakyukakyuka 100-277V 100V 110V 120V 220V 230V 240V


Ebifulumizibwa:

Voltage etakyukakyuka

Ebanga:

100-277VAC

Dizayini ya PFC:

Ebizimbibwa mu nkola ya PFC ekola,PF≥0.95

Amaanyi:

Okutuuka ku bitundu 91%

Obukuumi:

Short circuit/ okutikka okusukkiridde/ okusukka ebbugumu

Okusaasaanya ebbugumu:

Okunyogoza nga tuyita mu kukyusa empewo ey’obwereere

Omulimu gw’okuziyiza amazzi:

Full compact aluminium shell housing, ku bifo ebikalu, ebinyogovu & ebibisi

Omulimu gw’okuzibikira:

ZigBee wireless dim., eyinza okuba controller nga Mobile App oba Smart speaker, nga Google home oba Amazon echo .Adopt TUYA module, 8K Hz PWM output

Dimming range:

1-100% .

Okusaba:

Esaanira okukozesa amataala ga LED

Waranti:

Waranti ya myaka 5

Ebirala:

Flicker free, 8KHZ PWM output okutuuka ku ddaala ly’okusonyiyibwa mu stroboscopic


Okunnyonnyola


Emikutu gy’Ebifulumizibwa

Ennamba ya Model

Voltage efuluma

Ebifulumizibwa Current

Amaanyi agafuluma

Obunene

Obuzito

1 Omukutu
(Okuzikira) .

KVB-24096-1C-A

24V

4A

96W

200*70*43mm

kkiro 1.02

KVB-48096-1C-A

48V

2A

KVB-12100-1C-A

12V

8.34A

100W

KVB-24100-1C-A

24V

4.17A

KVB-36100-1C-A

36V

2.78A

KVB-48100-1C-A

48V

2.09A

KVB-12120-1C-A

12V

10A

120W

KVB-24120-1C-A

24V

5A

KVB-36120-1C-A

36V

3.33A

KVB-48120-1C-A

48V

2.5A

2 Emikutu
(CCT) .

KVB-12100-2C-A

12V

8.34A

100W

KVB-24100-2C-A

24V

4.17A

KVB-36100-2C-A

36V

2.78A

KVB-48100-2C-A

48V

2.09A

KVB-12120-2C-A

12V

10A

120W

KVB-24120-2C-A

24V

5A

KVB-36120-2C-A

36V

3.33A

KVB-48120-2C-A

48V

2.5A

Emikutu 3
(RGB) .

KVB-12100-3C-A

12V

8.34A

100W

KVB-24100-3C-A

24V

4.17A

KVB-36100-3C-A

36V

2.78A

KVB-48100-3C-A

48V

2.09A

KVB-12120-3C-A

12V

10A

120W

KVB-24120-3C-A

24V

5A

KVB-36120-3C-A

36V

3.33A

KVB-48120-3C-A

48V

2.5A

Emikutu 4
(RGBWW) .

KVB-12100-4C-A

12V

8.34A

100W

KVB-24100-4C-A

24V

4.17A

KVB-36100-4C-A

36V

2.78A

KVB-48100-4C-A

48V

2.09A

KVB-12120-4C-A

12V

10A

120W

KVB-24120-4C-A

24V

5A

KVB-36120-4C-A

36V

3.33A

KVB-48120-4C-A

48V

2.5A

Emikutu 5
(RGB+CCT) .

KVB-12100-5C-A

12V

8.34A

100W

KVB-24100-5C-A

24V

4.17A

KVB-36100-5C-A

36V

2.78A

KVB-48100-5C-A

48V

2.09A

KVB-12120-5C-A

12V

10A

120W

KVB-24120-5C-A

24V

5A

KVB-36120-5C-A

36V

3.33A

KVB-48120-5C-A

48V

2.5A


96W 100W 120W CV RGB CW ZigBee Tuya Smart Life apps Amasannyalaze aga vvulovumenti etakyukakyuka 100-277V 100V 110V 120V 220V 230V 240VWiFi ddereeva wa Bluetooth 100wDdereeva akulembeddwamu Bluetooth 500w


okufuna spec_96W CASAMBI Bluetooth etaliiko waya Dim. Ddereeva wa CV KVB-5C-A 24V&48V.pdf

okufuna spec_100W CASAMBI Bluetooth etaliiko waya Dim. Ddereeva wa CV KVB-5C-A 24V&48V.pdf

okufuna spec_120W ZigBee Wireless ekizikiza. Omuvuzi wa CV KVZ-XC-A 12V&24V&36V&48V.pdf
