120W 160W CV Class 2 Driver+ Switch 2 in 1 with 3-Way PFC of Led Lighting

Ouput Power:
120W
160W
Availability:
Inquire Add to Basket

  • SDD-CL-ND

  • Non-Dimming

  • Isolated

  • Constant Voltage

  • Non-Dimming

  • IP20, Dry & Damp

  • 100-120VAC

  • 120W, 160W

  • 12V 24V 48V

  • UL & cUL, FCC, Class 2, RoHS, REACH, SELV, Class P


Specification


Output Power

Model Number

Output Voltage

Output Current

Size

Weight

120W (2*60W)

SDD-CL12120-ND

12V

2*5000mA

105*54*52mm

0.27kg

160W (2*80W)

SDD-CL24160-ND

24V

2*3330mA

SDD-CL48160-ND

48V

2*1670mA


Advantage


Output:

Constant Voltage

Input Range:

120VAC

PFC design:

Built-in active PFC function

Protections:

Short circuit/ Over load/ Over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

For dry and damp locations (US)

Design features:



1) Fine-tune output voltage can be adjusted slightly

2) ON/OFF Switch

3) 3-Way switches

4) Output Class 2

5) Eliminated compatibility issues between drivers and switches

Application:

Suitable for the application of LED lighting

Warranty:

5 years warranty

Others

Flicker-free


Product Mode

 Suretron CCT Dimming LED Driver with Built-in Dimmer, 2-Channel for Color Temperature Control, 60W to 160W.

SDD-CCT

 Suretron Constant Voltage 2-in-1 Dimmable LED Driver and Dimmer for 12V, 24V, 48V LED Lights.

SDD-DIM

 No-Off LED Driver, keeps LEDs always on, 60W 96W 120W 160W Constant Voltage output.

SDD-ND

Built in LED Driver

CCT LED Driver+Dimmer 2 in 1

Dimming LED Driver+Dimmer 2 in 1

On/Off LED Driver

CCT Dimmer

√

×

×

Brightness

√

√

×

ON/OFF Switch

√

√

√

Input Voltage

120V 60Hz

120V 60Hz

120V 60Hz

Output Voltage

12/24/48V

12/24/48V

12/24/48V

Output Power

60/96/120/160W

60/96/120/160W

60/96/120/160W

3-Way/single Pole

3-Way / Single Pole

3-Way / Single Pole

3-Way / Single Pole

Certificated

UL/cUL Listed

UL/cUL Listed

UL/cUL Listed


Description


1-Driver+Dimmer 2 in 1


120W 160W CV Class 2 Driver+ Switch 2 in 1 with 3-Way PFC of Led Lighting

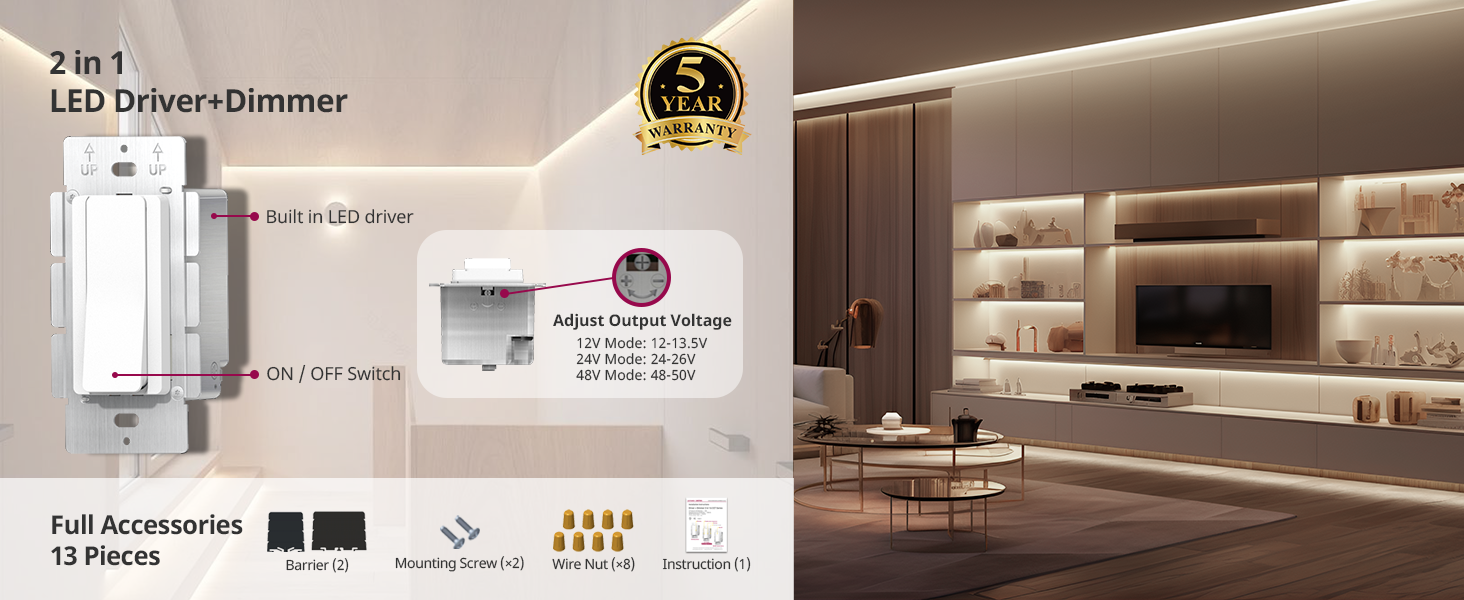

SURETRON Driver and Switch 2 in 1with voltage selector and full accessories.


Driver+Switch 2 in 1 includes 13 accessories and adjustable 12V/24V/48V output.


Driver+Switch 2 in 1 compatible with 99% dimmable LED lamps.


Driver+Switch 2 in 1 works with 99% dimmable LEDs (60-160W) and multiple fixture types.


Driver+Switch 2 in 1 unit featuring quiet operation and safety protections.


Driver+Switch 2 in 1 ensures quiet, stable operation with full safety protection.


SURETRON Driver+Switch 2 in 1 application examples for various LED lighting.

Driver+Switch 2 in 1 supports versatile indoor and outdoor LED applications.


Suretron Driver+Switch 2 in 1 wiring diagram for single-pole and 3-way circuits.


Driver+Switch 2 in 1 enables single-pole or 3-way lighting control from multiple locations.

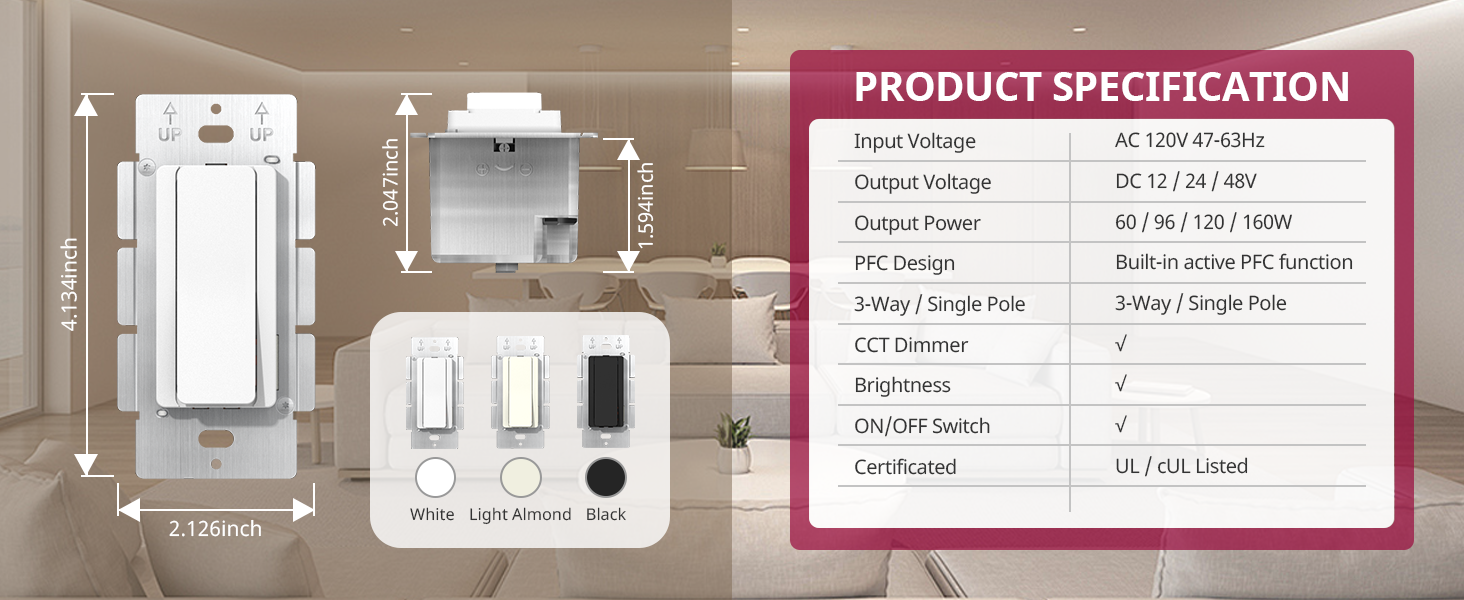

SURETRON Driver+Switch 2 in 1 specifications including power output and certifications.


Suretron dimmable LED driver, globally manufactured in Vietnam and China.px

download SDD-CLxx160-ND 20250927.pdf
