Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | SDD-12060-ND | 12V | 5000mA | 105*54*52mm | 0.25kg |
SDD-24060-ND | 24V | 2500mA |
SDD-48060-ND | 48V | 1250mA |
96W | SDD-24096-ND | 24V | 4000mA | 105*54*52mm | 0.27kg |
SDD-48096-ND | 48V | 2000mA |
100W | SDD-24100-ND | 24V | 4170mA | 105*54*52mm | 0.25kg |
SDD-48100-ND | 48V | 2080mA |
120W | SDD-12120-ND | 12V | 10000mA | 105*54*52mm | 0.27kg |
160W | SDD-24160-ND | 24V | 6670mA |
SDD-48160-ND | 48V | 3330mA |
Output: | Constant Voltage |
Input Range: | 120VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ Over load/ Over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations ( US ) |
Design features:
| 1) Fine-tune output voltage can be adjusted slightly 2) ON/OFF Switch 3) 3-Way switches 4) Output Class 2 5) Eliminated compatibility issues between drivers and switches |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free |
Product Mode |  | SDD-CCT |  | SDD-DIM |  | SDD-ND |
Built in LED Driver | CCT LED Driver+Dimmer 2 in 1 | Dimming LED Driver+Dimmer 2 in 1 | On/Off LED Driver |
CCT Dimmer | √ | × | × |
Brightness | √ | √ | × |
ON/OFF Switch | √ | √ | √ |
Input Voltage | 120V 60Hz | 120V 60Hz | 120V 60Hz |
Output Voltage | 12/24/48V | 12/24/48V | 12/24/48V |
Output Power | 60/96/120/160W | 60/96/120/160W | 60/96/120/160W |
3-Way/single Pole | 3-Way / Single Pole | 3-Way / Single Pole | 3-Way / Single Pole |
Certificated | UL/cUL Listed | UL/cUL Listed | UL/cUL Listed |
60W 96W 100W 120W 160W Constant Voltage Non-Dimmable Driver+ Switch 2 in 1 12V 24V 48V Output
All-in-one Driver+Switch, offering multiple voltage outputs for various lighting setups.
Driver+Switch 2 in 1: Supports 99% dimmable LEDs, 60-160W, multiple voltages and fixture types.
Same look as a wall switch, but built in led driver.

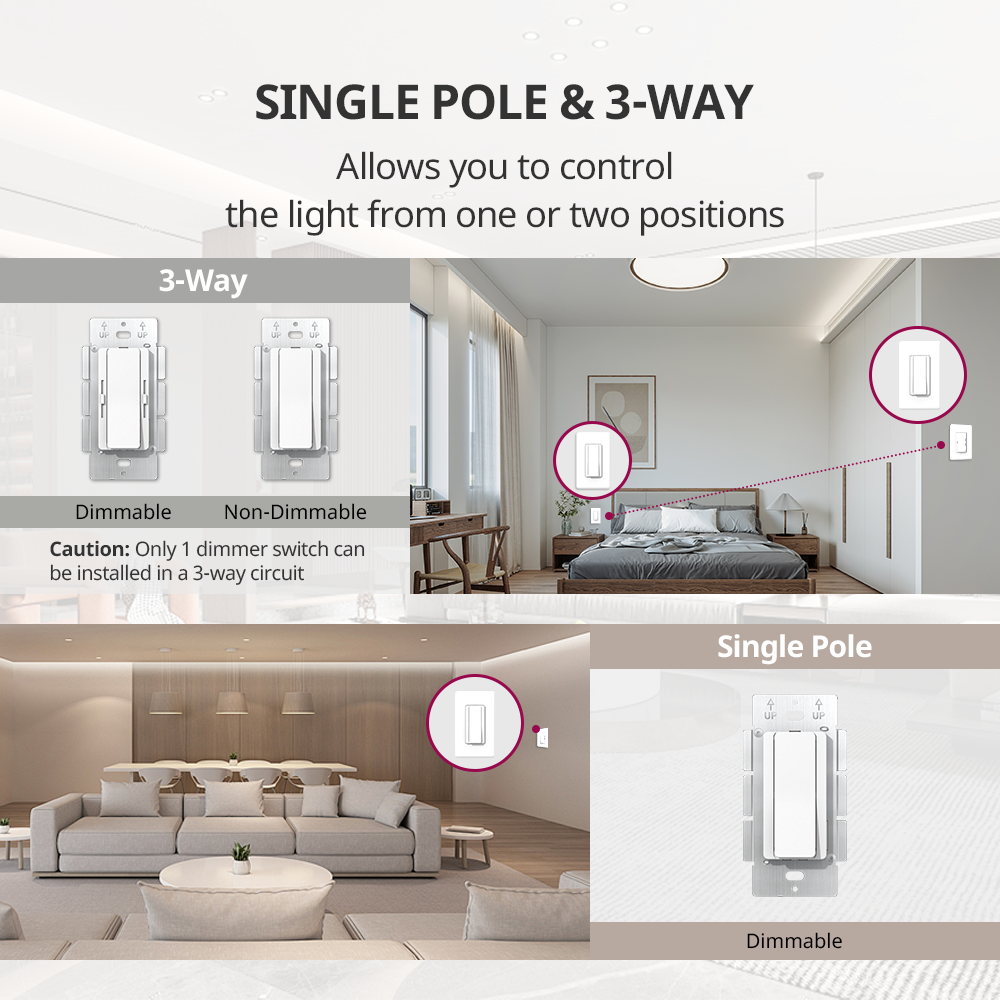

Driver+Switch 2 in 1 offers versatile installation for both single-pole and 3-way circuits, enabling multi-location lighting control.
Our 2-in-1 driver and dimmer delivers completely flicker-free light, ensuring a comfortable and safe lighting experience.
Output Power | Model Number | Output Voltage | Output Current | Size | Weight |
60W | SDD-12060-ND | 12V | 5000mA | 105*54*52mm | 0.25kg |
SDD-24060-ND | 24V | 2500mA |
SDD-48060-ND | 48V | 1250mA |
96W | SDD-24096-ND | 24V | 4000mA | 105*54*52mm | 0.27kg |
SDD-48096-ND | 48V | 2000mA |
100W | SDD-24100-ND | 24V | 4170mA | 105*54*52mm | 0.25kg |
SDD-48100-ND | 48V | 2080mA |
120W | SDD-12120-ND | 12V | 10000mA | 105*54*52mm | 0.27kg |
160W | SDD-24160-ND | 24V | 6670mA |
SDD-48160-ND | 48V | 3330mA |
Output: | Constant Voltage |
Input Range: | 120VAC |
PFC design: | Built-in active PFC function |
Protections: | Short circuit/ Over load/ Over temperature |
Heat dissipation: | Cooling by free air convection |
Waterproof performance: | For dry and damp locations ( US ) |
Design features:
| 1) Fine-tune output voltage can be adjusted slightly 2) ON/OFF Switch 3) 3-Way switches 4) Output Class 2 5) Eliminated compatibility issues between drivers and switches |
Application: | Suitable for the application of LED lighting |
Warranty: | 5 years warranty |
Others: | Flicker-free |
Product Mode | | SDD-CCT | | SDD-DIM | | SDD-ND |
Built in LED Driver | CCT LED Driver+Dimmer 2 in 1 | Dimming LED Driver+Dimmer 2 in 1 | On/Off LED Driver |
CCT Dimmer | √ | × | × |
Brightness | √ | √ | × |
ON/OFF Switch | √ | √ | √ |
Input Voltage | 120V 60Hz | 120V 60Hz | 120V 60Hz |
Output Voltage | 12/24/48V | 12/24/48V | 12/24/48V |
Output Power | 60/96/120/160W | 60/96/120/160W | 60/96/120/160W |
3-Way/single Pole | 3-Way / Single Pole | 3-Way / Single Pole | 3-Way / Single Pole |
Certificated | UL/cUL Listed | UL/cUL Listed | UL/cUL Listed |
60W 96W 100W 120W 160W Constant Voltage Non-Dimmable Driver+ Switch 2 in 1 12V 24V 48V Output
All-in-one Driver+Switch, offering multiple voltage outputs for various lighting setups.
Driver+Switch 2 in 1: Supports 99% dimmable LEDs, 60-160W, multiple voltages and fixture types.
Same look as a wall switch, but built in led driver.
Driver+Switch 2 in 1 offers versatile installation for both single-pole and 3-way circuits, enabling multi-location lighting control.
Our 2-in-1 driver and dimmer delivers completely flicker-free light, ensuring a comfortable and safe lighting experience.
