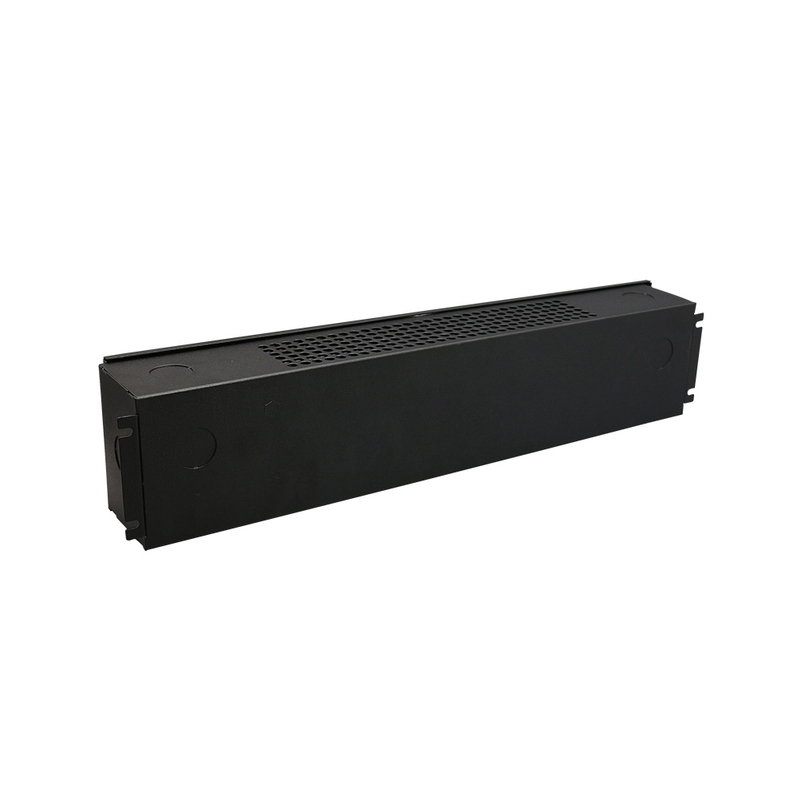

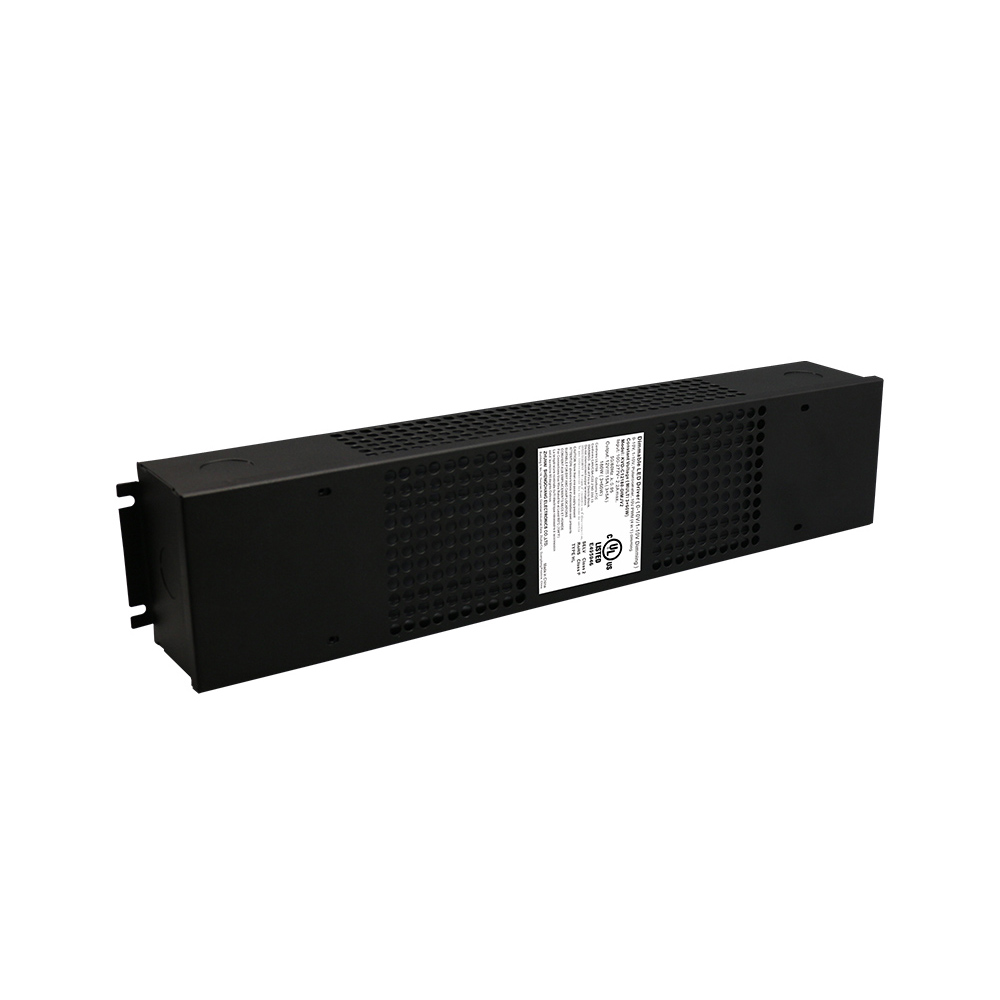

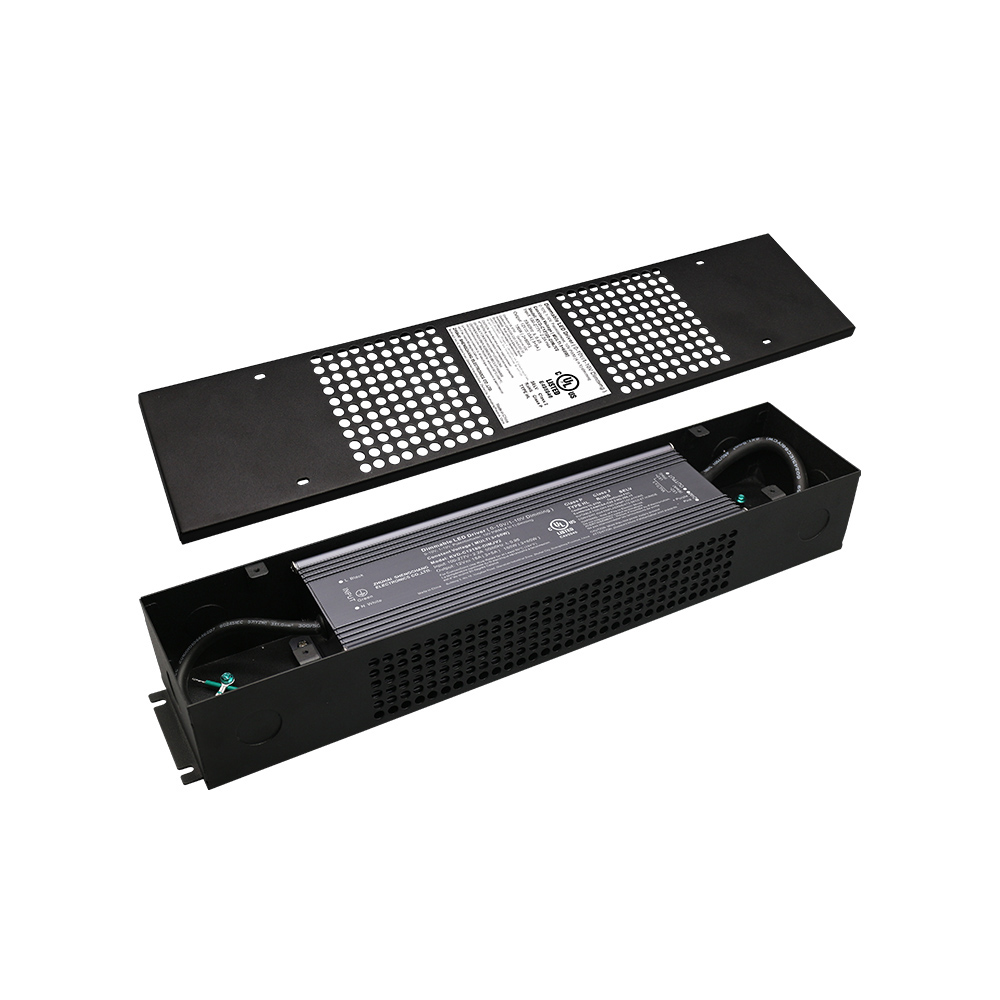

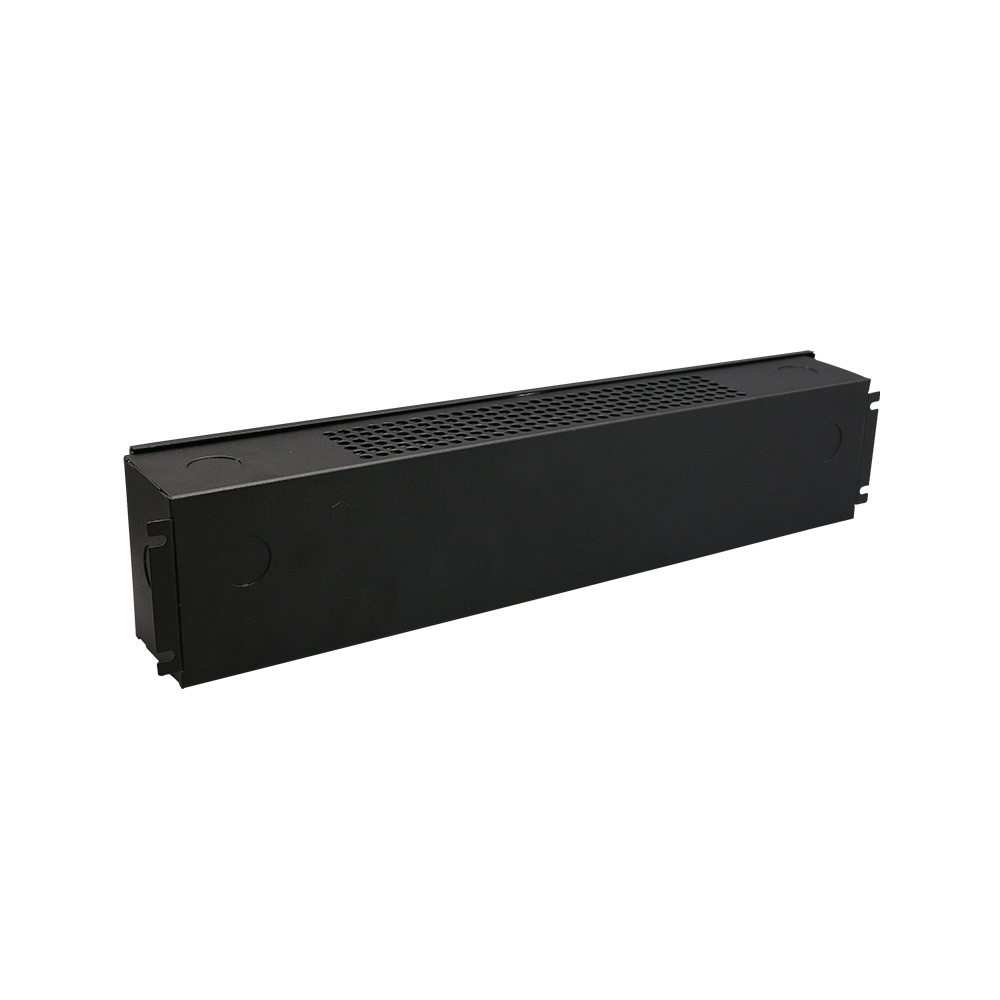

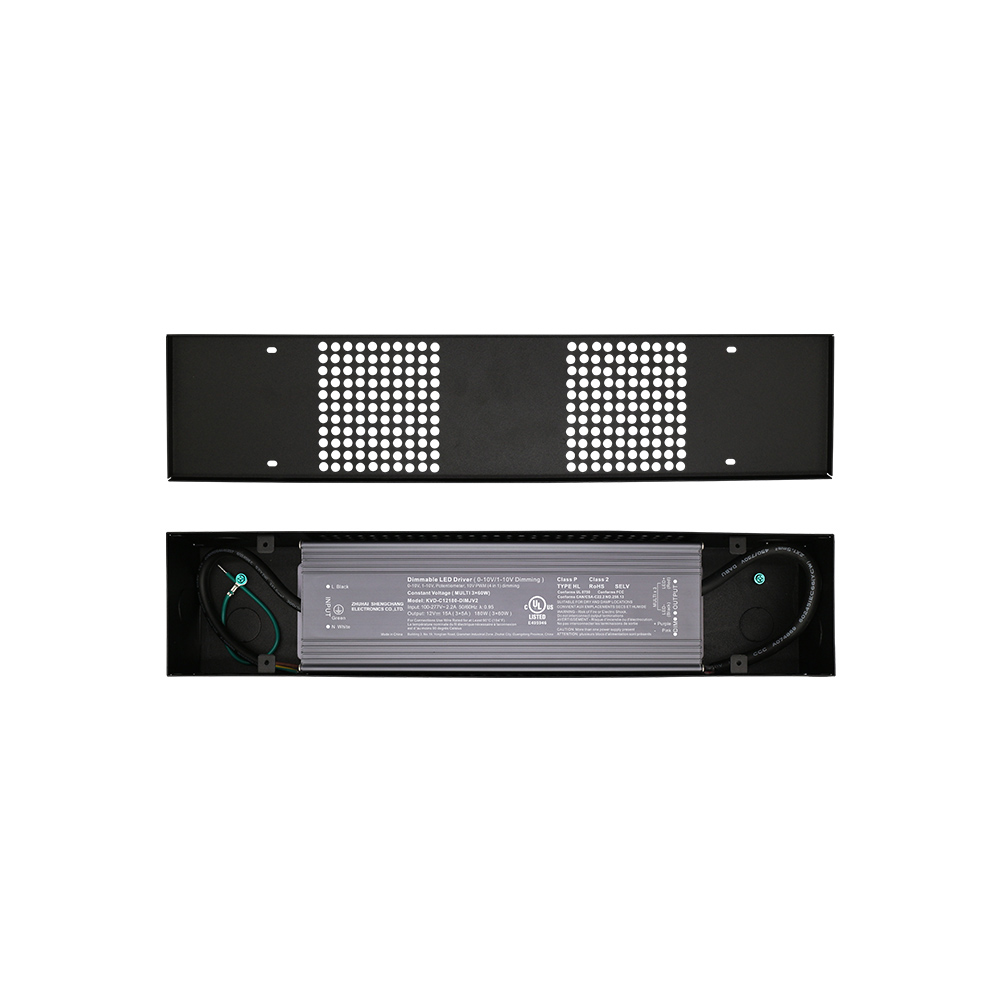

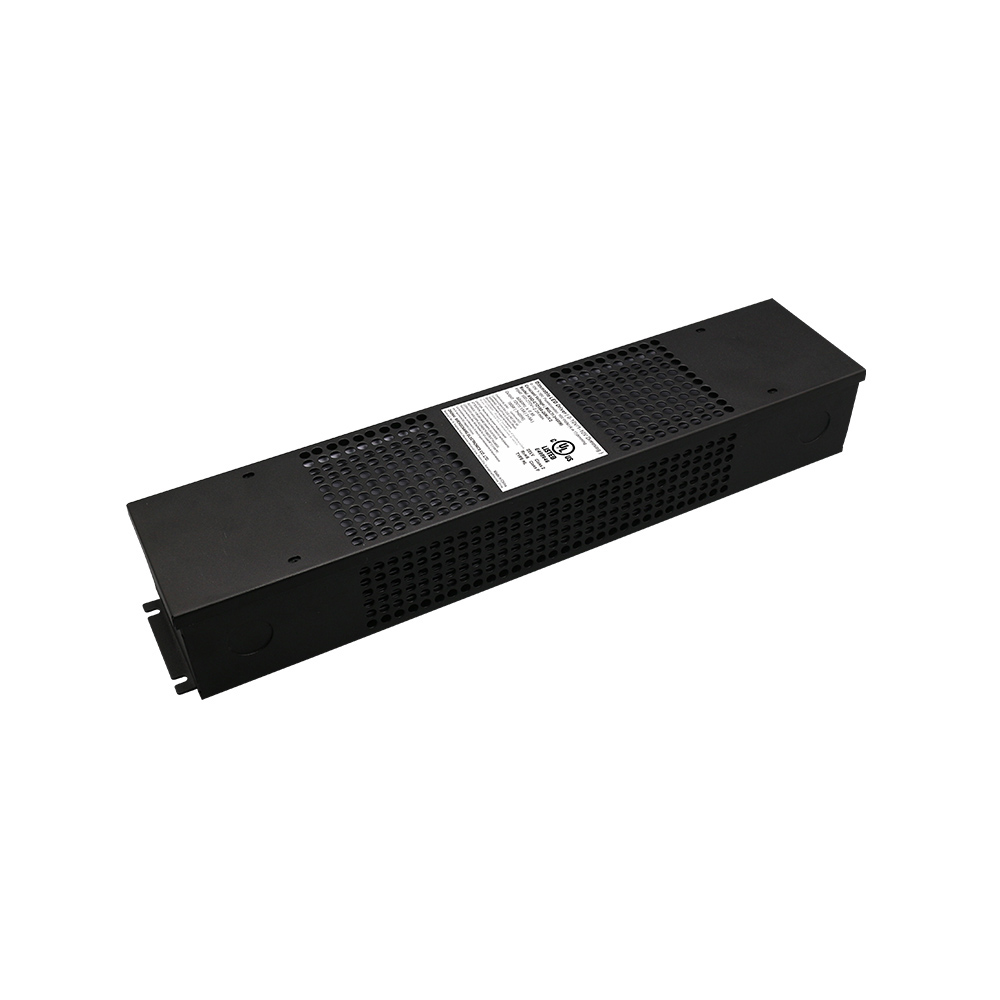

180W 192W 288W 384W 0-10V Dimmable Led Driver Supply CV 12V 24V 36V 48V for Separated Junction Box Driver
Output:
Constant Voltage
Range:
100-277VAC
PFC design:
Built-in active PFC function
Protections:
Short circuit/ over load/ over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For dry, damp & wet location
Dimming function:
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range: 0-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty
Specification
Output Power
Model Number
Output Voltage
Output Current
Input Voltage
Size
Weight

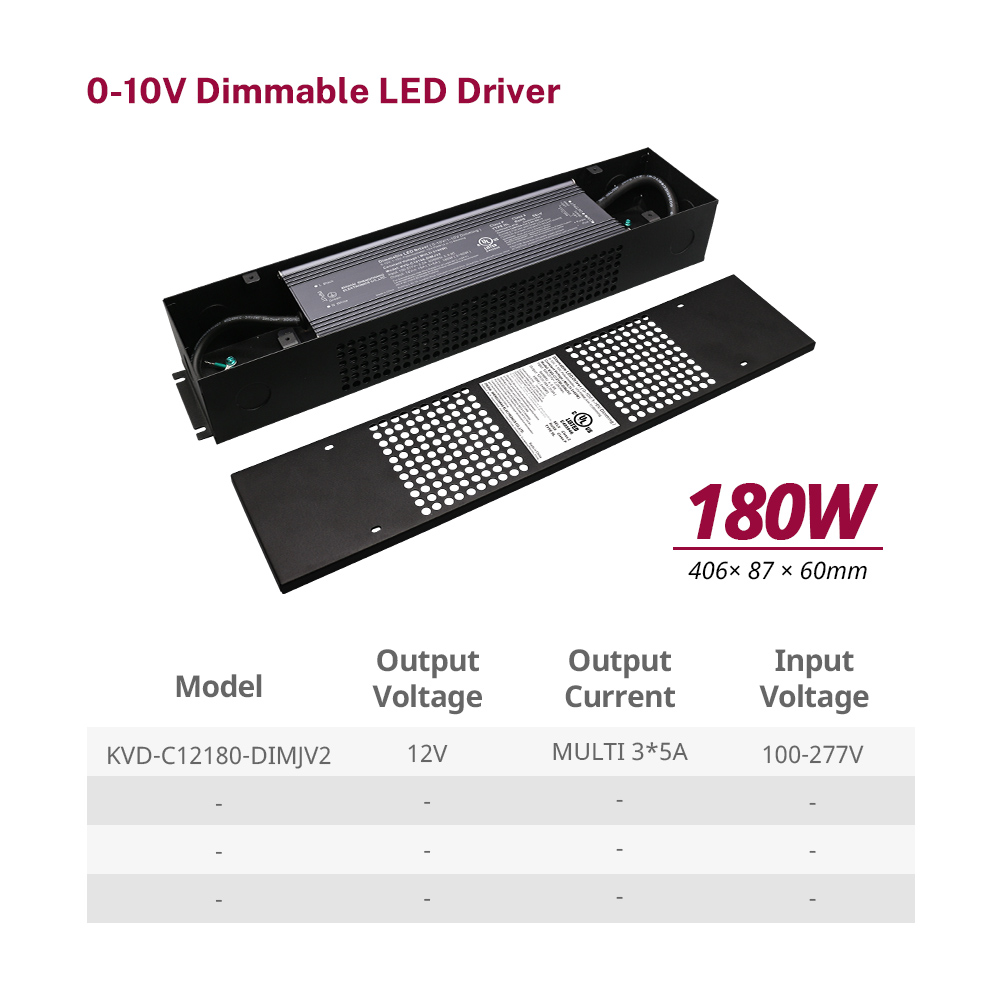

180W (60W * 3)
KVD-C12180-DIMJV2
12V
5A * 3
100-277V
J8:406*87*60mm
2.5kg
192W (96W * 2)
KVD-C24192-DIMJV2
24V
4A * 2
KVD-C36192-DIMJV2
36V
2.67A * 2
KVD-C48192-DIMJV2
48V
2A * 2
288W (96W * 3)
KVD-C24288-DIMJV2
24V
4A * 3
100-277V
J30:455*87*60mm
2.5kg
KVD-C36288-DIMJV2
36V
2.67A * 3
KVD-C48288-DIMJV2
48V
2A * 3
384W (96W * 4)
KVD-C24384-DIMJV2
24V
4A * 4
100-277V
J30:455*87*60mm
2.6kg
KVD-C36384-DIMJV2
36V
2.67A * 4
KVD-C48384-DIMJV2
48V
2A * 4
0-10V LED Power Supply Wiring Diagram
180W 192W 288W 384W 0-10V Dimmable Led Driver Supply CV 12V 24V 36V 48V for Separated Junction Box Driver
This power supply, designed specifically for separate junction boxes, originates from our specialized Vietnam factory. It enables separate installation of the power unit and the junction box, providing great flexibility for projects with space constraints. Offering multiple DC output voltages and supporting 0-10V dimming, you can easily match various LED fixtures. It is an ideal Vietnam-manufactured solution for applications like LED mesh screens.
