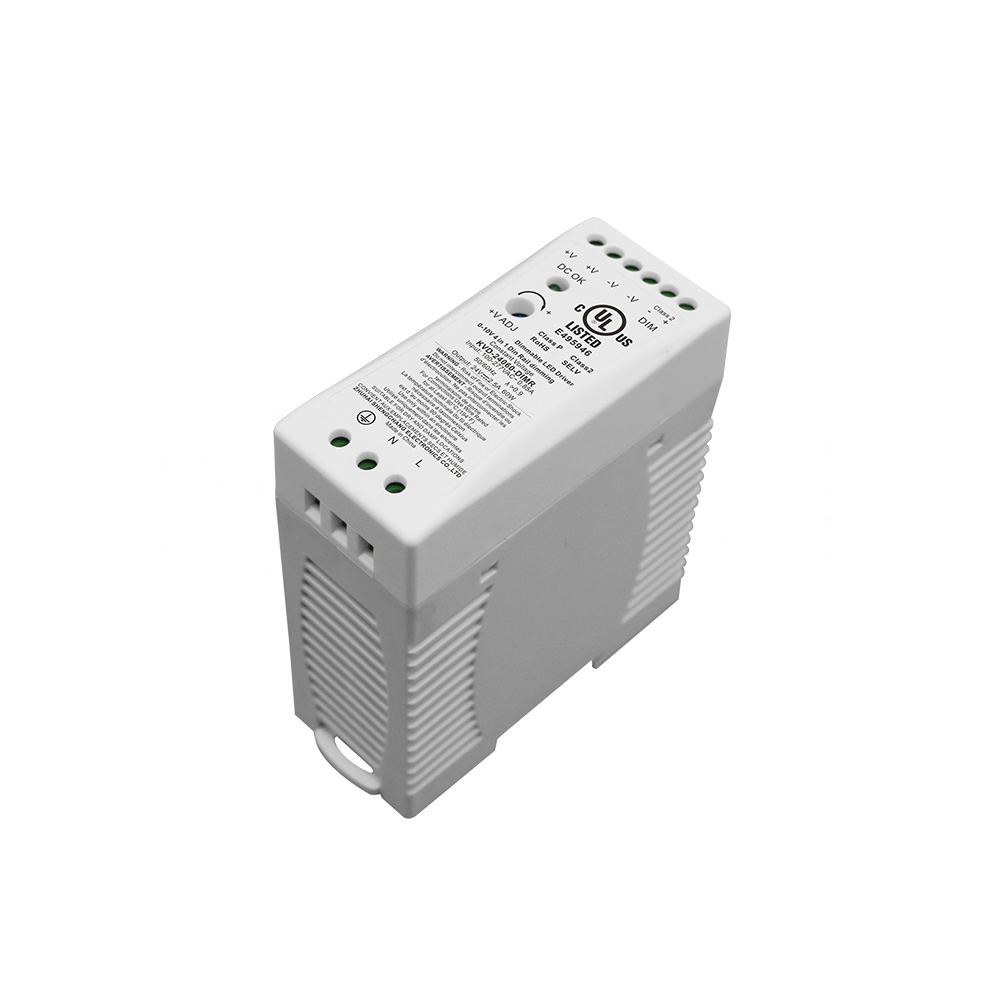

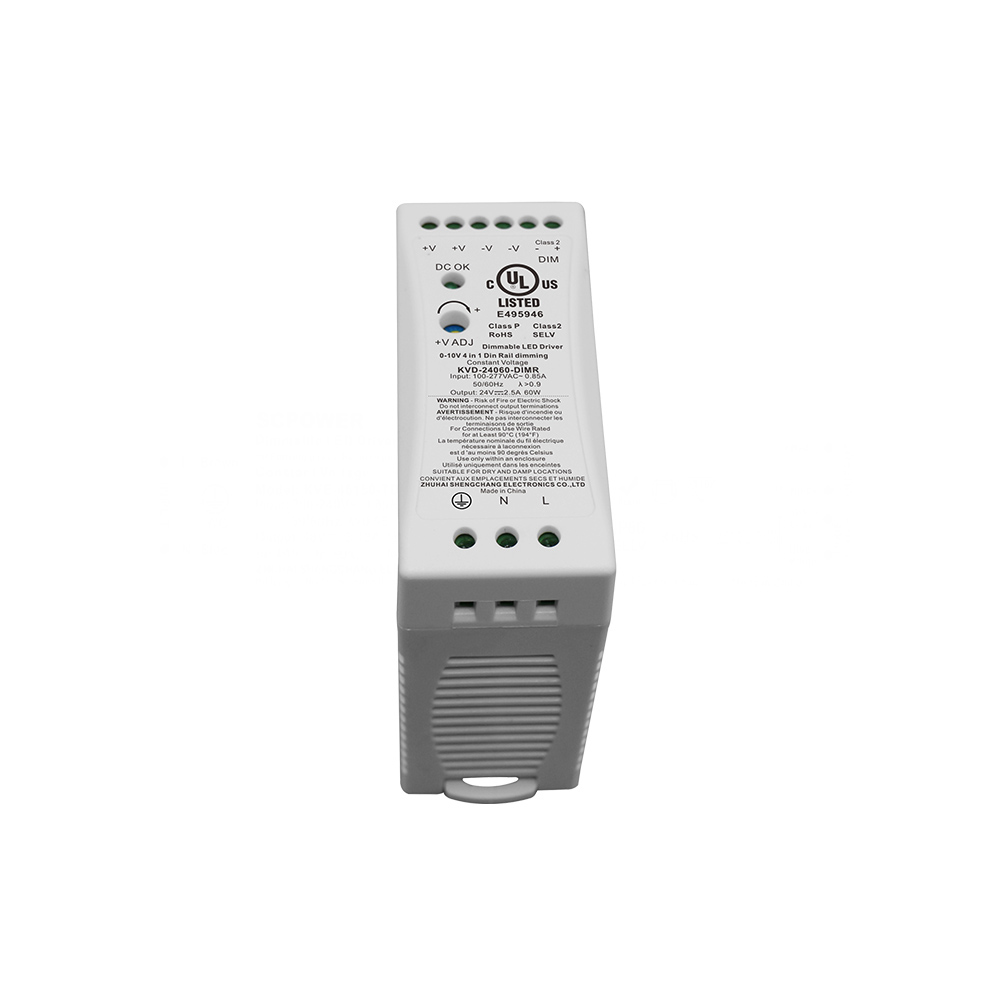

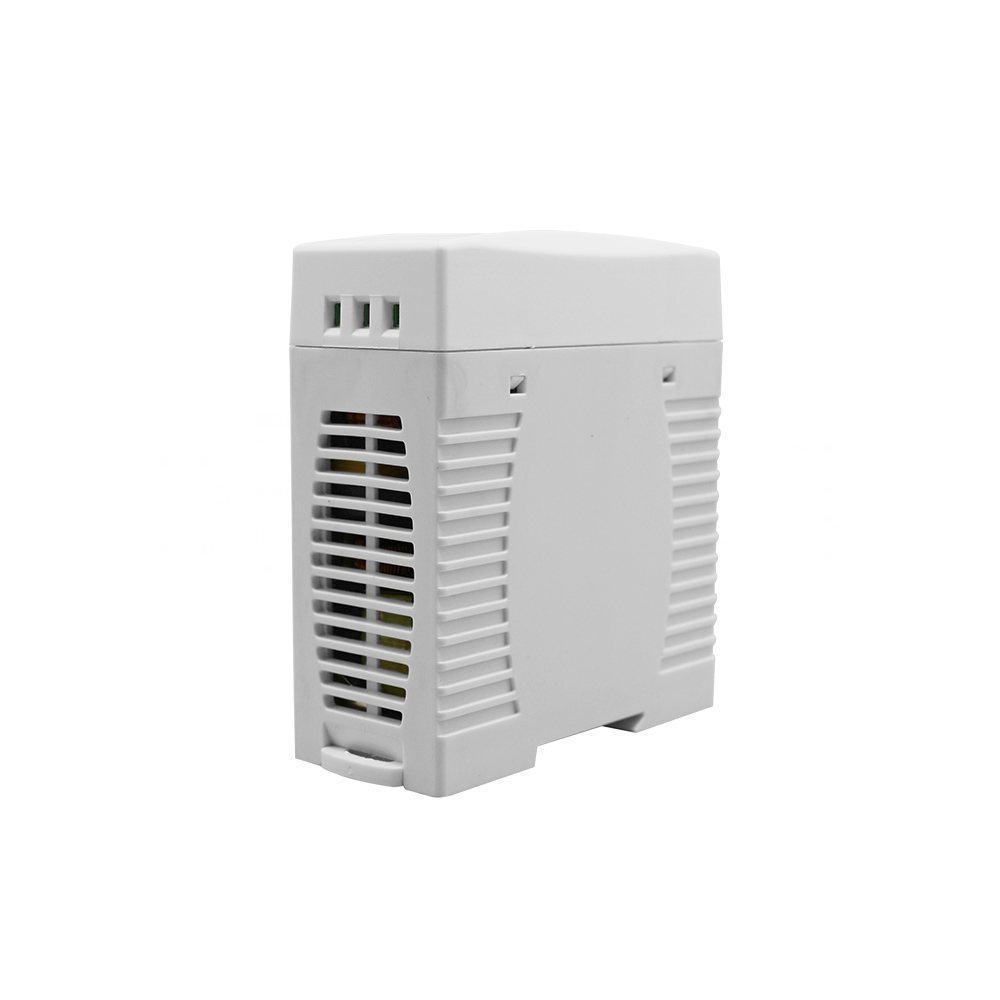

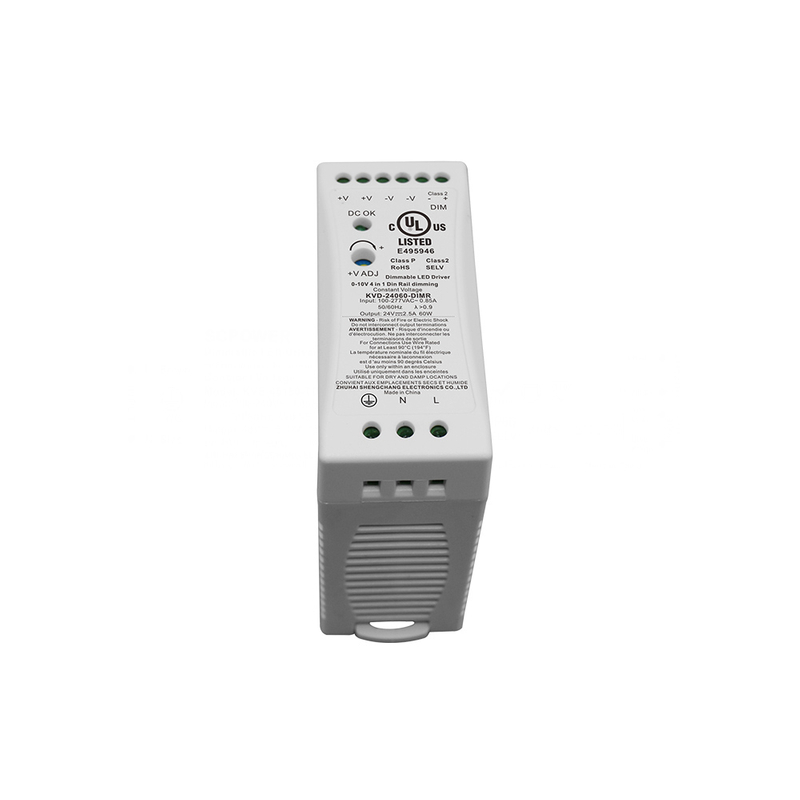

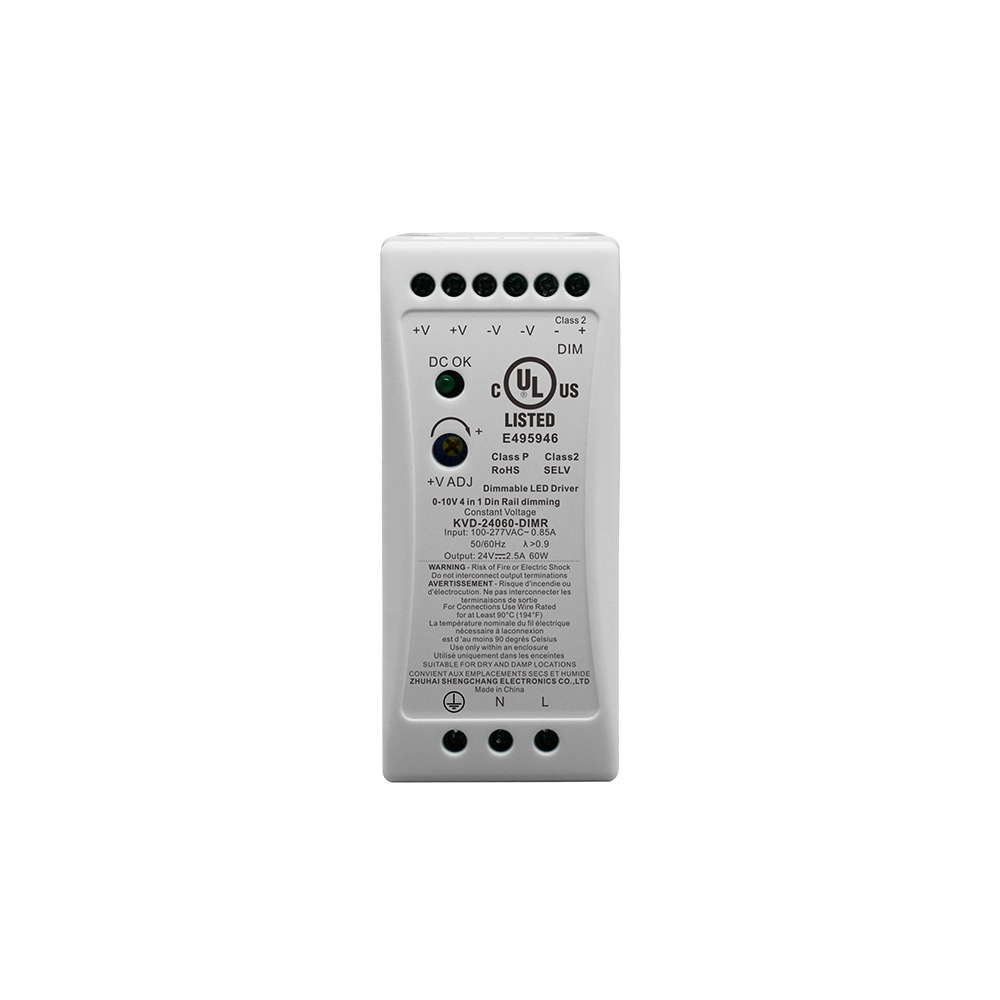

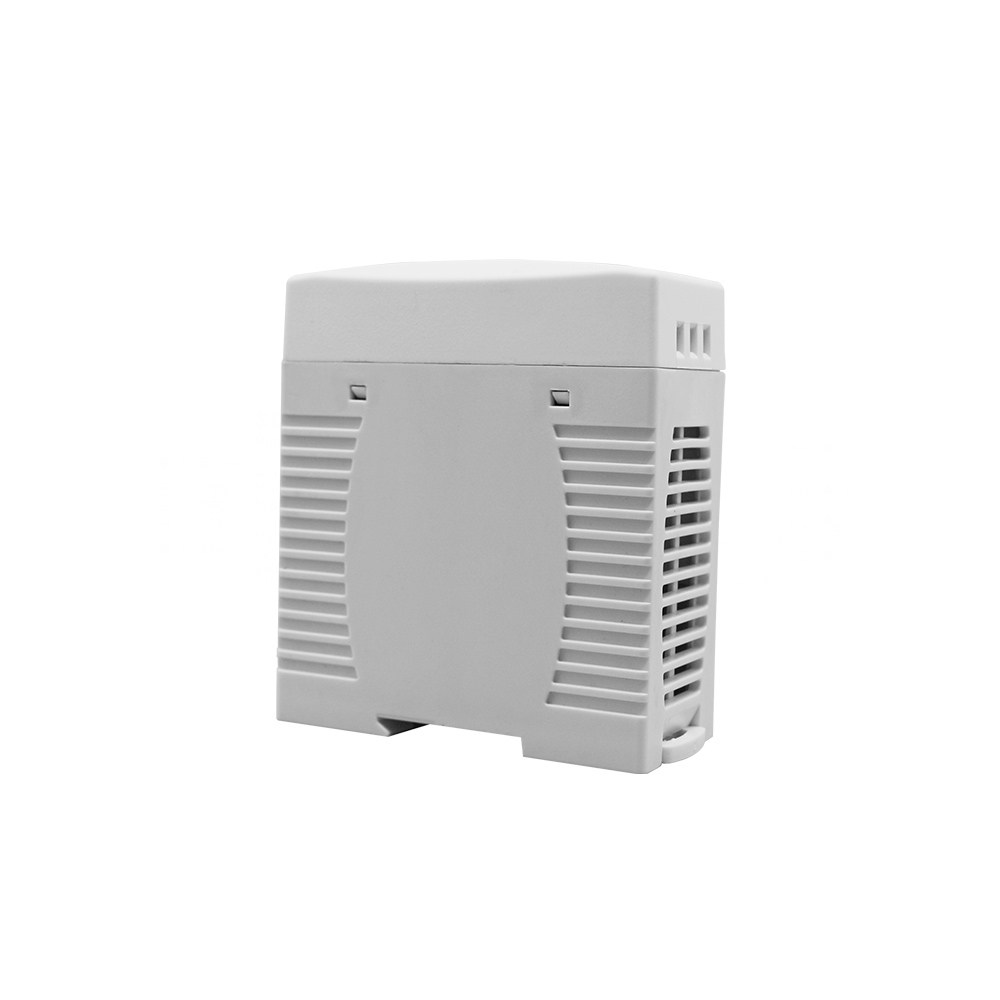

60W 0-10V Plastic Din Rail Driver Dimmable LED Driver CV 100 ac to 12v 24v 48v dc output Made in Vietnam
Output:
Constant Voltage
Range:
100-277VAC
PFC design:
Built-in active PFC function
Protections:
Short circuit/ over load/ over temperature
Heat dissipation:
Cooling by free air convection
Waterproof performance:
For dry, damp location
Dimming function:
0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1
Dimming range: 0-100%
Application:
Suitable for LED lighting and moving sign applications
Warranty:
5 years warranty

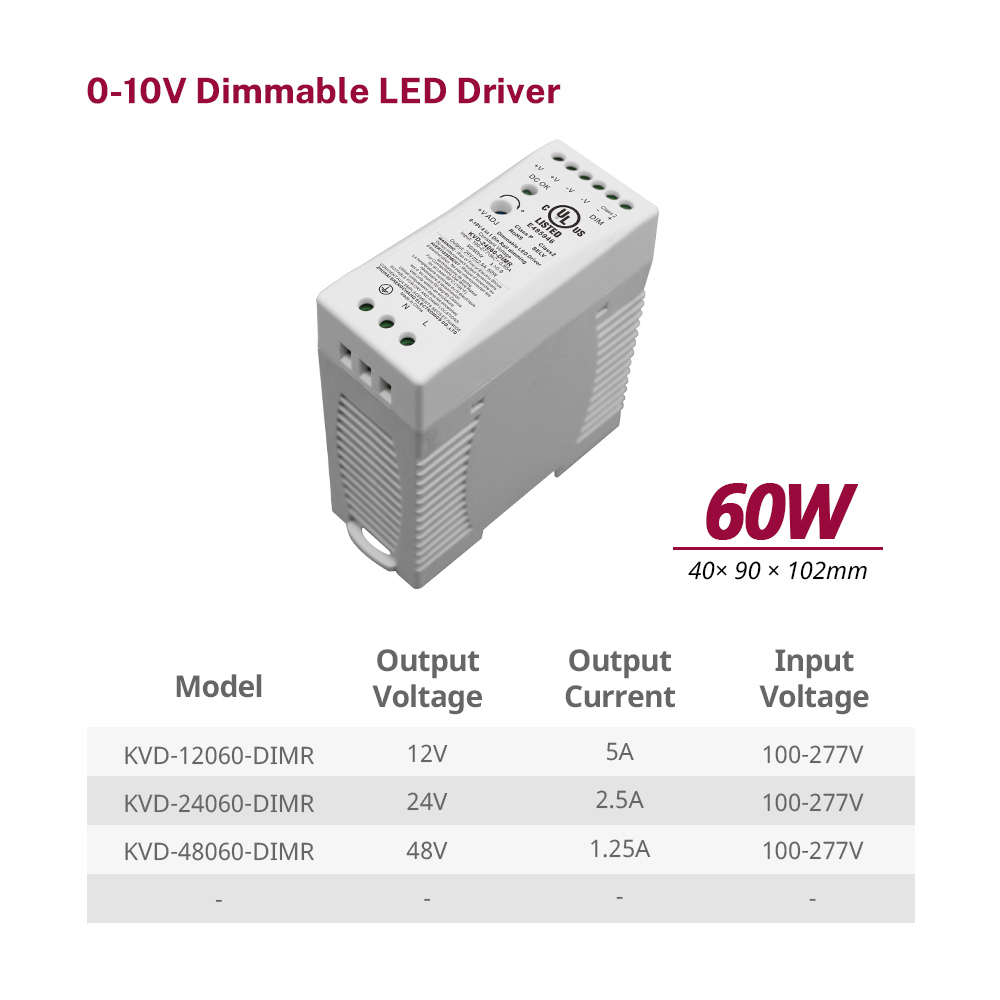

Output Power
Model Number
Output Voltage
Output Current
Size
Weight
60W
KVD-12060-DIMR
12V
5A
40*90*102mm
0.30kg
KVD-24060-DIMR
24V
2.5A
KVD-48060-DIMR
48V
1.25A
0-10V LED Power Supply Wiring Diagram
This innovative 60W plastic DIN rail-mounted power supply provides an elegant solution for lighting power supply within electrical control cabinets. Crafted in our Vietnam facility, it uses a high-strength plastic housing, is lightweight, and easy to install on international standard DIN rails. It accepts a wide input of 100VAC, provides stable DC output, and integrates 0-10V dimming function, making it a compact and efficient choice from Vietnam's industrial manufacturing sector.
