60W 80W 96W 100W 120W 150W 192W 288W 200W 300W CV Class 2 Class P Wet Built in PFC Junction Box Switching Power Supply 120-277V AC to DC

Ouput Power:
60W
80W
96W
100W
120W
150W
192W
200W
288W
300W
Availability:
Inquire Add to Basket

  • KVS-J

  • SURETRON

  • Non-Dimming

  • Isolated

  • Constant Voltage

  • Non-Dimming

  • IP66

  • 120-277VAC

  • 60W, 80W, 96W, 100W, 120W, 150W, 200W, 300W, 192W, 288W

  • 12V/ 24V/ 36V/ 48V

  • UL & cUL, FCC, CE, RoHS, REACH, SELV, Class P

Advantage

60W 80W 96W 100W 120W 150W 192W 288W 200W 300W CV Class 2 Class P Wet Built in PFC Junction Box Switching Power Supply 120-277V AC to DC

Features

Output:

Constant Voltage

Input Range:

120-277VAC

PFC design:

Built-in active PFC function

Efficiency:

Up to 95.3%

Protections:

Short circuit/ over load/ over temperature

Heat dissipation:

Cooling by free air convection

Waterproof performance:

Full aluminum protection housing, for dry, damp & wet locations.

Application:

Suitable for LED lighting and moving sign applications

Warranty:

5 years warranty

Others:

Flicker-free
Specification

Output Power

Model Number

Output Voltage

Output Current

Size

Weight

60W

KVS-12060-J

12V

5A

165.4*80*40.4mm

/

KVS-24060-J

24V

2.5A

KVS-36060-J

36V

1.67A

KVS-48060-J

48V

1.25A

80W

KVS-12080-J

12V

6.67A

165.4*80*40.4mm

/

96W

KVS-24096-J

24V

4A

165.4*80*40.4mm

/

KVS-36096-J

36V

2.67A

KVS-48096-J

48V

2A

100W

KVS-24100-J

24V

4.17A

165.4*80*40.4mm

/

KVS-36100-J

36V

2.78A

KVS-48100-J

48V

2.08A

120W
(2*60W Class 2)

KVS-C12120-J

12v

MULTI 2*5A

185.4*80*40.4mm

/

150W

KVS-12150-J

12V

12.5A

185.4*80*40.4mm

0.59kg

KVS-24150-J

24V

6.25A

KVS-36150-J

36V

4.17A

KVS-48150-J

48V

3.13A

192W
(2*96W Class 2)

KVS-C24192-J

24V

MULTI 2*4A

185.4*80*40.4mm

/

KVS-C36192-J

36V

MULTI 2*2.67A

KVS-C48192-J

48V

MULTI 2*2A

200W

KVS-12200-J

12V

16.67A

185.4*80*40.4mm

0.59kg

KVS-24200-J

24V

8.34A

KVS-36200-J

36V

5.56A

KVS-48200-J

48V

4.17A

288W
(3*96W Class 2)

KVS-C24288-J

24V

MULTI 3*4A

189*103.5*40.4mm

1.12kg

KVS-C36288-J

36V

MULTI 3*2.67A

KVS-C48288-J

48V

MULTI 3*2A

300W

KVS-12300-J

12V

25A

189*103.5*40.4mm

/

KVS-24300-J

24V

12.5A

KVS-36300-J

36V

8.33A

KVS-48300-J

48V

6.25A


Non-Dimmable LED Driver Wiring Diagram

Non-Dimmable LED Driver Wiring Diagram


Suretron KVS non-dimmable built-in junction box LED driver single output red and blue line connecting diagram showing safe wiring configuration.

download spec_150W Non-dim. CV driver KVS-J 12V&24V&48V&51V.pdf

download spec_200W Non-dim. CV driver KVS-J 24V&48V&51V.pdf

download spec_180W & 288W Non-dim. CV driver KVS-C-J 12V&24V&36V&48V.pdf

download spec_200W & 300W Non-dim. CV driver KVS-J 12V&24V&36V&48V.pdf

Previous:
Next:

Related Products

10W 3V-42V 100mA-450mA Circular Plastic Triac 0-10V Dimmable Driver Constant Current
10W Triac LED Driver Constant-Current Circular 100-277VAC Fixtures
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Warm-Dim CCT ON/OFF CCT Triac 0-10V Dimmable Driver
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Warm-Dim CCT ON/OFF CCT Triac 0-10V Dimmable Driver
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Triac Driver with Output Voltage Adjustment of 250Hz-25Hz Lighting
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Triac Driver with Output Voltage Adjustment of 250Hz-25Hz Lighting
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Screw-Free Built in Junction Box Triac Dimming Driver 0-10V 12V 24V 48V Output
30W 60W 80W 96W 120W 150W 192W 200W 288W 300W 500W 600W CV Screw-Free Built in Junction Box Triac Dimming Driver 0-10V 12V 24V 48V Output

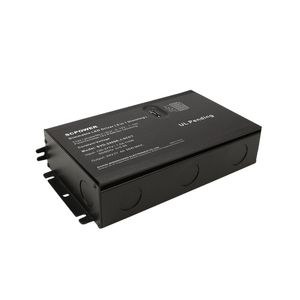

60W 80W 96W 120W 150W 192W 200W 288W 300W CV TRIAC 0-10V Dimmable Constant Voltage LED Driver 5CCT of LED Lighting
