Model:
KVS-AW
Brand:
SURETRON
Dimming Type:
Non-Dimming
Isolated Type:
Isolated
Output Type:
Constant Voltage
Output Channels:
Non-Dimming
IP Rate:
IP66
Input Voltage:
120-277VAC
Output Power:
60W, 80W, 96W, 100W, 120W, 150W, 200W, 300W, 192W, 288W
Output Voltage:
12V/ 24V/ 36V/ 48V
Certification:
CE, RoHS

Advantage

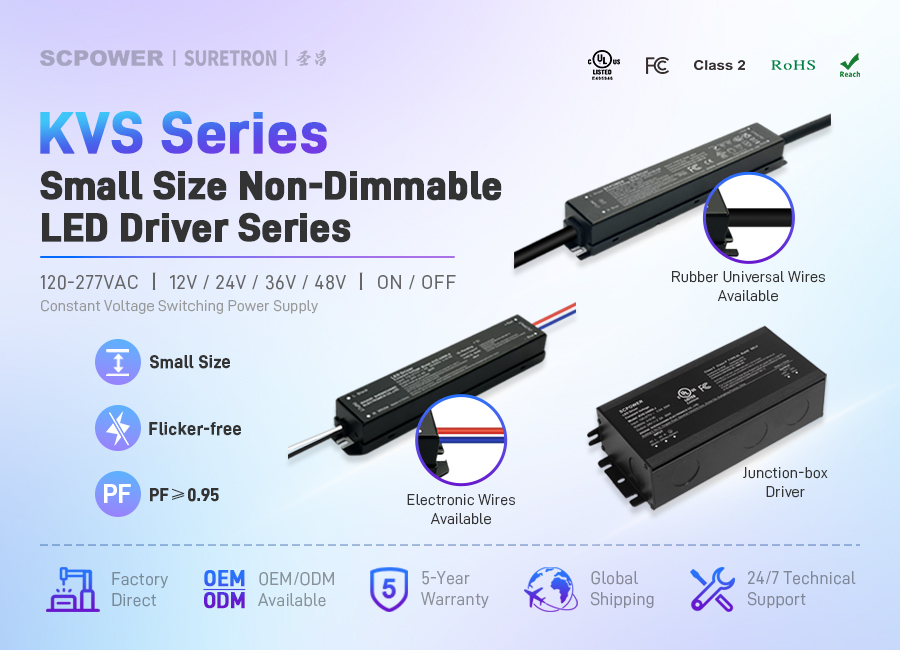

60W 80W 96W 100W 120W 150W 192W 288W 200W 300W Constant Voltage 47-63Hz Wet Switching Power Supply of Led Driver Light

Features
Output:	Constant Voltage
Range:	120-277VAC
PFC design:	Built-in active PFC function
Efficiency:	Up to 95%
Protections:	Short circuit / Over load / Over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	IP66 can be used indoor and outdoor. (EU) Full aluminum protection housing, for dry, damp &wet locations. (US)
Design features:	Smaller volume, high efficiency.
Dimming function:	Non-dimming
Application:	Suitable for the application of LED lighting
Warranty:	5 years warranty
Others:	Flicker-free

Specification

Output Power	Model Number	Output Voltage	Output Current	Size	Weight
60W	KVS-12060-AW	12V	5A	1642822.3mm	/
	KVS-24060-AW	24V	2.5A
	KVS-36060-AW	36V	1.67A
	KVS-48060-AW	48V	1.25A
80W	KVS-12080-AW	12V	6.67A	1642822.3mm	/
96W	KVS-24096-AW	24V	4A	1642822.3mm	/
	KVS-36096-AW	36V	2.67A
	KVS-48096-AW	48V	2A
100W	KVS-24100-AW	24V	4.17A	1642822.3mm	/
	KVS-36100-AW	36V	2.78A
	KVS-48100-AW	48V	2.08A
120W (2*60W Class 2)	KVS-C12120-AW	12v	MULTI 2*5A	185.48040.4mm	/
150W	KVS-12150-AW	12V	12.5A	1833027.8mm	/
	KVS-24150-AW	24V	6.25A
	KVS-36150-AW	36V	4.17A
	KVS-48150-AW	48V	3.13A
192W (2*96W Class 2)	KVS-C24192-AW	24V	MULTI 2*4A	1833027.8mm	/
	KVS-C36192-AW	36V	MULTI 2*2.67A
	KVS-C48192-AW	48V	MULTI 2*2A
200W	KVS-12200-AW	12V	16.67A	1833027.8mm	0.49kg
	KVS-24200-AW	24V	8.34A
	KVS-36200-AW	36V	5.56A
	KVS-48200-AW	48V	4.17A
288W (3*96W Class 2)	KVS-C24288-AW	24V	MULTI 3*4A	18743.529mm	0.49kg
	KVS-C36288-AW	36V	MULTI 3*2.67A
	KVS-C48288-AW	48V	MULTI 3*2A
300W	KVS-12300-AW	12V	25A	18743.529mm	/
	KVS-24300-AW	24V	12.5A
	KVS-36300-AW	36V	8.33A
	KVS-48300-AW	48V	6.25A

Non-Dimmable LED Driver Wiring Diagram

Suretron KVS non-dimmable LED driver multiple output red and black line connecting diagram displaying constant voltage wiring for LED lighting installation.

Suretron KVS non-dimmable LED driver single output red line and black line connecting diagram showing constant voltage wiring for LED lighting systems.
