30W 60W CV Plastic 0-10V Dimmable Led Power Supply with Junction Box Made in Vietnam

Output:	Constant Voltage
Range:	100-277VAC
PFC design:	Built-in active PFC function
Protections:	Short circuit/ over load/ over temperature
Heat dissipation:	Cooling by free air convection
Waterproof performance:	For dry, damp & wet location
Dimming function:	0-10V dimming: 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 Dimming range: 0-100%
Application:	Suitable for LED lighting and moving sign applications
Warranty:	5 years warranty

Specification

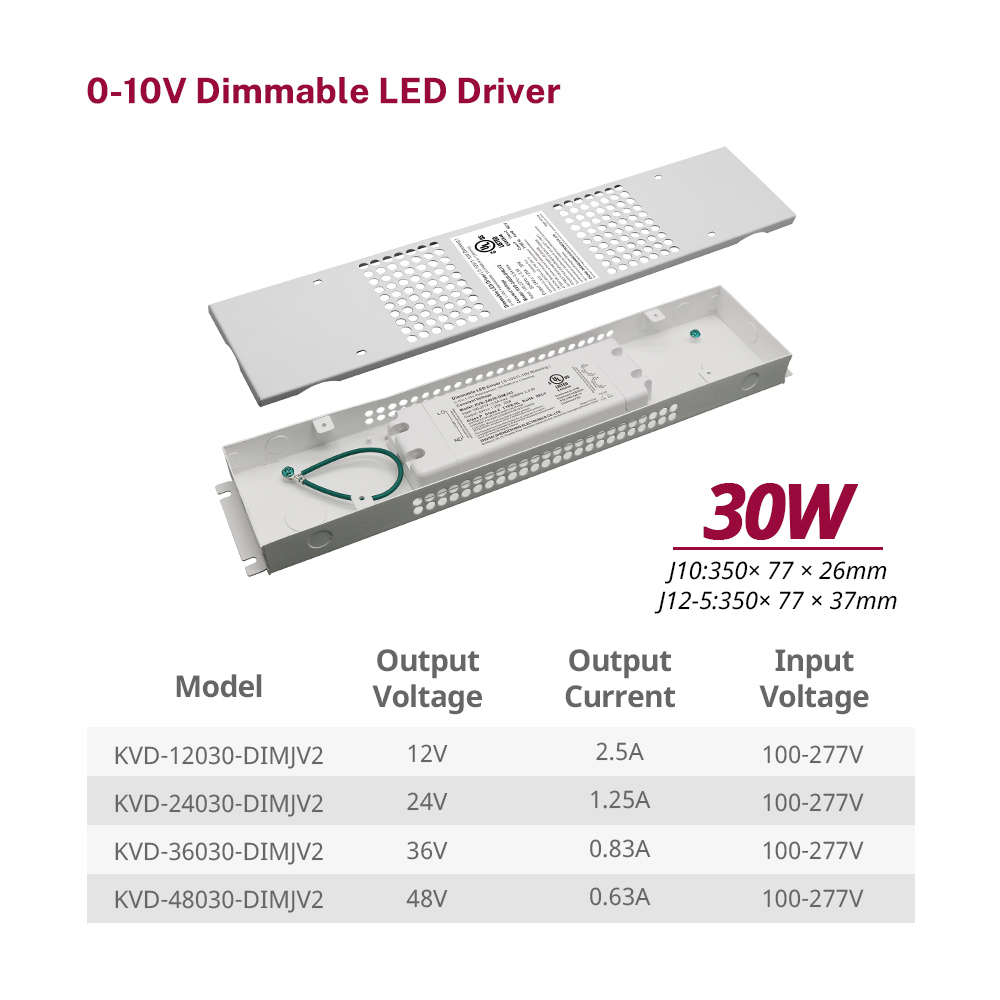

Output Power	Model Number	Output Voltage	Output Current	Size/Weight
30W	KVD-12030-DIMJV2	12V	2.5A	J10:3507726mm/0.7kg J12-5:3507737mm/0.8kg
	KVD-24030-DIMJV2	24V	1.25A
	KVD-36030-DIMJV2	36V	0.83A
	KVD-43030-DIMJV2	48V	0.63A
60W	KVD-12060-DIMJV2	12V	5A
	KVD-24060-DIMJV2	24V	2.5A
	KVD-36060-DIMJV2	36V	1.67
	KVD-48060-DIMJV2	48V	1.25A

0-10V LED Power Supply Wiring Diagram

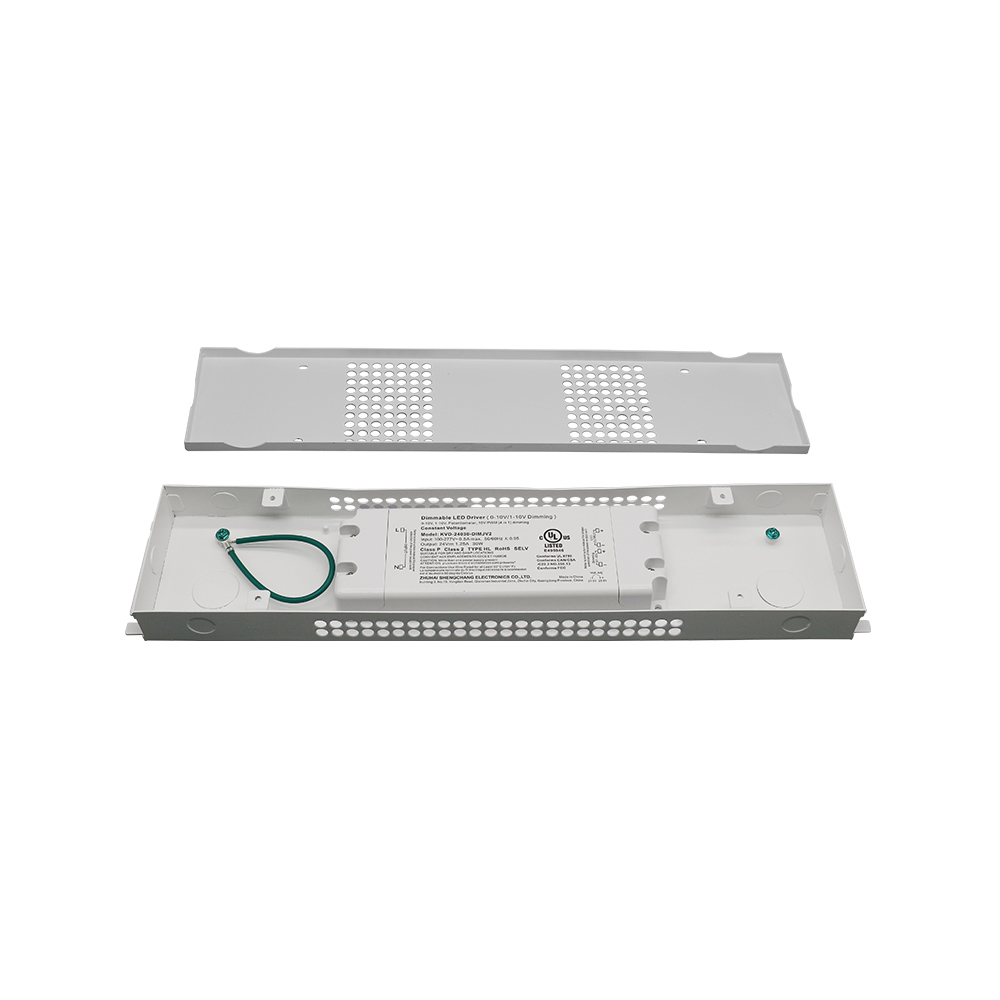

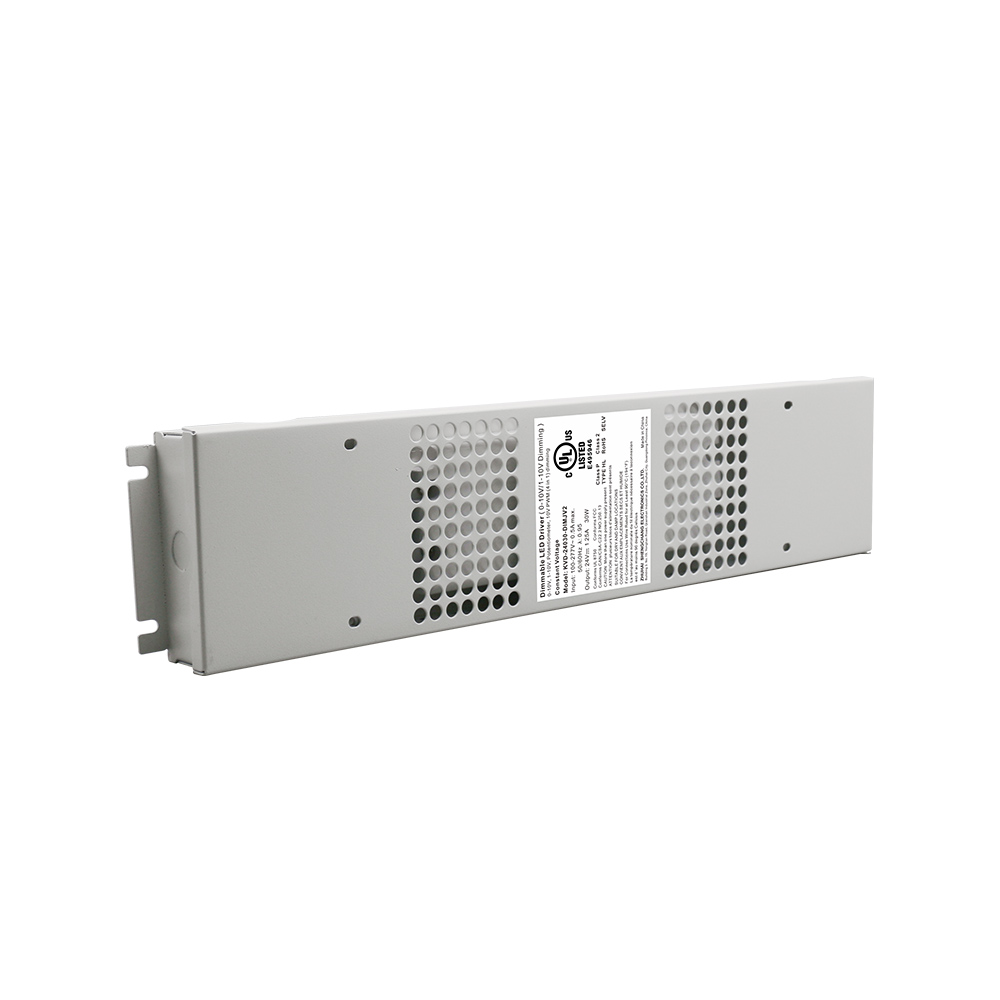

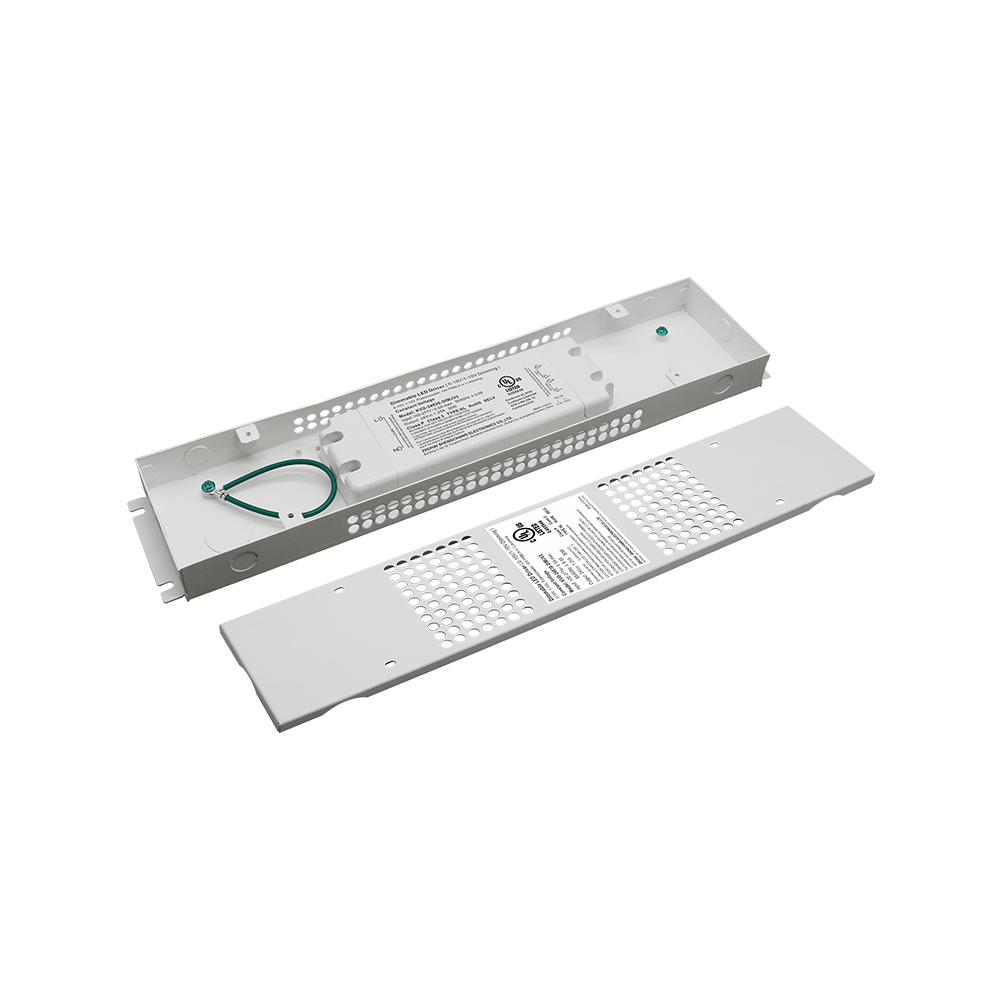

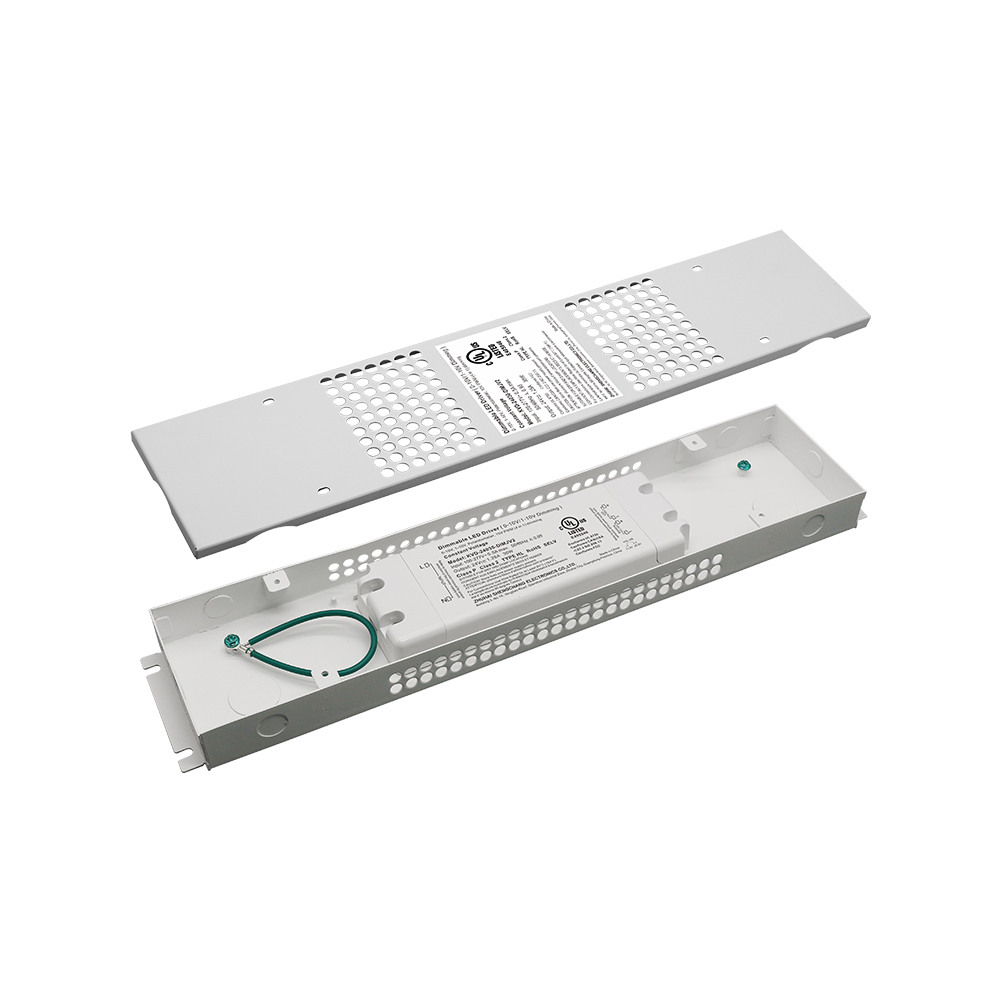

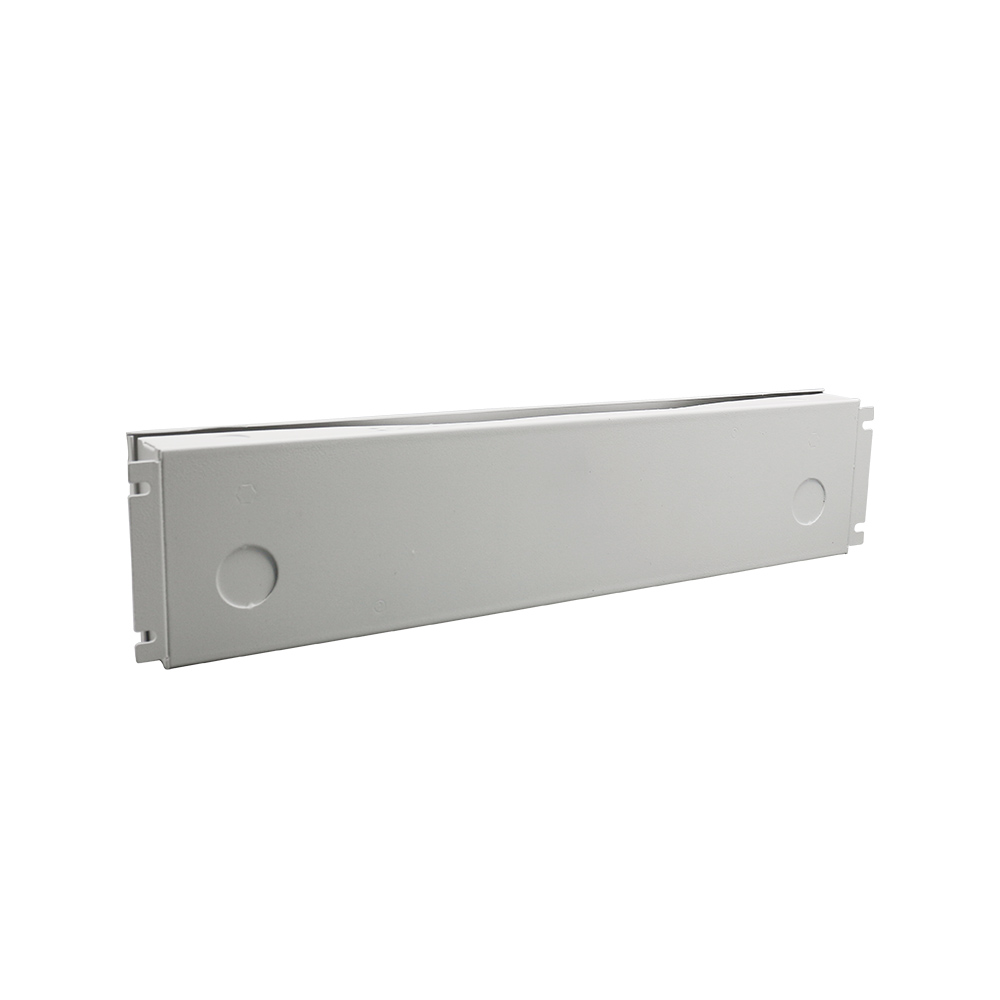

30W 60W CV Plastic 0-10V Dimmable Led Power Supply with Junction Box Made in Vietnam

0-10V LED Power Supply Wiring Diagram

This 30W/60W constant voltage plastic LED power supply with junction box, manufactured in Vietnam, is engineered for professional LED lighting systems. Featuring active PFC technology and a wide 100-277VAC input range, it delivers up to 87% efficiency with stable, energy-saving performance. The driver supports 0-10V 4-in-1 dimming (0-10V/1-10V/Potentiometer/10V PWM) from 0% to 100%, offers protection against short circuit, overload, and over-temperature, and is suitable for dry and damp locations—backed by a 5-year warranty for reliable commercial and residential applications.
